Identifying ignition wires

Reply



Old 09-13-17, 10:41 PM
  #1
Can Post Only in New Member Section
Thread Starter

Join Date: Sep 2017
Location: Utah
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
UT Identifying ignition wires

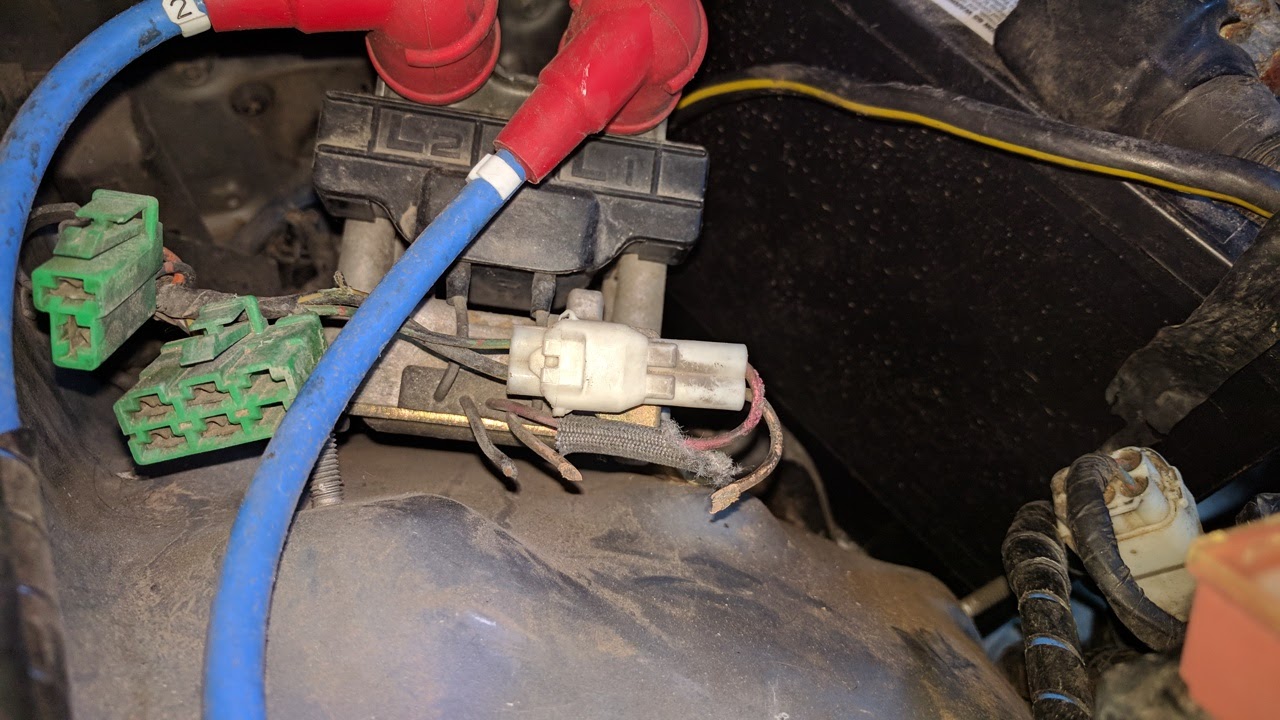

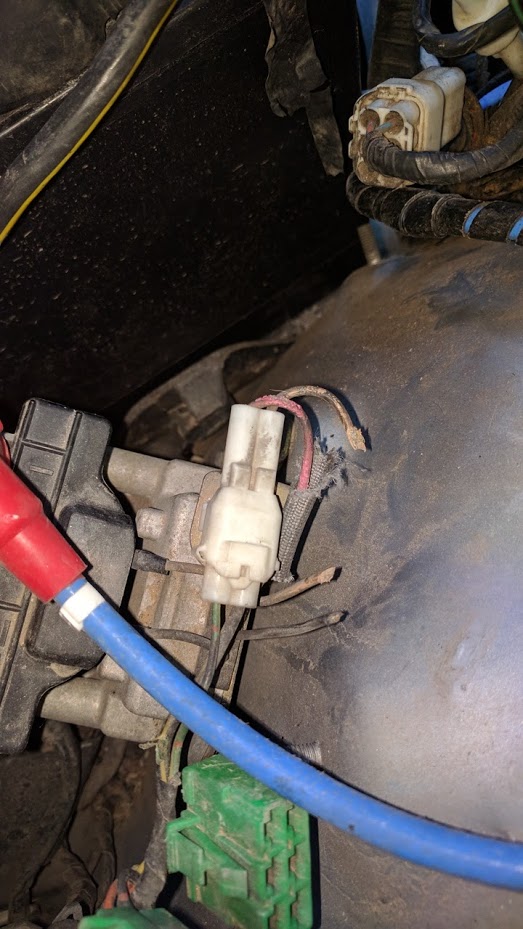

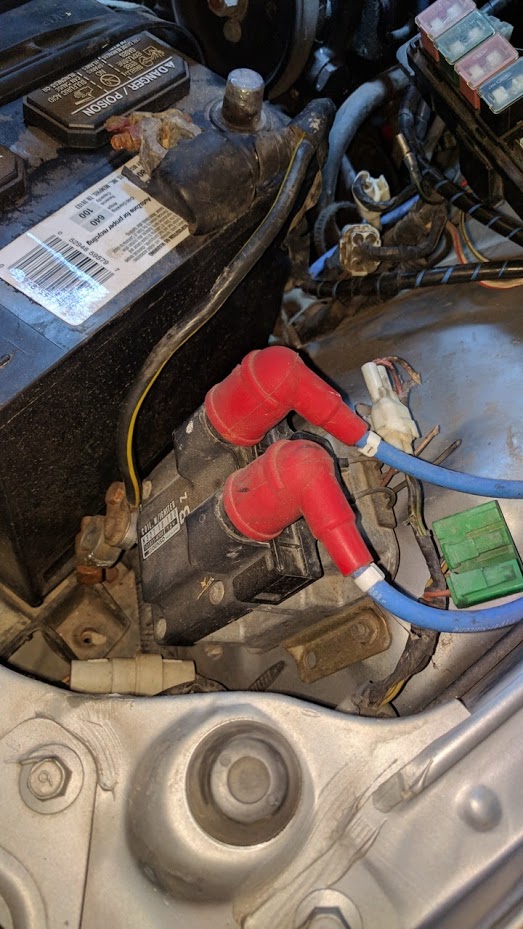

Hey guys I just got myself a 87 turbo II project. I'm completely new to rotaries and need some help identifying these ignition wires and where they go, I can tell where the brown wire goes but what about the black one? What are they?
Any help would be appreciated, thanks.

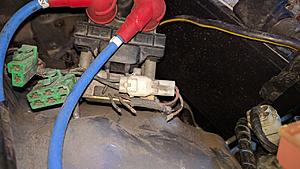

Attached Thumbnails Identifying ignition wires-img_20170912_175512.jpg   Identifying ignition wires-img_20170912_175522.jpg   Identifying ignition wires-img_20170912_175528.jpg
ypisoni is offline
Reply With Quote
Old 09-13-17, 11:29 PM
  #2
MODERATOR/Hall Monitor.
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,630
Thanks: 0
Thanked 59 Times in 54 Posts
I think that the black would be a single wire with a bullet connector (used for Tach,but usually not hooked up as the Tach signal comes off the Trailing coil,not the Leading coil you have posted a pic of).
misterstyx69 is online now
Reply With Quote
Old 09-13-17, 11:46 PM
  #3
Can Post Only in New Member Section
Thread Starter

Join Date: Sep 2017
Location: Utah
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Alright, I'll cap the black, reconnect the brown and see what happens, thank you!
