HELP...location of brass rod in Nikki 4 barrel
Rebuilding the Nikki 4 barrel on my 85 1.1
I am putting the mid section back together, the main body. There were two places where there were brass rods, (weights) and *****. One was the accelerator inlet and also the accelerator pump. Ive got those two back in.
However when I was taking apart the main body, a third brass rod "appeared". Well lets say it showed up on my work table towards the end of the process, it fell out of somewhere I guess. No third ball though.

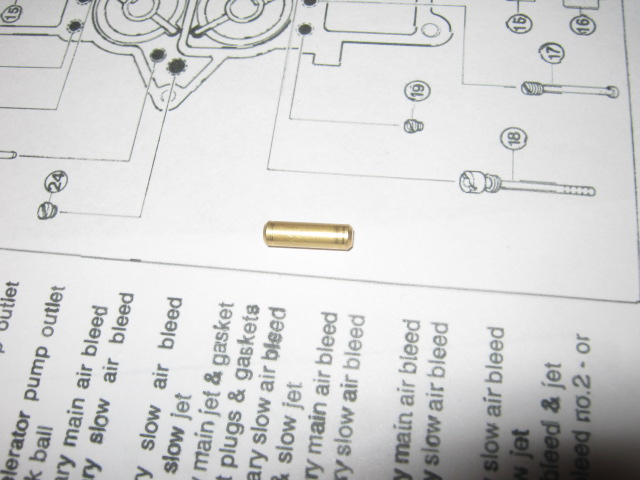

The rods that I already replaced were the real skinny one, that was the inlet...and the shorter wider one, that was in the pump. This third mystery rod has a diameter that is between the two that I put back already, and it is longer than either of them.
I will link up a picture.
What the heck is this one? If it WAS another weight, I would expect a third steel ball, but there are only two pictured. I have the diagrams from the carb kit, and also the web resources from wright-here.net. I can not find this rod pictured anywhere.
Any ideas or suggestions would be greatly apprecatied!
Nick
I am putting the mid section back together, the main body. There were two places where there were brass rods, (weights) and *****. One was the accelerator inlet and also the accelerator pump. Ive got those two back in.
However when I was taking apart the main body, a third brass rod "appeared". Well lets say it showed up on my work table towards the end of the process, it fell out of somewhere I guess. No third ball though.
The rods that I already replaced were the real skinny one, that was the inlet...and the shorter wider one, that was in the pump. This third mystery rod has a diameter that is between the two that I put back already, and it is longer than either of them.
I will link up a picture.
What the heck is this one? If it WAS another weight, I would expect a third steel ball, but there are only two pictured. I have the diagrams from the carb kit, and also the web resources from wright-here.net. I can not find this rod pictured anywhere.
Any ideas or suggestions would be greatly apprecatied!
Nick
#2
2stroke1971 (Neil)
Join Date: Oct 2012
Location: east coast
Posts: 121
Likes: 0
Received 0 Likes
on
0 Posts
found it
We found it, according to a drawing I made. It goes under the brass cap, in the
"richer circuit"...however, it is NOT pictured in any diagram I have laid eyes on, not the Hygrade diagram and not the Mazda nikki manual that i have. Must have been some odd variant.
Just another reason you should ALWAYS make your own drawings when taking something apart!
Neil (Nick's dad)
"richer circuit"...however, it is NOT pictured in any diagram I have laid eyes on, not the Hygrade diagram and not the Mazda nikki manual that i have. Must have been some odd variant.
Just another reason you should ALWAYS make your own drawings when taking something apart!
Neil (Nick's dad)
