New Member RX-7 Technical Post your first technical questions here, in an easy flame free environment, before jumping into the main technical sections.

do you know what this is ?????

Thread Tools

Search this Thread

Old Mar 5, 2009 | 08:58 PM
  #1
bprotary's Avatar
Thread Starter
Junior Member

Joined: Aug 2008
Posts: 43
Likes: 0
From: california 626
do you know what this is ?????

in my car this is just pluged up with a skrew, is it part of the omp? what do i do to it?
Reply
Old Mar 6, 2009 | 07:58 AM
  #2
Go48's Avatar
Rotary Freak
Tenured Member 15 Years
iTrader: (7)

Joined: Feb 2005
Posts: 1,608
Likes: 3
From: Mont Alto, PA
Originally Posted by bprotary
in my car this is just pluged up with a skrew, is it part of the omp? what do i do to it?[/IMG]

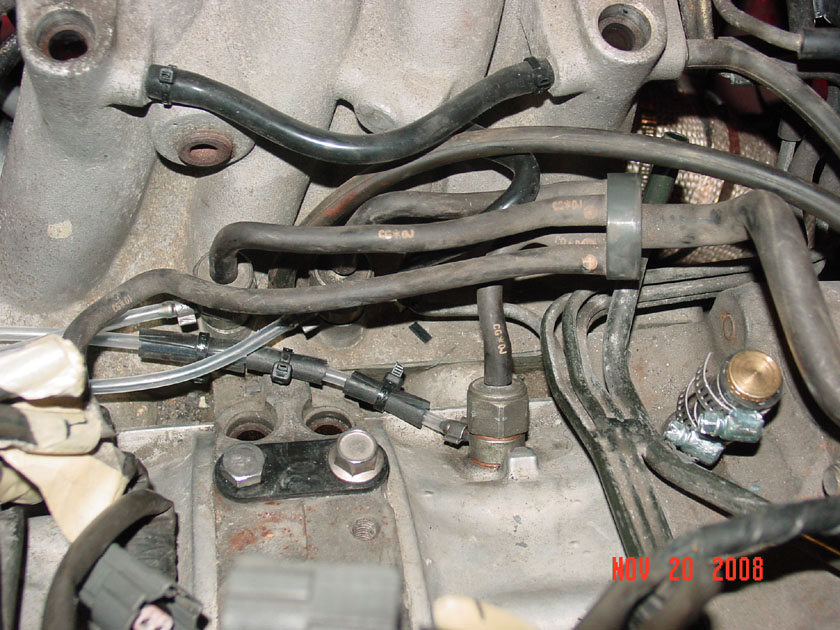

Yeah, that's the manifold for the air lines to the oil injectors. See the attached image.

"What do I do with it?" Depends on whether or not you have disabled the MOP. If so, you don't need it. If you still want the MOP system to be operative, you gotta connect the "skrew"ed thing to a source of air with a hose. Off hand I don't recall just where it is connected.
Attached Thumbnails do you know what this is ?????-mop-air-hose.jpg
Reply
Old Mar 6, 2009 | 03:55 PM
  #3
White_Shadows's Avatar
Junior Member

Joined: Mar 2009
Posts: 12
Likes: 0
From: Sacramento, CA
MOP or OMP? Damn acroynms
Reply
Old Mar 7, 2009 | 06:02 AM
  #4
Go48's Avatar
Rotary Freak
Tenured Member 15 Years
iTrader: (7)

Joined: Feb 2005
Posts: 1,608
Likes: 3
From: Mont Alto, PA
Originally Posted by White_Shadows
MOP or OMP? Damn acroynms
Mazda calls it the Metering Oil Pump (MOP) in the factory service manual. Apparently some owners/members on the forum prefer the term, Oil Metering Pump (OMP). So take your pick.
Reply
Old Mar 7, 2009 | 09:38 AM
  #5
hanman's Avatar
Rotary Freak
Tenured Member 20 Years

Joined: May 2001
Posts: 1,779
Likes: 0
From: Peoria, IL
I would highly suggest that you stuff rags or something in all of those openings on your engine. Especially, if it is outside like in the picture.
Reply
Old Mar 7, 2009 | 07:21 PM
  #6
RotaryRocket88's Avatar
Top Down, Boost Up
Tenured Member 10 Years
iTrader: (7)

Joined: Mar 2008
Posts: 8,718
Likes: 6
From: San Diego, CA
When you put the engine back together, that line will be connected to the larger port on the front of the throttle body. It requires a metered air source rather than vacuum.
Reply
Old Mar 8, 2009 | 01:25 AM
  #7
trochoid's Avatar
Old Fart Young at Heart
Tenured Member 10 Years
iTrader: (6)

Joined: Apr 2004
Posts: 15,145
Likes: 8
From: St Joe MO
It' no so much of a metered air source as it's a filtered fresh air source. If connected to a vacuum source it would suck the oil backwards.
