Anybody know what this wire goes to?

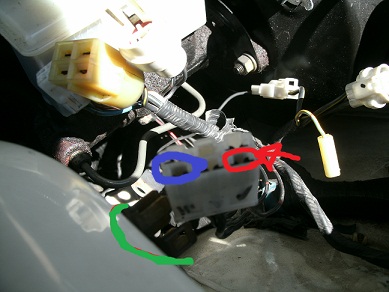

The plug sits underneath the trailing coil, there are 5 black wires with red dots(I am asuming they are ground wires). They plug into a male fitting(green) that is bolted to the inner fender wall. In RED is the wire, BLUE: I know connects to two plug connector for the main relay.
p.s. If you cant see my picture please let me know.
Thanks
p.s. If you cant see my picture please let me know.
Thanks
08-12-11, 06:51 PM
#3
Junior Member
Thread Starter
Join Date: May 2011
Location: Folsom, CA
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
O sorry I cant believe i forgot. here it is 1988 SE N/a and obviously an rx7. I have a bad ground from the wire in red, but I don't know where it leads.
08-12-11, 07:10 PM
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Is is Tach signal(if that arrow is pointing to the yellow wire with the bullet connector).,.for the trailing coils.If you need to,you can plug a wire in and run a Big *** 10K aftermarket Tach!
