93 Rx7 Simplified Seq. FPR Issue

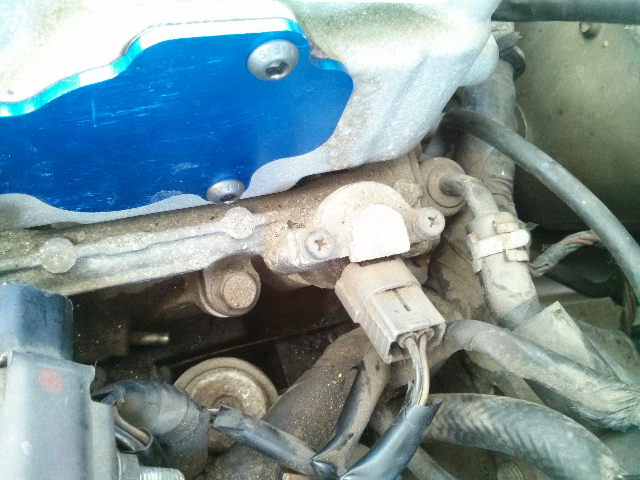

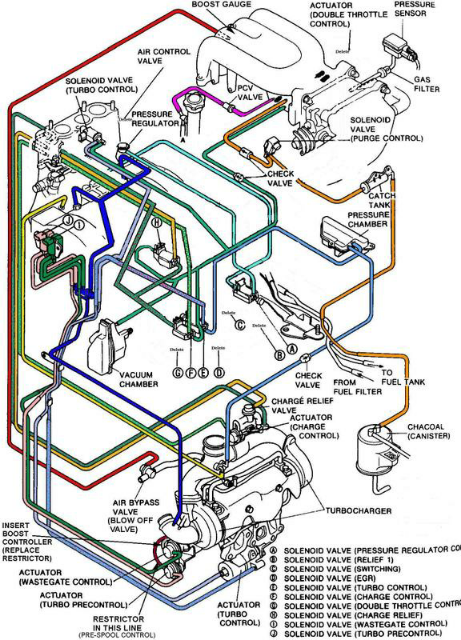

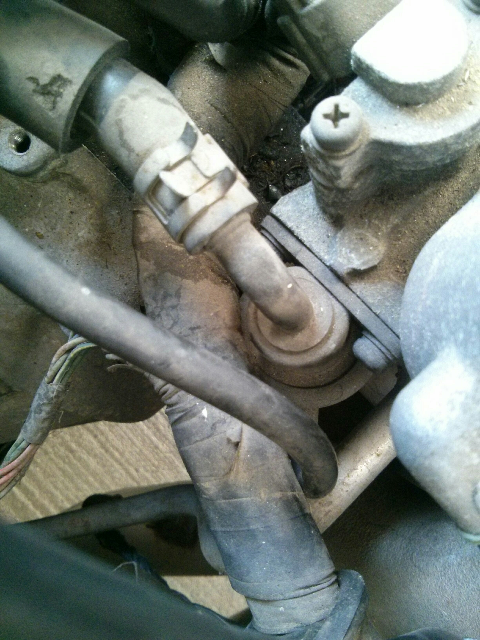

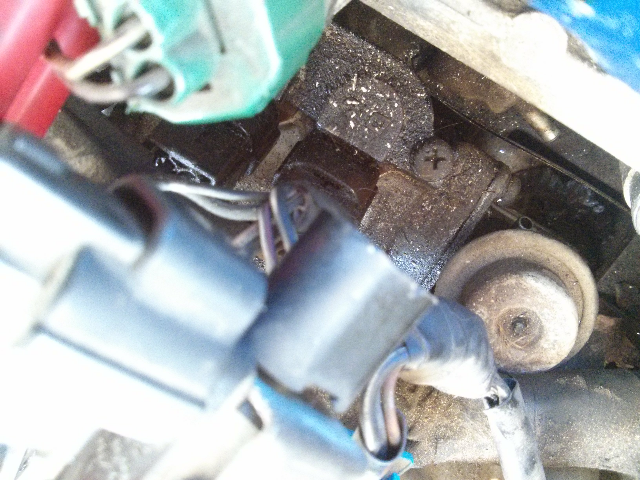

I am fairly close to finishing the simplified sequential mod but I have run into a problem with the stock FPR. In the simplified diagram it shows two baby blue lines coming from the pressure regulator. I noticed that there would be an extra connection in the second photo and have no idea what to do with it. Any help would be appreciated, thanks.

Attached Thumbnails

93 Rx7 Simplified Seq. FPR Issue-forumrunner_20150705_115455.png

93 Rx7 Simplified Seq. FPR Issue-forumrunner_20150705_115508.png

93 Rx7 Simplified Seq. FPR Issue-forumrunner_20150705_115525.png

93 Rx7 Simplified Seq. FPR Issue-forumrunner_20150705_115811.png

Jul 9, 2015 | 10:09 AM

SoINFD

Junior Member

iTrader: (2)

Joined: Jul 2015

Posts: 22

Likes: 0

From: Indiana

If I am reading the diagram right, the "second" connection to the FPR is actually tied into the intake manifold to supply vacuum/pressure to FPR whenever solenoid "A" is on.
