12A transmission swap
Noticed in my search that most transmission swap questions are 'fitting a 13B to a 12A transmission and power related and such.
I have a 12A/4speed in a Homebuilt car and a very noisy tranny (they aren't filled with ball bearings, are they?) and am looking for a 5 speed that will fit (very limited space and the 12A one is already in there)
I'm finding 13b transmissions listed but no (?) 12a ones...
Will a 13b unit fit without a outside size difference?
I have a 12A/4speed in a Homebuilt car and a very noisy tranny (they aren't filled with ball bearings, are they?) and am looking for a 5 speed that will fit (very limited space and the 12A one is already in there)
I'm finding 13b transmissions listed but no (?) 12a ones...
Will a 13b unit fit without a outside size difference?
#2
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
That transmissions are indeed all ball bearing. But at this point, they are fairly worn out.
Having only ever seen one 4 speed 12A transmission, I can't say if the 5 speed is any larger. Probably slightly longer. However all transmissions are interchangeable. You can use a 13B transmission from a GSL-SE up to a '92 NA. The turbo R-type transmissions are much larger, though also much stronger.
You need to match the flywheel, clutch assembly, starter and slave cylinder to the transmissoin and you may require a custom driveshaft.

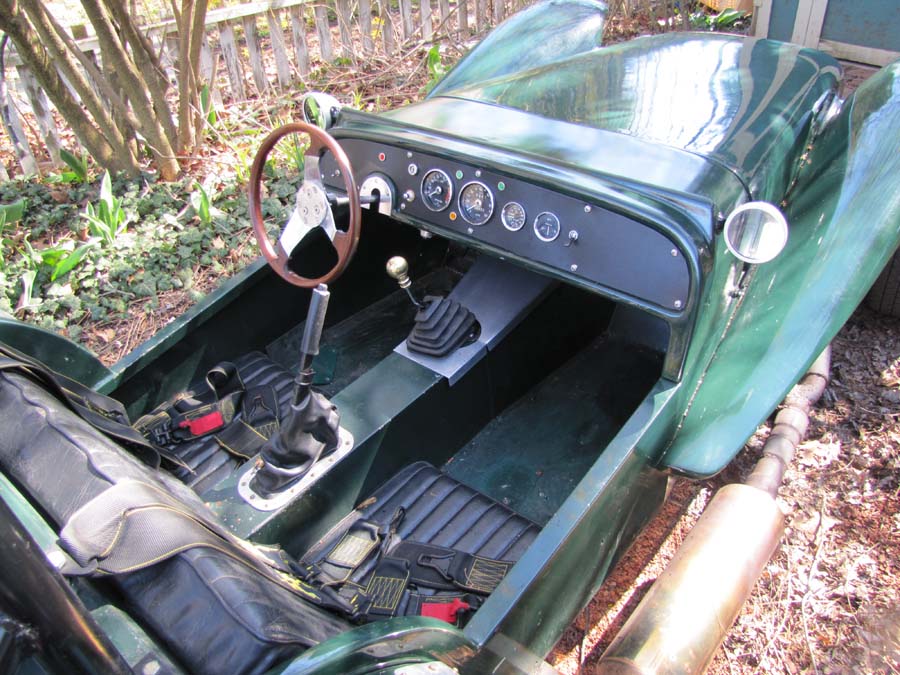

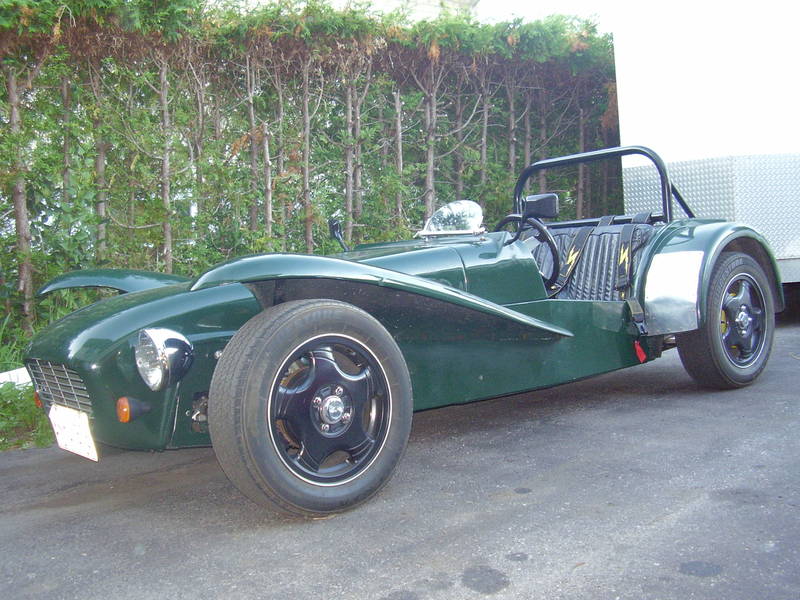

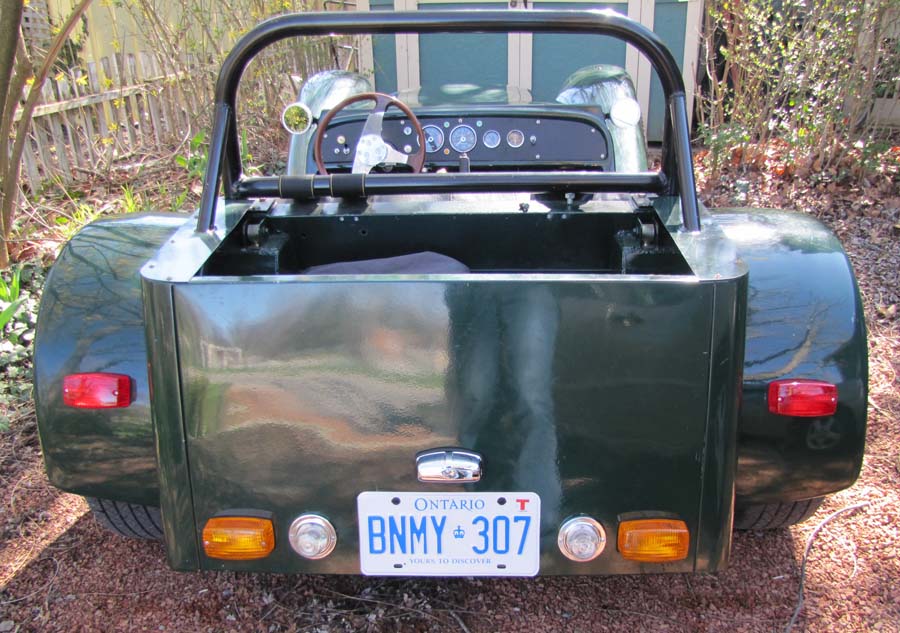

Any pictures of the car?
Edit..Oh, and I almos forgot. The shifter location changes based on the transmission. In 84/85 it moves farther back. Tail housings swap and shift rods can be modified.
Having only ever seen one 4 speed 12A transmission, I can't say if the 5 speed is any larger. Probably slightly longer. However all transmissions are interchangeable. You can use a 13B transmission from a GSL-SE up to a '92 NA. The turbo R-type transmissions are much larger, though also much stronger.
You need to match the flywheel, clutch assembly, starter and slave cylinder to the transmissoin and you may require a custom driveshaft.
Any pictures of the car?
Edit..Oh, and I almos forgot. The shifter location changes based on the transmission. In 84/85 it moves farther back. Tail housings swap and shift rods can be modified.
