Intake Advice and Your Setup
The thread concerning itb's and pcv stuff took an interesting turn towards intakes in general and how to run efficiently. For easier location for other forum surfers, I'm starting this one devoted to intakes specifically. Plus it's fun!
I have a half bridge 6 port with the center iron ported upwards and bridged past the housing. The end plates are nearly stock; just the lower main ports are opened earlier, and the aux ports are stock with inserts. My itb intake manifold, like most all the rest on the market, combines both (all) ports of each rotor into one runner. This is where I need advice.
I could go to the stock S4 intake setup, giving less vacuum through the bridges, and more vacuum to the secondaries to have brakes again. However, I've read the S4 intakes cannot flow enough for much over 200whp, but I've also read half bridges hardly make over 200whp regardless the intake. The runner length for the bridged primaries would be all sorts of messed up, but the secondaries might be ok.
Or
I could buy a 4 barrel intake with a progressive 4150 style throttle body which would have the same capabilities as the S4 intake only with lots more flow and lots more money. I got the part$ in the web cart, but I'm reluctant pulling the trigger. $$$
Or
I could keep what I have if you think I'm splitting hairs.
What do you think of my situation, and what's your setup?
I have a half bridge 6 port with the center iron ported upwards and bridged past the housing. The end plates are nearly stock; just the lower main ports are opened earlier, and the aux ports are stock with inserts. My itb intake manifold, like most all the rest on the market, combines both (all) ports of each rotor into one runner. This is where I need advice.
I could go to the stock S4 intake setup, giving less vacuum through the bridges, and more vacuum to the secondaries to have brakes again. However, I've read the S4 intakes cannot flow enough for much over 200whp, but I've also read half bridges hardly make over 200whp regardless the intake. The runner length for the bridged primaries would be all sorts of messed up, but the secondaries might be ok.
Or
I could buy a 4 barrel intake with a progressive 4150 style throttle body which would have the same capabilities as the S4 intake only with lots more flow and lots more money. I got the part$ in the web cart, but I'm reluctant pulling the trigger. $$$
Or
I could keep what I have if you think I'm splitting hairs.
What do you think of my situation, and what's your setup?
#2
Isaiah 53.7
Thread Starter
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Just in case anyone's following or is curious down the road, I'm leaning towards the stock S4 intake or keeping the itb's i have. There are definitely areas to be ported in the S4 runners. I also think taking out the 5/6 port actuator rods would help with flow as well. It just doesn't seem that my itb's in my particular situation are very beneficial, and I'm uneasy spending the money on a 4bbl tb setup. I'll post pics when stuff actually happens, though.
#3
Isaiah 53.7
Thread Starter
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Did a little math according to this ancient thread (Here's how to figure out intake runner length - RX7Club.com). Not sure if that thread bears much weight anymore, but a fascinating read nonetheless. This is the S4 intake on my engine.
Primary runners theoretical peak hp - 3706rpm @ 2 RV, 7412rpm @ 1 RV
Secondary " " " " - 6119rpm.
Ad this to other S4 intake info I've scrounged up, and I'm not encouraged.
Primary runners theoretical peak hp - 3706rpm @ 2 RV, 7412rpm @ 1 RV
Secondary " " " " - 6119rpm.
Ad this to other S4 intake info I've scrounged up, and I'm not encouraged.
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
Did a little math according to this ancient thread (Here's how to figure out intake runner length - RX7Club.com). Not sure if that thread bears much weight anymore, but a fascinating read nonetheless. This is the S4 intake on my engine.
Primary runners theoretical peak hp - 3706rpm @ 2 RV, 7412rpm @ 1 RV
Secondary " " " " - 6119rpm.
Ad this to other S4 intake info I've scrounged up, and I'm not encouraged.
Primary runners theoretical peak hp - 3706rpm @ 2 RV, 7412rpm @ 1 RV
Secondary " " " " - 6119rpm.
Ad this to other S4 intake info I've scrounged up, and I'm not encouraged.
that being said i don't think the S4 manifold would work very well, a port with a lot of overlap will not want a plenum, and the S4 has a plenum on the primaries. it also doesn't move enough air
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
#7
Isaiah 53.7
Thread Starter
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Trending Topics
#8
Senior Member
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
A member way back made an intake manifold which uses the stock TB and is basically a straight shoot right into the keg. heres some more info on that and the second link is what it actually looked like. I believe the rx8 had different runner length for primary, secondary, and auxiliary ports, might be worthwhile to have a look at the possibility of multiple length geometry with the use of ITBs.
https://www.rx7club.com/time-slips-d...inside-416012/
https://www.rx7club.com/2nd-generati...-s5-na-834592/
https://www.rx7club.com/time-slips-d...inside-416012/
https://www.rx7club.com/2nd-generati...-s5-na-834592/
#9
Isaiah 53.7
Thread Starter
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts

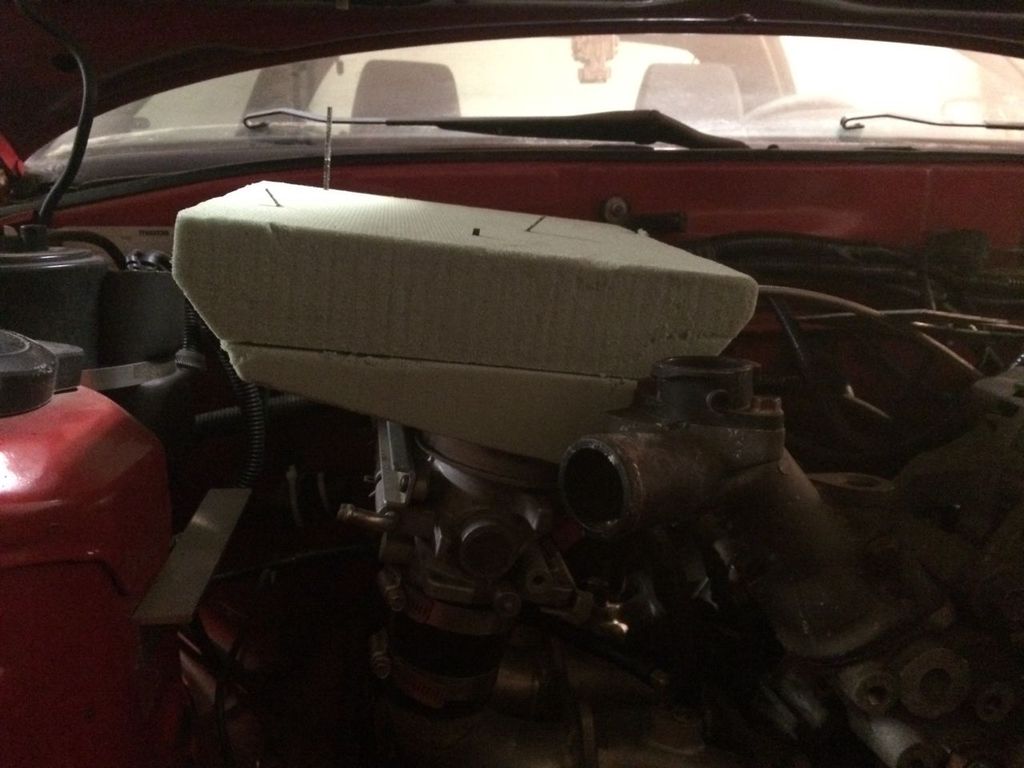

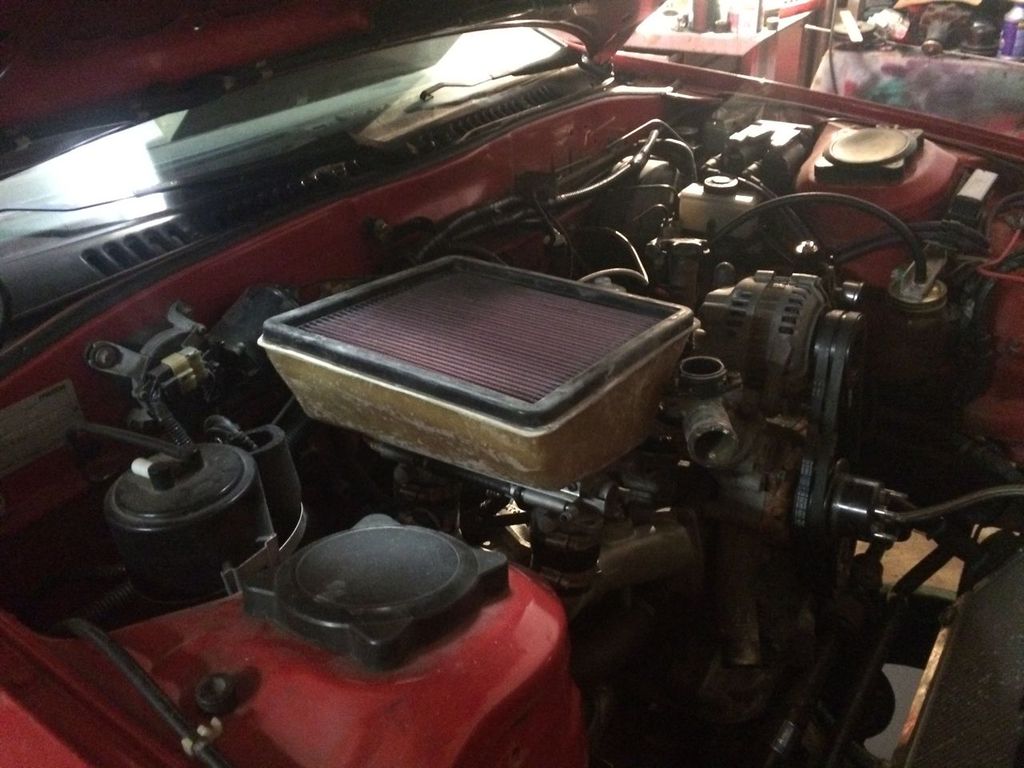

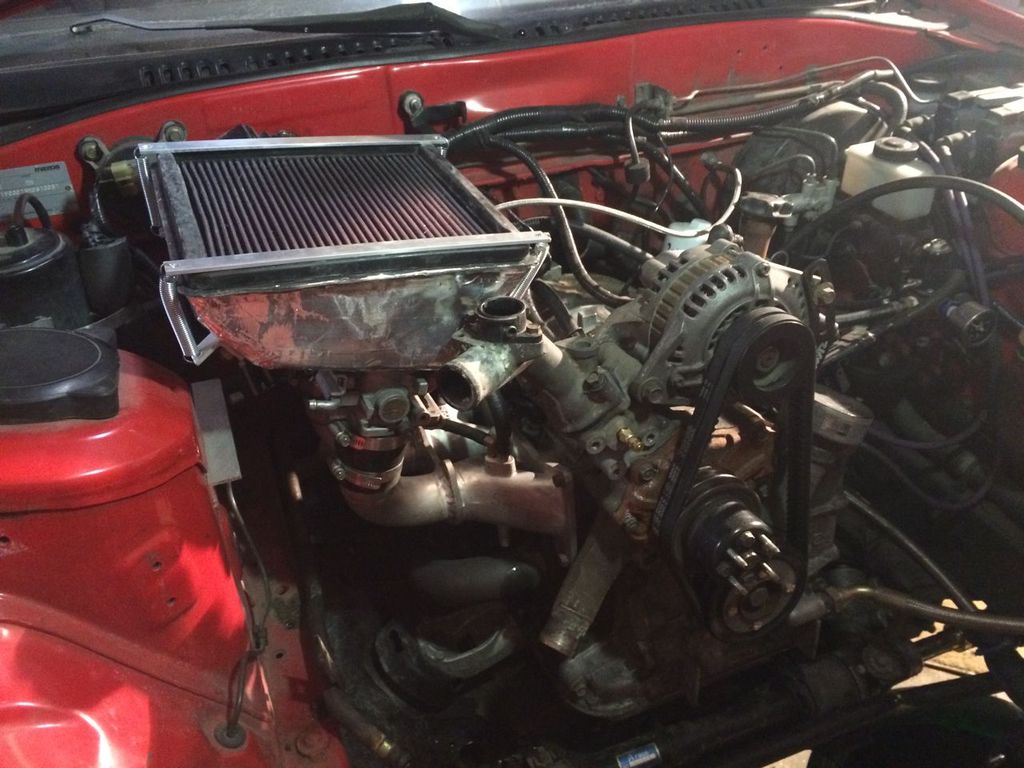

I finally made an airbox. It was my first time messing with fiberglass, so it's super rough, but it should be good enough. Since I already mutilated my hood for my old sock filters, I'll need to cut it up a little more and make some sort of scoop to clear the airbox. In the next week or two, I should have an update on whether or not it made a difference compared to the oiled sock filters.
#12
Isaiah 53.7
Thread Starter
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
Yep, stock K&N. I considered the size, but just went with it anyways since I already had it. I can always run no filter to see if it wants much more fuel, but I can't imagine this little piglet wanting more air than this filter will allow.
#13
Isaiah 53.7
Thread Starter
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
I can't draw too many conclusions yet, given everything always seemed too rich one day, then too lean another; maybe just the nature of Alpha N? Anyways, today everything seemed rich. Before wot was around 12.5-13.2:1 all the way. Today it was ~12.5:1 in the lower rpm's, but 7k on up to 8.3k was 11.9:1. I didn't try it with no filter to get a base, though.
The intake temps are definitely better: 55* outside temp before - >110*. 55* outside temp now - 75*
Not sure what to think yet.
The intake temps are definitely better: 55* outside temp before - >110*. 55* outside temp now - 75*
Not sure what to think yet.
#14
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts
what ecu are you running? it probably needs some work on the baro and or air temp maps.
#16
Isaiah 53.7
Thread Starter
Join Date: Mar 2013
Location: Indiana
Posts: 114
Likes: 0
Received 0 Likes
on
0 Posts
I thought alpha n used just rpm and tps. I definitely neglected messing with the baro and mat correction tables, but it looks like those are for speed density algorithms. If not, I have no clue how to adjust them!
Edit: Found this on the Mega Manual Tuning Your MegaSquirt
Oops. Looks like I'm supposed to tinker with those maps, too.
Edit: Found this on the Mega Manual Tuning Your MegaSquirt
In alpha-N, if you use barometric correction, it will look at the pressure at first power up and set the offset from that value. Otherwise if baro correction is off it does not use the map sensor at all.
Alpha-N still uses the temperature sensor to increase or decrease the fueling based on the ambient air temperature.
Alpha-N still uses the temperature sensor to increase or decrease the fueling based on the ambient air temperature.
Last edited by Hatchet Jack; 03-30-15 at 07:45 PM.
