S5 BAC plug & FFE Crank Trigger ?
I'm currently wiring my MS3-Pro for the motor (S5 T2). Does anyone know what type of connector the S5 BAC is? Also for validation sake, the hall sensor on the FFE crank trigger should be wired to the Crank input (B&W shielded wires) on the MS3-Pro, correct? Thanks!
04-09-16, 09:58 AM
#2
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
S5 BAC connector is the same as the injectors. A Denso style oval injector connector. You may need to grind off one of the locating tabs if you use a generic injector connector. Fiveomotorsports has a good selection, though be warned, the same connectors I ordered from them had poor crimps.
Yes, the FFE trigger connects to the crank input.
Yes, the FFE trigger connects to the crank input.
04-09-16, 10:58 AM
#3
Junior Member
Thread Starter
iTrader: (5)
Join Date: Aug 2015
Location: Milwaukee
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
S5 BAC connector is the same as the injectors. A Denso style oval injector connector. You may need to grind off one of the locating tabs if you use a generic injector connector. Fiveomotorsports has a good selection, though be warned, the same connectors I ordered from them had poor crimps.
Yes, the FFE trigger connects to the crank input.
Yes, the FFE trigger connects to the crank input.
04-10-16, 09:34 AM
#4
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
You might need switched 5V. Check with the FFE documentation.
Hall sensors output a square wave, above ground, so they don't need the same conditioning as VR sensors. The VR sensor is a zero crossing sensor but the hall never crosses zero.
Hall sensors output a square wave, above ground, so they don't need the same conditioning as VR sensors. The VR sensor is a zero crossing sensor but the hall never crosses zero.
04-21-16, 08:53 PM
#7
The S5 BAC is a Denso style plug. I bought a generic Denso plug for my car and had to file the notches on the sides of the BAC connector off. Worked fine otherwise.
The connector on the right looks like an EV6 clip, which is what FFE uses for their VR trigger kit.
The connector on the right looks like an EV6 clip, which is what FFE uses for their VR trigger kit.
Trending Topics
04-21-16, 10:00 PM
#10
Junior Member
Thread Starter
iTrader: (5)
Join Date: Aug 2015
Location: Milwaukee
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts

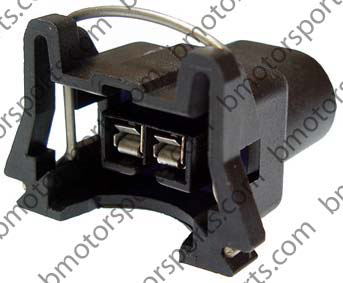

What you want is EV1. Attachment 577008

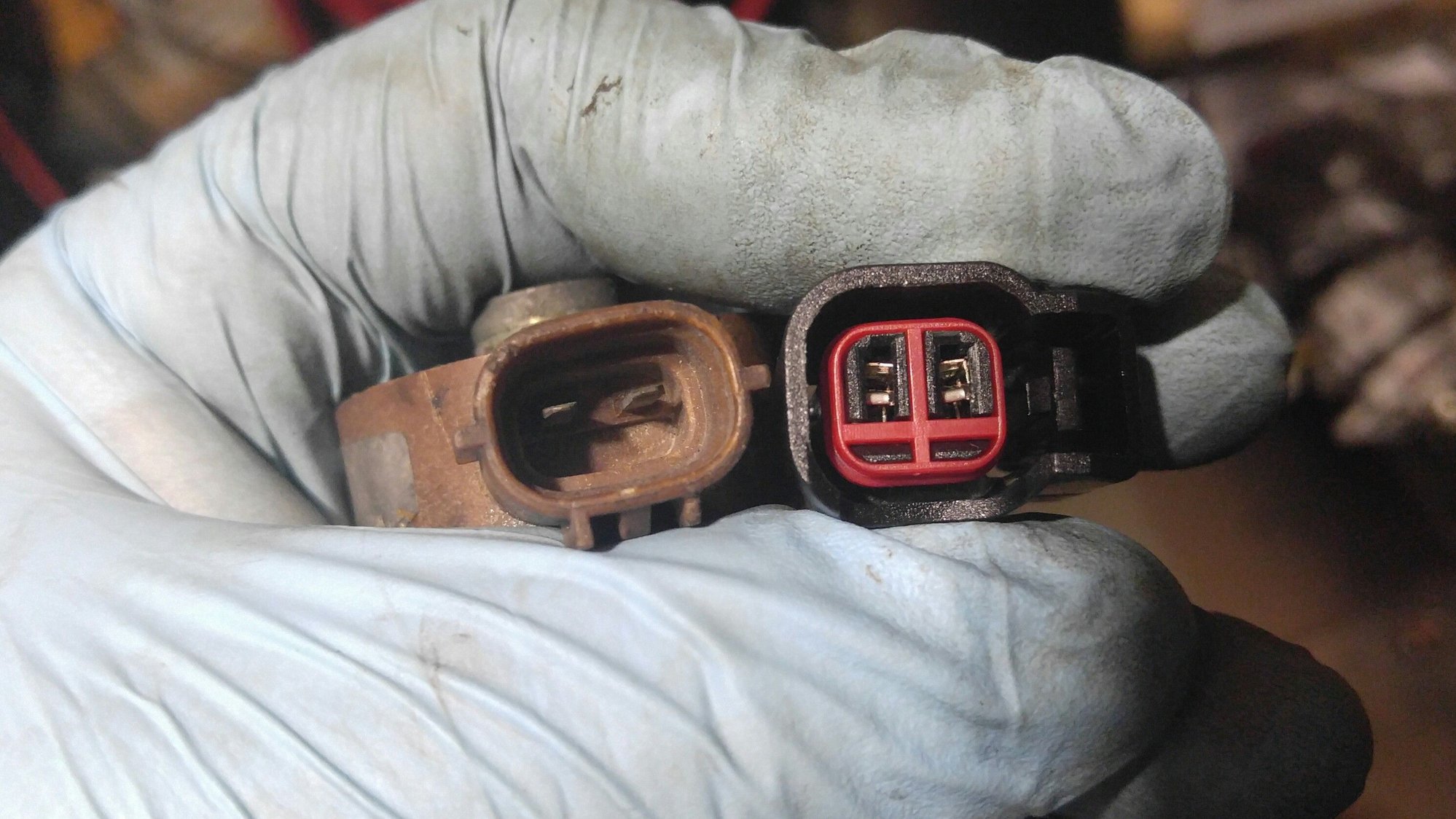

See below, EV1 would fit the S4 BAC but not an S5. (S4 left S5 right)
Last edited by blk88t2; 04-21-16 at 10:05 PM.
04-22-16, 06:49 AM
#11
Here's what I ended up using:
Nippon Denso Fuel Injector Pigtail Connectors | eBay
I actually think the notches on the bottom of the BAC connector had to be filed off, not the sides. When you get the clip, it will be obvious what doesn't fit. I just used a flat file. The material is very soft and took just about a minute to get it filed flush.
Nippon Denso Fuel Injector Pigtail Connectors | eBay
I actually think the notches on the bottom of the BAC connector had to be filed off, not the sides. When you get the clip, it will be obvious what doesn't fit. I just used a flat file. The material is very soft and took just about a minute to get it filed flush.
04-22-16, 07:35 AM
#12
Originally Posted by DC5Daniel
What you want is EV1. Attachment 577008
Despite all the references to s5...sometimes I get stuck in s4 mode.
04-22-16, 07:43 AM
#13
Junior Member
Thread Starter
iTrader: (5)
Join Date: Aug 2015
Location: Milwaukee
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Here's what I ended up using:
Nippon Denso Fuel Injector Pigtail Connectors | eBay
I actually think the notches on the bottom of the BAC connector had to be filed off, not the sides. When you get the clip, it will be obvious what doesn't fit. I just used a flat file. The material is very soft and took just about a minute to get it filed flush.
Nippon Denso Fuel Injector Pigtail Connectors | eBay
I actually think the notches on the bottom of the BAC connector had to be filed off, not the sides. When you get the clip, it will be obvious what doesn't fit. I just used a flat file. The material is very soft and took just about a minute to get it filed flush.
Haha, no problem
04-25-16, 10:29 PM
#14
Junior Member
Thread Starter
iTrader: (5)
Join Date: Aug 2015
Location: Milwaukee
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
Here's what I ended up using:
Nippon Denso Fuel Injector Pigtail Connectors | eBay
Nippon Denso Fuel Injector Pigtail Connectors | eBay

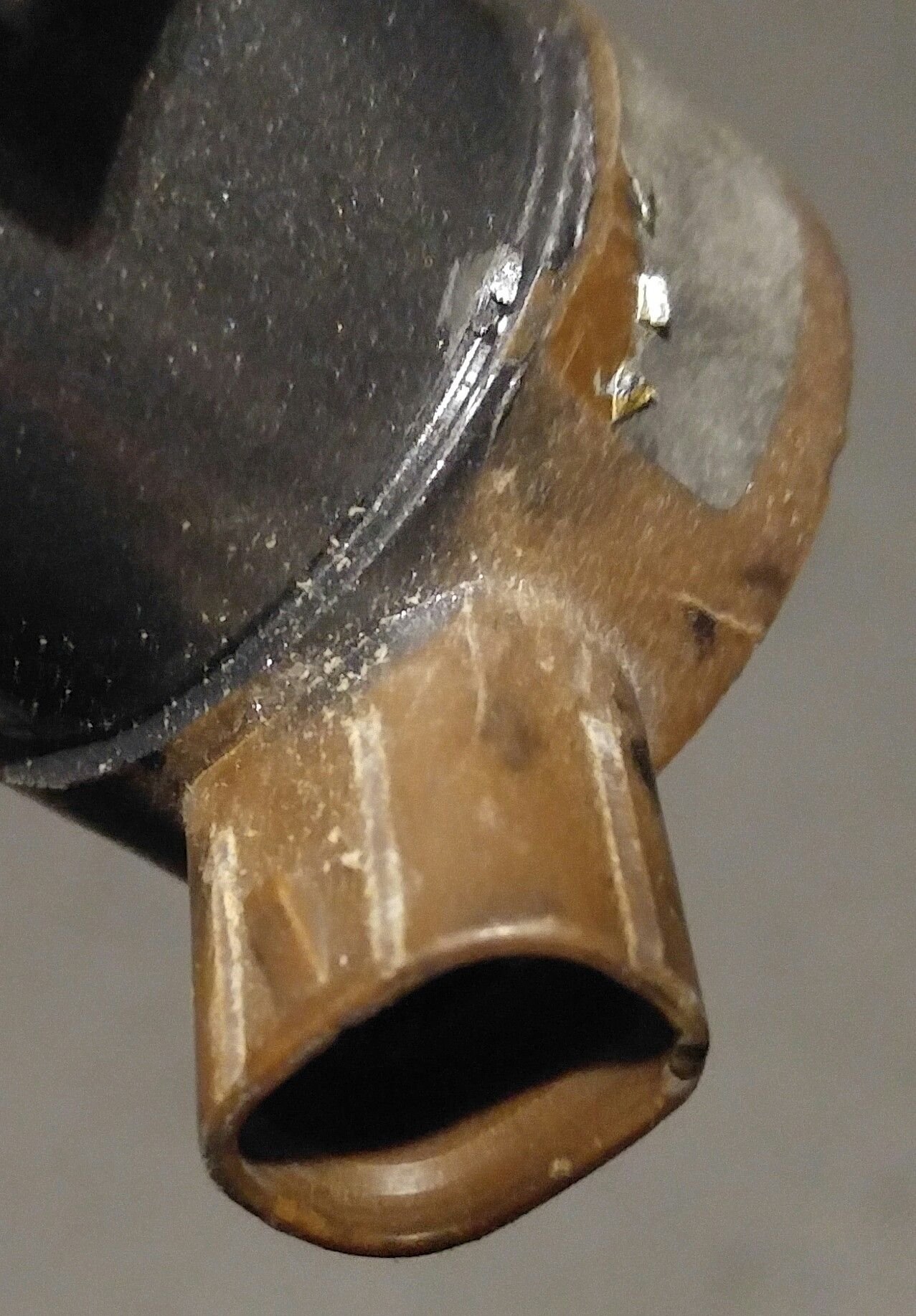

Tabs cut

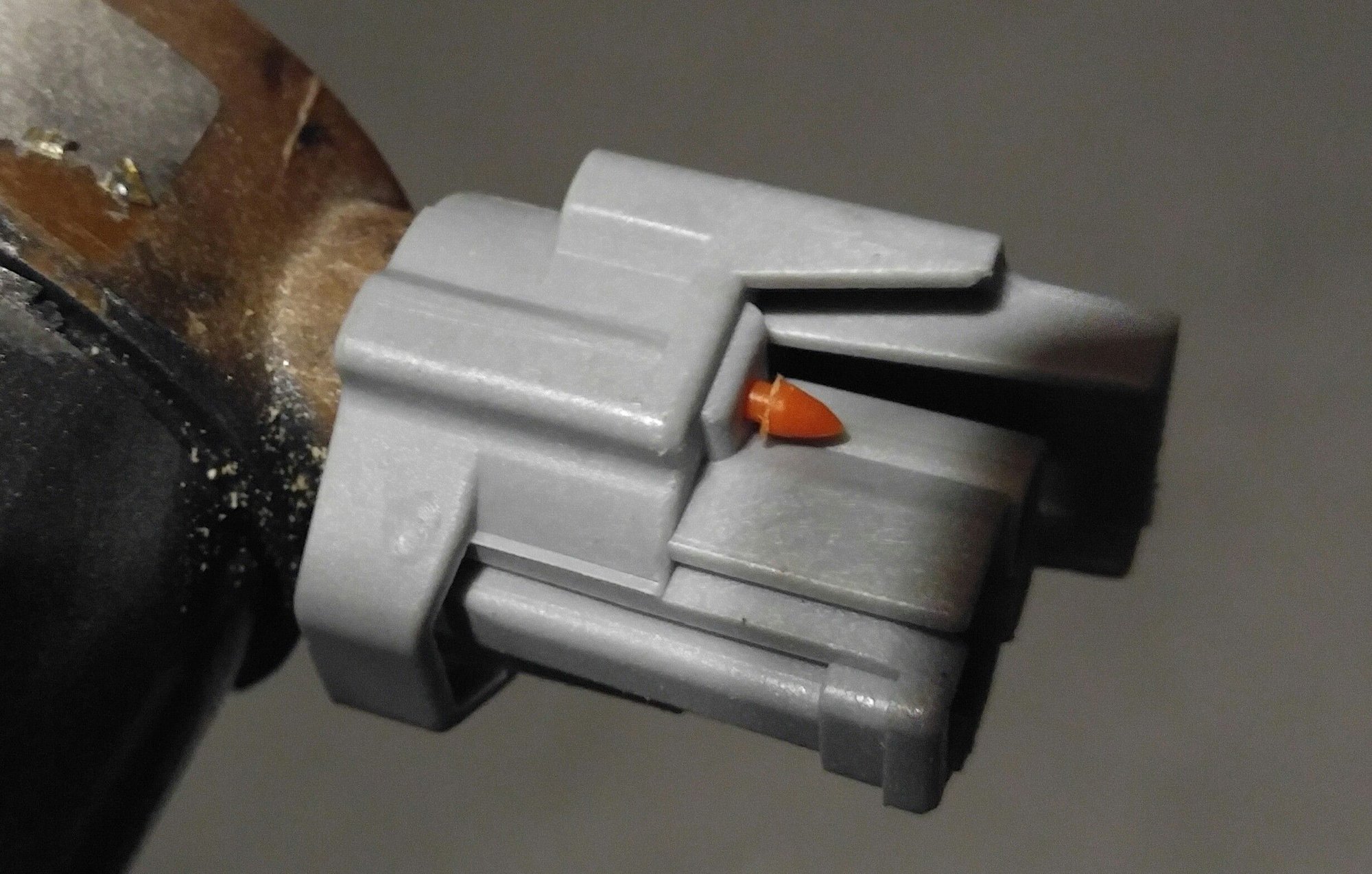

Connector fits!
