New MS still have problem!!!!

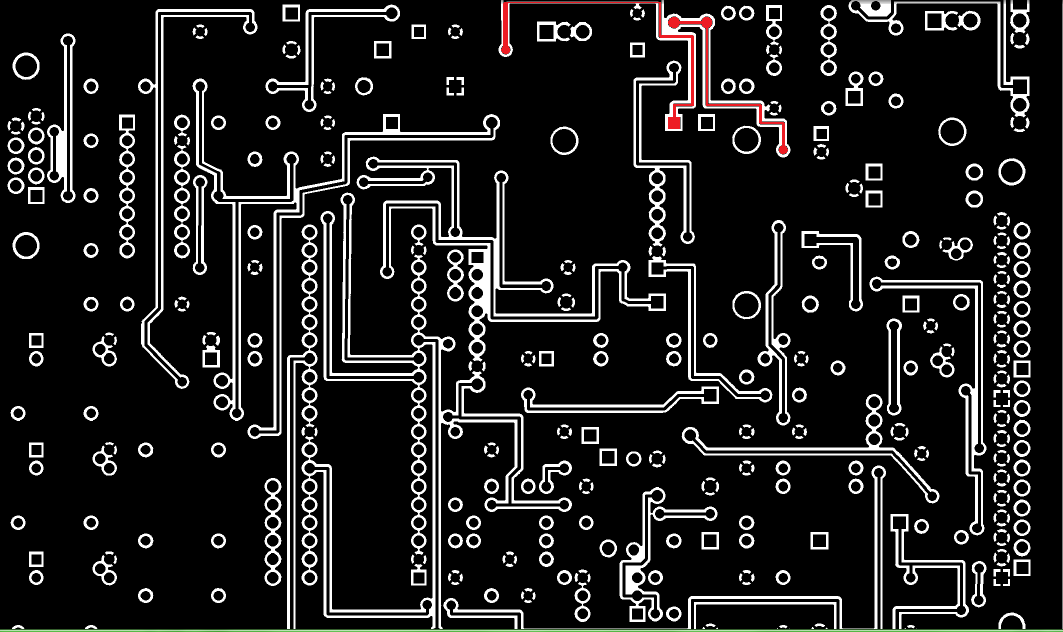

So i got a built MS v2.2 with zeal board for spark and such. It came with a complete harness and all with relays and ect. Well I get my jump box out and hook her up Neg on the Ground of wire/wires and Pos on the 12v input. Nothing happens....i pulled the top of the case and smell it. after i look around i found 2 leads on the PCB burnt, pictured below are the 2 leads. Any idea what happened? or could have happened? He said it was in his Turbo FC running. thx
#2
MegaSquirt Mod
I will have to dig up an old 2.2 board (if I still have any) before I can help. I need to trace where those go.
If the previous person claims it was running at some point, then I'd say you probably have a short somewhere in your harness, but I'll be able to verify more accurately specifically what happened if I can find a 2.2 board.
Ken
If the previous person claims it was running at some point, then I'd say you probably have a short somewhere in your harness, but I'll be able to verify more accurately specifically what happened if I can find a 2.2 board.
Ken
