MS3 unit

I was told this is the ms3 with the msx expansion. I took pics of it. This would be like a plug n play? just have to wire in harness.

Now i only ave the plug in harness for the bottom plug in the first picture. do i need to get he top one as well?

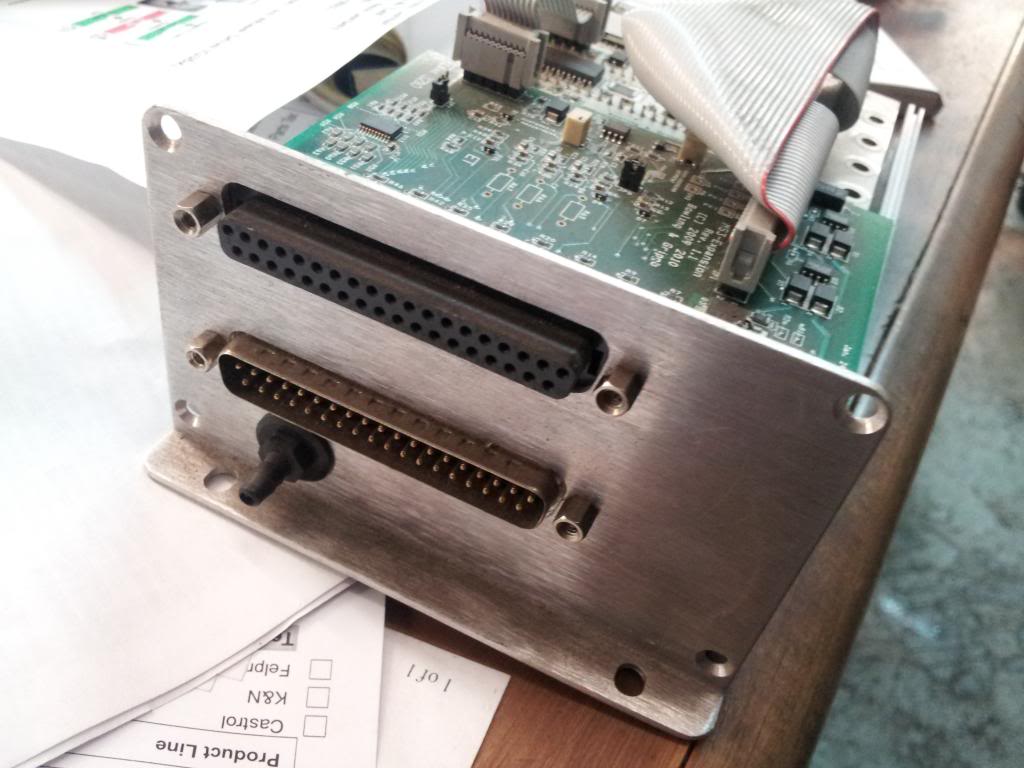

Name:  20121215_171057_zps76e5069d.jpg
Views: 146
Size:  84.5 KB

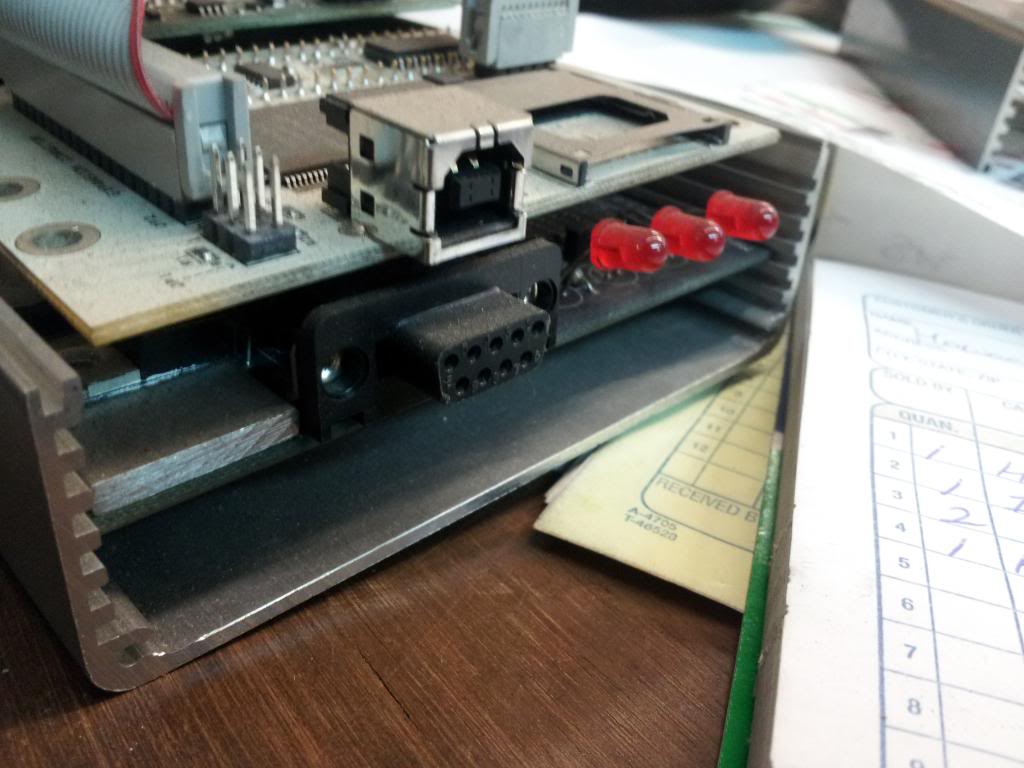

Name:  20121215_171111_zpsaef092e4.jpg
Views: 47
Size:  81.9 KB

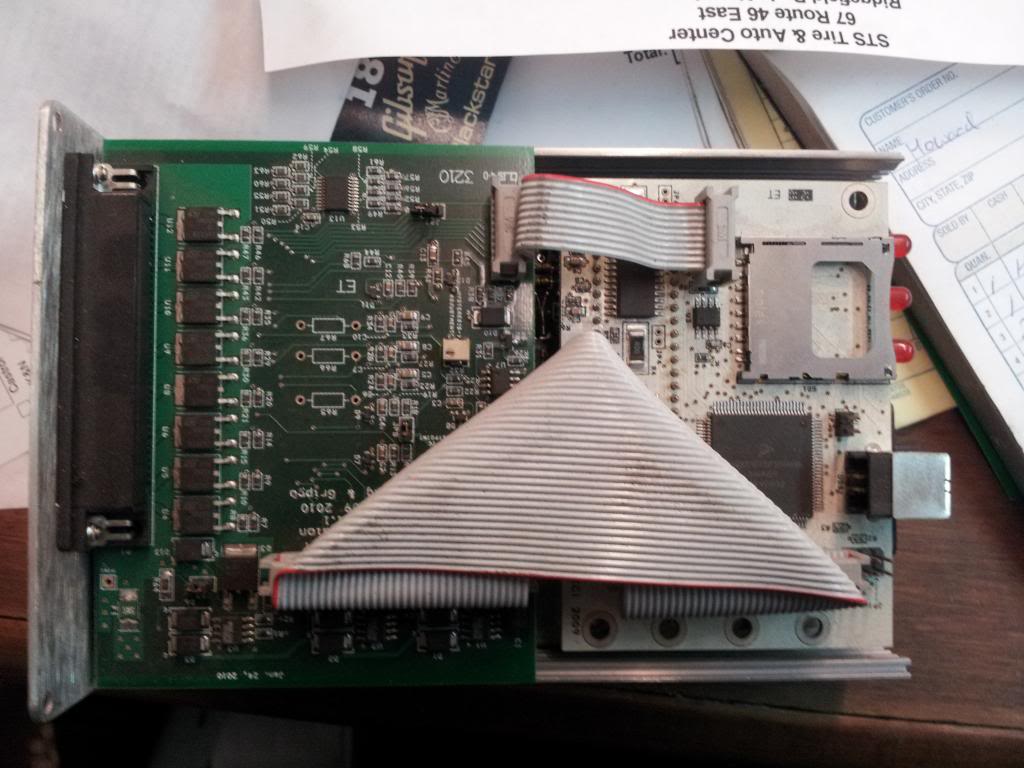

Name:  20121215_171050_zps9500aeb4.jpg
Views: 69
Size:  97.3 KB

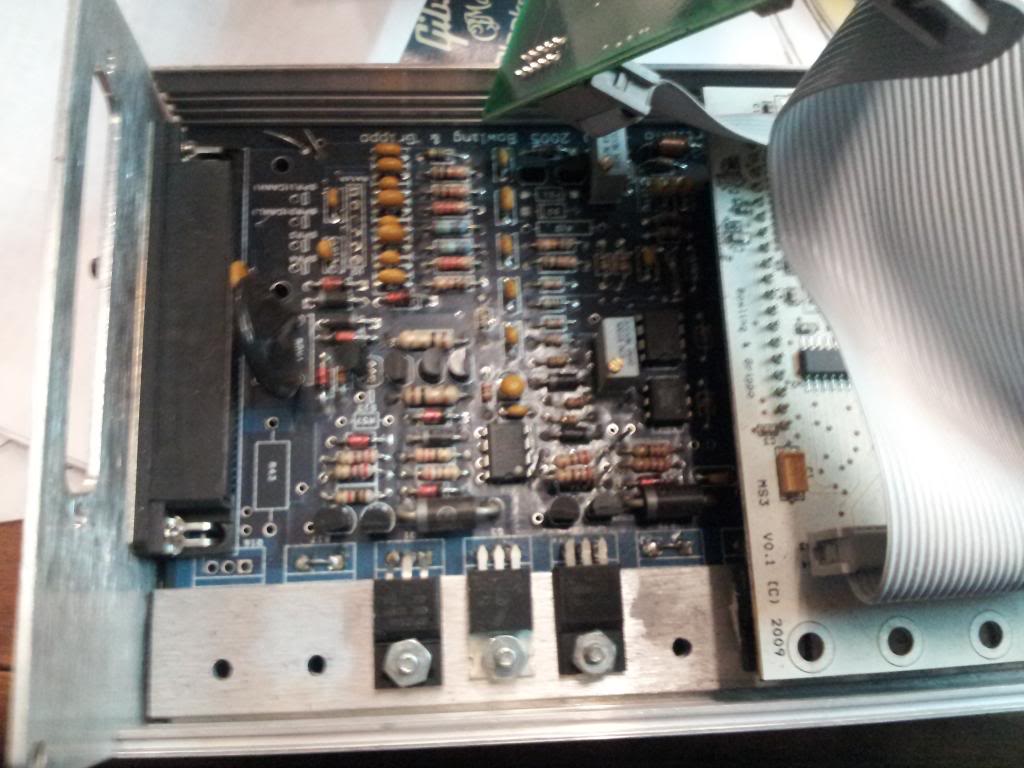

Name:  20121215_171249_zps184987e0.jpg
Views: 57
Size:  95.2 KB
Reply
Old Dec 17, 2012 | 06:26 AM
  #2
13bdarren's Avatar
Senior Member
Tenured Member 15 Years

Joined: Jun 2004
Posts: 442
Likes: 0
From: Canada
Yes you will need the top one too. You can pick them up at most electronic part stores. Or order one from diy autotune with wires all ready cripped and ready to go.
Reply
Old Dec 17, 2012 | 02:25 PM
  #3
lonewolfrx's Avatar
Thread Starter
Rotary Enthusiast
Tenured Member: 20 Years

Joined: Mar 2003
Posts: 783
Likes: 2
From: Las Vegas
Ahh i see. the one from diyautotune is labeled though so i might pic that up. Is wiring this up going to be different that the previous ms units?
Reply
Old Dec 17, 2012 | 09:08 PM
  #4
13bdarren's Avatar
Senior Member
Tenured Member 15 Years

Joined: Jun 2004
Posts: 442
Likes: 0
From: Canada
It will be a little different. Since you will be using the msx card for your injectors and spark outputs. DIY as a write up on there website for the rx7.
Reply
Old Dec 19, 2012 | 09:39 AM
  #5
muythaibxr's Avatar
MegaSquirt Mod
Tenured Member 15 Years

Joined: Sep 2004
Posts: 4,721
Likes: 1
From: Maryland
I would also not say it's "plug and play."

You're going to have to wire it properly and tune for your engine.

Ken
