Hello, I hope this question is not one that I overlooked in my searching of the forum.

I'm running MS2 on V3.0 main board running MS2/EXTRA 3.3.2

S5 turbo with stock turbo
550/720 injectors
Street port

My question is: since the settings have changed since Aaron Cake's instructions. What should my engine and sequential setting be. Right now I have it set to sequential and the other right side is set to semi-sequential. Is that correct?











have



Unless you have modified the MS2 for sequential injection, it should be set to "Untimed injection" as your primaries are driven by one driver, and the secondaries are driven by another. The V3/V3.57 board contains only two injector drivers.

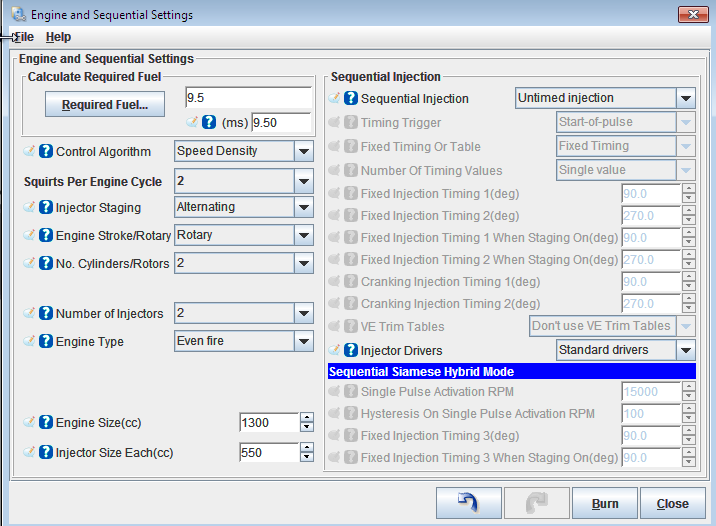

Thanks a bunch Aaron. Just for a sanity check, I've included a picture of my settings.



http://msextra.com/doc/pdf/Megasquir...ing_Up-3.3.pdf

Section 4.3 on page 64 of the linked guide has suggested rotary settings. They are the same as yours except they use 1 squirt per cycle and simultaneous staring. Works out to the same required fuel. Not sure what the difference in driveability or performance will be if any.
