Megasquirt MS1 pnp Help Needed.
That ECU also ran my engine for roughly 10 miles or so before I decided to do a part out on it because I came across a Chevy 5.3 swap for cheaper than what many wanted just to tune my old setup (Bridgeport, 1680cc sec., 890cc pri., B.W. S472, supporting mods etc.). I purchased this from the original Zeal Megasquirt Plug n Play group buy thread.
Thread Starter
Joined: Jul 2008
Posts: 769
Likes: 0
From: Northern IN
Alright maybe I will buy an Oscilloscope.

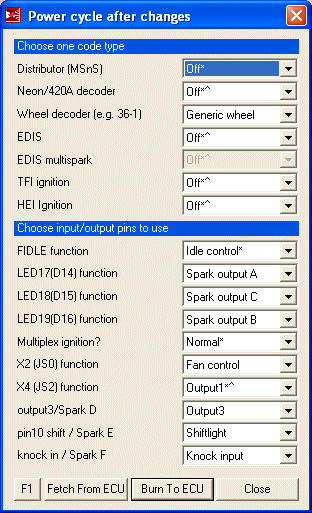

Yeah those are the setting I used that I got right off your site Aaron. Unless they are suppose to be different when running this pnp unit...
Yeah those are the setting I used that I got right off your site Aaron. Unless they are suppose to be different when running this pnp unit...
Junior Member
Joined: Feb 2009
Posts: 33
Likes: 0
From: Columbus OH
just for haha's did you change anything as for which physical and/or logical input the CAS signal came in on? Could it have been coming in on a different pin/port on the tune that it came with but when you went to do yours and check the settings against Aaron's it got changed?
If its working on the Stock comp it would make sense that it would be a setting then as the signal IS working...
just throwing out ideas...
If its working on the Stock comp it would make sense that it would be a setting then as the signal IS working...
just throwing out ideas...
Thread Starter
Joined: Jul 2008
Posts: 769
Likes: 0
From: Northern IN
The sad part is I never looked at the setting or maps that were on it when I got it. I just loaded a dif map as soon as I got my laptop connected.
BUT the PO said he has the map he had on it, SO I will try that when I get it...
BUT the PO said he has the map he had on it, SO I will try that when I get it...
Senior Member
Joined: May 2002
Posts: 386
Likes: 0
From: FL
That sounds like the best path to take - back up to what worked, change one thing at a time when tuning after that!
Thread Starter
Joined: Jul 2008
Posts: 769
Likes: 0
From: Northern IN

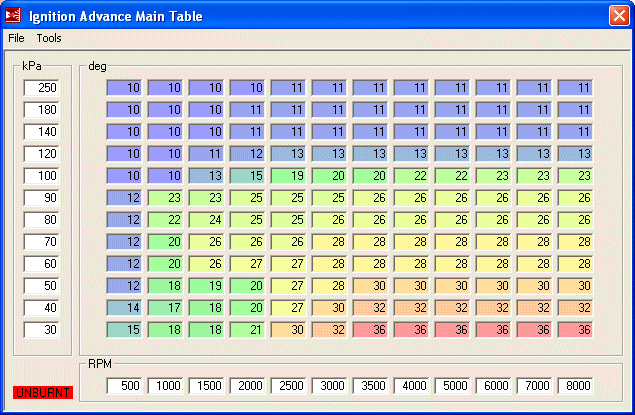

MegaSquirt Mod
Joined: Sep 2004
Posts: 4,721
Likes: 1
From: Maryland

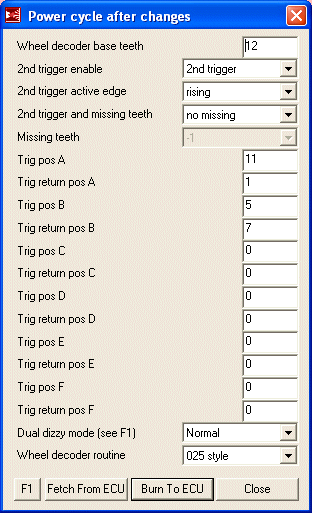

Actually, those settings are fine except for one thing. You don't want to use the 025 wheel decoder. That will start misfiring above about 4000 rpm. You'll want to use the 024 one.

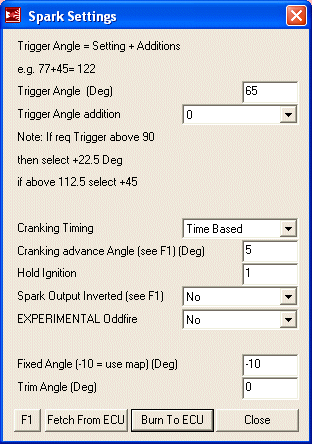

Also, what trigger angle is it using? What cranking timing?
Ken
Also, what trigger angle is it using? What cranking timing?
Ken
MegaSquirt Mod
Joined: Sep 2004
Posts: 4,721
Likes: 1
From: Maryland
OK, that looks fine except that you'll probably want a 0 degree cranking timing. That won't cause you not to get RPM though.
If you could get tunerstudio and use it with the tooth logger function, that would help me figure out what the MS is actually seeing.
Ken
If you could get tunerstudio and use it with the tooth logger function, that would help me figure out what the MS is actually seeing.
Ken
Thread Starter
Joined: Jul 2008
Posts: 769
Likes: 0
From: Northern IN
Well I have been driving the car on the stock ecu for the past week until I recieved the tune that was on it when I got it. Loaded the PO's tune onto it and the same thing, no rpm, no spark, no fuel.
It must be a hardware issue. Ken would you be willing to check it over and clear it and reflash the firmware? I could ship it to you and pay you if needed.
Thanks
Keith
It must be a hardware issue. Ken would you be willing to check it over and clear it and reflash the firmware? I could ship it to you and pay you if needed.
Thanks
Keith
MegaSquirt Mod
Joined: Sep 2004
Posts: 4,721
Likes: 1
From: Maryland
Yeah, I can look at it, but every time this has happened, it works fine on my car and my bench.
You should double check that your grounds are clean and working, and I'd like to see a composite log taken with tunerstudio.
Ken
You should double check that your grounds are clean and working, and I'd like to see a composite log taken with tunerstudio.
Ken
Thread Starter
Joined: Jul 2008
Posts: 769
Likes: 0
From: Northern IN
Oscilloscope, it will plot voltage vs time on a display so you can see the wave form, peak voltage, frequency and such of whatever you are probing.
MegaSquirt Mod
Joined: Sep 2004
Posts: 4,721
Likes: 1
From: Maryland
It'll be called "tooth log" or "composite log"
Ken
Thread Starter
Joined: Jul 2008
Posts: 769
Likes: 0
From: Northern IN
I went to take that tooth log and it cranked and fired right up. So I messed with the fuel and it idles fine. Here is a datalog and the msq with it running.
I didnt change anything...
Running datalog.zip
I didnt change anything...
Running datalog.zip
Thread Starter
Joined: Jul 2008
Posts: 769
Likes: 0
From: Northern IN
This morning I go out to start it and same ****, no rpm... Since I have to be somewhere I put the stock computer back in and it drove no ploblems. I am at a loss. It must be issues with my already clean grounds...
MegaSquirt Mod
Joined: Sep 2004
Posts: 4,721
Likes: 1
From: Maryland
No problem, just get it over here and I'll fix whatever is wrong. Should be an easy fix.
About the grounds and stuff... the #1 problem when people are having these sorts of issues is usually grounds, so I have to cover the basics first.
Once you got it to run once it became pretty clear there was a wiring issue.
Ken
About the grounds and stuff... the #1 problem when people are having these sorts of issues is usually grounds, so I have to cover the basics first.
Once you got it to run once it became pretty clear there was a wiring issue.
Ken
