Hello community, let me tell you that I have bought a microsquirt for my fc, we have managed to turn it on with this configuration.
Spark mode: gear wheel
Shooting Angle: 0
Ignition input capture; Rising edge
Spark output: low (normal) for MS2, high / inverted with MS3X
Number of coils: stray spark
Spark A output pin: D14 (MS2) or MS3X (MS3)
Permanence type: standard permanence
Maximum length of stay: 3.0
Trigger wheel arrangement: double wheel
Trigger Wheel Teeth: 24
Angle of tooth n. 1: 0
Wheel speed L Cam wheel
Second trigger active in: Rising Edge
And every rotation of: crank
Enable rotary mode: rotary on
Output mode: FC mode
RX8 mode: disabled

But at the moment of accelerating it we have detonations, I would like to ask your help to find the correct configuration. I have asked diyautoune but the answers are very cheap.

I appreciate your help.



more details of the settings and this is a case megasquirt or a microsquirt.and did you sync the CAS.

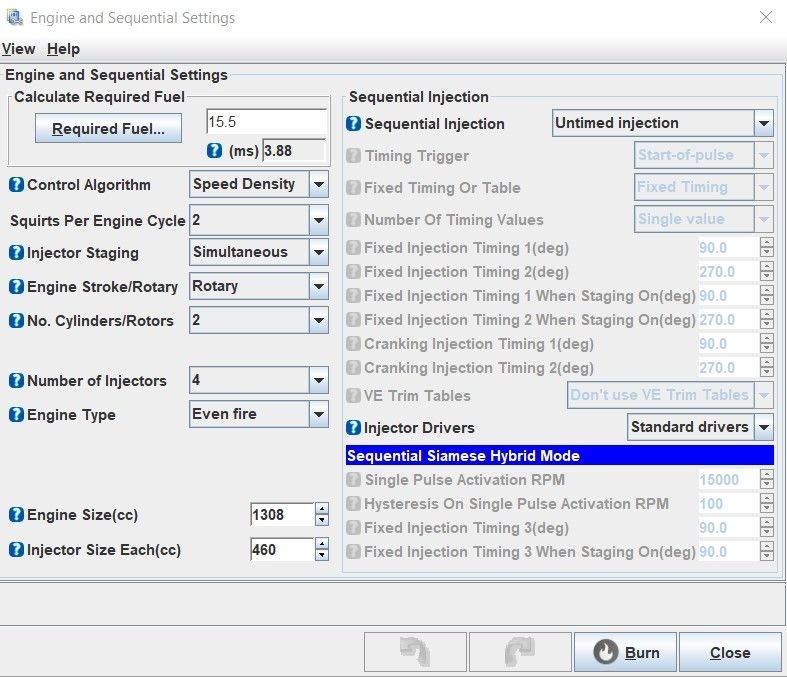

Hello friend, thank you for asking, is a microsquirt that we are installing in the car, I attach the images of what we have so far, thanks for your help.



i could probably send you a msq today if you still need help.



Thanks friend, I still need it, we can't make the car work well.



send me a pm with your email.there is a couple settings that dont seem right.
