I searched and searched now my eyes hurt. Im running a stock CLT sensor. Anyone know the calibrations for the stock coolent temp sensor?



can't remember, but i'm pretty sure you could use a rx-8 ECT, it's pretty cheap, and we(or I ) have much more data for it.

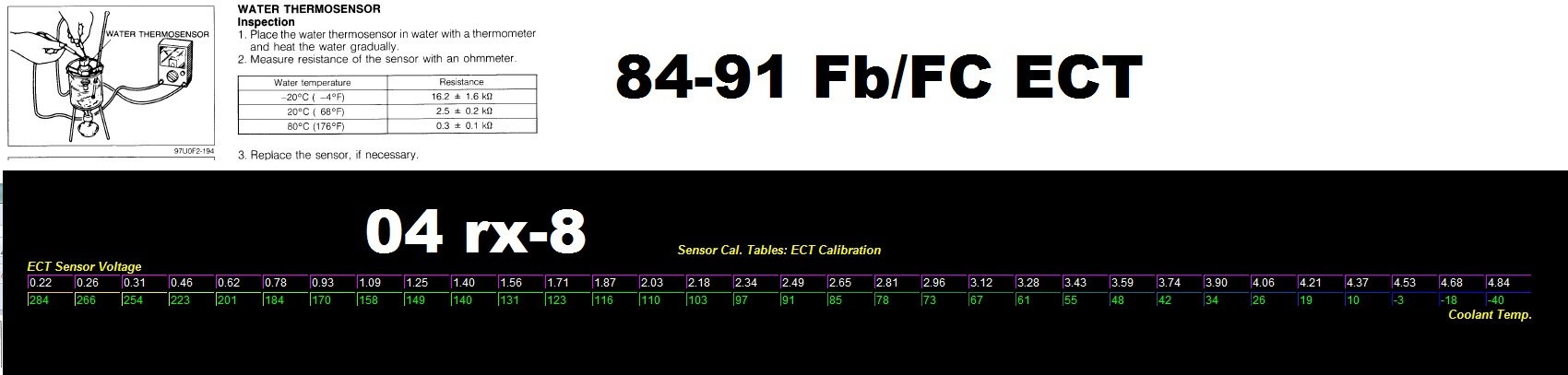

The rx-8 Fsm states it's coolant sensor as
20C(68*f) 2.2k-2.7k
80C(176*f) 287-239
91C(196*f) 227-240

i think that's all the data you need



1.6 0.2 0.1 i guess...I read this in the fsm but it just seemed kinda odd. To me it sems there isnt a big enough range but i guess it is what it is. could always heat the sensor up and measure the resistance. The Rx8 seems llike its lagit. If i was going to change i would just snag a GM.



No, you misread it.
16.2K = 16200
2.5K = 2500
0.3K = 300



Roger that. My gf looked at what i typed and said "why did you put that"....Me "Oh yea i wasnt thinking. tomo i would have typed it into the MS correctly"...I tryed to edit the post directly after. It said it changed but then i looked and it didnt. Anyhow Thanks for the heads up



Im also trying to find the AIT Calibrations. Its a Wells SU4978. This ones going to be hard. might be easier to just swap sensor to gm. The reason i used this sensor b/c its short. its a nice sensor to put in line. The AIT sensor is in the IC pipe.

Sensor:
http://www.mypartsgarage.com/wells-w...gine-4141.html
