Bizarre thirsty spot at 2800rpm, 13b NA 6port
Hey guys, curious about a bizarre thirsty spot at 2800 rpm, my auto-tune has figured out that it has to ramp up the injector timing around this area to keep me towards my target AFR's...
Anybody know what could be causing this? It's not where the 6ports are actuating (I currently have them disabled) and that would be 3800rpm anyways.
Could it be engine porting? Problems with the injectors or something?
Its a series 5 13b 6port, large street port.
The engine runs SOOOOO smooth, this is the smoothest rotary I've ever driven, so I'm almost not too concerned, but it just seems so odd to me that there's this ridge at 2800rpm.
Also curious as to how to remove un-needed rows? This base map was Aaron's from the writeup, but i dont need the rows for boost. Any way to remove the entire rows?
Thanks
~Geoff
Anybody know what could be causing this? It's not where the 6ports are actuating (I currently have them disabled) and that would be 3800rpm anyways.
Could it be engine porting? Problems with the injectors or something?
Its a series 5 13b 6port, large street port.
The engine runs SOOOOO smooth, this is the smoothest rotary I've ever driven, so I'm almost not too concerned, but it just seems so odd to me that there's this ridge at 2800rpm.
Also curious as to how to remove un-needed rows? This base map was Aaron's from the writeup, but i dont need the rows for boost. Any way to remove the entire rows?
Thanks
~Geoff
07-11-14, 05:56 PM
#3
Full Member
Join Date: Feb 2009
Location: Europe
Posts: 140
Likes: 0
Received 0 Likes
on
0 Posts
--
Hello, if there is no problems, that is normal, different engines with different porting
flow different from each other in different rpm range, is the same as the otto engines
with modified cams, in the moment they kik-in, i have see larger increase of fuel
timing than you have there.
It also depends if 2800rpm is were the injector staging starts, imagine that you have
2 injectors running the engine, at that point they are alone so the time is higher,
after the 2 other injectors enter than you have more fuel, so the injector time goes
down.
Now, normally the staging is smooth if all the settings are correct, and the map should
also be more or less flat.
Can you give more details, like what primary and secondary injector size you are
using ?
How about timing ?..... do you also have a fast change in timing on that RPM range?
Your AFR table is also changing on the same RPM ?
Regards
.
Hello, if there is no problems, that is normal, different engines with different porting
flow different from each other in different rpm range, is the same as the otto engines
with modified cams, in the moment they kik-in, i have see larger increase of fuel
timing than you have there.
It also depends if 2800rpm is were the injector staging starts, imagine that you have
2 injectors running the engine, at that point they are alone so the time is higher,
after the 2 other injectors enter than you have more fuel, so the injector time goes
down.
Now, normally the staging is smooth if all the settings are correct, and the map should
also be more or less flat.
Can you give more details, like what primary and secondary injector size you are
using ?
How about timing ?..... do you also have a fast change in timing on that RPM range?
Your AFR table is also changing on the same RPM ?
Regards
.
07-12-14, 10:36 AM
#5
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Some sort of resonation of the intake system is my guess.
To answer the question about rescaling the VE table though...
All you need to do is change the numbers on the left side of the graph. That's basically it. Just click on the number and TunerStudio will pop up and ask you for the new value.
Even in an NA application, make the top bin something like 110KPA to compensate for when the atmospheric pressure is higher.
Of course, remember that changing the load axis will re-scale your table so you will need to retune the table.
To answer the question about rescaling the VE table though...
All you need to do is change the numbers on the left side of the graph. That's basically it. Just click on the number and TunerStudio will pop up and ask you for the new value.
Even in an NA application, make the top bin something like 110KPA to compensate for when the atmospheric pressure is higher.
Of course, remember that changing the load axis will re-scale your table so you will need to retune the table.
07-21-14, 04:23 AM
#7
Hello, if there is no problems, that is normal, different engines with different porting
flow different from each other in different rpm range, is the same as the otto engines
with modified cams, in the moment they kik-in, i have see larger increase of fuel
timing than you have there.
It also depends if 2800rpm is were the injector staging starts, imagine that you have
2 injectors running the engine, at that point they are alone so the time is higher,
after the 2 other injectors enter than you have more fuel, so the injector time goes
down.
Now, normally the staging is smooth if all the settings are correct, and the map should
also be more or less flat.
Can you give more details, like what primary and secondary injector size you are
using ?
How about timing ?..... do you also have a fast change in timing on that RPM range?
Your AFR table is also changing on the same RPM ?
Regards
.
flow different from each other in different rpm range, is the same as the otto engines
with modified cams, in the moment they kik-in, i have see larger increase of fuel
timing than you have there.
It also depends if 2800rpm is were the injector staging starts, imagine that you have
2 injectors running the engine, at that point they are alone so the time is higher,
after the 2 other injectors enter than you have more fuel, so the injector time goes
down.
Now, normally the staging is smooth if all the settings are correct, and the map should
also be more or less flat.
Can you give more details, like what primary and secondary injector size you are
using ?
How about timing ?..... do you also have a fast change in timing on that RPM range?
Your AFR table is also changing on the same RPM ?
Regards
.
I'm thinking the culprit may very well be the timing table: 2500 to 2800 is right where the timing advances a significant degree.
Both primary and secondary injectors are 460cc Series 5 injectors.

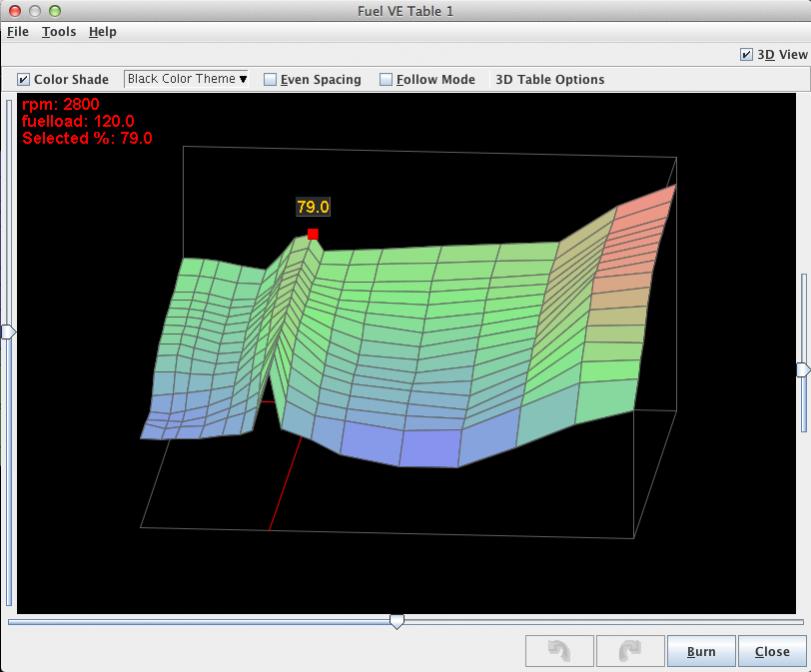

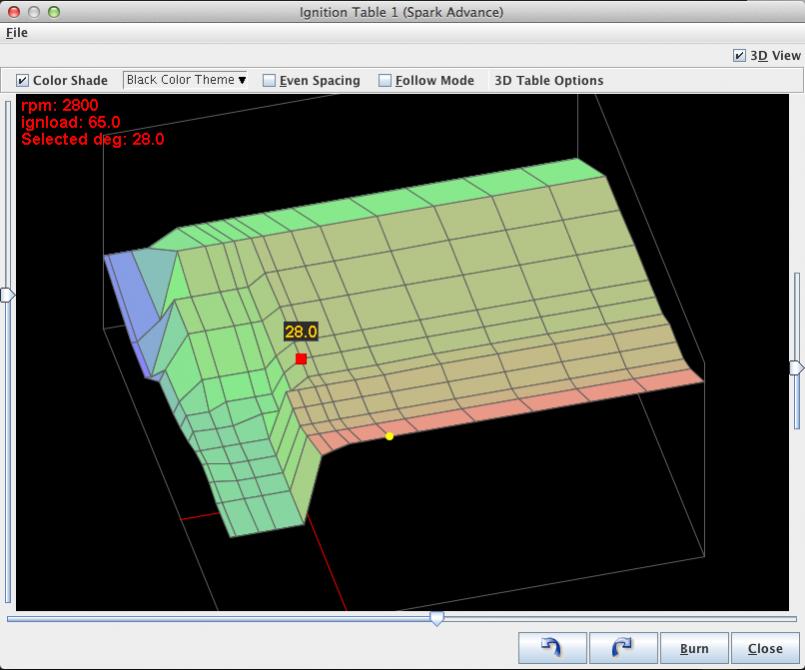

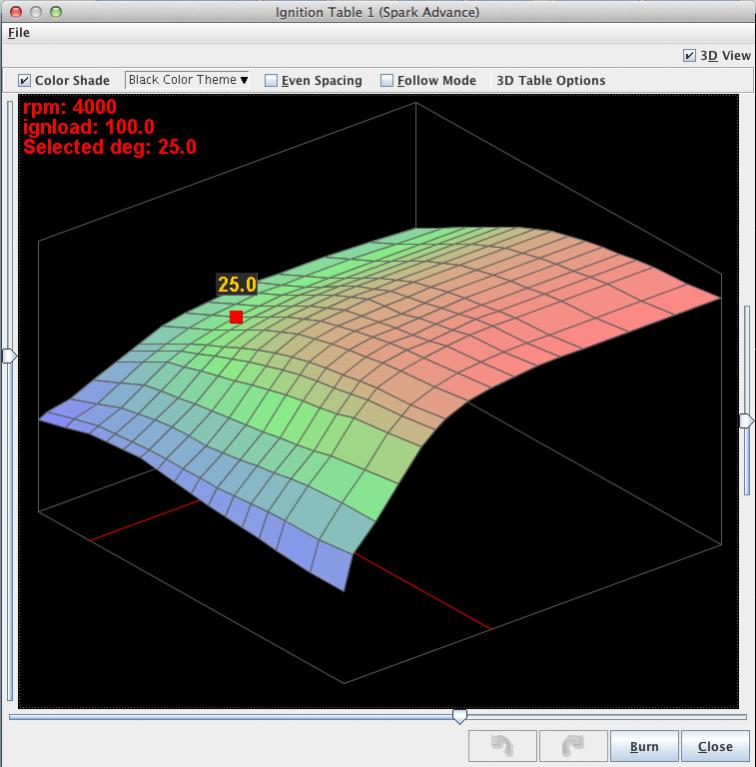

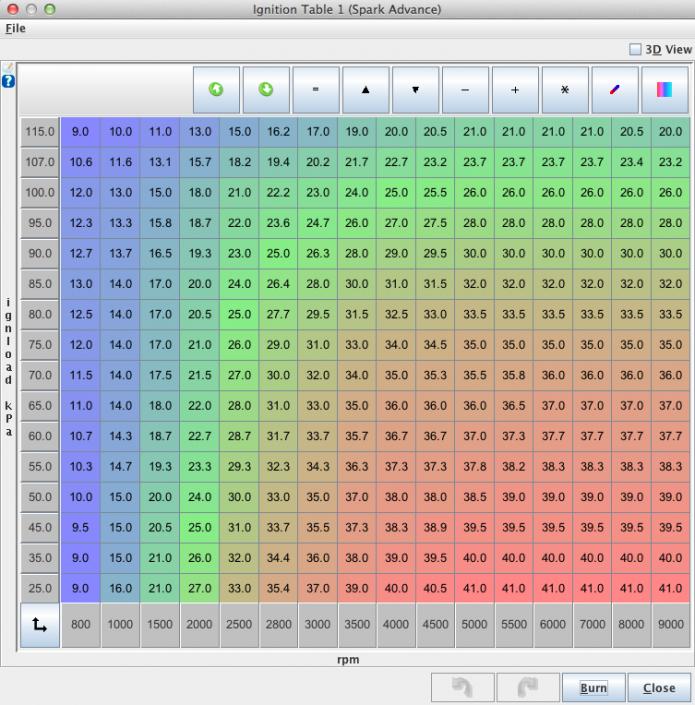

I've attached the fuel table and timing table:
Trending Topics
07-22-14, 12:29 AM
#8
Full Member
Join Date: Feb 2009
Location: Europe
Posts: 140
Likes: 0
Received 0 Likes
on
0 Posts
Hello,
Yes, for shore ignition will have effect on injection time, it will start to burn sooner or later,
and A/F will change, you can try to smooth that map (make it more round/soft).
Imagine that fast changes in IGN degree is like you running with abrupt change in
ground level, the engine is the same, it need more soft changes than you have in your IGN table
A/F
IGN
This tables interact with VE, you change one, you have to revise the VE,
and your VE probably is the last one to have the final tune, because it is
the more dependent of A/F and next IGN.
If you change A/F and/or IGN, VE will need some correction.

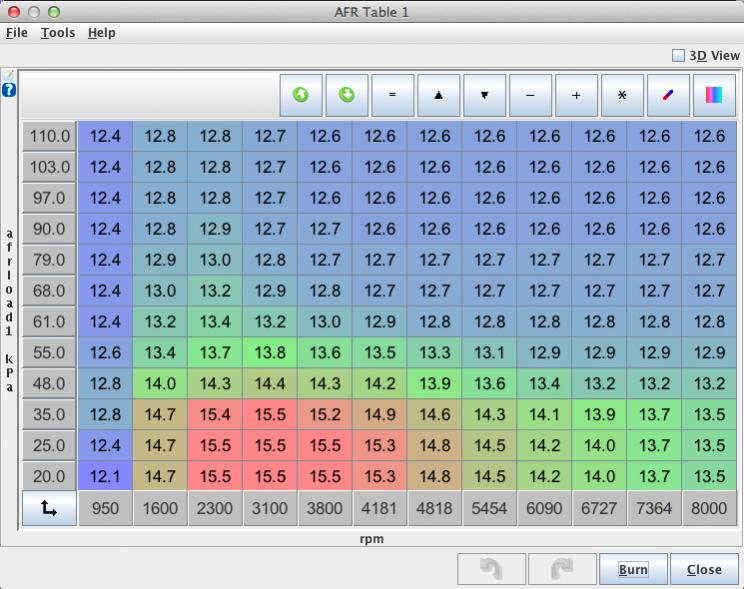

Can you post your MSQ file, or show in numbers your ignition table, also post in
