WTB: FC3 Front Pulley Mounting Hub

Wanted

Miscellaneous

Jan 20, 2024, 04:07 PM | Replies: 6 | Views: 627
  • Miscellaneous - WTB: FC3 Front Pulley Mounting Hub - Used - 1986 to 1991 Mazda RX-7 - Gophermound, TX 75039, United States
TeamRX8's Avatar
10000 RPM Lane
Join Date: Oct 2006
Posts: 2,740
iTrader: (2)
Tenured Member: 15 Years


  • Price
    Any Price
  • Location Gophermound, TX, 75039, USA
  • Condition Used
  • Compatibility
Make Model Year
Mazda RX-7 1986 - 1991
Description:

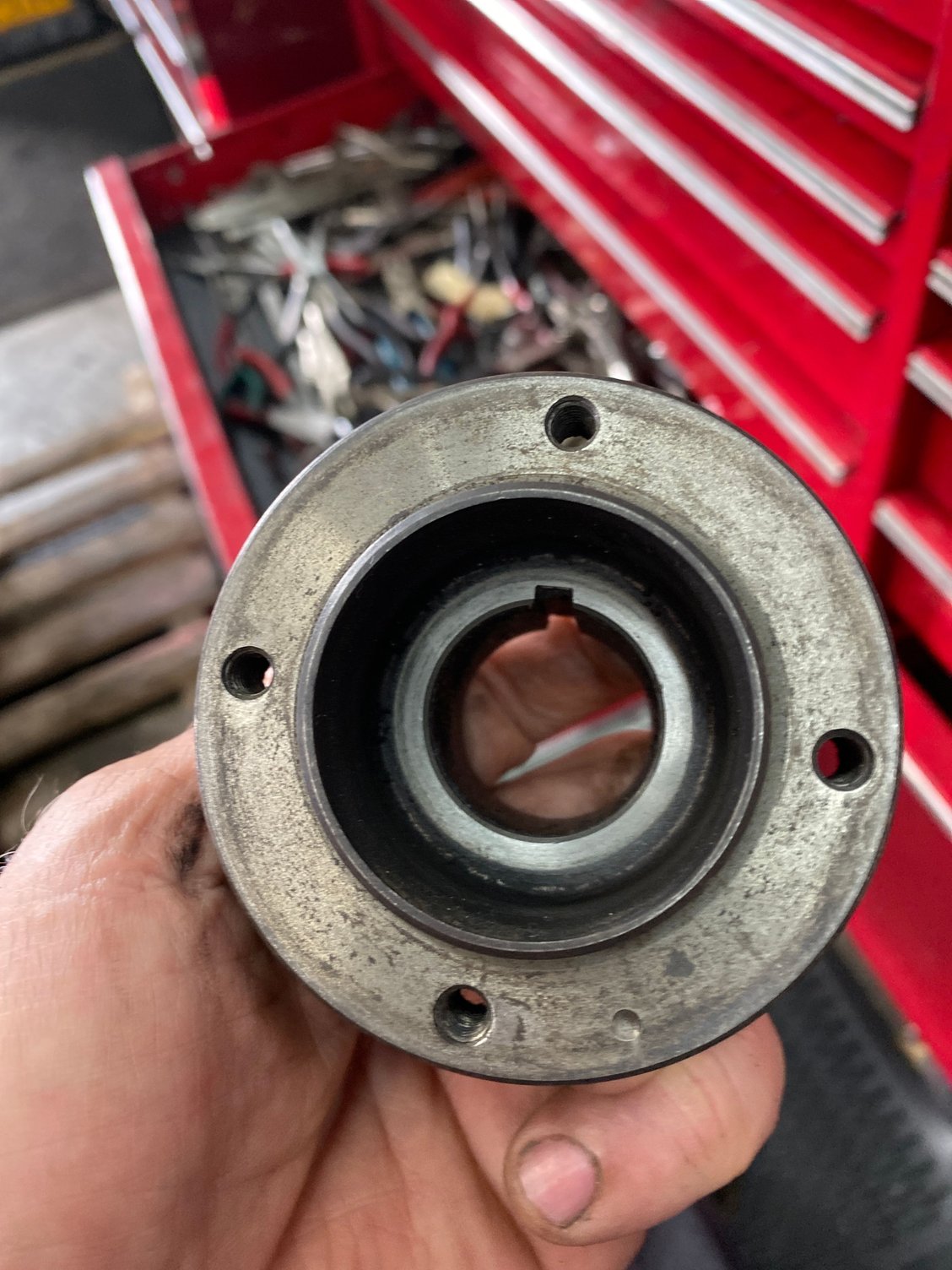

Looking for a front pulley mounting hub from an FC 13B engine.  I don’t need the pulleys or anything else, just the keyed hub that is at the very front of the e-shaft that the pulleys bolt to.   My understanding is it’s the same part for all FC engine models, but please correct my error if mistaken.
.

Reply
Old Jan 20, 2024 | 09:19 PM
Share
  #2
aicrotary2's Avatar
aicrotary2
Rotary Freak
iTrader: (175)

Joined: Mar 2003
Posts: 2,072
Likes: 21
From: miami fl
I should have . Will check tomorrow. It is from a t2
Reply
0
Old Jan 21, 2024 | 02:35 AM
Share
  #3
TeamRX8's Avatar
TeamRX8
Thread Starter
10000 RPM Lane
Tenured Member: 15 Years
iTrader: (2)

Joined: Oct 2006
Posts: 2,740
Likes: 924
From: on the rev limiter
The e-shaft keyway should be directly in line with one of the pulley bolt holes.

I’m fairly certain that this is true for all of the 13B engines, including the Renesis.


.


.


.


.

The REW and Renesis hubs have trigger wheel positioning pins.

The 12A hub has the keyway positioned equally at 45° between the pulley bolt holes.


.

The 20B hub has the keyway positioned ~25° CW from one of the pulley bolt holes.


.

.
Last edited by TeamRX8; Jan 21, 2024 at 02:39 AM.
Reply
0
Old Jan 21, 2024 | 02:46 AM
Share
  #4
pzr2's Avatar
pzr2
Senior Member
Tenured Member 10 Years
iTrader: (4)

Joined: Mar 2014
Posts: 462
Likes: 76
From: Arizona
A while ago, I made a CAD model of the FC hub. Looks like that's how I had it modeled.


Reply
0
Old Jan 21, 2024 | 08:35 AM
Share
  #5
TeamRX8's Avatar
TeamRX8
Thread Starter
10000 RPM Lane
Tenured Member: 15 Years
iTrader: (2)

Joined: Oct 2006
Posts: 2,740
Likes: 924
From: on the rev limiter
^^thank you

Curious to know what dimension you used for the OD of the pulley centering extension lip?
.
Reply
0
Old Jan 21, 2024 | 04:33 PM
Share
  #6
pzr2's Avatar
pzr2
Senior Member
Tenured Member 10 Years
iTrader: (4)

Joined: Mar 2014
Posts: 462
Likes: 76
From: Arizona

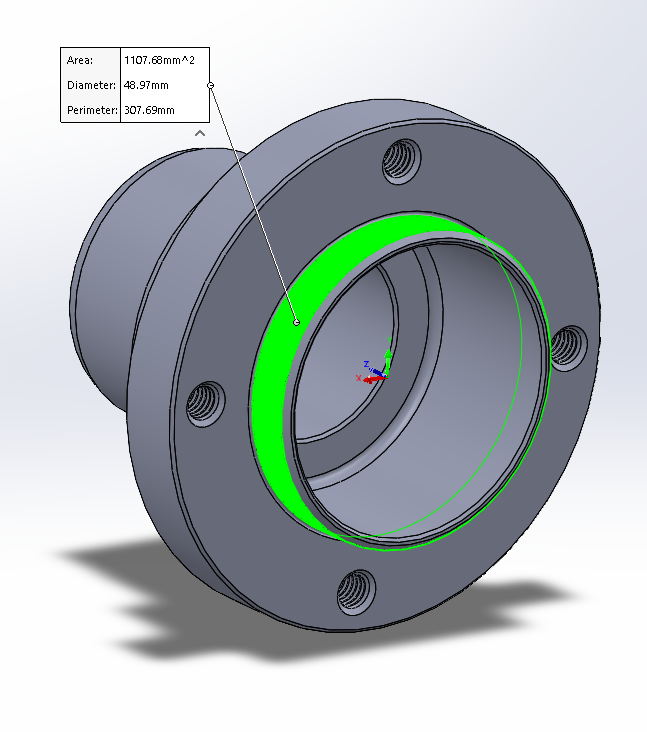

Nominal of 49mm, actual measured was slightly less so the pulleys/sandwich plate was a slip fit



Reply
1
Old Jan 22, 2024 | 02:41 PM
Share
  #7
aicrotary2's Avatar
aicrotary2
Rotary Freak
iTrader: (175)

Joined: Mar 2003
Posts: 2,072
Likes: 21
From: miami fl

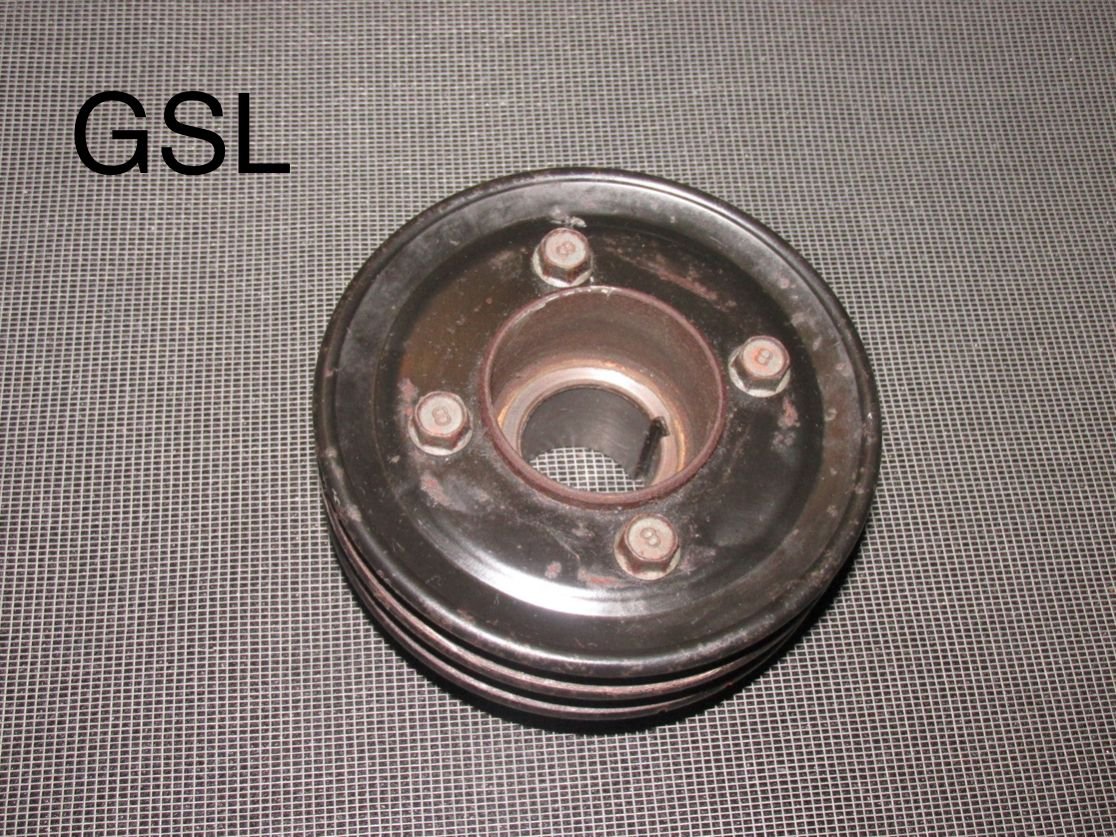

Should be a s4 na $20 plus shipping
Reply
