How to make lens covers for the aftermarket/replica Mazdaspeed GTC front bumpers. Keep in mind that this process can also be used on the OEM version. For starters the supplies needed would be.

1. 12x27" piece of 1/8" clear plexiglass (aka PG). You should be able to find this at any specialized window/glass store.

2. Can of black spray paint.

3. Portable jigsaw w/fine tooth blade. This blade will keep the plexiglass from chipping.

4. Several sheets of 8.5x11" paper either taped together so it’s large enough to be used as the initial temple. And darker construction paper for the final templet.

5. Scissors

6. Drill with drill bit for small screws.

7. Small flathead screws and nuts.

8. The kitchen oven.

9. Large flat baking pan. DO NOT use the black non stick ones. They absorb too much heat and will make the surface the PG will be laying on hotter than it should be.

10. Pencil

11. Tape

12. Both combo lights for the bumper.

13. Socks or mittens

First understand that the bumper will need to be off the vehicle. Why? Well the plexiglass is going to be heated in the oven. When the plexiglass is removed from the open, you will have about 20 seconds before the PG starts to harden again. Therefore running out to the garage or the street were your car is parked isn’t going to give you much time to mold the PG to the bumper.

t-von

iTrader: (8)

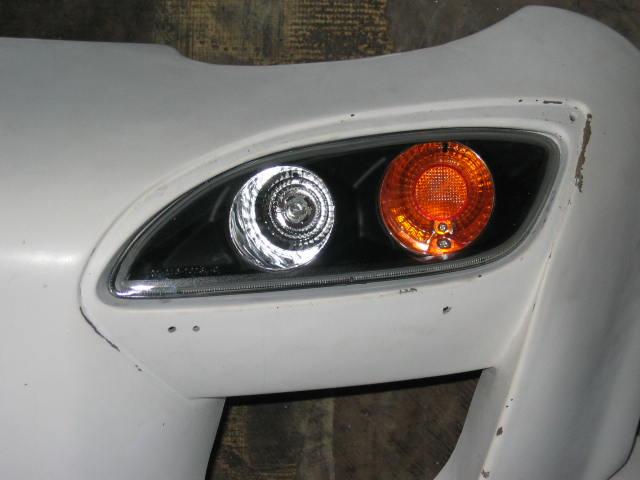

First take your sheets of paper and some tape and tape them together. Makes sure that the taped paper is large enough to completely cover over the lens section of the bumper. Also make sure you have one of the combo lights installed in the bumper(will explain why later). Place the taped paper over the lens section of the bumper and using your fingers, press along the outline of the lens section. This will put a crease in the paper so that when it’s removed, you will have a general outline of the lens section. Now take your scissors and cut around that outline. This will be your initial templet. Place this templet over the lens section again and check for gaps and inconsistencies and trim as needed. This is where leaving the combo lights installed helps because the lights naturally protrude outward basically giving the pager a place to rest. This will make your templet more accurate. Basically what your trying to do is make the paper fit like it’s the actual PG cover and the combo lights will keep the paper true.

t-von

iTrader: (8)

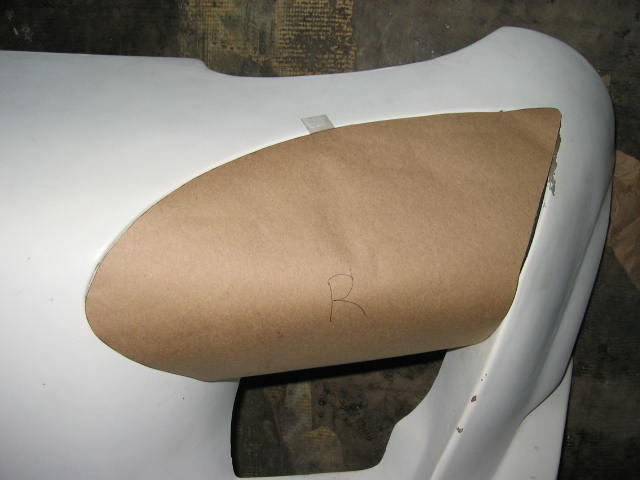

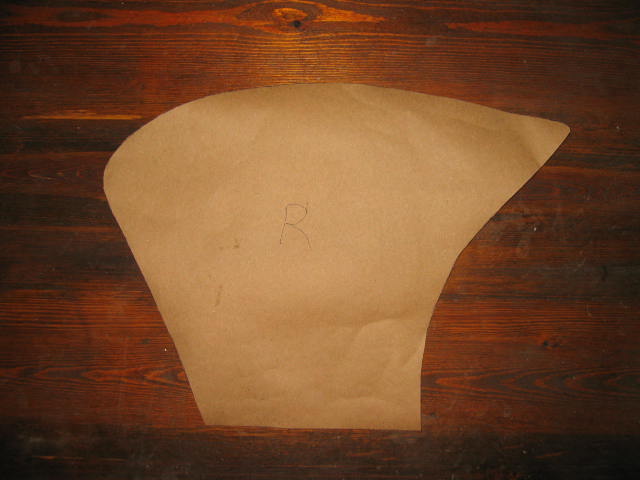

Once you finally have the initial templet cut perfect, transfer that templet onto the darker construction paper and cut it out. This is your final templet. Once again place the templet over the lens section to make sure everything is perfect with fitment. Due to the thickness of construction paper, this will give you more of an indication that your templet is right.

t-von

iTrader: (8)

With the temple finalized, transfer it onto the plexiglass with your pencil. Use the jigsaw and cut along the line and perfect as possible. If your really talented with the jigsaw, you shouldn’t have to sand the edges at all.

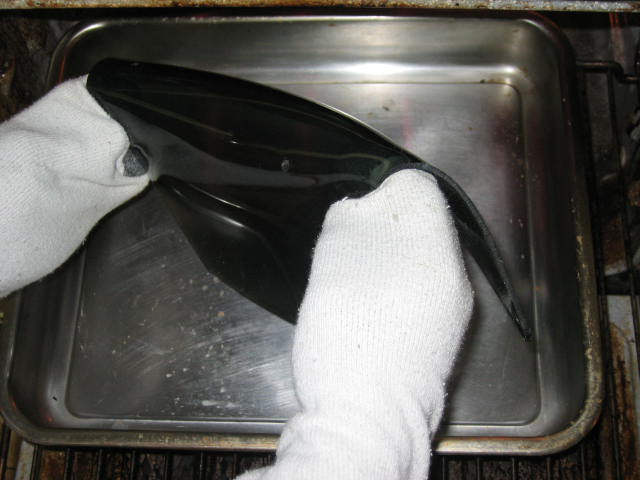

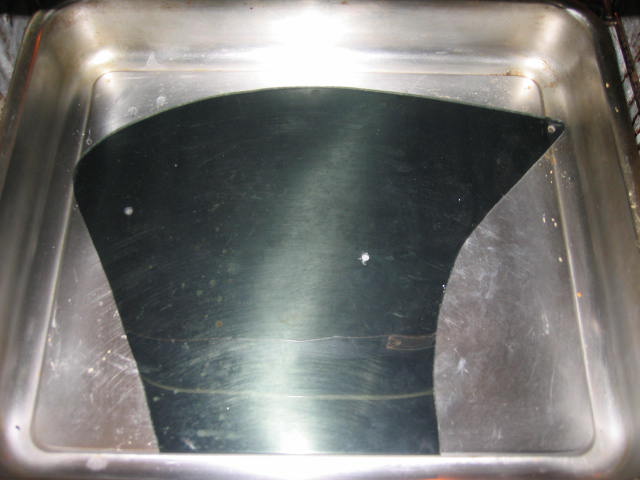

Now preheat the oven to 375 degrees. The cook setting should be on broil so the heat comes from the top). Place the baking sheet in the center section of the oven so it preheats as well. While the oven is preheating, bring the bumper to the kitchen near the oven. Take the protective lining off both sides of the PG. Place the PG in the oven for 5 minuets. Grab your socks or mittens to protect your hands. After 5 minuets are up, remove the PG and quicky place it on the bumper. You will notice how soft the PG has become and it will virtually mold into shape. Keep in mind that you will have less than 30 seconds to make sure that the PG molds to the overall contours of the bumper. You will also have to place even amounts of pressure over the entire PG to make sure everything if nice an flat. Use a rubbing method. NOTE: do not hold pressure in the same section. The softened PG will show indentions from your fingers if you do this. Don’t worry if you mess up the first time. The PG can easily be placed back in the oven to be re-softened again (but only for a few times). Once you have the PG molded correctly, drill holes through the PG and bumper so it can be fastened with the screws and nuts. Counter sink the screws for a flush fit. There, now you have lens covers for your GTC bumper.

t-von

iTrader: (8)

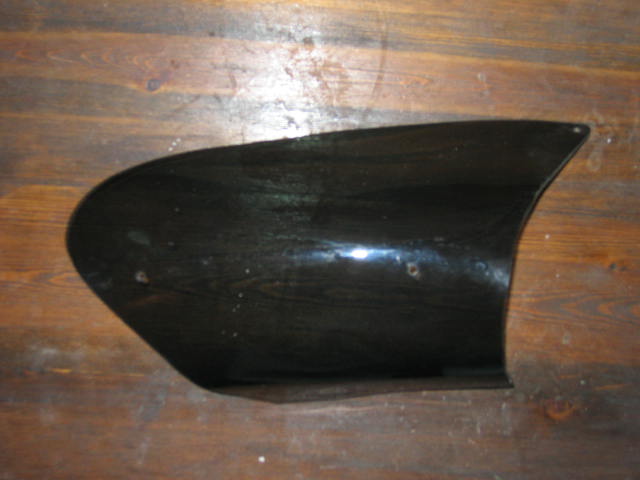

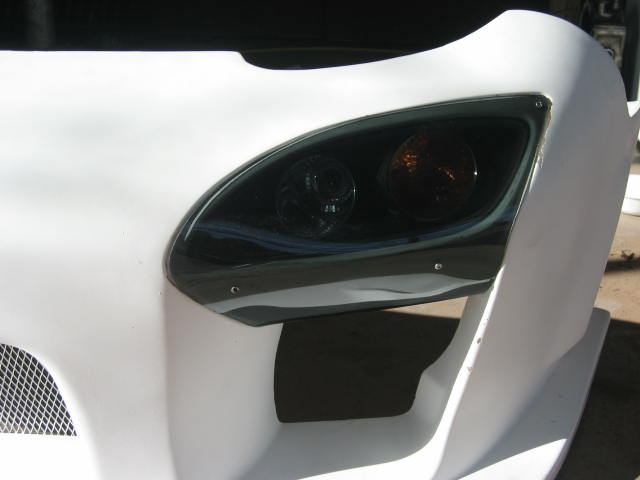

I used smoked PG for this illustration so it could be seen better. The real covers that you make should be clear. Once you have them formed you then use the black paint to paint around the inside outer edges of the cover. Only the center light section of the cover is clear, the rest is blackened out just like the real MS covers.

Also this process could possibly be used in making your own lens covers for the sleek head lights. I haven't tried to make those yet.

And to those of you who intend to make and sell these, good luck. Not every aftermarket bumper is molded the same. early last year I tried to fit a pair of mine on another local Rx7 and they didn't fit (huge gaps). So I guess there are differant after market manufacturers for these bumpers.

Lastly you will need to make a second pattern for the other side as it is slightly molded differant. Simply flipping the pattern over will not yield good results for the other side. If you have the OEM bumper, you could get away with filpping the pattern because of it's better quality.
