Hi all,

Right back ground behind this first...I've cut the connector off my old foglights and wired up my new Feed headlights (the driving light/H3) bit to them (red on the connector to white on the H3 bulb, black to black).

I've checked the wiring and I definitely get in the region of 11.8V going to both connectors on the car. However as soon as I plug them in and switch on the front fogs, the fuse blows?

I'm really stuck as to why unless it was being overloaded? But they're the same 12V/55W H3 bulbs the stock fogs use so I'm a bit confused.

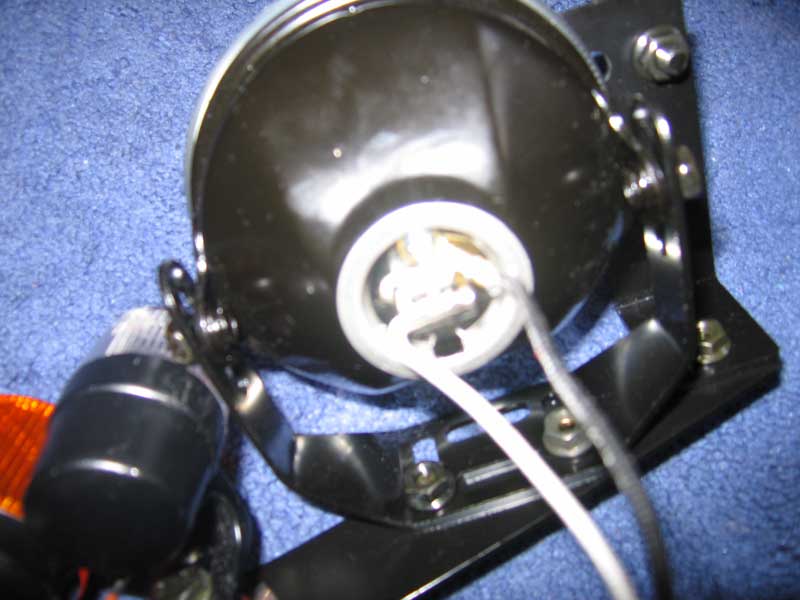

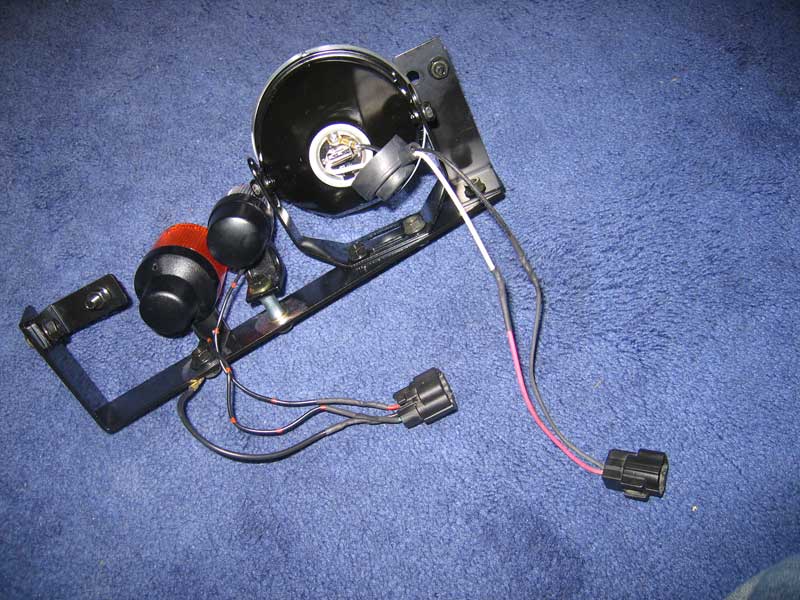

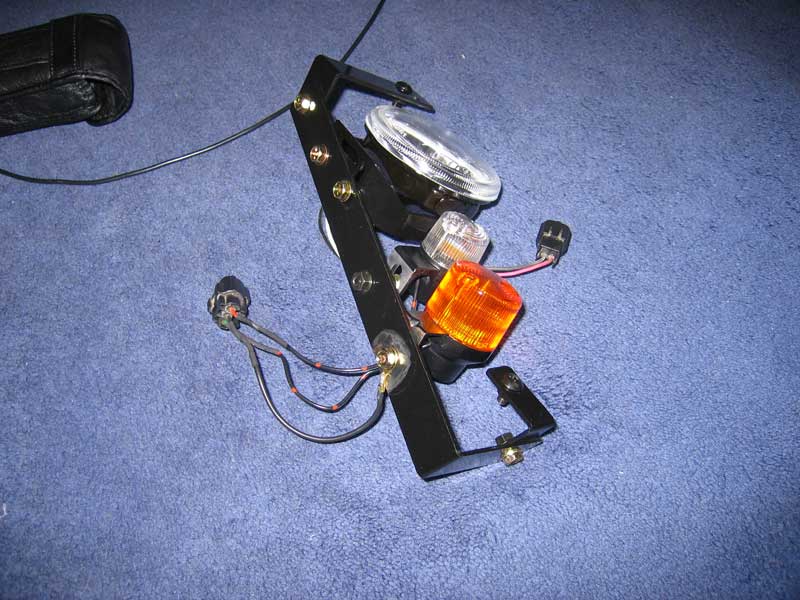

It seems something is shorting out but I can't work out what? Have attached some pix.

The sidelight/front repeater wiring is fine, they don't blow and light as they should.

Anyone any ideas?

Cheers!

Paul.



Could someone move this to the Interior/Exterior/Audio section please it's in the wrong place...sorr.



Cheers!



Well I get just under 12V coming out of the stock wiring at each side but I never tried with the stock foglights as I didn't have any. Going to try a few things this weekend.
