FD components up front, tweeter mounting
#26
Lives on the Forum
Originally Posted by FDNewbie
On that note, you know what I've found, Damon? Speaker (like dash mounted speakers) tend to fill the cockpit much better when they're aimed at the windshield.
Pick a favorite well recorded song you know well and play it in your car at normal volume. Now lean your head forward to get your ears between the tweeters. Notice a difference?
Cars are actually difficult sound environments and sometimes things that shouldn't work do. The key is to try it. IMO if you have to resort to aiming speakers at the windshield the speaker itself is lacking though. If you do that you're no longer listening to the speaker, you're listening to the windsheild. This brings all kinds of phase, dispersion and response problems.
#27
Yea I'm gonna play w/ the tweeters, and I'm sure you'll turn out to be right...it'll sound better aimed at me. I might even have to turn down the high's a bit to compensate for better sound delivery
Re: aiming at winshield, good point, but a lot of times I think it's due to space contraints. Lemme say this: even w/ a $1000 component system, placing speakers literally on the floor, in a position where your foot is immediately in front of the speaker face, blocking a great deal of the noise (talking about the FD here), it CAN'T get any worse. I'm sure dash-mounted speakers woulda been better. But hey, they gave us one, right? Too bad I got a gauge pod there haha.
Serious sound setups have a sub set above knee height, then a midbass speaker about elbow length (both in the door panel), then high speakers/tweeters on the top of the door/triangle area, or on the dash facing up, AND a center speaker channel on the dash. Now THAT'S a monster setup w/ correct placement.
Awesome speakers + poor placement (FD spots) = sucks, any way you cut it lol.
Lastly...I got a question for ya Damon. Any way to still get sound from the center speaker while using a pod there? Or is that a lost cause?
Re: aiming at winshield, good point, but a lot of times I think it's due to space contraints. Lemme say this: even w/ a $1000 component system, placing speakers literally on the floor, in a position where your foot is immediately in front of the speaker face, blocking a great deal of the noise (talking about the FD here), it CAN'T get any worse. I'm sure dash-mounted speakers woulda been better. But hey, they gave us one, right? Too bad I got a gauge pod there haha.
Serious sound setups have a sub set above knee height, then a midbass speaker about elbow length (both in the door panel), then high speakers/tweeters on the top of the door/triangle area, or on the dash facing up, AND a center speaker channel on the dash. Now THAT'S a monster setup w/ correct placement.
Awesome speakers + poor placement (FD spots) = sucks, any way you cut it lol.
Lastly...I got a question for ya Damon. Any way to still get sound from the center speaker while using a pod there? Or is that a lost cause?
#28
Lives on the Forum
Originally Posted by FDNewbie
Yea I'm gonna play w/ the tweeters, and I'm sure you'll turn out to be right...it'll sound better aimed at me. I might even have to turn down the high's a bit to compensate for better sound delivery
Originally Posted by FDNewbie
Re: aiming at winshield, good point, but a lot of times I think it's due to space contraints. Lemme say this: even w/ a $1000 component system, placing speakers literally on the floor, in a position where your foot is immediately in front of the speaker face, blocking a great deal of the noise (talking about the FD here), it CAN'T get any worse.
Originally Posted by FDNewbie
Serious sound setups have a sub set above knee height, then a midbass speaker about elbow length (both in the door panel), then high speakers/tweeters on the top of the door/triangle area, or on the dash facing up, AND a center speaker channel on the dash. Now THAT'S a monster setup w/ correct placement.
Originally Posted by FDNewbie
Awesome speakers + poor placement (FD spots) = sucks, any way you cut it lol.
Originally Posted by FDNewbie
Any way to still get sound from the center speaker while using a pod there? Or is that a lost cause?
Last edited by DamonB; 12-08-05 at 02:29 PM.
#29
Originally Posted by DamonB
I don't know how you'd do it without somehow building the speaker into the gauge pod. Even so I would want it pointed at the cockpit, not the windsheild. If it's just for center fill a better idea might be to mount it behind the center a/c vents.
#30
Slower Traffic Keep Right
iTrader: (5)

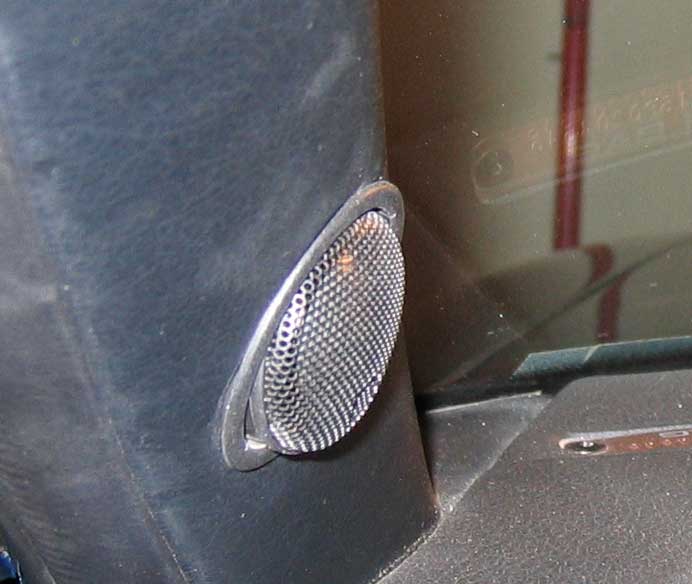

FWIW, I have my tweeters mounted in my a-pillars. I can't stand the way surface mount looks so they are flush mounted. They fit *almost* perfectly. There is a little lip that sticks out towards the front because the a-pillar starts to curve around to the edge of the windshield.
They are JL Audio XR-100CTs. Overall they are pretty good, but at times they are a little bright for my tastes and the crossover that comes with them doesn't have an attenuation feature.
http://mobile.jlaudio.com/products_c...hp?comp_id=249
Don't pay attention to my filthy dash!
They are JL Audio XR-100CTs. Overall they are pretty good, but at times they are a little bright for my tastes and the crossover that comes with them doesn't have an attenuation feature.
http://mobile.jlaudio.com/products_c...hp?comp_id=249
Don't pay attention to my filthy dash!
#31
Poss, I considered putting it on the A-pillar, but I have an A-pillar gauge pod, so only spot I could put it would be at the top of the A-pillar, and that's wayyy too close to my head But def looks nice!
On that note, my FAV place to mount tweeters is on the very front of the door panel. Love that. 100% flush, and looks so clean. Good distance, etc. Prob is, hell will freeze over before I cut up a door panel. These things are $2K a pop from the dealership, should you need to replace 'em!
On that note, my FAV place to mount tweeters is on the very front of the door panel. Love that. 100% flush, and looks so clean. Good distance, etc. Prob is, hell will freeze over before I cut up a door panel. These things are $2K a pop from the dealership, should you need to replace 'em!
#32
Rotary Poseur
Join Date: Feb 2001
Location: Richmond, BC, Canada
Posts: 718
Likes: 0
Received 0 Likes
on
0 Posts
Has anyone successfully install the Image Dynamics HLCD system? In the 80's when Clark/Navone came out with it, it was all the rage. I think they still call it the Waveguide. It apparently eliminated a lot of the issues with separation/depth/soundstage. And they're uber efficient to boot.
BTW, I remember out-of-phase firing of the tweets to the windshield was another "trick" for better imaging...except the reflected sound off the glass often sounded too harsh.
BTW, I remember out-of-phase firing of the tweets to the windshield was another "trick" for better imaging...except the reflected sound off the glass often sounded too harsh.
#34
Lives on the Forum
Originally Posted by poss
at times they are a little bright for my tastes and the crossover that comes with them doesn't have an attenuation feature.
#35
Lives on the Forum
Originally Posted by AustinCustoms
Contrary to popular belief, it is best to fire them from opposite sides of the car at each other. anything facing you can be too harsh.
Show me an off axis frequency response graph for any tweeter of any design or manufacture at any price that doesn't loose a huge amount of output over 10K when you're anything more than say 50 degrees off axis (and it will get much worse at 90!).
You don't fire speakers at eachother unless they're in headphones.
#36
Lives on the Forum
Originally Posted by HedgeHog
Has anyone successfully install the Image Dynamics HLCD system? In the 80's when Clark/Navone came out with it, it was all the rage. I think they still call it the Waveguide. It apparently eliminated a lot of the issues with separation/depth/soundstage. And they're uber efficient to boot.
#37
Rotary Poseur
Join Date: Feb 2001
Location: Richmond, BC, Canada
Posts: 718
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DamonB
Were those the guys who were putting large waveguides on the front of a compression driver? The output of the waveguide was like 2"x6" or something? Never got to listen to anything like that but I do know they eat up a LOT of room. The compression drivers alone are big and heavy.
I wished they post dimensions so I can see if they're gonna sit on my shins. In their installation forum, they claimed to have done it in a C5 so it may fit in the FD. The biggest problem (other than dp/mp/cb, roadnoise, etc) is that with the smallish interior even crossfiring the speakers to a point in front of the driver, you'll have problems with the steering column/wheel blocking the sound. The waveguide is supposed to minimize that issue...."supposed to".
#38
Lives on the Forum
Originally Posted by HedgeHog
Something romantic about emulating Klipschorn in the car.
Originally Posted by HedgeHog
I wished they post dimensions so I can see if they're gonna sit on my shins.
http://www.imagedynamicsusa.com/page.php?page=fullhorn
http://www.imagedynamicsusa.com/page.php?page=minihorn
#39
Rotary Poseur
Join Date: Feb 2001
Location: Richmond, BC, Canada
Posts: 718
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by DamonB
Better drive it with some tubes!
Auditioned some Sonic Frontier and Conrad Johnson pre/amp...wow...incredible. Heck I remember Milber tube amps for cars was very well reviewed...too bad them tubes will not last the drive around the block. LOL.
D'oh...and...D'oh. Thx for the link.
