I need some help I'm putting my AC Panel back in and am having some problems with the threaded screw clips. I need to get a picture of how the threaded clip for the screw attachs to the dash. The screw clip that's the problem is the on the left side near the dash under the below the screw that mounts to the metal hanger. If you have pic or something of this area, or know how this clip is attached please let me know. It looks like it just gets pressed over the square cutout but it does not seem to be fitting when I try to press it on like that.

Thanks



Do you mean the AC box or the panels behind the a/c control switches?



The panel with the AC controls beside the guage cluster. The screw clip I need info on is the one that attaches the panel to the dash right beside the gauge cluster. I have attached a pic the clip I believe attaches to the square hole.

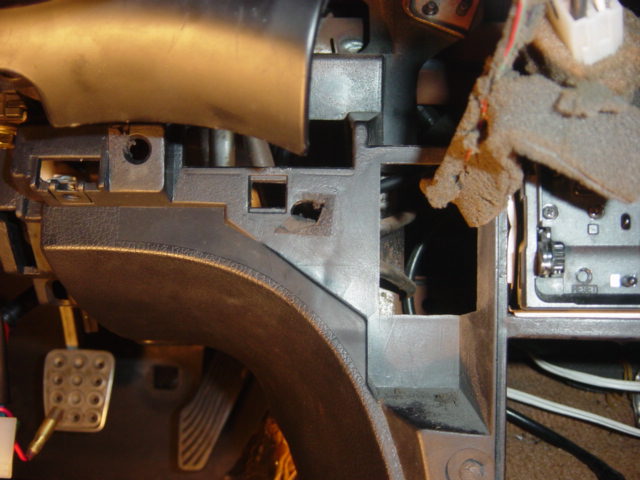

hope this might help. That's the only pic i got when i took the aircon switches out.



to bad it wasn't a little lower and to the left oh well. Thanks for trying. Anyone else know how it is attached.



Anyone? Need to get it buttoned up tonight so I can get my piping welded.
