FC power antenna relay wiring for aftermarket Head Units

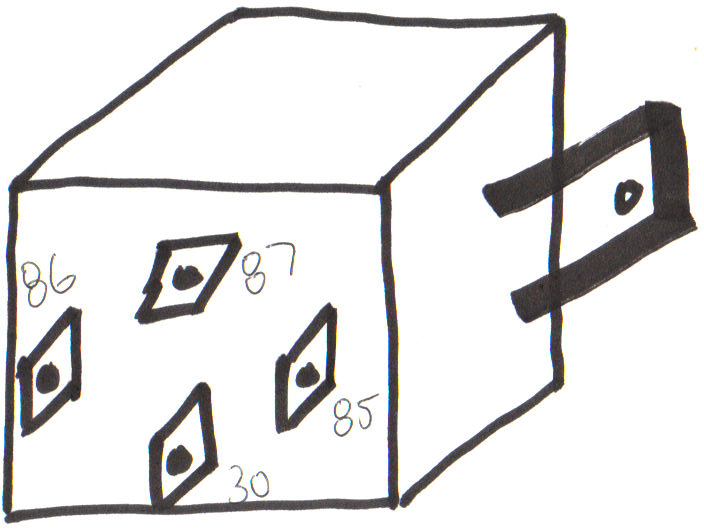

For use with many types of relays.
87 -- Blue w/yellow stripe wire in car harness
86 -- Antenna lead from Head Unit
85 -- Ground
30 -- Ground
My drawing sucks, but you will get the idea. Good luck, Jesse.
87 -- Blue w/yellow stripe wire in car harness
86 -- Antenna lead from Head Unit
85 -- Ground
30 -- Ground
My drawing sucks, but you will get the idea. Good luck, Jesse.
Last edited by rotor88; 11-22-05 at 09:25 PM.
