Haltech E6X on RX-7 Turbo FC Series 4/5

Reply Subscribe

Thread Tools

Search this Thread

Jun 10, 2005 | 02:09 PM

#26

eViLRotor

Brother of the Rotary

iTrader: (2)

Joined: Jun 2001

Posts: 5,781

Likes: 2

From: Arkham Asylum

Quote:

Originally Posted by G_RIDE

that would be wired as the positive trigger for the relay correct?

No, the pwm's and the dig out GROUND the relay. In other words, the ground goes through the Haltech itself.

Jun 10, 2005 | 09:52 PM

#27

BASTARD

iTrader: (4)

Joined: Dec 2003

Posts: 2,282

Likes: 3

From: NorCal

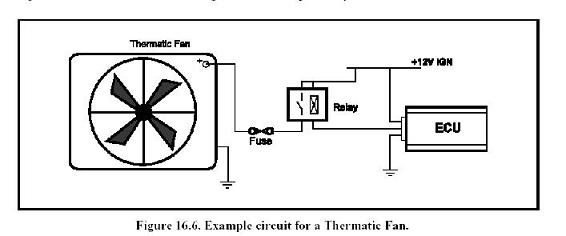

fan relay

Attached Thumbnails

Jun 11, 2005 | 09:24 AM

#28

Claudio RX-7

Thread Starter

EFI Tech Wannabe

iTrader: (1)

Joined: Sep 2003

Posts: 2,415

Likes: 10

From: D.R., USA, the world...

Quote:

Originally Posted by eViLRotor

No, the pwm's and the dig out GROUND the relay. In other words, the ground goes through the Haltech itself.

Exactly, its very important guys, to know that the PWMs, Aux. Out, etc., are "pull to ground" styled connections, or they ground the cricuit they are part of. And its ALWAYS ALWAYS ALWAYS important to remembr that they cant drive the output directly, so awlays use a relay with the proper fuse connected directly to the battery.

Jul 3, 2005 | 02:44 PM

#29

BASTARD

iTrader: (4)

Joined: Dec 2003

Posts: 2,282

Likes: 3

From: NorCal

I want to use the BAC to control idle. Whats the best way to hook it up. I will use a PWM for a switched ground, but can I use a Grey/Red wire for power or is that to big of a draw and use a non Haltech ECU power source instead??? Can this also be used to compensate for the air conditioner. I read the manual and it seems like it can but i am still a little confused? Or should i bag the the BAC for a stepper motor???
