Bubble Tech Flat Door Panels -Race Version (Coming Soon!)
#1
Bubble Tech Flat Door Panels -Race Version (Coming Soon!)
So we are beginning to work on some door cards for the FD. We are looking to offer two versions.
Street- Mostly flat door panel, cut out for door lever, raised portion to allow speaker, and will conform to meet back with the dash (when door is closed)
Race- Completely flat
Right now we are in the testing phase and figuring out dimensions/mounting points etc. some pics..

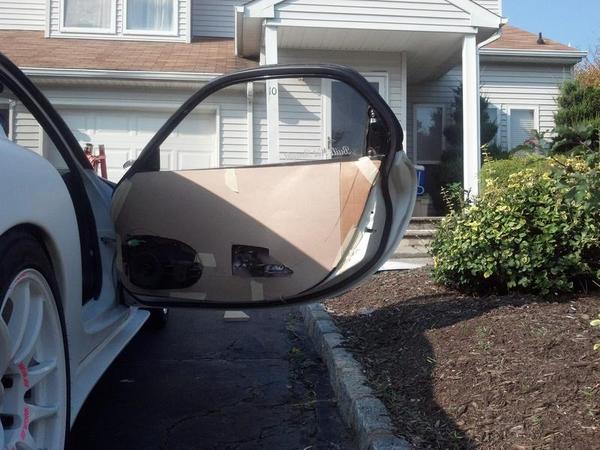

Prototype 1 doneee! (minus weather stripping)

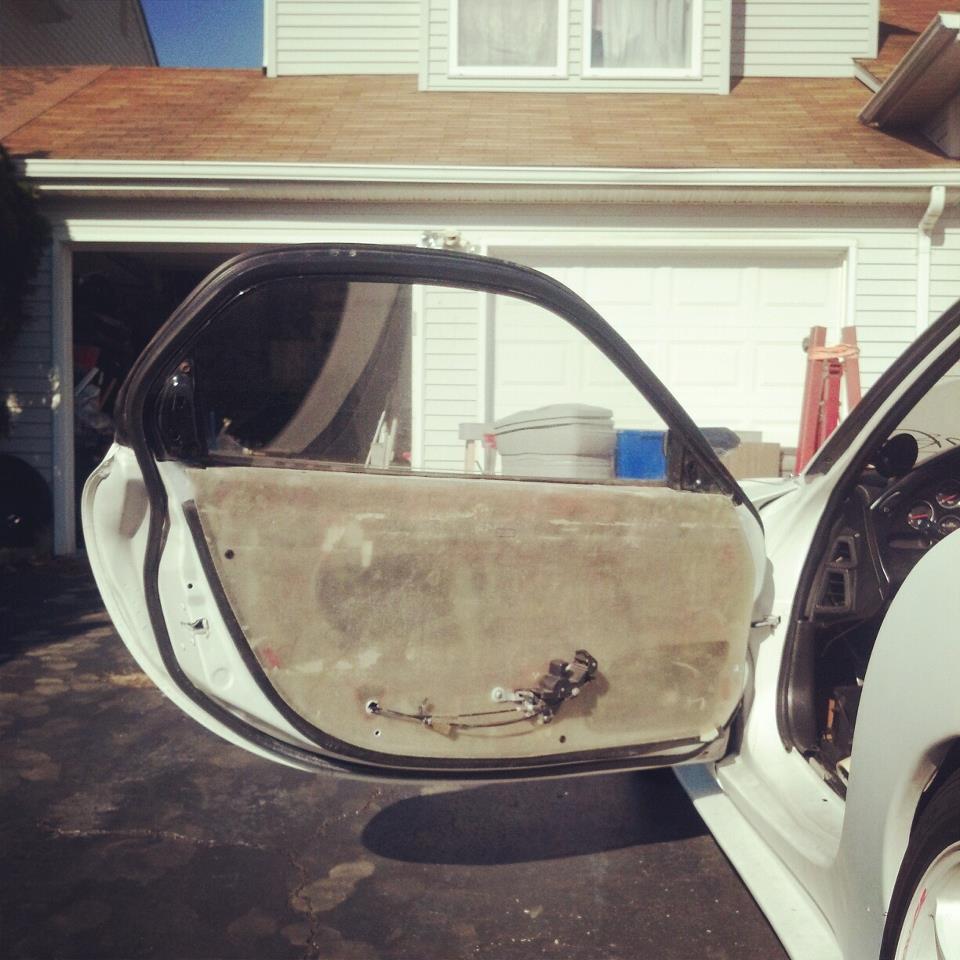

Prototype #2 (Fiberglass) almost done, making some final tweaks.
Things we want to revise:
Trimming around window edge to contour better
Add window stripping
Increase radius of bend (looks too sharp)
Trim panel (made one section too large and rubs a little bit)

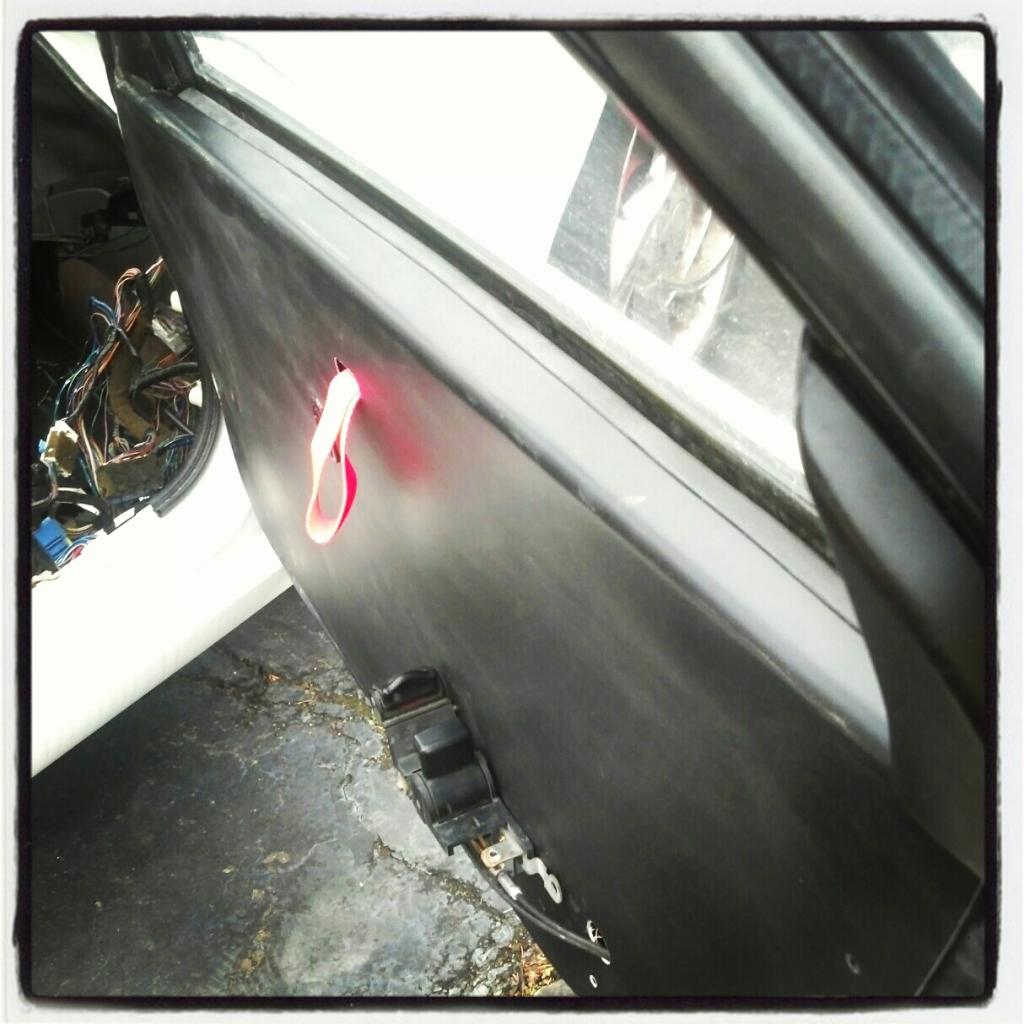

Driver side mock up

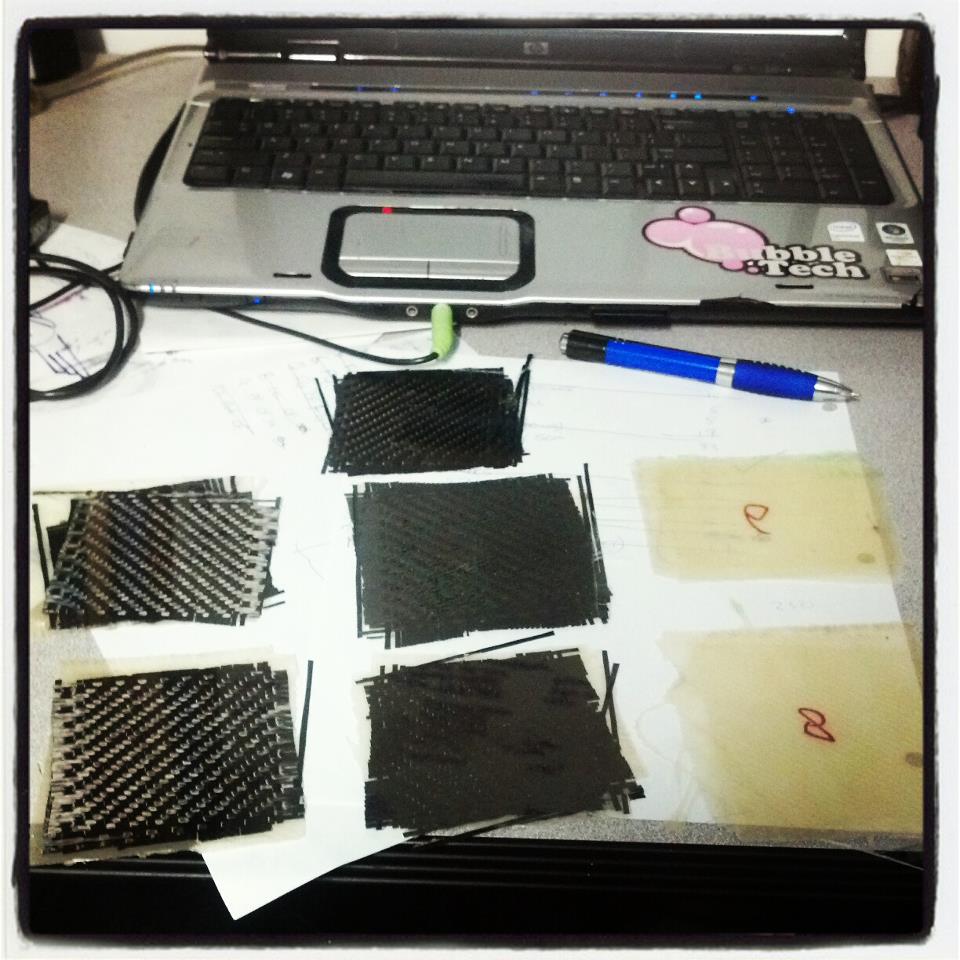

And some some test panels
We are currently prepping for the mould and hope to have thes available before Christmas time
Street- Mostly flat door panel, cut out for door lever, raised portion to allow speaker, and will conform to meet back with the dash (when door is closed)
Race- Completely flat
Right now we are in the testing phase and figuring out dimensions/mounting points etc. some pics..
Prototype 1 doneee! (minus weather stripping)
Prototype #2 (Fiberglass) almost done, making some final tweaks.
Things we want to revise:
Trimming around window edge to contour better
Add window stripping
Increase radius of bend (looks too sharp)
Trim panel (made one section too large and rubs a little bit)
Driver side mock up
And some some test panels
We are currently prepping for the mould and hope to have thes available before Christmas time
Last edited by GoodfellaFD3S; 12-06-12 at 04:28 PM.
#4
They are a big bulky but they still work well and it is easy to open with these style laytches
Thank you
Trending Topics
#14
And you are correct, being that I am in NJ is a lot easier then dealing with parts from other countries!
haha, yes my interior is beat to crap, thought I'd freshen it up and offer it in case people want it as well
#15
So the Plug for the door panel is now done! However we ran out of more supplies (we had some paint go bad) womp womp. now another delay, and having to wait for another shipment to arrive.... BUT we have more details/pricing!
These prices are not set, but are the targeted prices. Our Intro pricing (for the pair):
Fiberglass- $450
Carbon Fiber overlay- $600
Full Carbon Fiber- $750
Full plug and play. All necessary hardware will be included, along with door pull strap (Availible in various colors) Parts will be made to order, and can take up to two weeks before shipment. All parts are made in house by resin infusion. This insures the proper Glass/CF to resin ratio, for weight and strength. The carbon fiber will come in 2x2 twill only. Shipping will be $25 anywhere in the US.

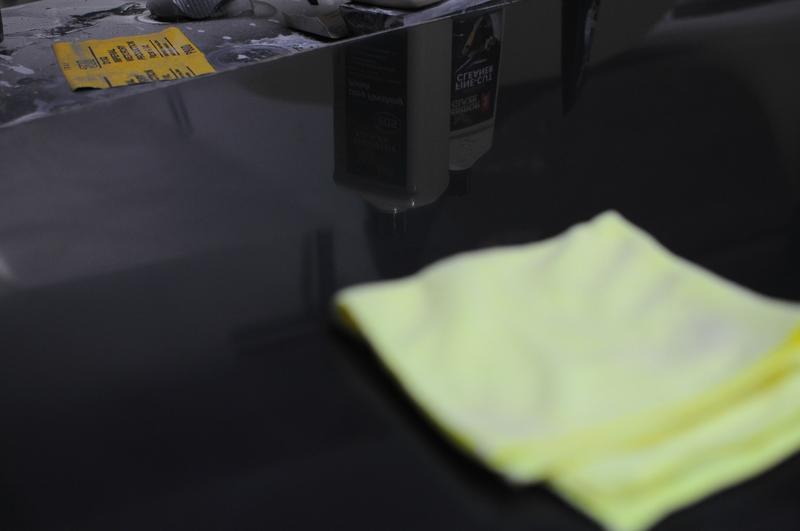

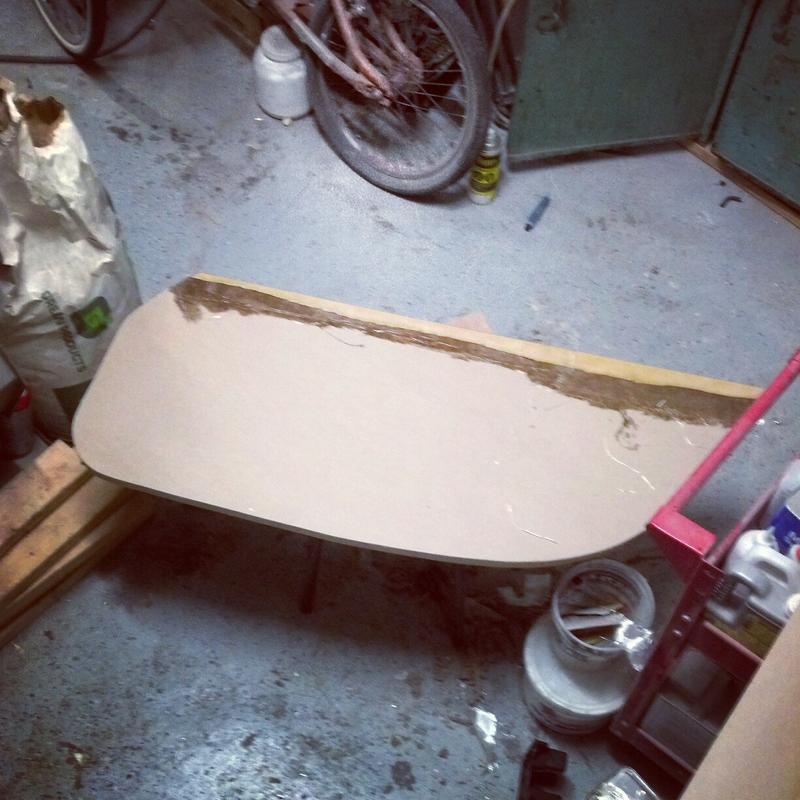

teaser pic of the plug
These prices are not set, but are the targeted prices. Our Intro pricing (for the pair):
Fiberglass- $450
Carbon Fiber overlay- $600
Full Carbon Fiber- $750
Full plug and play. All necessary hardware will be included, along with door pull strap (Availible in various colors) Parts will be made to order, and can take up to two weeks before shipment. All parts are made in house by resin infusion. This insures the proper Glass/CF to resin ratio, for weight and strength. The carbon fiber will come in 2x2 twill only. Shipping will be $25 anywhere in the US.
teaser pic of the plug
#18
Also for the miata style door levers for them to feel comfortable to open the would have to be placed higher and more forward, which is a huge modification as the door cables would have to get extended. Then it becomes a huge mechanism project when the main focus was a door panel.
believe me we looked into it, but its over complicating a simple product
#25
Bubblicious DEF.
iTrader: (36)
Thanks!
The door handle will remain a pull strap. as far as door handle lever, it will be mounted over the door panel itself
Not sure what you mean... can you elaborate? (for curiosity since the design is finalized)
As for the Porsche door handle style- yes that would be cool but not what we are going for. The point of these panels are to save weight, add more room (for bucket seats) and most of all simplify things. Yes we could have designs the door handles differently, or switch them out to something more basic like the miata style handles- but in the end it is would just over complicate things and drive the cost up. ex. new cables would have to be made to move the passenger side handle, no idea where to source miata door handles and have them constantly in stock, etc.
If anyone is interested, there will be an option to purchase the panels uncut so you can adapt/modify them to your liking
Buttt on a side note, here is an update...
We have finalized the design and all the jigs and molds are made. We are sourcing the last bits of hardware and boxes (to ship them in) We should be ready to release these for sale very shortly. ONCE THEY ARE AVAILABLE FOR PURCHASE, WE WILL OPEN UP A GROUP BUY IN THE 3RD GEN SECTION TO COMPLY WITH FORUM RULES. Please do not ask to purchase these until we go through the forum and set up the group buy properly
Meow to get everyone up to date..
Stock door panels 4 lbs 12.8 oz
Bubble Tech Fiberglass door panels 1 lbs 13.6 oz
Various pull strap color options
As of today...
Oh yes we did add a little weatherstrip molding as a final touch =)
Not sure what you mean... can you elaborate? (for curiosity since the design is finalized)
As for the Porsche door handle style- yes that would be cool but not what we are going for. The point of these panels are to save weight, add more room (for bucket seats) and most of all simplify things. Yes we could have designs the door handles differently, or switch them out to something more basic like the miata style handles- but in the end it is would just over complicate things and drive the cost up. ex. new cables would have to be made to move the passenger side handle, no idea where to source miata door handles and have them constantly in stock, etc.
If anyone is interested, there will be an option to purchase the panels uncut so you can adapt/modify them to your liking
Buttt on a side note, here is an update...
We have finalized the design and all the jigs and molds are made. We are sourcing the last bits of hardware and boxes (to ship them in) We should be ready to release these for sale very shortly. ONCE THEY ARE AVAILABLE FOR PURCHASE, WE WILL OPEN UP A GROUP BUY IN THE 3RD GEN SECTION TO COMPLY WITH FORUM RULES. Please do not ask to purchase these until we go through the forum and set up the group buy properly
Meow to get everyone up to date..
Stock door panels 4 lbs 12.8 oz
Bubble Tech Fiberglass door panels 1 lbs 13.6 oz
Various pull strap color options
As of today...
Oh yes we did add a little weatherstrip molding as a final touch =)
