Group Buy & Product Dev. FD RX-7 Post your possible Group Buys and product interest for the 1992 through 2002 FD series RX-7 in this section.

'99 Lip Spacer

Old 11-10-13, 07:00 PM
  #1
Lives on the Forum
Thread Starter
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Recieved 20 Likes on 19 Posts
VA '99 Lip Spacer

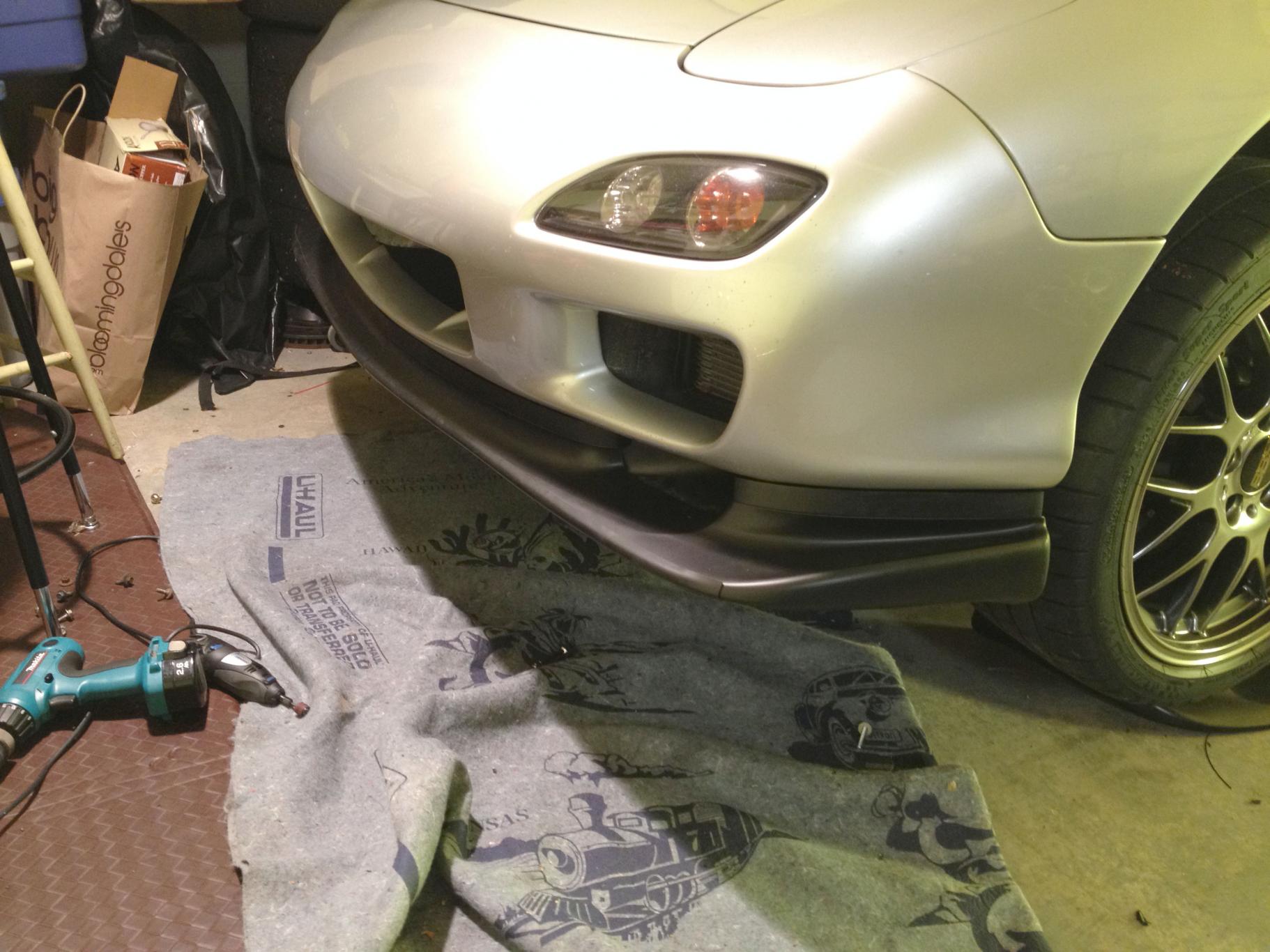

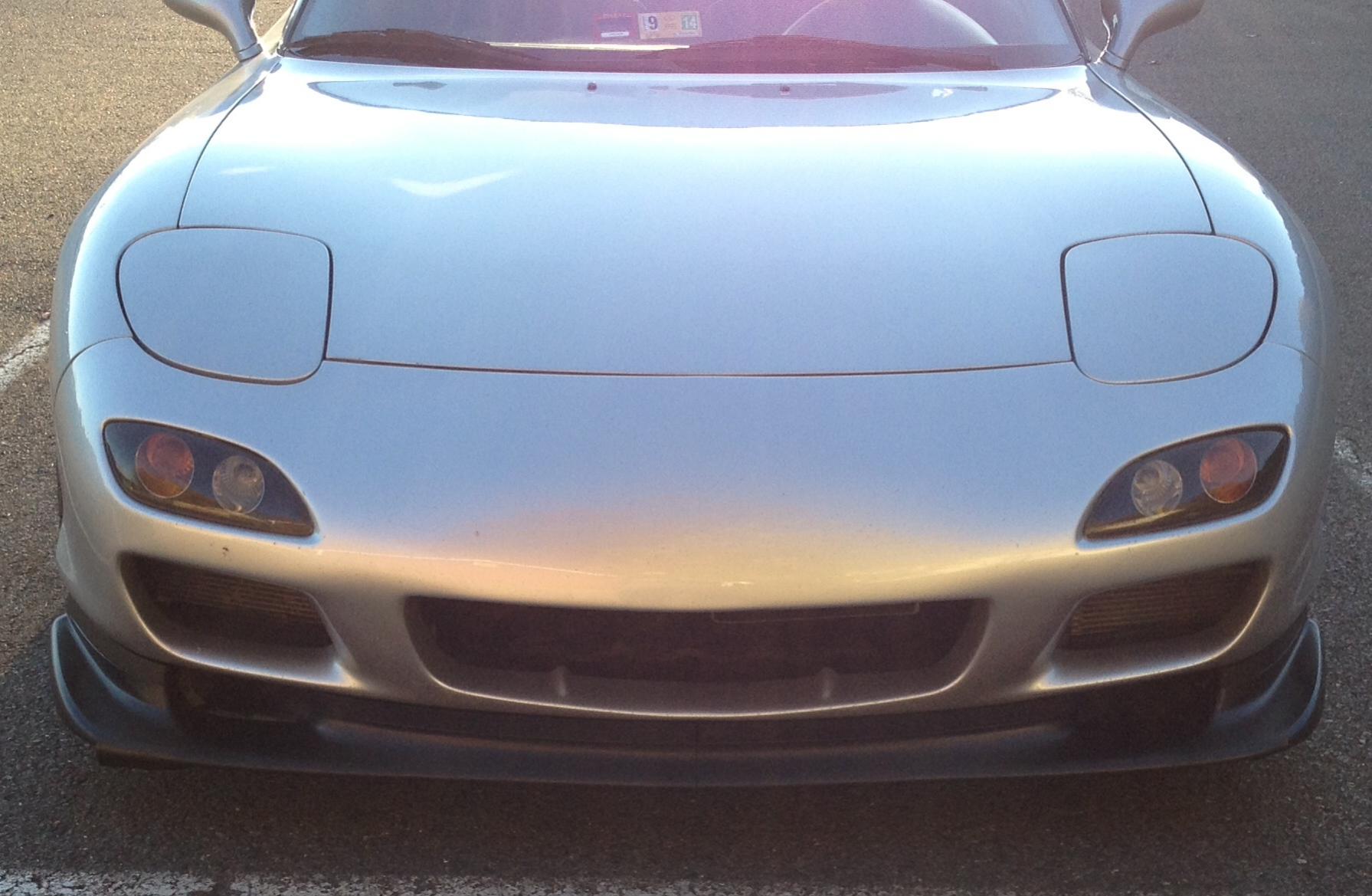

I've got the first prototype built and mounted, and will test it out later this month. Here's the back story:

Mine is a pretty serious street/track car, and I was looking for ways to increase front downforce without making it unusable for the street. First thought was the GTC bumper, but it's VERY low and fiberglass/rigid, meaning a liability in urban areas where I live. This ruled out splitters too—both from a liability perspective, but also the bottom of the '99 lip isn't flat so you'd have to make something to bridge the gap up front. I also looked at more aggressively shaped aftermarket lips. Again, I'm thinking $6-800 down the drain as soon the fiberglass/carbon fiber lip scrapes something.

SO, I wondered how I could lower the nose of the car, cut the amount of air that flows beneath it, and still maintain a durable front end. Then, I realized the shape of the top of the '99 lip was fairly flat—I could build a spacer that continues the shapes vertically, achieve the desired effect, and as an added bonus, get bigger brake ducts as well.

I'm still working ion getting the shape just right, and the mounting refined to be simple enough to provide reasonable instructions. The prototype is machinable nylon, water jet cut to shape. Once I get it right, I'll make some available to the community at a hopefully reasonable price (likely between $150-$250). Let me know if this is something people would be interested in.

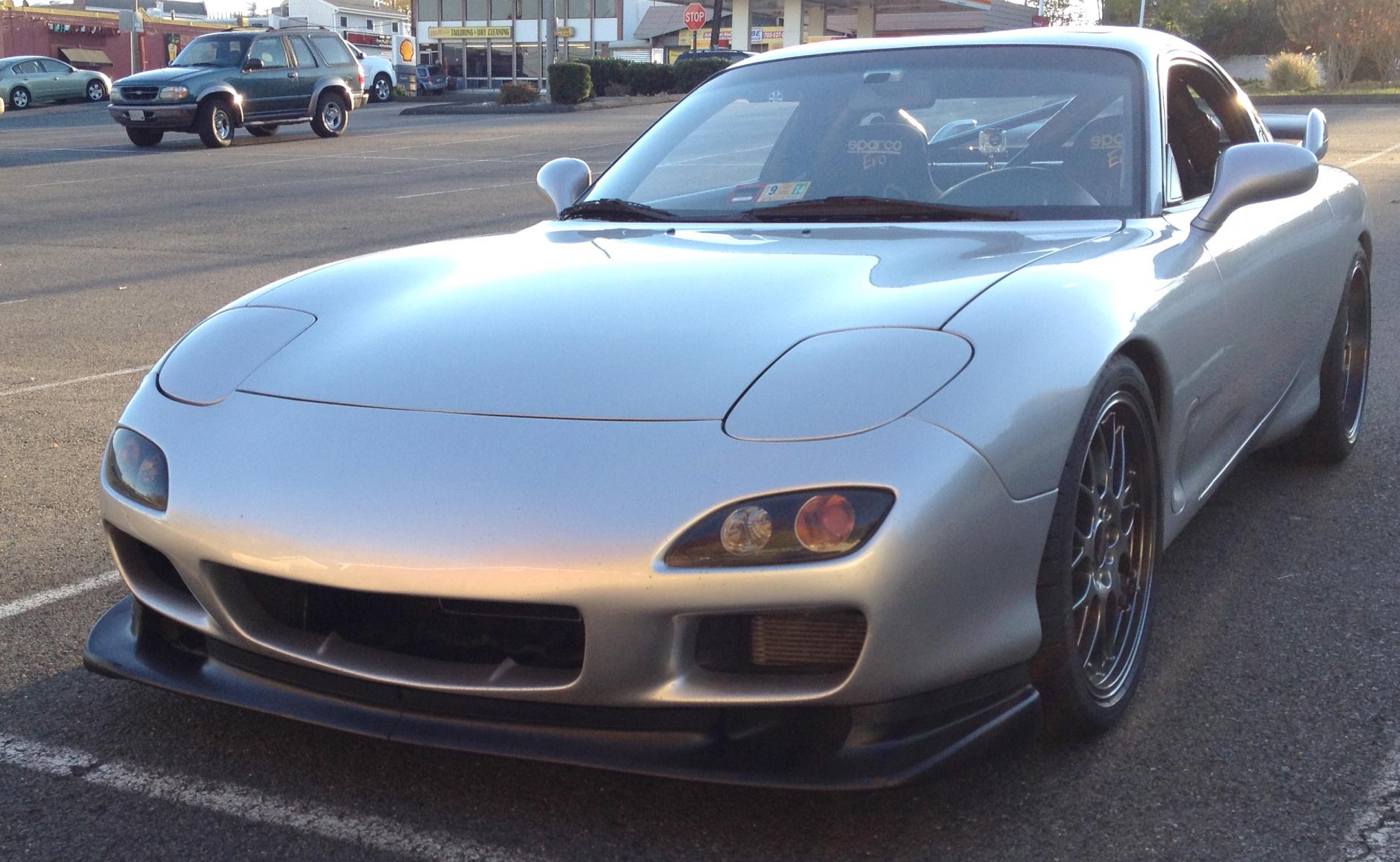

Attached Thumbnails '99 Lip Spacer-photo.jpg   '99 Lip Spacer-photo2.jpg
ptrhahn is offline
Old 11-10-13, 07:02 PM
  #2
Lives on the Forum
Thread Starter
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Recieved 20 Likes on 19 Posts

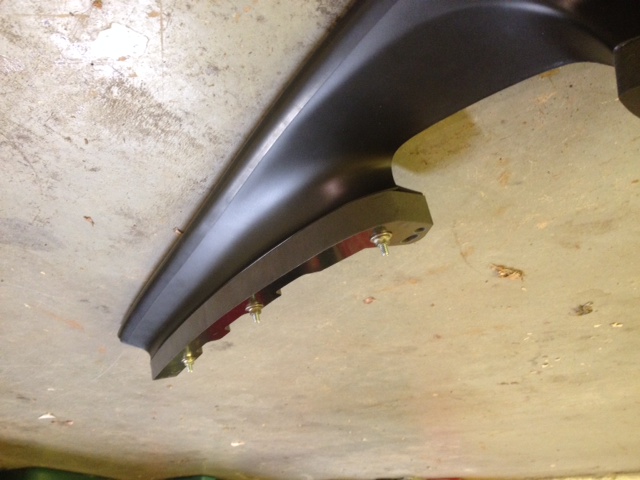

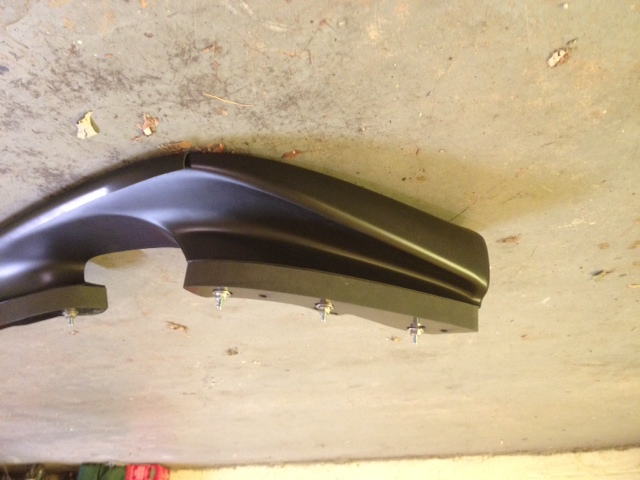

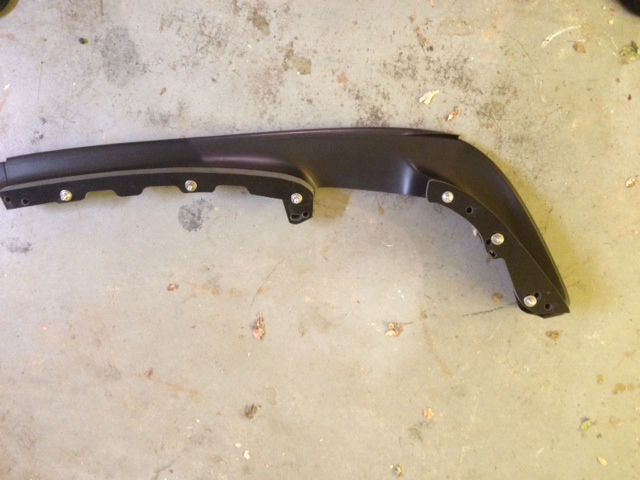

Here are some construction pics
Attached Thumbnails '99 Lip Spacer-photo-1.jpg   '99 Lip Spacer-photo-2.jpg   '99 Lip Spacer-photo-4.jpg
ptrhahn is offline
Old 11-10-13, 07:04 PM
  #3
Lives on the Forum
Thread Starter
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Recieved 20 Likes on 19 Posts

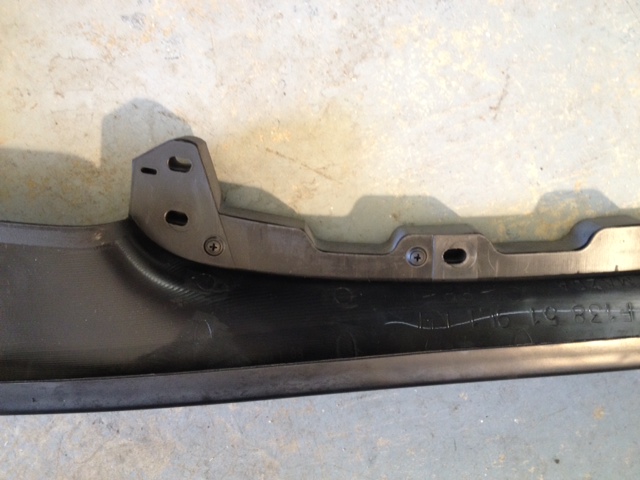

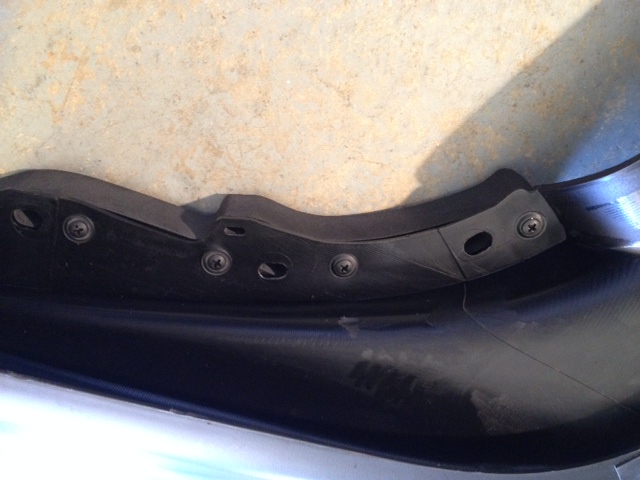

And just a few more:
Attached Thumbnails '99 Lip Spacer-photo-1.jpg   '99 Lip Spacer-photo-2.jpg   '99 Lip Spacer-photo.jpg
ptrhahn is offline
Old 11-10-13, 07:19 PM
  #4
Pistion to rotary
iTrader: (2)

Grinch's Avatar

Join Date: Jun 2012
Location: sioux falls
Posts: 305
Likes: 0
Recieved 0 Likes on 0 Posts
Carbon Kevlar lol. I like it
Grinch is offline
Old 11-10-13, 09:42 PM
  #5
R_1
Rising of the Phoenix
iTrader: (19)

R_1's Avatar

Join Date: Jan 2010
Location: Wisconsin
Posts: 178
Likes: 0
Recieved 0 Likes on 0 Posts
That is a fantastic idea, looks very tasteful, looks, OEM-ish
R_1 is offline
Old 11-11-13, 09:15 AM
  #6
All out Track Freak!
iTrader: (260)

Fritz Flynn's Avatar

Join Date: Jul 2001
Location: Charlottesville VA 22901
Posts: 10,258
Recieved 90 Likes on 77 Posts
Cool

Next up a quick bolt on 99 fit GT wing
Fritz Flynn is offline
Old 11-11-13, 01:15 PM
  #7
Lives on the Forum
Thread Starter
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Recieved 20 Likes on 19 Posts
The new brake duct opening now allows the full use of a standard bumper inlet duct for 3" hose available at most any racing supply store:

Single Bumper Duct - .270Lbs.

I used them before, but with a 1" bulb sealer strip along the bottom to make up the difference.
ptrhahn is offline
Old 11-26-13, 08:45 AM
  #8
Lives on the Forum
Thread Starter
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Recieved 20 Likes on 19 Posts
Just got back from three days of testing at VIR. Bottom line, this thing works. The additional stability at high speed is noticeable, and there's certainly more air getting to the brakes.

Needs some slight refinement in shape, and it would be great to machine in a little lip at the top front edge, to fill the gap between the spacer and the curve of the bumper, but I'm pretty happy.

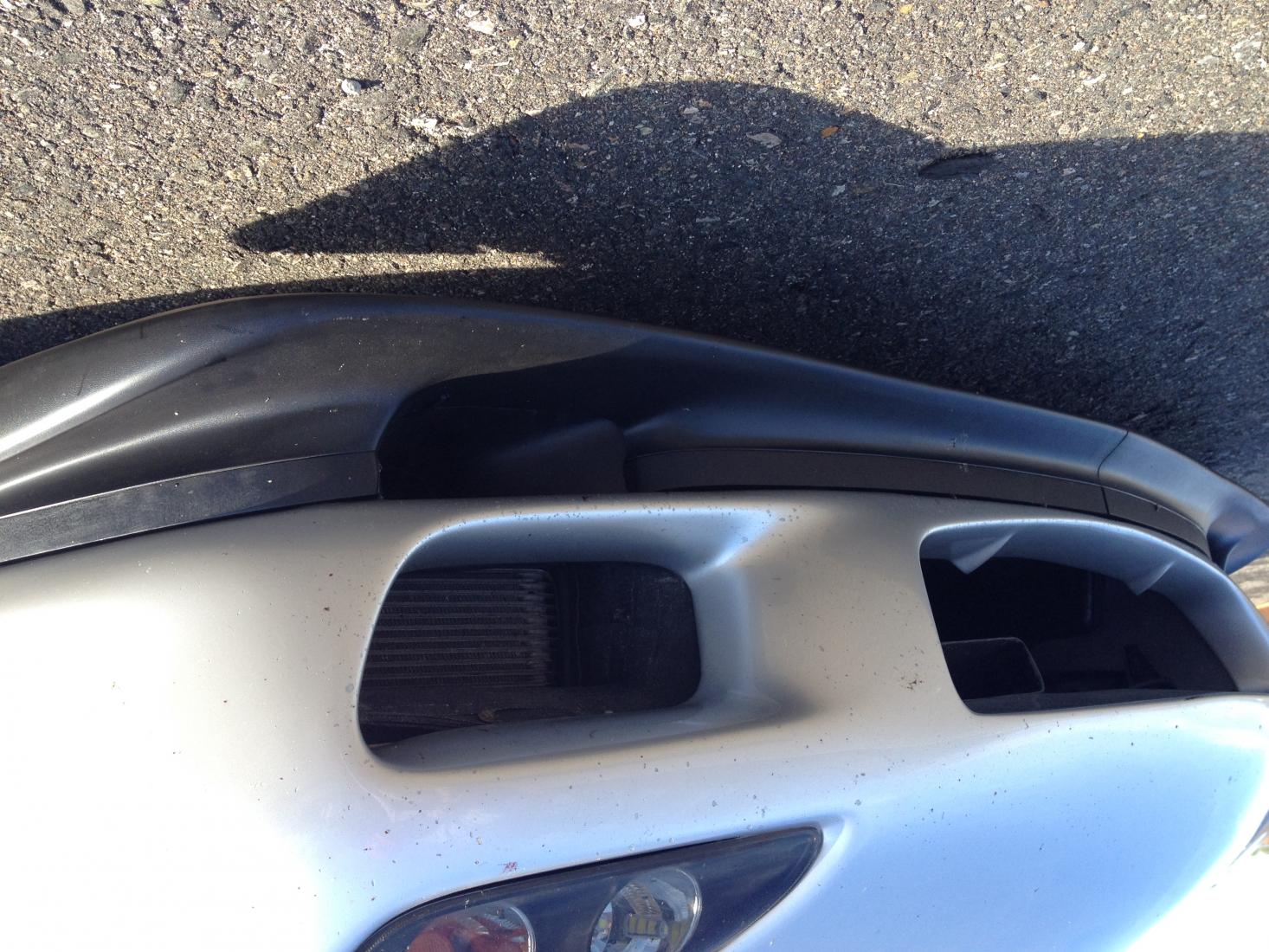

Attached Thumbnails '99 Lip Spacer-photo-8-.jpg   '99 Lip Spacer-photo-9-.jpg   '99 Lip Spacer-photo-10-.jpg
ptrhahn is offline
Old 11-26-13, 08:46 AM
  #9
Lives on the Forum
Thread Starter
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Recieved 20 Likes on 19 Posts
What's the @#$%ing deal with the forum posting pics upside down now?!
ptrhahn is offline
Old 11-26-13, 01:00 PM
  #10
Long time on-looker
iTrader: (33)

Join Date: Oct 2005
Location: Columbus, OH
Posts: 835
Recieved 16 Likes on 16 Posts
I like it. Any chance of making one for the 93 R1 lip?
Smokey The Talon is offline
Old 11-26-13, 05:03 PM
  #11
Lives on the Forum
Thread Starter
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Recieved 20 Likes on 19 Posts
Originally Posted by Smokey The Talon View Post
I like it. Any chance of making one for the 93 R1 lip?

I don't have a '93 lip, so don't have any plans. Wouldn't stop you from doing your own. It's water jet cut from 1" thick machineable nylon from McMaster, you just need to get a good accurate vector drawing of the shape. Maybe once this one is really perfected, I could work one up if I had a lip.
ptrhahn is offline
Old 11-26-13, 05:06 PM
  #12
Stock boost FTW!
iTrader: (21)

Project88Turbo's Avatar

Join Date: Nov 2004
Location: Salisbury, MD
Posts: 964
Recieved 28 Likes on 21 Posts
I really like this! Great idea!

Vince
Project88Turbo is offline
Old 11-26-13, 05:39 PM
  #13
Sleeper
iTrader: (21)

ArmenMAxx's Avatar

Join Date: Jul 2005
Location: Los Angeles
Posts: 1,478
Recieved 4 Likes on 2 Posts
Great idea! Im impressed that you actually felt a difference. Def keep us updated as you further test the car.

Ill def buy one if you decide to sell them!
ArmenMAxx is offline
Old 11-27-13, 12:45 AM
  #14
Rotary Freak
10 Year Member
iTrader: (1)

pomanferrari's Avatar

Join Date: Feb 2002
Location: San Jose
Posts: 1,650
Likes: 0
Recieved 0 Likes on 0 Posts
Wouldn't the lip scrape speed bumps and such now?

How about a rubber bladder that fills up with air when you are above 50 mph to lower the lip, like the Porsche Turbo?
pomanferrari is offline
Old 11-27-13, 10:21 AM
  #15
Lives on the Forum
Thread Starter
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Recieved 20 Likes on 19 Posts
Originally Posted by pomanferrari View Post
Wouldn't the lip scrape speed bumps and such now?

How about a rubber bladder that fills up with air when you are above 50 mph to lower the lip, like the Porsche Turbo?

This lowers the lip 1", so yes, the clearance is less. However, most aftermarket bumpers and lips (especially those that are effective on track, like the GTC) are also significantly lower than the stock setup, and they are fiberglass, so will break/shatter with contact. This maintains the durable ABS plastic OEM lip, and presumably also the urathane OEM or replica bumper, so it's much more durable.

I don't see any need for the complexity/cost of an expanding contraption. My car is VERY low, and this is still a livable setup. You've gotta pay a certain real world livability price for track functionality, and this offers very little compromise. And is fairly easy to reverse—you could theoretically install it for the track only.
ptrhahn is offline
Old 11-27-13, 06:53 PM
  #16
Senior Member
iTrader: (8)

0piston's Avatar

Join Date: Feb 2001
Location: Vancouver, BC
Posts: 706
Recieved 2 Likes on 2 Posts
I'd be in for one, maybe option to sell it with the brake ducts!
0piston is offline
Old 11-28-13, 02:57 AM
  #17
Non Runner
iTrader: (2)

Ceylon's Avatar

Join Date: Mar 2008
Location: Somerset, England
Posts: 1,938
Recieved 24 Likes on 23 Posts
Nice idea. Makes the ducts a decent size, too .
Ceylon is offline
Old 11-28-13, 04:46 AM
  #18
NorCal Mazda Founder
iTrader: (7)

Mazdaspeed RX8 ver2's Avatar

Join Date: Feb 2006
Location: Hayward, CA
Posts: 365
Recieved 16 Likes on 15 Posts
Definitely a very nice piece, someone should take the next step and just make an extended lip out of CF. oh yeah!
Mazdaspeed RX8 ver2 is offline
Old 11-29-13, 11:53 AM
  #19
Lives on the Forum
Thread Starter
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,491
Recieved 20 Likes on 19 Posts
Originally Posted by Mazdaspeed RX8 ver2 View Post
Definitely a very nice piece, someone should take the next step and just make an extended lip out of CF. oh yeah!

Odula, AutoEXE, Mazdaseed, Uras, and RE Amemiya all already make more aggressive carbon fiber lips. To me, though, these suffer the same potential durability issue as the aftermarket bumper.

Now, if someone could get this more aggressive shape injected molded in ABS, then we'd have something, but I'd bet it's cost prohibitive, hence this solution.
ptrhahn is offline
Old 12-05-13, 09:10 PM
  #20
Brings Order to Chaos
iTrader: (18)

technomentor's Avatar

Join Date: Jan 2004
Location: TX
Posts: 892
Likes: 0
Recieved 0 Likes on 0 Posts
The creativity of the rx7 crowd never ceases to amaze me....I really have to troll more sections of the forum more often.

Do you have access to the water jet or was the cutting hired out?
technomentor is offline
Old 12-05-13, 10:01 PM
  #21
NorCal Mazda Founder
iTrader: (7)

Mazdaspeed RX8 ver2's Avatar

Join Date: Feb 2006
Location: Hayward, CA
Posts: 365
Recieved 16 Likes on 15 Posts
Originally Posted by ptrhahn View Post
Odula, AutoEXE, Mazdaseed, Uras, and RE Amemiya all already make more aggressive carbon fiber lips. To me, though, these suffer the same potential durability issue as the aftermarket bumper.

Now, if someone could get this more aggressive shape injected molded in ABS, then we'd have something, but I'd bet it's cost prohibitive, hence this solution.
Definitely did not know that, thanks for the info!
Mazdaspeed RX8 ver2 is offline
Old 12-12-13, 06:25 AM
  #22
Rotary Freak
iTrader: (12)

moehler's Avatar

Join Date: Mar 2003
Location: South Jersey
Posts: 2,296
Likes: 0
Recieved 21 Likes on 17 Posts
Very cool product!
moehler is offline
Old 01-21-14, 04:38 PM
  #23
Full Member
iTrader: (4)

Join Date: Feb 2013
Location: Fremont
Posts: 216
Recieved 5 Likes on 5 Posts
nice in for future information
tbkonwso is offline
Old 02-15-14, 09:57 PM
  #24
Senior Member
iTrader: (8)

0piston's Avatar

Join Date: Feb 2001
Location: Vancouver, BC
Posts: 706
Recieved 2 Likes on 2 Posts
sub'd
0piston is offline
Old 02-16-14, 10:40 AM
  #25
Full Member
iTrader: (1)

Join Date: Feb 2013
Location: Nova Scotia, Canada
Posts: 90
Likes: 0
Recieved 0 Likes on 0 Posts
What is the status of this item re: potential part for sale to other FD owners?

Thanks.

Wade
Driver_WT is offline
