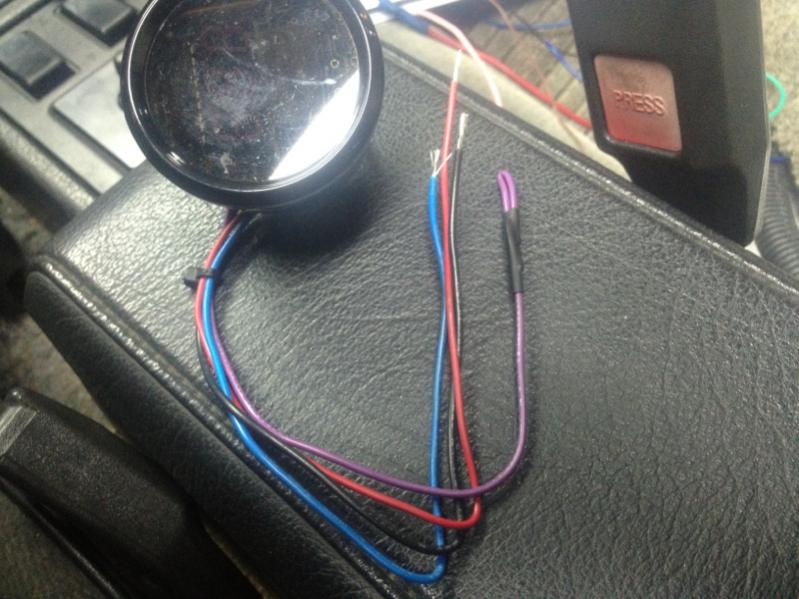

Does anyone know the wiring layout for a Nordskog digital afr gauge? From looking on Innovate Motorsports site, it was a gauge they started including in the LC-1 kits. Below is a picture of what I've got. He had red and black to power and ground, which is probably right. Blue was ran to one the outputs of the LC-1 and purple was not hooked up. This is probably all correct but while I've got it all out and have to rewire it anyways, I'd like to make sure it's right.

misterstyx69

iTrader: (142)

http://www.exhaustgas.com/docserver/Docs/292.pdf

euler

Thanks, I looked on their site but didn't find that one.

misterstyx69

iTrader: (142)

I googled that and it was like the 7th site down.

euler

I did too and somehow overlooked it I guess, thanks again.

misterstyx69

iTrader: (142)

I work here,so its my job..lol!
But Gratuity can be sent to My Paypal.,which is.....(just kidding,glad to help!)
