Short oil filler neck
Looking for a short oil filler neck or Does anyone know of a certain oil cap that can be used with the OE neck removed from the center iron? It's a S5 T2 motor. Tried to contact goopy performance. I found another billet one by IRP? I think... But it's way too expensive for what it is.
#2
talking head
if taking away the top section from the kinked FC turbo 2 piece neck
then you can fit the plastic top from the overflow / filler point on the thermo neck
you need to slightly file the holes to fit
and you need to have the filler neck breathers hooked up so the sump space will not pressurize
( or take a nick out of the rubber seal on the cap )
you should now be able to run your I/C pipes over the top in a direct path
then you can fit the plastic top from the overflow / filler point on the thermo neck
you need to slightly file the holes to fit
and you need to have the filler neck breathers hooked up so the sump space will not pressurize
( or take a nick out of the rubber seal on the cap )
you should now be able to run your I/C pipes over the top in a direct path
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
I am sure that the OEM caps are all the same thread to put on the filler pipe.
The N/A filler pipe goes straight up if that helps.
I had the s5 with FD upper and kept the bottom of the TII filler but had the top part modified to clear the elbow.(cut and brazed)
It's not expensive to get done by any means.

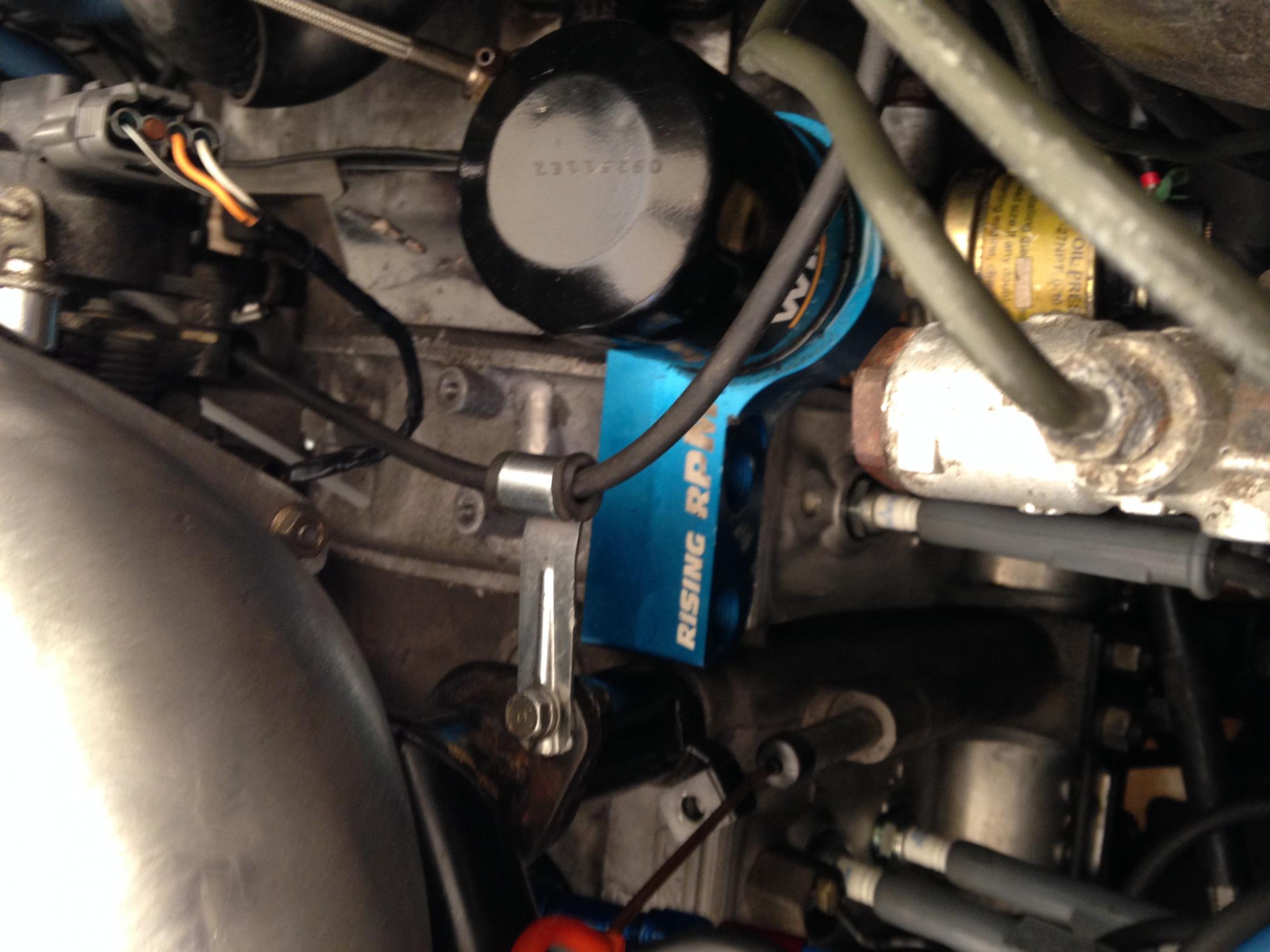

here are a couple pics!
(pic #2 shows where the piece is brazed and modified,but still uses the lower part)
The N/A filler pipe goes straight up if that helps.
I had the s5 with FD upper and kept the bottom of the TII filler but had the top part modified to clear the elbow.(cut and brazed)
It's not expensive to get done by any means.
here are a couple pics!
(pic #2 shows where the piece is brazed and modified,but still uses the lower part)
Last edited by misterstyx69; 02-12-15 at 01:09 AM.
#6
Slide or die
Thread Starter
Join Date: Sep 2004
Location: Vallejo, Ca
Posts: 186
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the Really good input guys. I ended up just removing bottom piere from the center iron and cut it sort and welded it. Now it's just the stock piece but shorter. Now everything fits
