FD aftermarket pully belt sizes:
Passenger
Posts: n/a
FD aftermarket pully belt sizes:
Ok, I know this has been covered before in different situations and I have searched but not found, I am going to be specific so hopefully I can get some good answeres:
I have an aftermarket MAIN CRANK PULLEY from horsepowerfreaks.com and I think it is an unorthodox racing pully. (This pully is SMALLER than OEM)
I also have an aftermarket POWER STEERING PULLY from horsepowerfreaks.com and I also think it is an unorthodox racing pully. (This pully is the SAME SIZE as the OEM one)
I also have an aftermarket WATER PUMP PULLEY from E-BAY.com and I think it is a generic brand. (This pully is LARGER than OEM)
I also have an aftermarket ALTERNATOR PULLEY from E-BAY.com and I think it is generic brand. (This pully is LARGER than OEM)
My Air Conditioner pully and my Idler pulley are OEM.
Ok, now my question is what belt size do I need for my alternator/main crank/water pump belt?
And what belt size do I need for my Power Steering/Air Conditioner/Main Crank/Idler pulley?
I know the ALT/WP belt needs to be 5 rib and the PS/AC needs to be 6 rib.
I have a goodyear belt 6 rib for my PS/AC that will work but is almost maxed out for tightness on my idler pully tentioner and it had stripped on me one time then I re-tapped it and cleaned it out and don't want to strip it again.
It's part number is 4060407 40-? 60(6 rib) 407 (40.7 length OD) so what is the next size down in ANY brand?
I also have a goodyear belt for my WP/ALT that will work but it is only 4 rib and i forget if it could go a size up or down.
It's part number is 4040300 40-? 40(4 rib) 300 (30.0 length OD) so what is the next size up AND/OR down in ANY brand with 5 ribs?? ie: 4050305 or 4050297
Sory for being soo long but i wanted to be clear of my situation.
I have an aftermarket MAIN CRANK PULLEY from horsepowerfreaks.com and I think it is an unorthodox racing pully. (This pully is SMALLER than OEM)
I also have an aftermarket POWER STEERING PULLY from horsepowerfreaks.com and I also think it is an unorthodox racing pully. (This pully is the SAME SIZE as the OEM one)
I also have an aftermarket WATER PUMP PULLEY from E-BAY.com and I think it is a generic brand. (This pully is LARGER than OEM)
I also have an aftermarket ALTERNATOR PULLEY from E-BAY.com and I think it is generic brand. (This pully is LARGER than OEM)
My Air Conditioner pully and my Idler pulley are OEM.
Ok, now my question is what belt size do I need for my alternator/main crank/water pump belt?
And what belt size do I need for my Power Steering/Air Conditioner/Main Crank/Idler pulley?
I know the ALT/WP belt needs to be 5 rib and the PS/AC needs to be 6 rib.
I have a goodyear belt 6 rib for my PS/AC that will work but is almost maxed out for tightness on my idler pully tentioner and it had stripped on me one time then I re-tapped it and cleaned it out and don't want to strip it again.
It's part number is 4060407 40-? 60(6 rib) 407 (40.7 length OD) so what is the next size down in ANY brand?
I also have a goodyear belt for my WP/ALT that will work but it is only 4 rib and i forget if it could go a size up or down.
It's part number is 4040300 40-? 40(4 rib) 300 (30.0 length OD) so what is the next size up AND/OR down in ANY brand with 5 ribs?? ie: 4050305 or 4050297
Sory for being soo long but i wanted to be clear of my situation.
Originally Posted by RotorMotor2
Ok, I know this has been covered before in different situations and I have searched but not found, I am going to be specific so hopefully I can get some good answeres:
I have an aftermarket MAIN CRANK PULLEY from horsepowerfreaks.com and I think it is an unorthodox racing pully. (This pully is SMALLER than OEM)
I also have an aftermarket POWER STEERING PULLY from horsepowerfreaks.com and I also think it is an unorthodox racing pully. (This pully is the SAME SIZE as the OEM one)
I also have an aftermarket WATER PUMP PULLEY from E-BAY.com and I think it is a generic brand. (This pully is LARGER than OEM)
I also have an aftermarket ALTERNATOR PULLEY from E-BAY.com and I think it is generic brand. (This pully is LARGER than OEM)
My Air Conditioner pully and my Idler pulley are OEM.
Ok, now my question is what belt size do I need for my alternator/main crank/water pump belt?
And what belt size do I need for my Power Steering/Air Conditioner/Main Crank/Idler pulley?
I know the ALT/WP belt needs to be 5 rib and the PS/AC needs to be 6 rib.
I have a goodyear belt 6 rib for my PS/AC that will work but is almost maxed out for tightness on my idler pully tentioner and it had stripped on me one time then I re-tapped it and cleaned it out and don't want to strip it again.
It's part number is 4060407 40-? 60(6 rib) 407 (40.7 length OD) so what is the next size down in ANY brand?
I also have a goodyear belt for my WP/ALT that will work but it is only 4 rib and i forget if it could go a size up or down.
It's part number is 4040300 40-? 40(4 rib) 300 (30.0 length OD) so what is the next size up AND/OR down in ANY brand with 5 ribs?? ie: 4050305 or 4050297
Sory for being soo long but i wanted to be clear of my situation.
I have an aftermarket MAIN CRANK PULLEY from horsepowerfreaks.com and I think it is an unorthodox racing pully. (This pully is SMALLER than OEM)
I also have an aftermarket POWER STEERING PULLY from horsepowerfreaks.com and I also think it is an unorthodox racing pully. (This pully is the SAME SIZE as the OEM one)
I also have an aftermarket WATER PUMP PULLEY from E-BAY.com and I think it is a generic brand. (This pully is LARGER than OEM)
I also have an aftermarket ALTERNATOR PULLEY from E-BAY.com and I think it is generic brand. (This pully is LARGER than OEM)
My Air Conditioner pully and my Idler pulley are OEM.
Ok, now my question is what belt size do I need for my alternator/main crank/water pump belt?
And what belt size do I need for my Power Steering/Air Conditioner/Main Crank/Idler pulley?
I know the ALT/WP belt needs to be 5 rib and the PS/AC needs to be 6 rib.
I have a goodyear belt 6 rib for my PS/AC that will work but is almost maxed out for tightness on my idler pully tentioner and it had stripped on me one time then I re-tapped it and cleaned it out and don't want to strip it again.
It's part number is 4060407 40-? 60(6 rib) 407 (40.7 length OD) so what is the next size down in ANY brand?
I also have a goodyear belt for my WP/ALT that will work but it is only 4 rib and i forget if it could go a size up or down.
It's part number is 4040300 40-? 40(4 rib) 300 (30.0 length OD) so what is the next size up AND/OR down in ANY brand with 5 ribs?? ie: 4050305 or 4050297
Sory for being soo long but i wanted to be clear of my situation.
As for the ALT/WP belt you could use the Gates K050510 if you have a Auto Trans. and Air Pump. If you have the Manual trans Gates K050530.
If you removed the Air pump then use Napa Belt 25-050280 or AC Delco belt 5K280.
Your problem is that you have an e-bay Alt pully(copied Greddy's pully) which is larger than the UR pully.
I dont know what size you need for that pully.

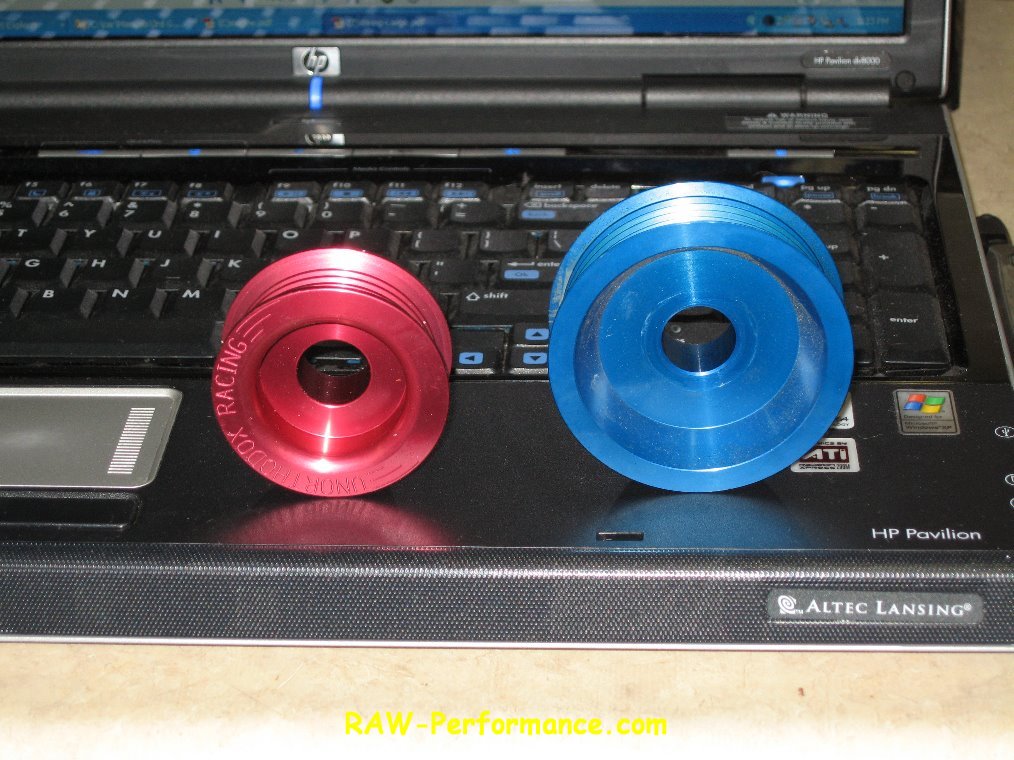

Here is a UR pully on the left and an Greddy pully on the right.
Here are metric(Left) and Gates(right) belt numbers.
5PK0710 is 5 ribs and 710mm length, the K050280 is 5 ribs(3rd digit) and 28 inches long(5th and 6th digit), not sure what the last digit it for.
5PK0710 ........ K050280
5PK0735 ........ K050290
5PK0736 ........ K050290
5PK0800 ........ K050317
5PK0825 ........ K050323
5PK0830 ...... ..K050330
5PK0836 ........ K050330
5PK0850 ........ K050336
5PK0853 ........ K050340
5PK0865 ........ K050340
5PK0869 ........ K050340
5PK0875 ........ K050345
5PK0886 ........ K050350
5PK0900 ........ K050355
5PK0915 ........ K050360
5PK0925 ........ K050365
5PK0930 ........ K050365
5PK0940 ........ K050370
5PK0950 ........ K050375
5PK0954 ........ K050375
5PK0955 ........ K050375
5PK0965 ........ K050380
5PK0970 ........ K050380
5PK0975 ........ K050385
5PK0980 ........ K050385
5PK1004 ........ K050396
5PK1005 ...... ..K050400
5PK1007 ........ K050396
5PK1010 ........ K050400
5PK1015 ........ K050400
5PK1017 ........ K050400
5PK1020 ........ K050400
5PK1028 ........ K050405
5PK1030 ........ K050405
5PK1035 ........ K050405
5PK1040 ........ K050410
5PK1050 ........ K050415
5PK1055 ........ K050415
5PK1060 ........ K050415
5PK1065 ........ K050420
5PK1070 ........ K050420
5PK1075 ...... ..K050420
5PK1080 ...... ..K050420
5PK1090 ........ K050429
5PK1095 ........ K050435
5PK1100 ........ K050433
5PK1104 ........ K050435
5PK1105 ........ K050435
5PK1110 ........ K050435
5PK1115 ........ K050440
5PK1117 ........ K050440
5PK1120 ........ K050440
5PK1124 ........ K050440
5PK1125 ...... ..K050440
5PK1130 ........ K050446
5PK1140 ........ K050450
5PK1143 ........ K050450
5PK1145 ........ K050450
5PK1155 ........ K050455
5PK1156 ........ K050450
5PK1165 ........ K050460
5PK1170 ........ K050460
5PK1175 ........ K050460
5PK1194 ........ K050470
5PK1195 ........ K050470
5PK1204 ...... ..K050470
5PK1205 ........ K050474
5PK1207 ........ K050474
5PK1210 ........ K050470
5PK1212 ........ K050478
5PK1219 ........ K050480
5PK1220 ........ K050480
5PK1225 ........ K050474
5PK1235 ........ K050486
5PK1240 ........ K050490
5PK1245 ........ K050490
5PK1250 ........ K050490
5PK1270 ........ K050500
5PK1285 ........ K050507
5PK1290 ........ K050507
5PK1295 ........ K050510
5PK1300 ........ K050510
5PK1310 ........ K050516
5PK1320 ........ K050520
5PK1330 ...... ..K050520
5PK1340 ........ K050530
5PK1345 ........ K050530
5PK1350 ........ K050530
5PK1355 ........ K050532
5PK1365 ........ K050538
5PK1380 ........ K050545
5PK1385 ........ K050545
5PK1392 ........ K050545
5PK1400 ........ K050551
5PK1406 ........ K050551
5PK1430 ........ K050565
5PK1435 ........ K050565
5PK1452 ........ K050570
5PK1545 ........ K050609
5PK1550 ........ K050609
5PK1555 ........ K050609
5PK1590 ........ K050625
5PK1598 ........ K050630
5PK1604 ........ K050630
5PK0710 is 5 ribs and 710mm length, the K050280 is 5 ribs(3rd digit) and 28 inches long(5th and 6th digit), not sure what the last digit it for.
5PK0710 ........ K050280
5PK0735 ........ K050290
5PK0736 ........ K050290
5PK0800 ........ K050317
5PK0825 ........ K050323
5PK0830 ...... ..K050330
5PK0836 ........ K050330
5PK0850 ........ K050336
5PK0853 ........ K050340
5PK0865 ........ K050340
5PK0869 ........ K050340
5PK0875 ........ K050345
5PK0886 ........ K050350
5PK0900 ........ K050355
5PK0915 ........ K050360
5PK0925 ........ K050365
5PK0930 ........ K050365
5PK0940 ........ K050370
5PK0950 ........ K050375
5PK0954 ........ K050375
5PK0955 ........ K050375
5PK0965 ........ K050380
5PK0970 ........ K050380
5PK0975 ........ K050385
5PK0980 ........ K050385
5PK1004 ........ K050396
5PK1005 ...... ..K050400
5PK1007 ........ K050396
5PK1010 ........ K050400
5PK1015 ........ K050400
5PK1017 ........ K050400
5PK1020 ........ K050400
5PK1028 ........ K050405
5PK1030 ........ K050405
5PK1035 ........ K050405
5PK1040 ........ K050410
5PK1050 ........ K050415
5PK1055 ........ K050415
5PK1060 ........ K050415
5PK1065 ........ K050420
5PK1070 ........ K050420
5PK1075 ...... ..K050420
5PK1080 ...... ..K050420
5PK1090 ........ K050429
5PK1095 ........ K050435
5PK1100 ........ K050433
5PK1104 ........ K050435
5PK1105 ........ K050435
5PK1110 ........ K050435
5PK1115 ........ K050440
5PK1117 ........ K050440
5PK1120 ........ K050440
5PK1124 ........ K050440
5PK1125 ...... ..K050440
5PK1130 ........ K050446
5PK1140 ........ K050450
5PK1143 ........ K050450
5PK1145 ........ K050450
5PK1155 ........ K050455
5PK1156 ........ K050450
5PK1165 ........ K050460
5PK1170 ........ K050460
5PK1175 ........ K050460
5PK1194 ........ K050470
5PK1195 ........ K050470
5PK1204 ...... ..K050470
5PK1205 ........ K050474
5PK1207 ........ K050474
5PK1210 ........ K050470
5PK1212 ........ K050478
5PK1219 ........ K050480
5PK1220 ........ K050480
5PK1225 ........ K050474
5PK1235 ........ K050486
5PK1240 ........ K050490
5PK1245 ........ K050490
5PK1250 ........ K050490
5PK1270 ........ K050500
5PK1285 ........ K050507
5PK1290 ........ K050507
5PK1295 ........ K050510
5PK1300 ........ K050510
5PK1310 ........ K050516
5PK1320 ........ K050520
5PK1330 ...... ..K050520
5PK1340 ........ K050530
5PK1345 ........ K050530
5PK1350 ........ K050530
5PK1355 ........ K050532
5PK1365 ........ K050538
5PK1380 ........ K050545
5PK1385 ........ K050545
5PK1392 ........ K050545
5PK1400 ........ K050551
5PK1406 ........ K050551
5PK1430 ........ K050565
5PK1435 ........ K050565
5PK1452 ........ K050570
5PK1545 ........ K050609
5PK1550 ........ K050609
5PK1555 ........ K050609
5PK1590 ........ K050625
5PK1598 ........ K050630
5PK1604 ........ K050630
Trending Topics
Her are metric and Gates 6 rib belt sizes.
6PK0730 ........ K060288
6PK0825 ........ K060325
6PK0875 ........ K060345
6PK0890 ...... ..K060345
6PK0915 ...... ..K060365
6PK0940 ........ K060370
6PK0945 ........ K060370
6PK0965 ........ K060380
6PK0990 ........ K060390
6PK1000 ...... ..K060390
6PK1015 ........ K060400
6PK1020 ........ K060400
6PK1030 ........ K060408
6PK1033 ........ K060408
6PK1035 ........ K060407
6PK1040 ........ K060408
6PK1045 ...... ..K060410
6PK1050 ........ K060415
6PK1055 ........ K060415
6PK1065 ........ K060420
6PK1070 ........ K060425
6PK1080 ........ K060425
6PK1085 ........ K060427
6PK1087 ........ K060427
6PK1090 ........ K060427
6PK1095 ........ K060431
6PK1100 ........ K060435
6PK1105 ...... ..K060435
6PK1115 ........ K060435
6PK1120 ........ K060441
6PK1125 ........ K060445
6PK1130 ........ K060445
6PK1140 ........ K060450
6PK1145 ........ K060450
6PK1150 ........ K060455
6PK1152 ........ K060455
6PK1153 ........ K060455
6PK1155 ........ K060455
6PK1158 ........ K060455
6PK1160 ........ K060455
6PK1165 ........ K060458
6PK1170 ...... ..K060465
6PK1174 ........ K060461
6PK1176 ........ K060465
6PK1180 ........ K060465
6PK1186 ........ K060468
6PK1190 ........ K060468
6PK1194 ........ K060470
6PK1195 ........ K060470
6PK1200 ........ K060470
6PK1205 .........K060478
6PK1211 ........ K060478
6PK1212 ........ K060478
6PK1220 ........ K060480
6PK1225 ........ K060480
6PK1228 ........ K060490
6PK1230 ....... .K060480
6PK1240 ........ K060490
6PK1245 ........ K060490
6PK1255 ........ K060495
6PK1260 ........ K060495
6PK1270 ........ K060500
6PK1285 ........ K060507
6PK1288 ........ K060507
6PK1300 ........ K060512
6PK1321 ........ K060520
6PK1325 ........ K060520
6PK1330 ........ K060523
6PK1335 ........ K060525
6PK1340 ........ K060525
6PK1345 ........ K060529
6PK1349 ........ K060532
6PK1350 ........ K060532
6PK1363 ........ K060535
6PK1364 ........ K060535
6PK1365 ........ K060535
6PK1370 ........ K060539
6PK1390 ........ K060547
6PK1395 ........ K060547
6PK1411 ........ K060555
6PK1415 ........ K060557
6PK1420 ........ K060560
6PK1422 ........ K060560
6PK1500 ...... ..K060594
6PK1505 ........ K060594
6PK1520 ........ K060598
6PK1525 ........ K060598
6PK1531 ........ K060604
6PK1533 ........ K060604
6PK1535 ........ K060604
6PK1539 ........ K060605
6PK1540 ........ K060605
6PK1550 ........ K060612
6PK1555 ........ K060612
6PK1560 ........ K060615
6PK1570 ........ K060620
6PK1575 ........ K060620
6PK1585 ........ K060623
6PK1614 ........ K060637
6PK1615 ........ K060637
6PK1618 ........ K060637
6PK1619 ........ K060637
6PK1620 ........ K060637
6PK1623 ........ K060640
6PK1630 ........ K060640
6PK1633 ........ K060642
6PK1650 ........ K060650
6PK1653 ........ K060650
6PK1655 ........ K060653
6PK1658 ........ K060653
6PK1660 ........ K060653
6PK1675 ........ K060660
6PK1680 ........ K060660
6PK1685 ........ K060663
6PK1693 ........ K060667
6PK1695 ........ K060667
6PK1697 ........ K060670
6PK1698 ........ K060670
6PK1700 ........ K060670
6PK1705 ........ K060672
6PK1710 ........ K060672
6PK1715 ........ K060675
6PK1725 ........ K060680
6PK1730 ........ K060680
6PK1732 ........ K060682
6PK1733 ........ K060685
6PK0730 ........ K060288
6PK0825 ........ K060325
6PK0875 ........ K060345
6PK0890 ...... ..K060345
6PK0915 ...... ..K060365
6PK0940 ........ K060370
6PK0945 ........ K060370
6PK0965 ........ K060380
6PK0990 ........ K060390
6PK1000 ...... ..K060390
6PK1015 ........ K060400
6PK1020 ........ K060400
6PK1030 ........ K060408
6PK1033 ........ K060408
6PK1035 ........ K060407
6PK1040 ........ K060408
6PK1045 ...... ..K060410
6PK1050 ........ K060415
6PK1055 ........ K060415
6PK1065 ........ K060420
6PK1070 ........ K060425
6PK1080 ........ K060425
6PK1085 ........ K060427
6PK1087 ........ K060427
6PK1090 ........ K060427
6PK1095 ........ K060431
6PK1100 ........ K060435
6PK1105 ...... ..K060435
6PK1115 ........ K060435
6PK1120 ........ K060441
6PK1125 ........ K060445
6PK1130 ........ K060445
6PK1140 ........ K060450
6PK1145 ........ K060450
6PK1150 ........ K060455
6PK1152 ........ K060455
6PK1153 ........ K060455
6PK1155 ........ K060455
6PK1158 ........ K060455
6PK1160 ........ K060455
6PK1165 ........ K060458
6PK1170 ...... ..K060465
6PK1174 ........ K060461
6PK1176 ........ K060465
6PK1180 ........ K060465
6PK1186 ........ K060468
6PK1190 ........ K060468
6PK1194 ........ K060470
6PK1195 ........ K060470
6PK1200 ........ K060470
6PK1205 .........K060478
6PK1211 ........ K060478
6PK1212 ........ K060478
6PK1220 ........ K060480
6PK1225 ........ K060480
6PK1228 ........ K060490
6PK1230 ....... .K060480
6PK1240 ........ K060490
6PK1245 ........ K060490
6PK1255 ........ K060495
6PK1260 ........ K060495
6PK1270 ........ K060500
6PK1285 ........ K060507
6PK1288 ........ K060507
6PK1300 ........ K060512
6PK1321 ........ K060520
6PK1325 ........ K060520
6PK1330 ........ K060523
6PK1335 ........ K060525
6PK1340 ........ K060525
6PK1345 ........ K060529
6PK1349 ........ K060532
6PK1350 ........ K060532
6PK1363 ........ K060535
6PK1364 ........ K060535
6PK1365 ........ K060535
6PK1370 ........ K060539
6PK1390 ........ K060547
6PK1395 ........ K060547
6PK1411 ........ K060555
6PK1415 ........ K060557
6PK1420 ........ K060560
6PK1422 ........ K060560
6PK1500 ...... ..K060594
6PK1505 ........ K060594
6PK1520 ........ K060598
6PK1525 ........ K060598
6PK1531 ........ K060604
6PK1533 ........ K060604
6PK1535 ........ K060604
6PK1539 ........ K060605
6PK1540 ........ K060605
6PK1550 ........ K060612
6PK1555 ........ K060612
6PK1560 ........ K060615
6PK1570 ........ K060620
6PK1575 ........ K060620
6PK1585 ........ K060623
6PK1614 ........ K060637
6PK1615 ........ K060637
6PK1618 ........ K060637
6PK1619 ........ K060637
6PK1620 ........ K060637
6PK1623 ........ K060640
6PK1630 ........ K060640
6PK1633 ........ K060642
6PK1650 ........ K060650
6PK1653 ........ K060650
6PK1655 ........ K060653
6PK1658 ........ K060653
6PK1660 ........ K060653
6PK1675 ........ K060660
6PK1680 ........ K060660
6PK1685 ........ K060663
6PK1693 ........ K060667
6PK1695 ........ K060667
6PK1697 ........ K060670
6PK1698 ........ K060670
6PK1700 ........ K060670
6PK1705 ........ K060672
6PK1710 ........ K060672
6PK1715 ........ K060675
6PK1725 ........ K060680
6PK1730 ........ K060680
6PK1732 ........ K060682
6PK1733 ........ K060685
