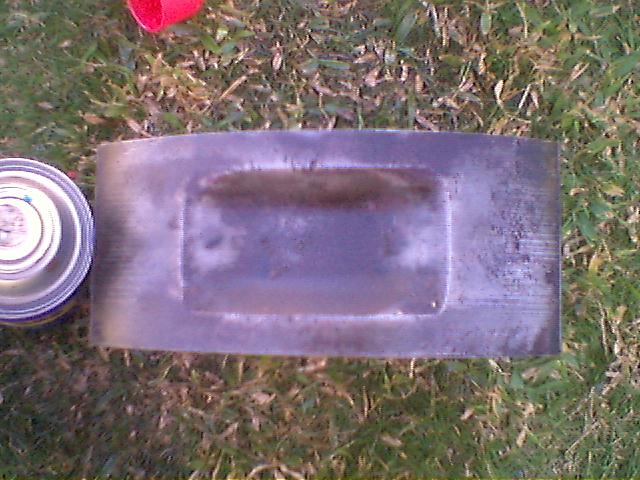

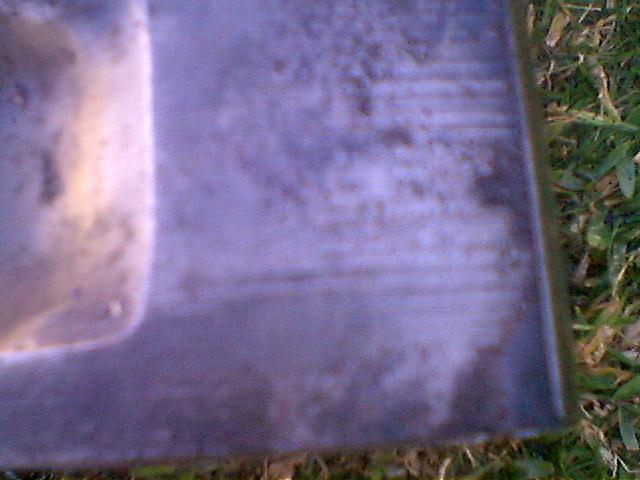

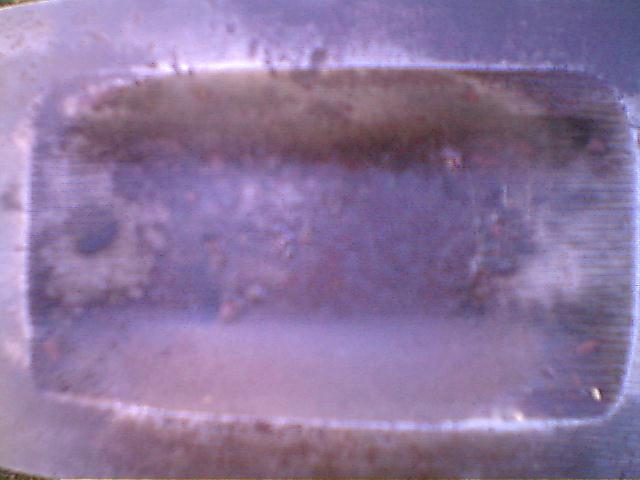

Guys, I was just cleaning up some rotors for a rebuild. I took these picture and I'm not sure if this rotor can work. This is a picture of one side of the rotor that I am concern about. Some parts are pitted, hopefully you can make it out in the pics.



Yoda says: use yes it can!!

...but seriously, the pitting looks minor. Its the apex groove u have to make sure is clean and burr free so you have good compression.



Hard to tell. Better pics would help



need better pics of the seal areas



what is it with people and pics... Your camera has a min distance for focus, and that should be in the manual... Which means, it wont focus if its too close... those areas never come in contact with the housing, so it doesnt matter if there is some pitting... what you need to worry about are the seal areas... take BETTER PICS of the seal areas... What you can do, is get an apex seal and slide it through the gap... IT should go it smoothly no matter where you slide it in through. However, it shouldnt have much or any play, side to side. If it does, you either have to clearance them to accept 3mm seals or just say fukit and buy new rotors..



Thank you for your observation...BTW I took it with by blasted phone, next time I know better.
