1990 Na 13b vacuum help

Thread Tools

Search this Thread

Old 03-19-16, 01:44 PM
  #1
Can Post Only in New Member Section
Thread Starter

Mr.Hoodrat's Avatar

Join Date: Mar 2016
Location: Murfreesboro,TN
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
TN 1990 Na 13b vacuum help
I've looked around online and can't find a diagram showing these vacuums but on the throttle body the actuator or butterfly (not sure of the name) has a vacuum that runs back to a splitter and I can not figure out what or where the other end is supposed to go... And help is very appreciated

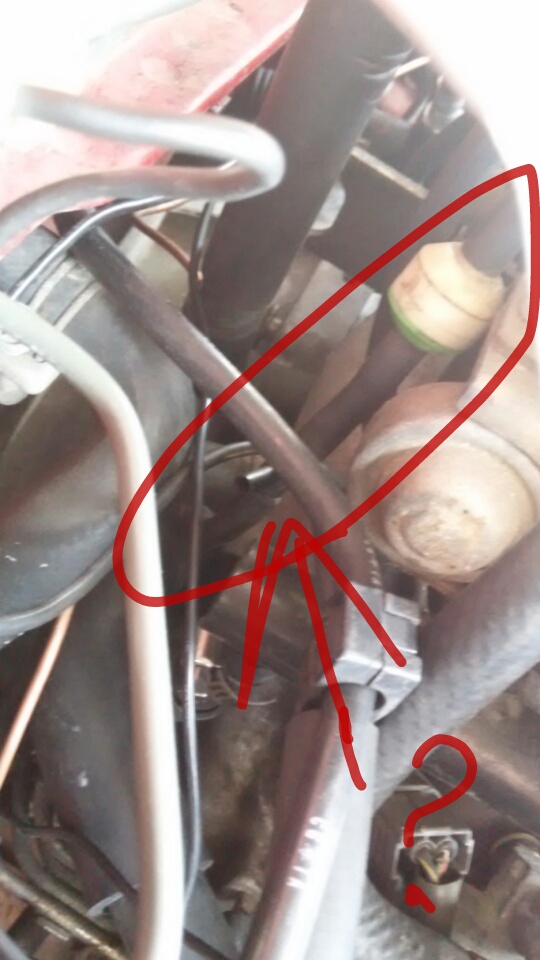

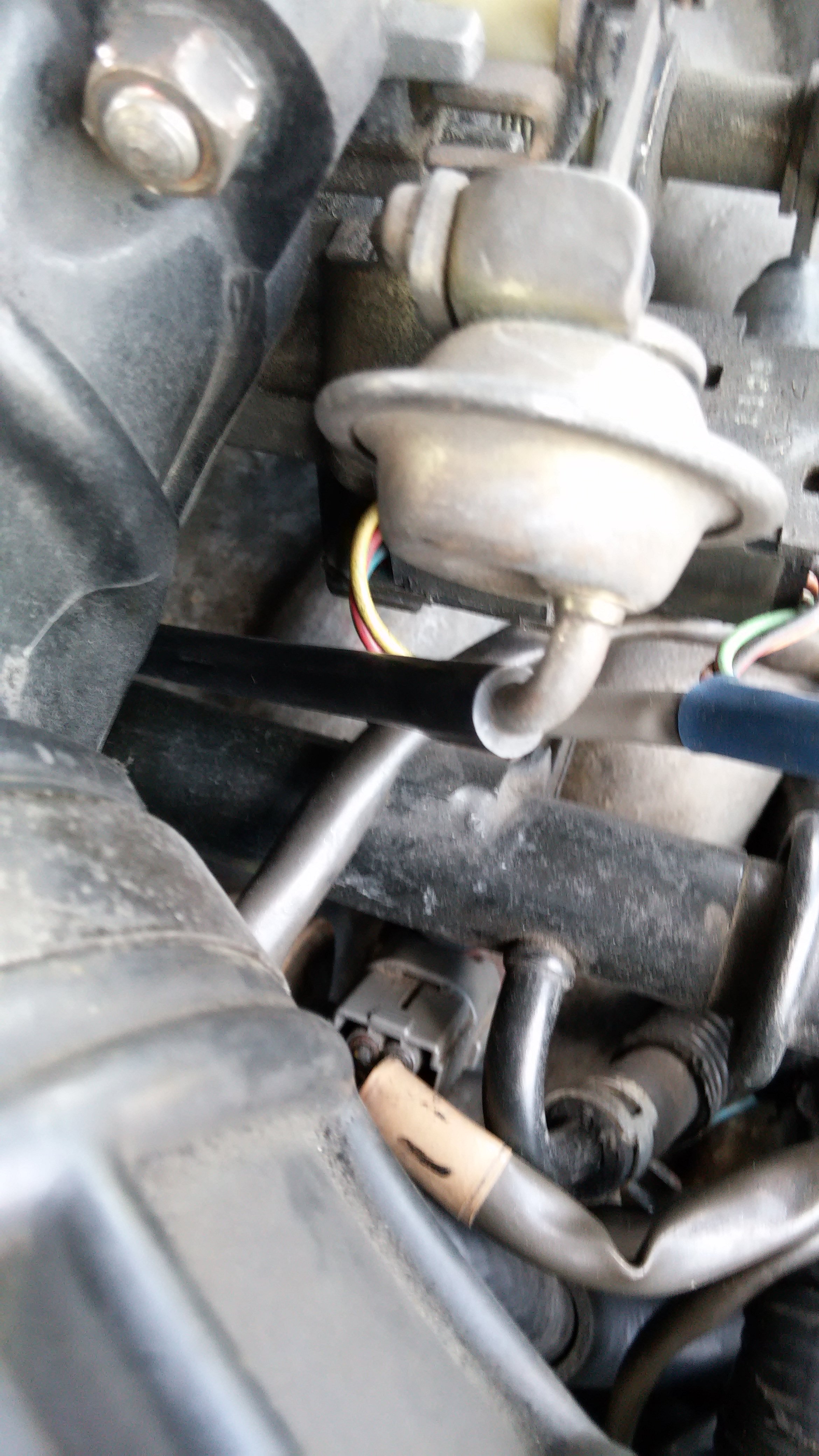

Attached Thumbnails 1990 Na 13b vacuum help-img_20160319_131515.jpg   1990 Na 13b vacuum help-img_20160319_131754.jpg
Mr.Hoodrat is offline
Reply Like
Old 03-20-16, 08:58 AM
  #2
Rotary Porn Addict

iTrader: (2)

Rikk's Avatar

Join Date: Jul 2014
Location: Charleston SC
Posts: 299
Likes: 0
Received 0 Likes on 0 Posts
Hoodrat
Check out foxed.ca rx7 or post a wider frame picture so we can see where the ends are located
GL
Rikk is offline
Reply Like
Old 03-20-16, 09:54 AM
  #3
Can Post Only in New Member Section
Thread Starter

Mr.Hoodrat's Avatar

Join Date: Mar 2016
Location: Murfreesboro,TN
Posts: 2
Likes: 0
Received 0 Likes on 0 Posts
Give me a bit and I will make that happen
Mr.Hoodrat is offline
