13bt rienforced rear iron
#1
13bt rienforced rear iron
So after learning about s5 rear iron differences, I had to check my garage. I only have this one rear iron, so I have nothing to compare it to except the picture from this website, Rotary Resurrection home of the budget rebuild.

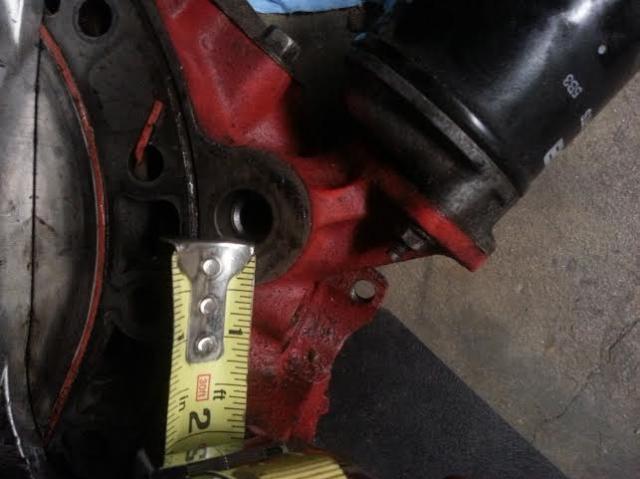

So mine looks like it, but was hoping you guys out there with multiple engine parts would be able to tell me. It measures around 1/2" thick. No way to measure to see if it has been resurfaced huh?
So mine looks like it, but was hoping you guys out there with multiple engine parts would be able to tell me. It measures around 1/2" thick. No way to measure to see if it has been resurfaced huh?
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,805
Received 2,578 Likes
on
1,831 Posts
that is the bigger one, see the extra rib?
you can kind of tell if the irons been surfaced, measure the thickness, its supposed to be an even number like 60mm
you can kind of tell if the irons been surfaced, measure the thickness, its supposed to be an even number like 60mm
#3
So I have a total of 3 rear irons with the reinforcement and now I know the difference between the thicker casting vs the smaller one. Besides the photos from rotary resurrection, I have pictures of an assembled engine with thicker vs thinner dowel casting.
Here is the thinner casting. it has the extra support, but the casting thickness is almost flush with the rotor housing

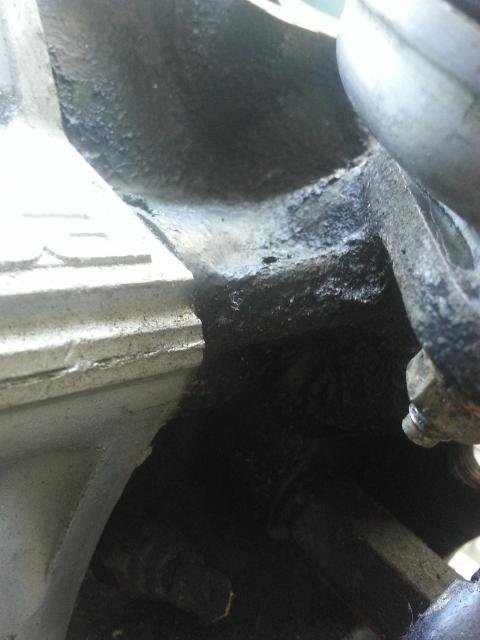

Here is the thicker casting version of the rear iron. It pops out about 6-8mm past the rotor housing
Here is the thinner casting. it has the extra support, but the casting thickness is almost flush with the rotor housing
Here is the thicker casting version of the rear iron. It pops out about 6-8mm past the rotor housing
