FC Mount/Bushing Dimensions
#1
FC Mount/Bushing Dimensions

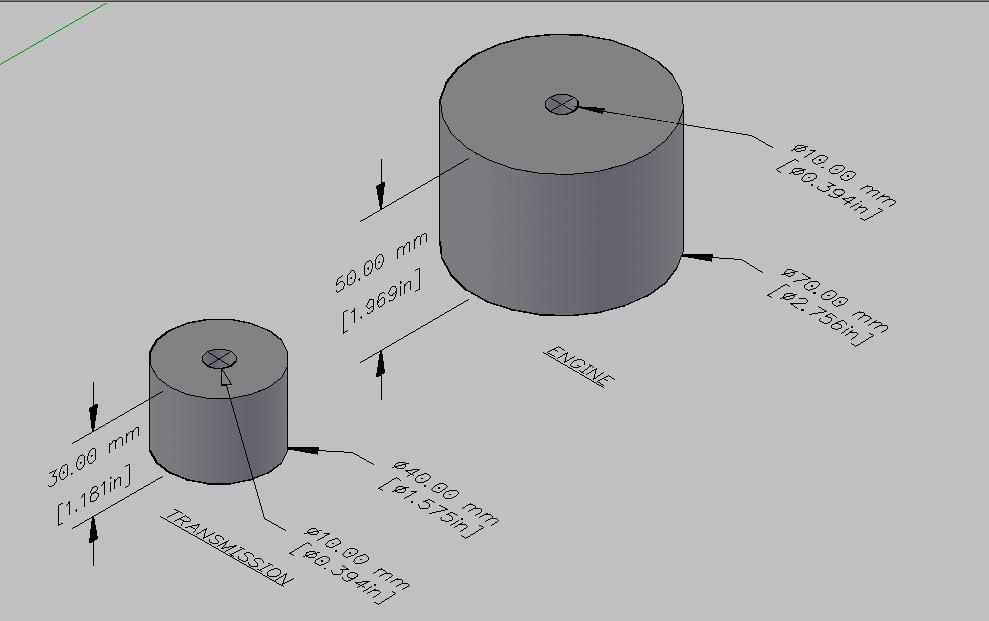

Here are the dimensions for making your own Tranny/Engine Mounts for your FC Rx-7. I recieved them from a fellow Rx7club forum member.
If anyone has a Solid Differential or Subframe Bushings/Mounts could you please post the dimensions? Or if you have any other bushings/mounts that could be home-made or easily fabricated please post up the dimensions/plans.
If anyone has a Solid Differential or Subframe Bushings/Mounts could you please post the dimensions? Or if you have any other bushings/mounts that could be home-made or easily fabricated please post up the dimensions/plans.
The following users liked this post:
KNONFS (02-18-19)
#2
Nice!
I believe on tranny mount hole is 8mm..
I have one diff out, so i can take stock dimensions for diff mounts..
This will be nice thread, if will be great response from others members..
I believe on tranny mount hole is 8mm..
I have one diff out, so i can take stock dimensions for diff mounts..
This will be nice thread, if will be great response from others members..
