Mireck 12A

Yeah, it looks that we're coming def.

OC94Rx7

That's great!
I can't wait, the race should be interesting...ha

Kim

10(ld)7 is alive, I gave her a little coughsyrup into each chamber, Ignition, Fuelpump and then hit the starterbutton. She jumped right to life, Finally...some ressurection. It idles kindda rough and around 2000 rpm, thats fair considering the carb is jetted for P-Port and even with the Supertrapp its friggin loud

Ofcourse there are a few other things to be solved, like jetting the Weber, replacing the brake master cylinder and clutch cylinder(crispy rubbers) get vinyls made for it and paint all the small spots that was forgotten the first time
All should be done before Friday when Its going to the Danish Fastest Car event for the whole weekend, I wont be racing it, its just for show and to please the sponsor, maybe even attract some more to the team.

Ill get some video soon...

Kim

Mireck 12A

Cool!

Kim

Idle is a bit high

Oliver will mount the vinyls thursday, i tried putting a few on, but have decided to let someone else do it, ha ha

www.wankelkim.net/rx7/fb/wee.AVI

www.wankelkim.net/rx7/fb/weee.AVI

FxF

I really like the sound in the weee.avi video Kim.
I would love to see an incar video of your car.

-Fanis

Magnus Berglund

Cool! Sounds like a modelplane!!
I bet the first testdrive is not to far away?

//magnus

OC94Rx7

Magnus, the 2nd vid sounds like my gas weed eater!! ha....

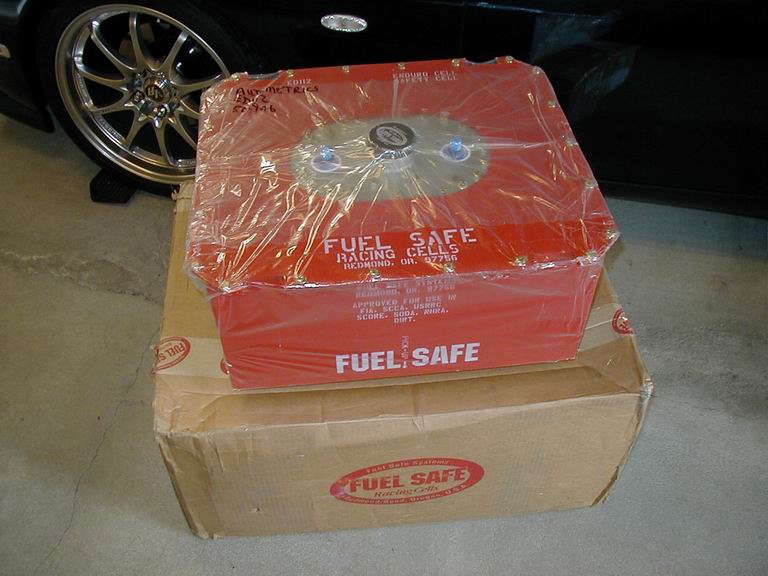

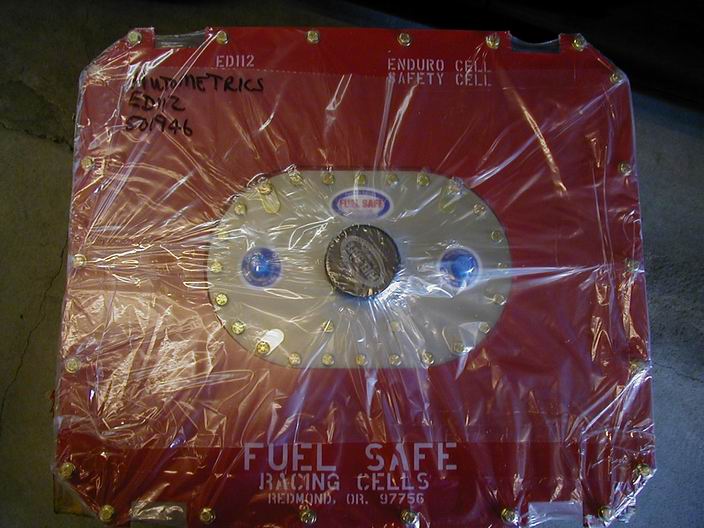

Below, a few photo's of the fuel cell that arrived on friday.

Magnus Berglund

hmm.. yes acutally it does.. *s*

Hope that you get to race it soon.

//magnus

Kim

Last weekend, Erik(teammate) and I went to The Yearly dragrace/showcar event in DK, to promote his shop and our racecars.
Judging from the interest in our cars and pictures taken, I guess it was a success.
I allmost scored another sponsor, but when I returned to his stand he was no where to be seen

Pics from our stand, I spent a whole weekend answering the same 10 questions over and over again, but it was great anyways.

http://www.wankelkim.net/rx7/dhb2005


Ha ha there is also a few pics of an old furry Trabi, it was kindda cool as it had a dvd player showing hardcore **** 24/7

OC94Rx7

Thanks...we hope so too!
I'm going to be super busy the next month and a half but I hope we can get some testing in..... if so, I hope Kim can run a race before the 4 hr enduro in October

sbd

If you have the car prepared before the end of August , you could come to CZ for a 6h enduro/test on 31.8.

Kim

Video from the Dragevent, a Mazdabuddy of mine made it, I especially like the finale.
http://www.ch-racing.dk/dhbvideoteaser.wmv

Multiplex

Looking good Kim!!

OC94Rx7

Hello Svetlin

I have sent you a private message!

Regards
Oliver

sbd

Thank you Oliver, responded

Regards
Svetlin

Kim

Update:

I got to drive the car today. after installing new brake mastercylinder and clutch slave-do I took it for a spin down the street
It sure feels powerfull with its low gears and rearend, no biggie just took it for a shakedown test on gauges and brakes.

We will go to an old AirForce base and break-in the motor and stuff on the 24th this month.

Kim

Ok back from the testday.
Man did we really break that engine

Due to a spun rotorbearing i only got a few laps in it, but it felt nice and strong and all temps and pressure were within the limits.

Whoever says that a raceclutch is streetable needs to try a dual plate 185mm Tilton Sintermetal clutch Man that thing is like an electric switch, its either on or off

Oliver will order new parts for the rebuild this week.
We need Racebearings, and this time they will be mounted with setscrews, as according to the Factory Competetion Preparation Manual(say that really fast 5 times), no more spun bearings in this beerkeg.

Also we decided to take a try on making Peripheral Port rotorhousings, that should be fun

Kim

As said - So done

This is Oliver and my attempt on a P-port housing.
We still need to make an insert and stuff, but so far im pretty happy with our job

http://www.wankelkim.net/rx7/P-port/

BRING THE "BRAP" BACK

FxF

Hey Kim and Oliver,

Nice to see you are keeping up with your project.
I do not know much (if any) about P ports, but isn't this kind of big?
What hp are you planning to reach with this setup?

-Fanis

Kim

The diameter of the hole is 58mm, the tube insert i need to make for it will have an inside dia. of 51mm, the same as the carburettor bore.

Im pretty confident that it should make around 300hp with the 51mm Weber IDA.
Currently im waiting for an E-shaft and we need to fill the intake in the endplates with some kind of filler. Im hoping it will be ready before X-mas.

Kim

made the other housing and intake runners today.

http://www.wankelkim.net/rx7/P-port/PICT1248.JPG
http://www.wankelkim.net/rx7/P-port/PICT1254.JPG
http://www.wankelkim.net/rx7/P-port/PICT1255.JPG
http://www.wankelkim.net/rx7/P-port/PICT1256.JPG

rotary emotions

nice job! can't wait to hear it roaring

Kim

Getting closer to the actual motorbuild.
I made a manifold.
http://www.wankelkim.net/rx7/fb/ppmanifold.JPG

And also locked the distributor at zero split.
http://www.wankelkim.net/rx7/fb/distlock.jpg

I took the p-port pics off my site as they were too large.
Then I lost them all when my harddisk took a **** and died.
Pics are here though.
http://www.nopistons.com/forums/inde...howtopic=57303

Kim

http://www.wankelkim.net/rx7/fb/portchoke.JPG
http://www.wankelkim.net/rx7/fb/portchoke2.JPG

Made some portchokes just incase the 51mm port doesnt have velocity to properly fill the intake cycle.

Inner dia. is 45mm, pretty close to MFR size
