Anyone seen a FC Rear Subframe bushing how-to?

Thread Tools

Search this Thread

Old 01-24-11, 01:03 PM
  #1
Rotary Enthusiast

Thread Starter
iTrader: (10)

RotaSpinna69's Avatar

Join Date: Jan 2004
Location: Houston
Posts: 1,353
Likes: 0
Received 0 Likes on 0 Posts
TX Anyone seen a FC Rear Subframe bushing how-to?
Did some searching, but didn't come up with anything in the form of a how-to or install. Especially for the solid or Derlin bushings. Does the subframe have to be removed completely? Anyone care to chime in?

Thanks,

Andrew
RotaSpinna69 is offline
Reply Like
Old 01-24-11, 03:01 PM
  #2
Full Member

slidinsilly's Avatar

Join Date: Jan 2010
Location: philadelphia
Posts: 163
Likes: 0
Received 0 Likes on 0 Posts
It makes it 1000x easier with the sub-frame out but its not 100% nessisary.
Its pretty straight forward tho, remove old bushings(probably cut/burn out)
And replace with new. Took me about 20 min with the frame out
slidinsilly is offline
Reply Like
Old 01-24-11, 03:29 PM
  #3
Rotary Enthusiast

Thread Starter
iTrader: (10)

RotaSpinna69's Avatar

Join Date: Jan 2004
Location: Houston
Posts: 1,353
Likes: 0
Received 0 Likes on 0 Posts
As long as the new bushings do not have to be PRESSED in, I'll be fine. I am replacing the front diff. bushings so I thought I'd do the bushings with the subframe hanging down.

Thanks,

Andrew
RotaSpinna69 is offline
Reply Like
Old 01-24-11, 03:44 PM
  #4
Senior Member

iTrader: (2)

FCNAred's Avatar

Join Date: Oct 2001
Location: Baltimore
Posts: 678
Likes: 0
Received 0 Likes on 0 Posts
http://www.ziptied.com/forums/index.php?topic=7676.0
FCNAred is offline
Reply Like
Old 01-24-11, 04:21 PM
  #5
Mother****ing Wow

sunburn's Avatar

Join Date: Jul 2008
Location: NJ
Posts: 1,290
Likes: 0
Received 0 Likes on 0 Posts
remove the subframe... will make your life 1000x better.

I used an air chisel and had them out in 5min flat -new ones go right in -no pressing.
sunburn is offline
Reply Like
Old 01-24-11, 04:58 PM
  #6
Rotary Enthusiast

Thread Starter
iTrader: (10)

RotaSpinna69's Avatar

Join Date: Jan 2004
Location: Houston
Posts: 1,353
Likes: 0
Received 0 Likes on 0 Posts
Thanks for the link and the comments!
RotaSpinna69 is offline
Reply Like
Old 01-24-11, 06:43 PM
  #7
I break Diff mounts

iTrader: (1)

Digi7ech's Avatar

Join Date: Jun 2002
Location: Avondale, Arizona
Posts: 4,403
Likes: 0
Received 4 Likes on 2 Posts
I did it with a hammer, steel pipe, and dremil if I had to score/cut anything.

Rears are easy. The big bushing on the front control arm is a bitch.
Digi7ech is offline
Reply Like

Trending Topics

Old 01-25-11, 03:14 AM
  #8
Full Member


Dirt-McGirt's Avatar

Join Date: Sep 2008
Location: Langley, BC
Posts: 91
Likes: 0
Received 0 Likes on 0 Posts
Drop subframe and cut out old bushings, then cut out metal colars that are stuck in there, then hammer in new bushings. they shouldnt slip in.
Dirt-McGirt is offline
Reply Like
Old 01-25-11, 06:47 AM
  #9
Who Shot the Sheriff?

iTrader: (2)

Turbo II Rotor's Avatar

Join Date: Jan 2007
Location: Aurora, CO
Posts: 3,858
Likes: 0
Received 1 Like on 1 Post
You don't use solid or delrin bushings in the rear. Stock or bearings.
Turbo II Rotor is offline
Reply Like
Old 01-25-11, 07:28 AM
  #10
Mother****ing Wow

sunburn's Avatar

Join Date: Jul 2008
Location: NJ
Posts: 1,290
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Turbo II Rotor
You don't use solid or delrin bushings in the rear. Stock or bearings.
your thinking of the trailing arms... he clearly said subframe bushings.
sunburn is offline
Reply Like
Old 01-25-11, 08:24 AM
  #11
RX7-Factory

iTrader: (8)

driftfcbuckey's Avatar

Join Date: Jan 2008
Location: Vegas
Posts: 2,668
Received 17 Likes on 17 Posts
Originally Posted by sunburn
your thinking of the trailing arms... he clearly said subframe bushings.
Hate got regulated
driftfcbuckey is offline
Reply Like
Old 01-25-11, 08:37 AM
  #12
Who Shot the Sheriff?

iTrader: (2)

Turbo II Rotor's Avatar

Join Date: Jan 2007
Location: Aurora, CO
Posts: 3,858
Likes: 0
Received 1 Like on 1 Post
Originally Posted by sunburn
your thinking of the trailing arms... he clearly said subframe bushings.
I was and he did.
Turbo II Rotor is offline
Reply Like
Old 01-25-11, 12:55 PM
  #13
Rotary Enthusiast

Thread Starter
iTrader: (10)

RotaSpinna69's Avatar

Join Date: Jan 2004
Location: Houston
Posts: 1,353
Likes: 0
Received 0 Likes on 0 Posts
It's all good

Thanks for all the info and comments!
RotaSpinna69 is offline
Reply Like
Old 06-12-13, 06:25 PM
  #14
Senior Member

GREEN Rx8's Avatar

Join Date: Apr 2013
Location: Nashville TN
Posts: 275
Likes: 0
Received 0 Likes on 0 Posts

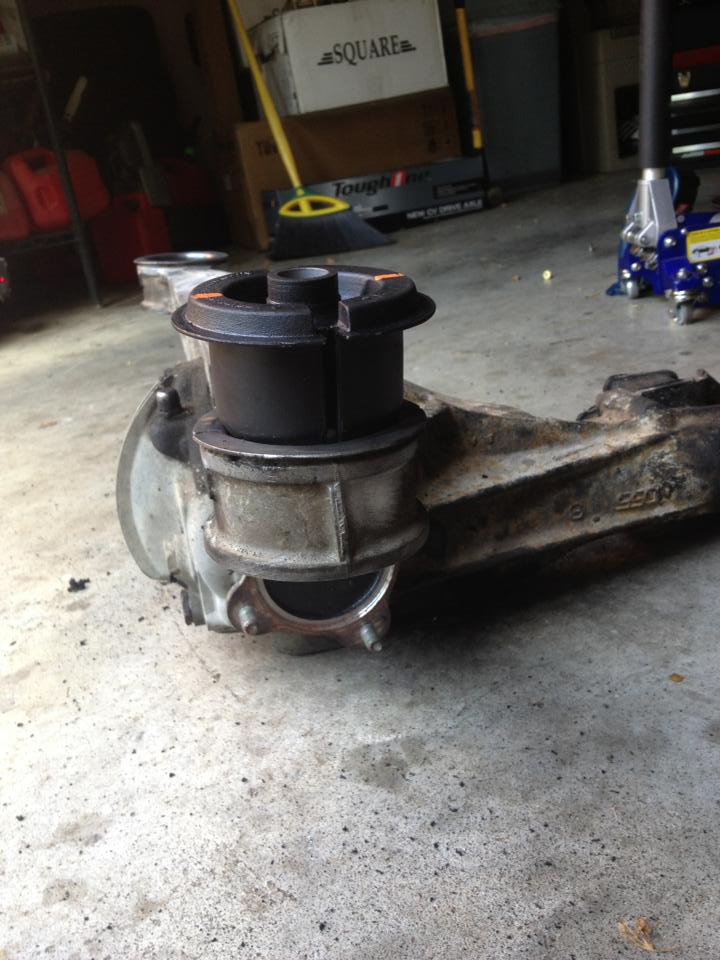

bump from the dead as not to start a new thread. this is not nearly as easy as you guys are saying. I got the mazdaspeed comp bushings and this install sucks! you absolutely need a press. not sure what bushings you guys have that "slide right in" but these defiantly do not.

Anyone seen a FC Rear Subframe bushing how-to?-bqem40q.jpg
GREEN Rx8 is offline
Reply Like
Old 06-13-13, 01:02 AM
  #15
Senior Member

GREEN Rx8's Avatar

Join Date: Apr 2013
Location: Nashville TN
Posts: 275
Likes: 0
Received 0 Likes on 0 Posts
edit: im an idiot and didnt take out the metal sleeves...
GREEN Rx8 is offline
Reply Like
