Finally dynoed my car today.
09-30-06, 04:56 PM
#1
Fabricator and builder
Thread Starter
Join Date: Jun 2003
Location: Innisfil, Ontario
Posts: 936
Likes: 0
Received 0 Likes
on
0 Posts
Finally dynoed my car today.

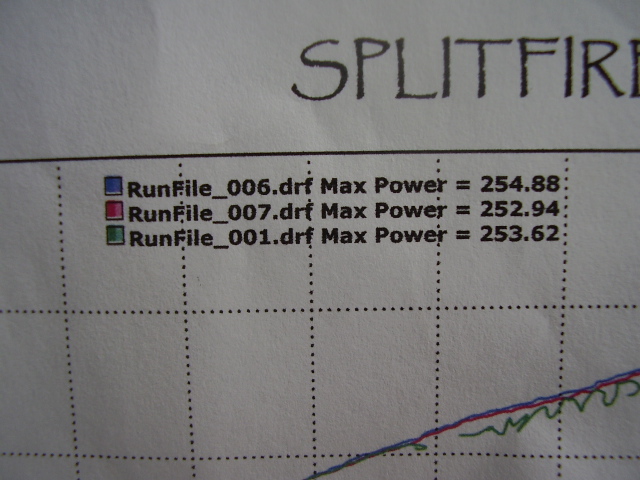

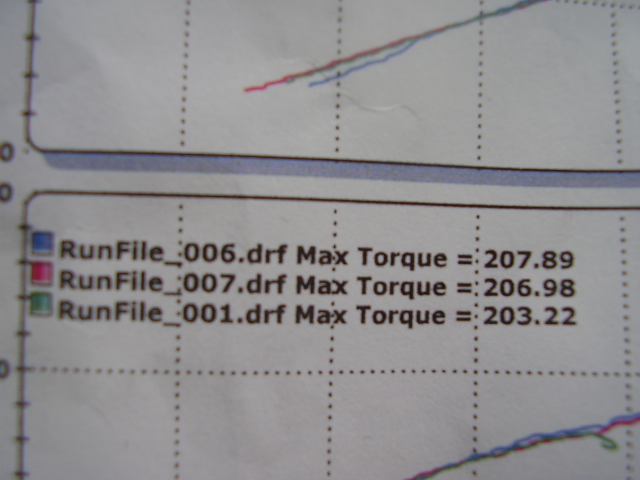

Like it says, dyno'd my car today at 7psi. I think I'm close to the limit on my inj. 550's and 720's. Over the winter I'll be making some changes. I'll post the graph later. 254.88hp and 207.89lbs of tq.
10-01-06, 01:30 PM
#5
Fabricator and builder
Thread Starter
Join Date: Jun 2003
Location: Innisfil, Ontario
Posts: 936
Likes: 0
Received 0 Likes
on
0 Posts
I know! Trust me I've tried to post them but I can't get it small enough. If I send you or anyone the graph's will you post them for me? I'm not exactly a computer guru. Really don't have time for it. Unless it pertains directly to car's that is.
10-01-06, 01:37 PM
#6
Learned alot | Alot to go
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
email them to vangelder.jacob@gmail.com or aim me 'crack addac' ill put em up
10-01-06, 01:49 PM
#7
Fabricator and builder
Thread Starter
Join Date: Jun 2003
Location: Innisfil, Ontario
Posts: 936
Likes: 0
Received 0 Likes
on
0 Posts

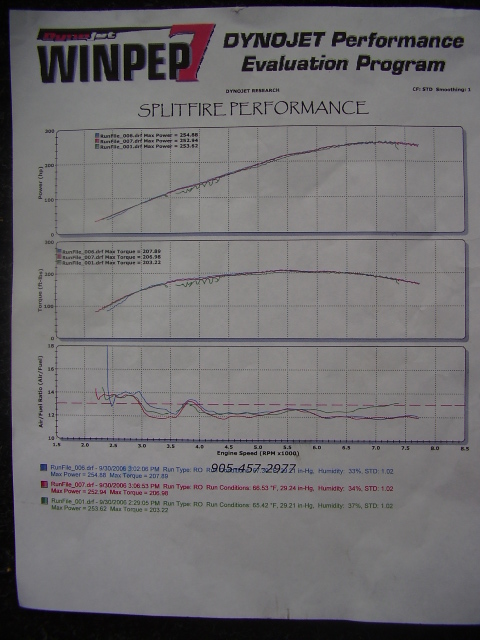

I just took some digi's of them instead but I'll send you the scanned copy it's a lot clearer. Thanks. These are the best I could do with my camera.
Trending Topics
10-02-06, 12:46 PM
#15
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 109 Likes
on
92 Posts
Wow, very nice torque curve! But you're flirting with danger running 12:1 under boost. To be safe, you really should be 11.5:1 or lower. Some even tune for just under 10:1.
10-02-06, 01:10 PM
#16
More Mazdas than Sense
Join Date: Aug 2003
Location: Sunny Downtown Fenwick
Posts: 2,168
Likes: 0
Received 0 Likes
on
0 Posts
LOL... I've got a dyno graph that looks just like that, only the numbers are 1/2 as big!
Are you getting knock readings at all? 12:1 is not necessarily a bad thing depending on your porting, ignition timing, and the internals you are running, and considering you are at 7 PSI. At 10:1 you are definitely leaving power on the table.
Numbers are just that. Tune to where your engine is happiest, or as the ol' addage goes: lean it out until it blows up, then back it down a notch.
Are you getting knock readings at all? 12:1 is not necessarily a bad thing depending on your porting, ignition timing, and the internals you are running, and considering you are at 7 PSI. At 10:1 you are definitely leaving power on the table.
Numbers are just that. Tune to where your engine is happiest, or as the ol' addage goes: lean it out until it blows up, then back it down a notch.
10-02-06, 03:43 PM
#18
Rotary Enthusiast
Join Date: Jun 2003
Location: Ottawa, Canada
Posts: 874
Likes: 0
Received 0 Likes
on
0 Posts

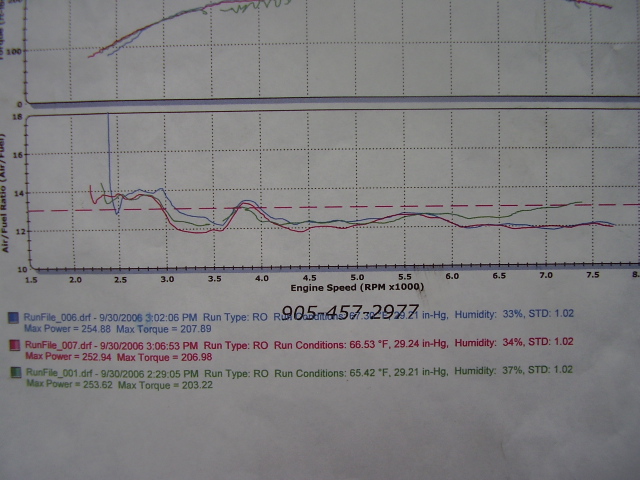

Looks like you are running a stock computer judging from the lean spot at 3700rpm
For 7 psi, 12:1 afr is not that big a deal with good intercooling and good engine temps. It looks like you were able to fix the leaning out at high rpm on later runs.
Just so you know Jay's engine didn't last very long with this 3700 rpm lean spot, even with the rest of the range tuned rich. Then again, his engine was built by A-spec, and had other internal problems.
For 7 psi, 12:1 afr is not that big a deal with good intercooling and good engine temps. It looks like you were able to fix the leaning out at high rpm on later runs.
Just so you know Jay's engine didn't last very long with this 3700 rpm lean spot, even with the rest of the range tuned rich. Then again, his engine was built by A-spec, and had other internal problems.
10-02-06, 07:10 PM
#19
Fabricator and builder
Thread Starter
Join Date: Jun 2003
Location: Innisfil, Ontario
Posts: 936
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by nik
Looks like you are running a stock computer judging from the lean spot at 3700rpm
For 7 psi, 12:1 afr is not that big a deal with good intercooling and good engine temps. It looks like you were able to fix the leaning out at high rpm on later runs.
Just so you know Jay's engine didn't last very long with this 3700 rpm lean spot, even with the rest of the range tuned rich. Then again, his engine was built by A-spec, and had other internal problems.
For 7 psi, 12:1 afr is not that big a deal with good intercooling and good engine temps. It looks like you were able to fix the leaning out at high rpm on later runs.
Just so you know Jay's engine didn't last very long with this 3700 rpm lean spot, even with the rest of the range tuned rich. Then again, his engine was built by A-spec, and had other internal problems.
Brent
Brent
10-02-06, 09:41 PM
#20
More Mazdas than Sense
Join Date: Aug 2003
Location: Sunny Downtown Fenwick
Posts: 2,168
Likes: 0
Received 0 Likes
on
0 Posts
That's the part I neglected to mention: The converse to what I said is the car will tell you when it is too rich, as the power will start to drop off. If you want to play super safe, richen it until the power drops off, then go back a step.
You've got the right idea, as too rich is jut that: too rich. You'll regret the tuning every time you fill up. Just ask the chris'.
You've got the right idea, as too rich is jut that: too rich. You'll regret the tuning every time you fill up. Just ask the chris'.
10-03-06, 08:59 AM
#21
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 109 Likes
on
92 Posts
I think Feds already said what I was going to say, but in my opinion, 12:1 is at the danger zone because it leaves very little leeway for mistakes/problems/whatever. Especially if this is the stock ECU since you have no control over how it adjusts for temperature. One cool night and you end up with issues...Personally I would never tune a turbo rotary for 12:1 unless I was trying to eek out every little last bit of power and had no concerns over engine life...
But whatever floats your boat.
Edit...I'm talking about under boost here. Under cruise, lean it out as much as you can without melting the turbos...
But whatever floats your boat.
Edit...I'm talking about under boost here. Under cruise, lean it out as much as you can without melting the turbos...
10-03-06, 08:13 PM
#22
Fabricator and builder
Thread Starter
Join Date: Jun 2003
Location: Innisfil, Ontario
Posts: 936
Likes: 0
Received 0 Likes
on
0 Posts
It was tuned on a very cool day to start with and I'd rather push mine close to the limits than experiment on a customer's. Besides, an established tuner gave a helping hand and advised me that he always tunes rotaries at 12:1. Bottom line, I'm not that worried about it. I have a hundred different builds in my head that I can't wait to try, money permitting of course. No matter how careful you are, if you push them, eventually you'll break ****. Tranny's, shafts, eng, same **** different pile. It's the chance we all take in the quest for POWER! LOL. How's that for cheesy?? You get the point.
If it lasts 2 summers, I'm sure I'll be board of it anyway. Thanks again. I really do appreciate the advice from all of you. The forum's been a great help.
Brent
If it lasts 2 summers, I'm sure I'll be board of it anyway. Thanks again. I really do appreciate the advice from all of you. The forum's been a great help.
Brent
10-11-06, 06:58 PM
#23
Junior Member
Join Date: Feb 2006
Location: Mississauga
Posts: 33
Likes: 0
Received 0 Likes
on
0 Posts

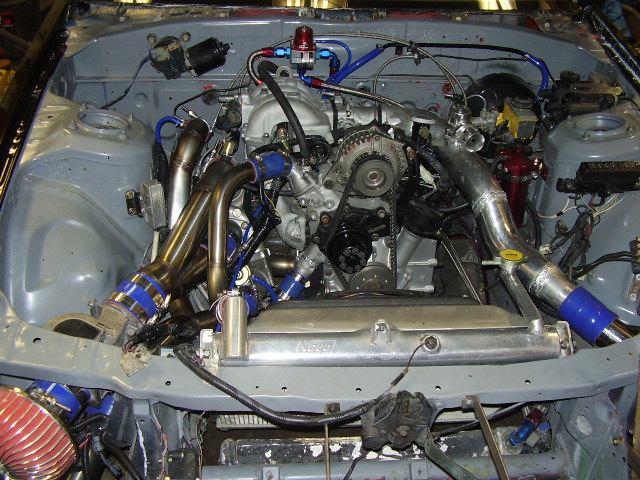

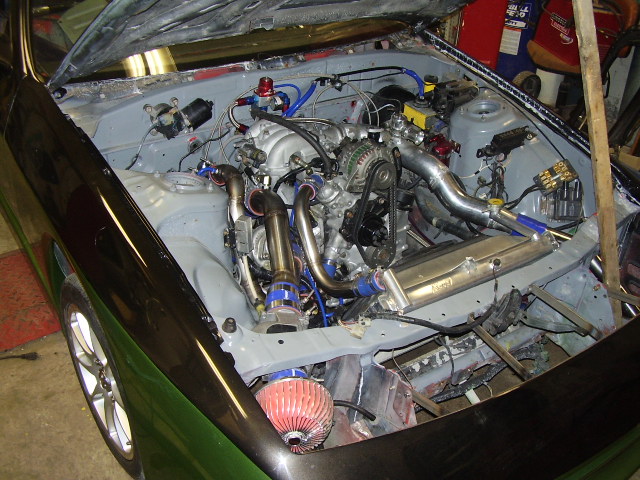

Engine bay looks good in the winter spend alittle $ and get all your pipes chromed and what ever else you can take off that has a smooth surface I did mine and it looks great I would post some pics but I dont know how I tied before but couldn't not a computer guy
10-11-06, 10:48 PM
#24
Fabricator and builder
Thread Starter
Join Date: Jun 2003
Location: Innisfil, Ontario
Posts: 936
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, I like the ss look though. Over the winter I'll be getting rid of the yellow crap and cleaning up a bunch of little things. Not to mention I'm going to build a new intake on the tb side, the one in the pics was made from my old na one. I'll probably get some stuff powder coated as well. I'd love to see some pics of your's.
Brent
Brent
