farberio:
I have ID injectors with the black cushions currently and they always looked moist near the cusions... I've talked to ID about it and they swear the fuel pressure should be great enough so the boost won't push the injector up but I have my doubts... (there is a lot more surface area on the bottom of the injector than the top)
the o-rings are because each black cushion gets replaced with 2 small o-rings before you put it in the adapter.
I have ID injectors with the black cushions currently and they always looked moist near the cusions... I've talked to ID about it and they swear the fuel pressure should be great enough so the boost won't push the injector up but I have my doubts... (there is a lot more surface area on the bottom of the injector than the top)
the o-rings are because each black cushion gets replaced with 2 small o-rings before you put it in the adapter.
Interesting. I don't have boost so that's one less thing to worry about. Still, I would rather play it extra safe if its all of $50.
the drop engineering site says they're out of stock, so you might want to try someone else first.
Racing Mounts and Bushings
mazdaspeed part#: 0000-04-7402-KT
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
Oh wow. they are twice the price compared to Drop Engineering. I took my hubs off today and the DTSS DID NOT TEAR APART!!!! They are in tact and I will use them for this Pocono track day at the end of the month. The DTSS on my 5 lug set of hubs I received for free tore apart. I was impressed mine stayed together being just as old. This winter I plan on replacing most if not all bushings in the rear end. and dropping an NA LSD in there.

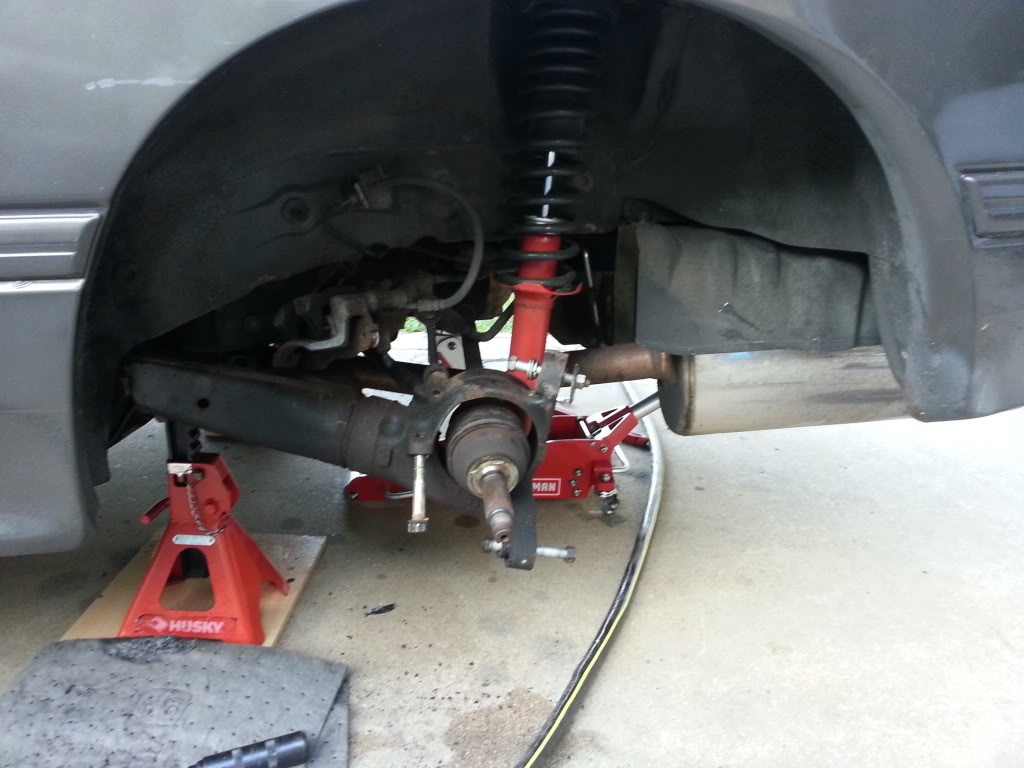

Hubs came off easily. I will replace the trailing arm bushings....eventually.

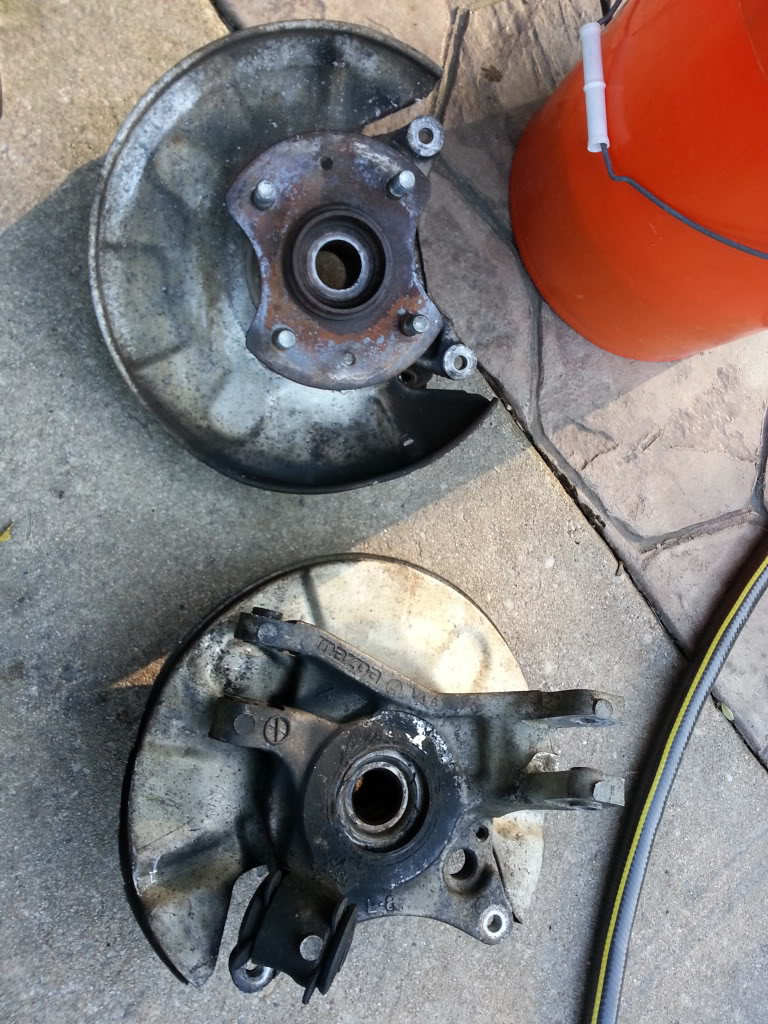

Dirty hubs

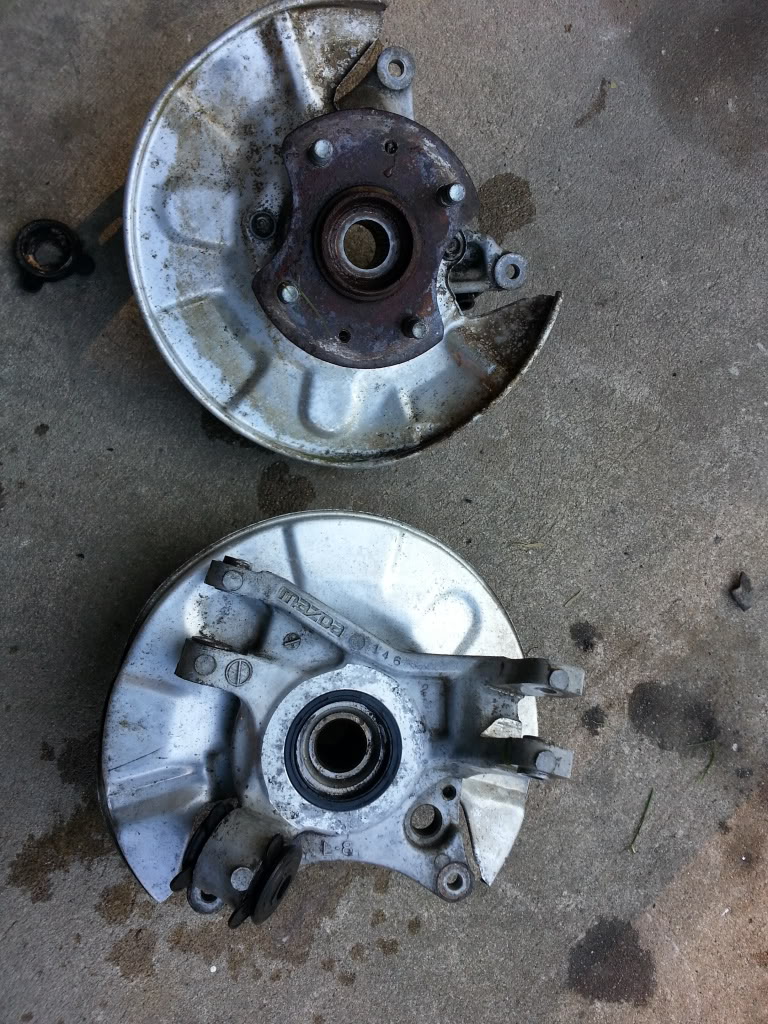

After some corrosive cleaner my dad uses for cleaning A/C units.
The next day or two I will get the 5 lug hub pressed in with new bearings...Waiting on my buddy who will do it fo free. I'm excited...I think my car may actually be ready for the track day.
To do before August 31st.
Finish 5 lug swap
add an oil temp gauge
work on tune more
get megasquirt to control e-fan
duct v-mount more
monitor temps under heavy loads
Hubs came off easily. I will replace the trailing arm bushings....eventually.
Dirty hubs
After some corrosive cleaner my dad uses for cleaning A/C units.
The next day or two I will get the 5 lug hub pressed in with new bearings...Waiting on my buddy who will do it fo free. I'm excited...I think my car may actually be ready for the track day.
To do before August 31st.
Finish 5 lug swap
add an oil temp gauge
work on tune more
get megasquirt to control e-fan
duct v-mount more
monitor temps under heavy loads
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
Forgot I had this...This was a couple friday nights ago. There was also a FB there with a 12A bridgeport. The gold FC is getting a T2 swap sometime and the Blue FC is looking for a new owner...
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE

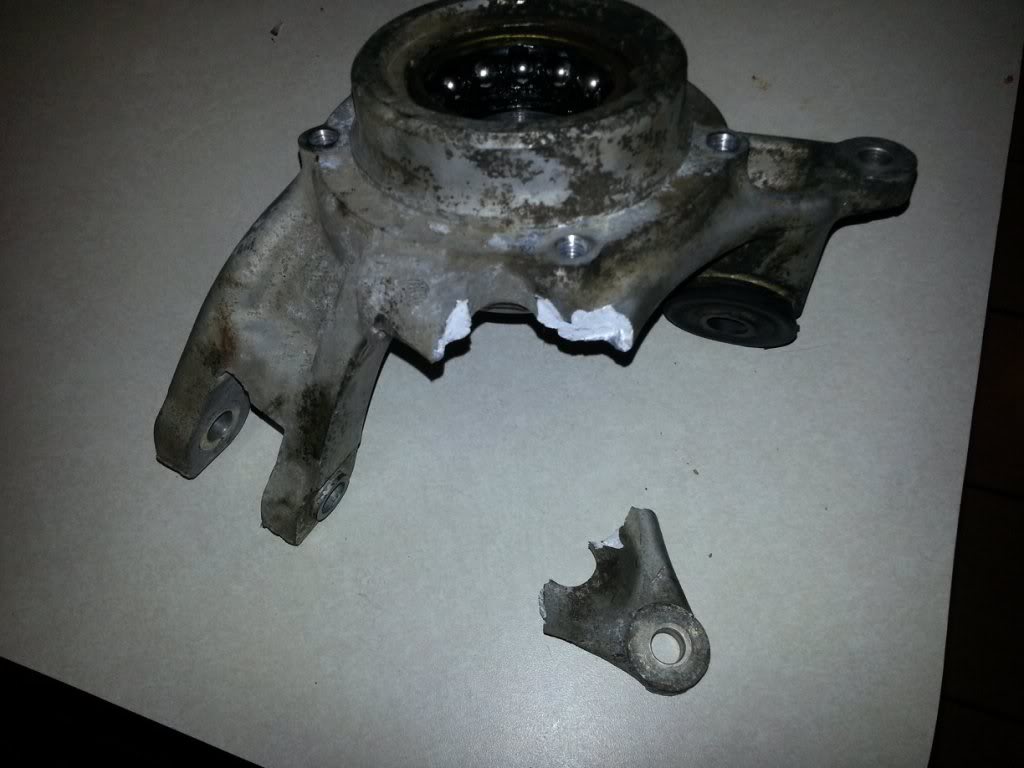

Looks like I have to buy DTSS eliminators now...This is the last time I trust someone working on my car. He forgot to take the snap ring out while removing the second bearing...I'll be getting a harbor freight 6 ton press tomorrow and racing beat DTSS eliminators are on the way...
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
Between my dad and I, I dont see us using it much at all. I'll let him know since he will be the one picking it up tomorrow.
I'm so frustrated because I was looking forward to keeping the DTSS for a little while longer and see how it really handled with low profile tires. I feel the 14 inch rims had flexed a **** ton so I never got to feel how it truely handled.
I'm so frustrated because I was looking forward to keeping the DTSS for a little while longer and see how it really handled with low profile tires. I feel the 14 inch rims had flexed a **** ton so I never got to feel how it truely handled.
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE

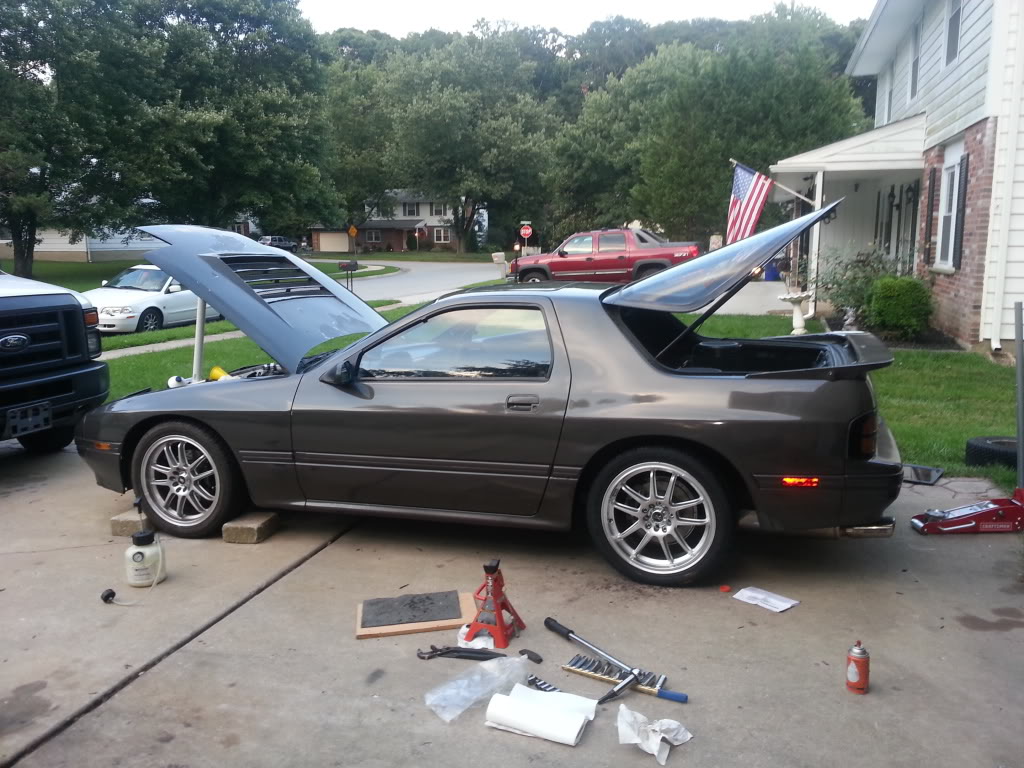

Many months later...and the 5 lug swap is finally on! I may need to quickly find a T2 MC/booster because the braking is rather weak right now. That brake bleed bucket didnt work since the attachment was too large for our reservoir.
DTSS bushings went on easily and so did the hubs....Not sure what everyone else was fussing about
DTSS bushings went on easily and so did the hubs....Not sure what everyone else was fussing about
Many months later...and the 5 lug swap is finally on! I may need to quickly find a T2 MC/booster because the braking is rather weak right now. That brake bleed bucket didnt work since the attachment was too large for our reservoir.
DTSS bushings went on easily and so did the hubs....Not sure what everyone else was fussing about
DTSS bushings went on easily and so did the hubs....Not sure what everyone else was fussing about
it's probably going to be easier for you to find a 929 booster and BMC and a brake banjo T fitting (or a double long banjo with 2 fittings). (the s5 T2 doesn't have a banjo, just 2 flare ports, so you'd have to split it after the MC if that makes sense...)
I found mine on car-part.com
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE

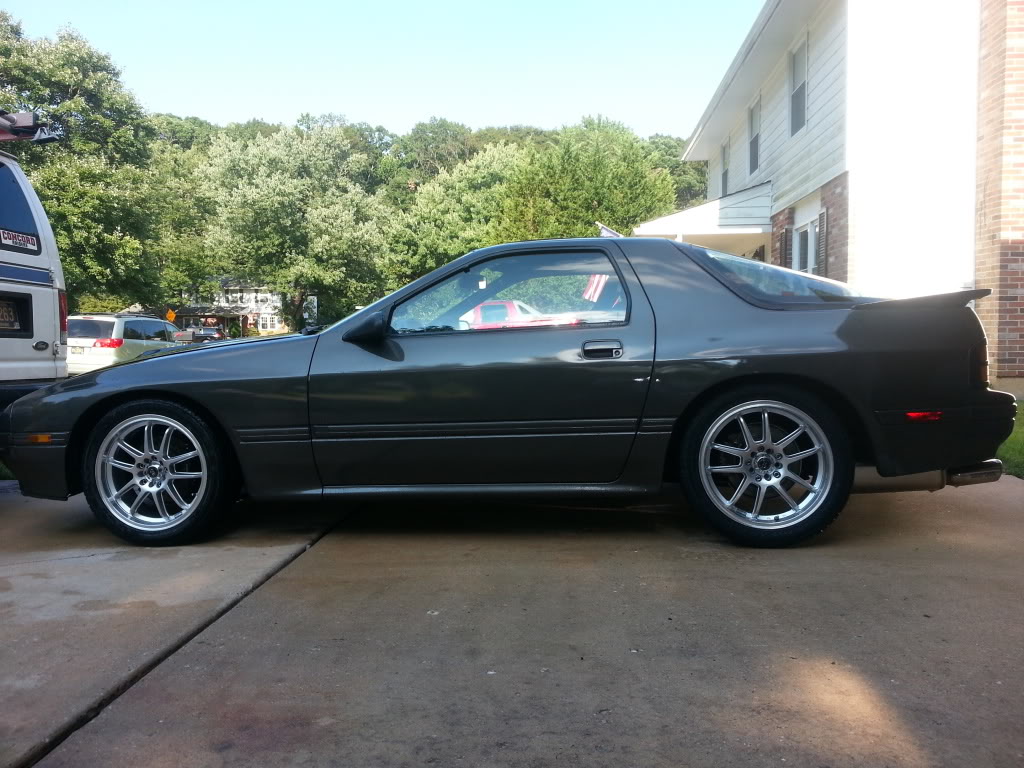

The car settled a bit after driving it around. I'm very please with the fitment considering I bought them with unknown offset. I may add a small spacer to the rear but as of right now they fit very well.
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
I made a quick little fan shroud last night out of galvanized steel and now it actually cools well enough to close the thermostat at idle. Previously it would slowly creep up over the course of a few minutes. Im curious if the rad will be restricted while on the track. I've seen fan shroud that have little flaps. I would really like to incorporate something like that.
My remaining small list before the August 31st Chris Carlisi memorial track day includes:
required
Replace battery ( w/ sealed unit)
Strap battery down
Install oil temp gauge
Oil change
things i'd also like to get done:
Install braided SS brake lines
Align the front end
Replace sway bar endlink bushings
My remaining small list before the August 31st Chris Carlisi memorial track day includes:
required
Replace battery ( w/ sealed unit)
Strap battery down
Install oil temp gauge
Oil change
things i'd also like to get done:
Install braided SS brake lines
Align the front end
Replace sway bar endlink bushings
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
Last night:
picked up duralast platinum battery (34R-AGM). sealed unit
installed SS brake lines, needs rebled as we let the reservoir run dry...oops
whats left
Strap battery down(tonight)
Install oil temp gauge(tonight)
Oil change (tonight)
things i'd also like to get done:
Align the front end
Replace sway bar endlink bushings
picked up duralast platinum battery (34R-AGM). sealed unit
installed SS brake lines, needs rebled as we let the reservoir run dry...oops
whats left
Strap battery down(tonight)
Install oil temp gauge(tonight)
Oil change (tonight)
things i'd also like to get done:
Align the front end
Replace sway bar endlink bushings
Joined: May 2006
Posts: 3,881
Likes: 3
From: Jacksonville, Tampa & Tallahassee
Glad to see you've been making progress on this thread! Your mock up on that V-mount setup makes me a bit nostalgic...
https://www.rx7club.com/build-thread.../#post11131155
I've recently added some "election day" ducting, and WOW, what a huge difference! I'll probably have to remove it when winter comes around.
https://www.rx7club.com/build-thread.../#post11131155
I've recently added some "election day" ducting, and WOW, what a huge difference! I'll probably have to remove it when winter comes around.
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
Thats exactly where I got the idea for the Vmount
. The hardest part was designing a system that wasnt super complicated, and required no welding. I used all pre-existing holes. Everything could go back to stock if I wanted.
I did see your post earlier with the extra holes. I dont think I could cut up my bumper like that...I do want to get some really good ducting and maybe reposition the oil cooler (coolers soon). Again I need something that isnt a pain to remove and replace though.
. The hardest part was designing a system that wasnt super complicated, and required no welding. I used all pre-existing holes. Everything could go back to stock if I wanted. I did see your post earlier with the extra holes. I dont think I could cut up my bumper like that...I do want to get some really good ducting and maybe reposition the oil cooler (coolers soon). Again I need something that isnt a pain to remove and replace though.
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
Took the car to the track tonight. Didnt do as well as I thought, but I did make a lot of progress on the tune. AFRs were low 9s causing misfire at high RPMs. times went from 15.x and 88mph up to a best of 14.3 and @101mph. AFRs came down to 10.5-11.5. Gauge said roughly 10psi, but the megasquirt reported 7-9psi. slightly tapering at 7000 RPM. I want to add the manual boost controller after this trackday on the 31st....I'd rather be a bit slower and keep temps down.
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE

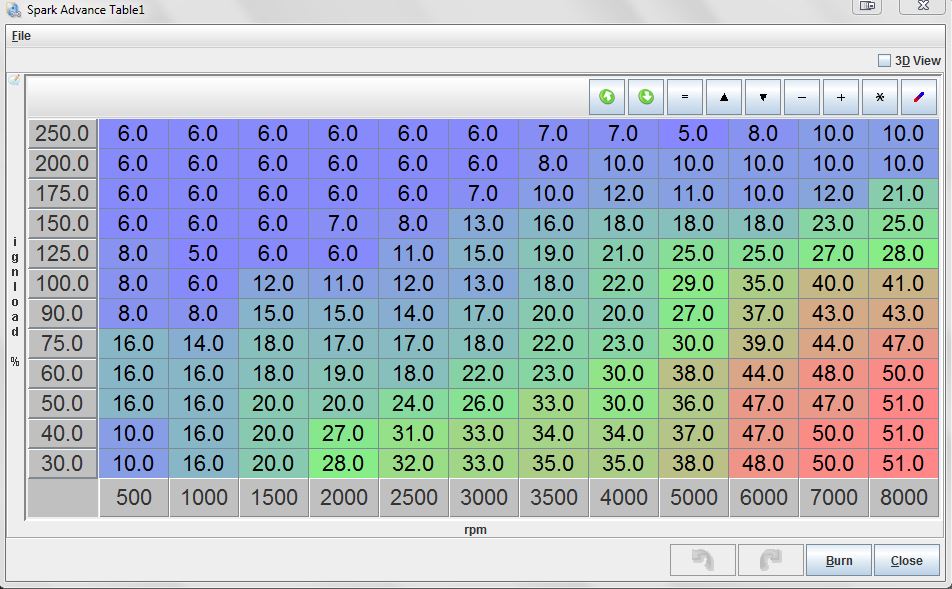

Found a timing map translated for megasquirt from the PFC for S5 T2 cars (I have s5 irons and FD rotors so essentially its the same). I may need to do a bit of maths since I am running S4 housings and the spark plug holes are slightly different.
I am going to translate the map over as KPA values (what megasquirt shows).
https://www.rx7club.com/megasquirt-f...squirt-969767/
I am going to translate the map over as KPA values (what megasquirt shows).
https://www.rx7club.com/megasquirt-f...squirt-969767/
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
That is the map I used last night at the track. it felt kind of sluggish compared to the one I just loaded. I will post the current table once I'm done putting my daughter to bed.
Thread Starter
Joined: Jan 2007
Posts: 1,944
Likes: 107
From: Wilmington, DE
Thanks!!
I hooked up the EFI Analytics bluetooth to RS232 adapter tonight....works freakin GREAT with MsDroid! I am able to tune on my tablet or phone while in the car. It is a lot more user friendly while tuning alone since I can slide my finger and select multiple cells. I'll try and take a video tomorrow to give you guys an idea. MSDroid is the first android app you can tune with for megasquirt, not just datalog!
On a bad note I think my heater core is leaking...I have water in the cabin and I'm not sure where its coming from. Definitely have a leak somewhere though...
I hooked up the EFI Analytics bluetooth to RS232 adapter tonight....works freakin GREAT with MsDroid! I am able to tune on my tablet or phone while in the car. It is a lot more user friendly while tuning alone since I can slide my finger and select multiple cells. I'll try and take a video tomorrow to give you guys an idea. MSDroid is the first android app you can tune with for megasquirt, not just datalog!
On a bad note I think my heater core is leaking...I have water in the cabin and I'm not sure where its coming from. Definitely have a leak somewhere though...
