My sweet 87 Turbo2 project

Old 10-18-13, 05:26 PM
  #176
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

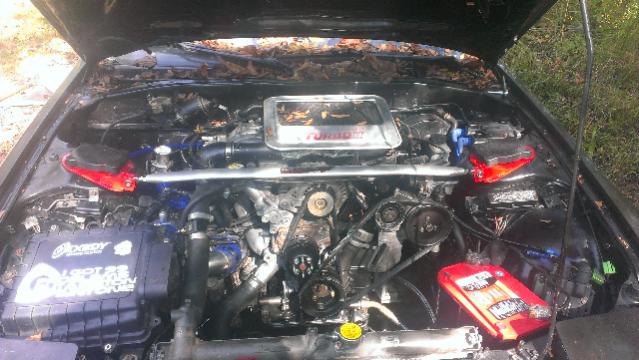

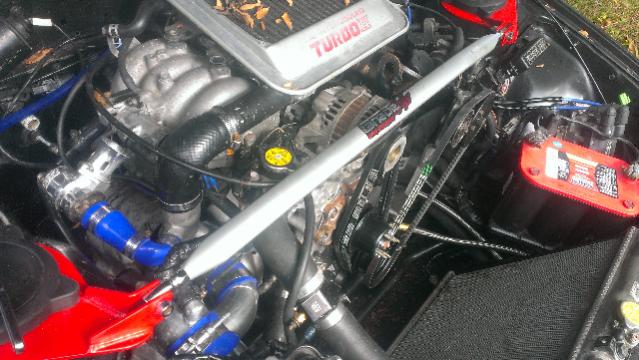

Power steering finally finished



My sweet 87 Turbo2 project-forumrunner_20131018_182546.jpg



My sweet 87 Turbo2 project-forumrunner_20131018_182607.jpg
wthdidusay82 is offline
Old 10-18-13, 08:47 PM
  #177
Senior Member
iTrader: (1)

88fc3sT2's Avatar

Join Date: Jun 2012
Location: Fort Lauderdale
Posts: 470
Likes: 0
Liked 0 Times in 0 Posts
Not sure how long those leaves were there but I'll tell ya now, if it gets under that gutter where the water drains under the windshield and traps down there... you're gonna have a bad time. Happened to me with my FC when I first got it. It accumulated rust over time and was a PITA to fix. Just giving you a heads up. Clean bay btw.
88fc3sT2 is offline
Old 10-19-13, 08:51 AM
  #178
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
I'm gonna blow them out with my air compressor, sucks being near a bunch of trees in the fall. What I really need is a car cover.

Today, or soon I will change my oil since I went down a quart or so before replacing the oil cooler hoses, and I'm a short way into break-in so it won't hurt.
wthdidusay82 is offline
Old 11-10-13, 04:42 PM
  #179
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
rear wheel studs are fixed, still have multiple problems to fix but the car is "drivable"

wthdidusay82 is offline
Old 12-03-13, 06:27 PM
  #180
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

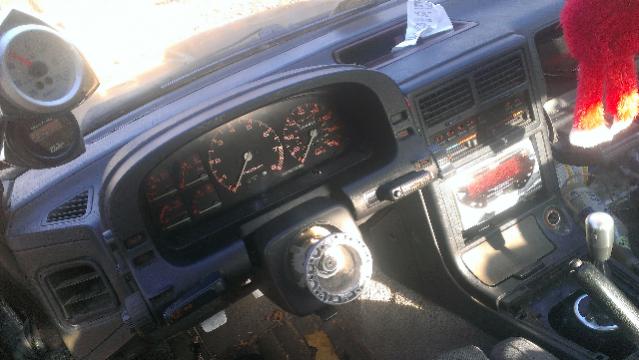

fixed the ugly interior pieces for the most part.



My sweet 87 Turbo2 project-forumrunner_20131203_192731.jpg
wthdidusay82 is offline
Old 03-02-14, 07:22 AM
  #181
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

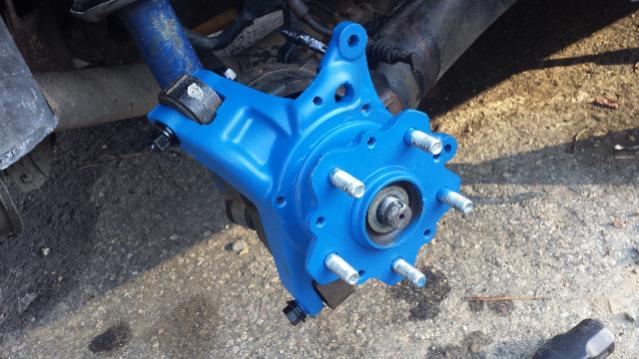

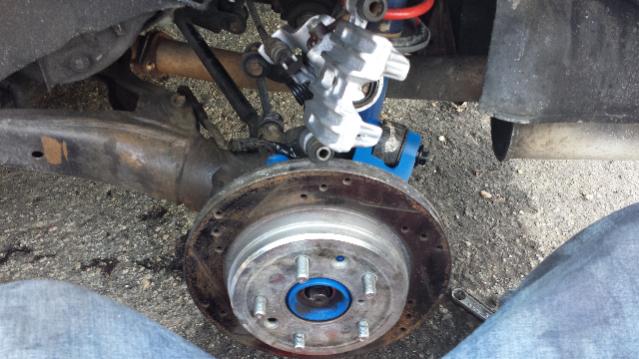

I've been doing more work on the car got the rear wheel bearings and dtss eliminators all squared away, painted the hubs and calipers.

Still working more and more towards getting the car done, it's getting closer and closer to where I'd like it to be slowly but surely.

My afrs aren't where I want them to be so I'm rewiring the fuel pump hoping hoping it hoping it will help, I'm in the 12's and want to be in the 11's for my afr.

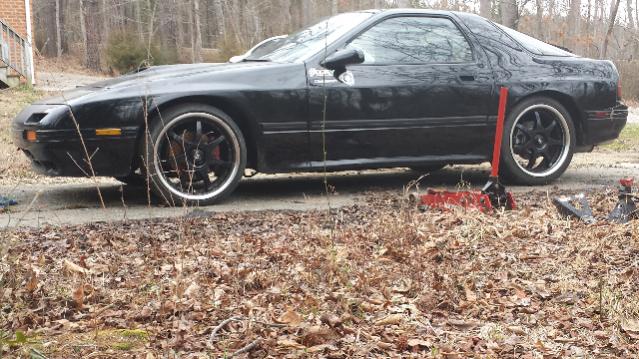

Here are some new pics.



My sweet 87 Turbo2 project-forumrunner_20140302_082123.jpg



My sweet 87 Turbo2 project-forumrunner_20140302_082207.jpg



My sweet 87 Turbo2 project-forumrunner_20140302_082143.jpg

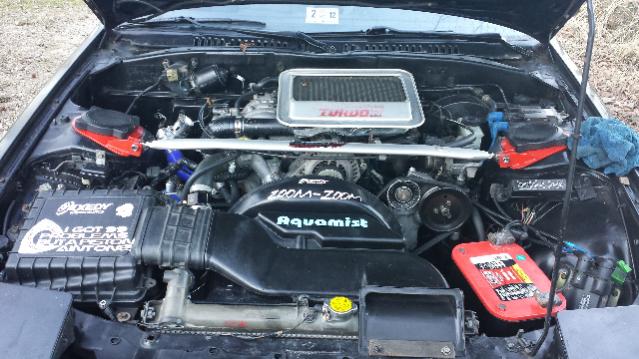

My sweet 87 Turbo2 project-forumrunner_20140302_082229.jpg
wthdidusay82 is offline
Old 03-08-14, 08:55 PM
  #182
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

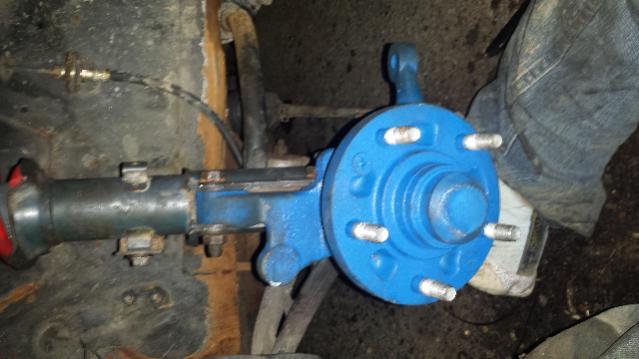

More progress replacing this hub to fix the bbad wheel studs In it rather than replacing the bearings etc...This was a more logical route seeing as I got this hub for 30 bucks at the junkyard and everything was in good condition...

Also fixed my fuel gauge replacing the fuel sending unit but broke broke a stud in the assembly going going to the power wire to the sender so I couldn't fit any hardware under the nut due to the lack of threads...will be getting a new assembly so it can havehave a it's hardware.

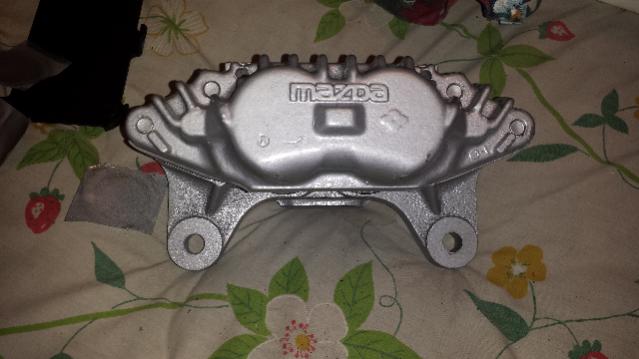

Brakes need hardware that was half missing , tie rod was bad and will be replacing that...already have new ball joints ..so I'm putting those on both sides. ..plan on getting new tie rods for both sides and some new performance brake pad..

Very soon will be fixing my exhaust leaks , rewire rewiring my fuel punp, fixing my, temp gauge, and gas leak on the drain bolt, also moving to the other side once I aquire a good non abs wheel hub...and hopefully in the near future fixing my speedometer.

Lastly my turbo has a bad wastegate flapper arm bushing so my boost is either drastically low or way too high , I plan on fixing that too.

My afrs being in the 12's also bothers me (at 8-12 psi , pretty much any boost level), hoping the fuel pump rewire lowers the afrs into the 11s but idk if it will, I am running running 550/720 injectors, rtek 1.7 , and walbro 255...I plan on getting another set of gsl se injectors and running all 720s and upgrading to the 1.8 rtek (yes the gsl se injectors are rated 680cc but on fcs they're 720+ cc due to high fuel pressure).






My sweet 87 Turbo2 project-forumrunner_20140308_214413.jpg



My sweet 87 Turbo2 project-forumrunner_20140308_214436.jpg
wthdidusay82 is offline
Old 03-11-14, 05:11 AM
  #183
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

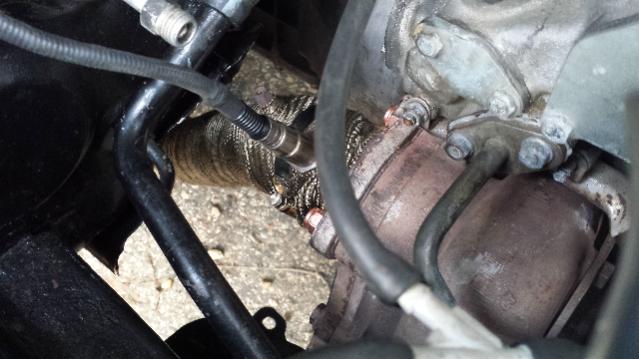

Fixing my leaks in the exhaust now , downpipe is done , put on some titanium exhaust wrap.



My sweet 87 Turbo2 project-forumrunner_20140311_061122.jpg
wthdidusay82 is offline
Old 03-11-14, 09:30 AM
  #184
Rotisserie Engine
iTrader: (8)

driftxsequence's Avatar

Join Date: Jan 2007
Location: Wilmington, DE
Posts: 1,690
Likes: 0
Liked 0 Times in 0 Posts
Looking good!
driftxsequence is offline
Old 03-12-14, 10:12 AM
  #185
Senior Member

trickster's Avatar

Join Date: Oct 2013
Location: ON, Canada
Posts: 270
Likes: 0
Liked 0 Times in 0 Posts
Just read through the whole thread and subscribed. Awesome work man
trickster is offline
Old 03-15-14, 07:44 PM
  #186
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

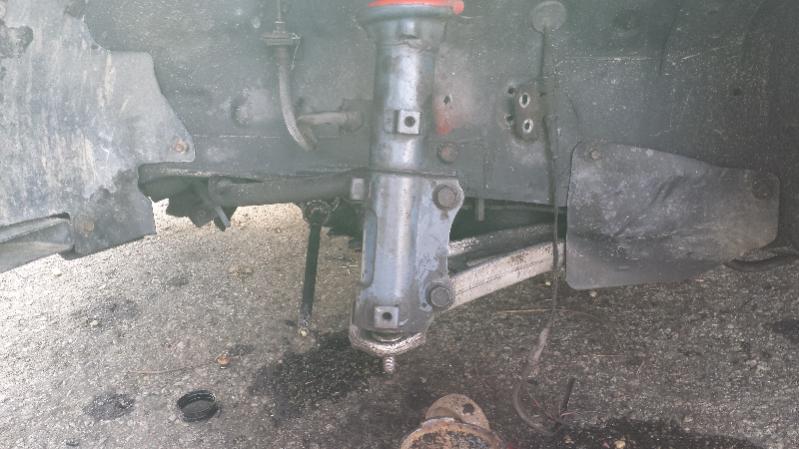

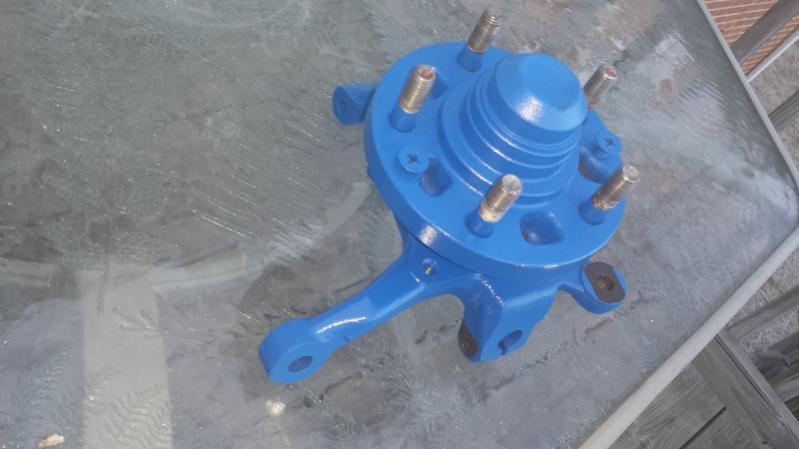

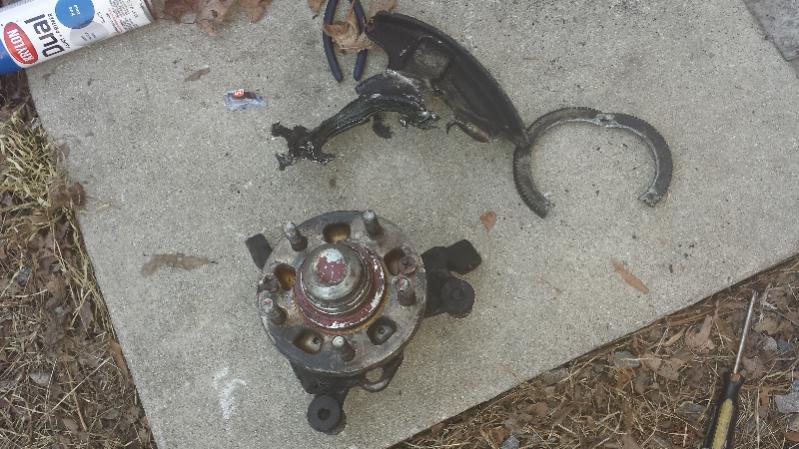

Just got the abs gear ring off and the dust shield , cleaned/sanded, painted.

Taking the gear ring off wasn't easy , used a cutting tool them pried it apart to get it off.



My sweet 87 Turbo2 project-forumrunner_20140315_204333.jpg



My sweet 87 Turbo2 project-forumrunner_20140315_204352.jpg



My sweet 87 Turbo2 project-forumrunner_20140315_204425.jpg
wthdidusay82 is offline
Old 03-20-14, 01:15 PM
  #187
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

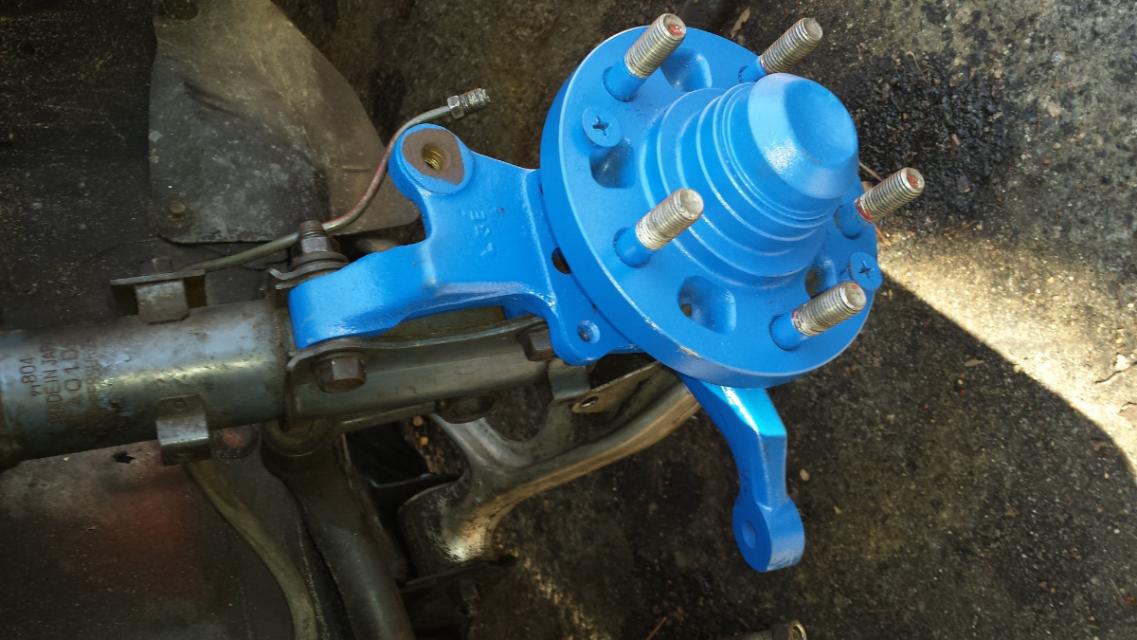

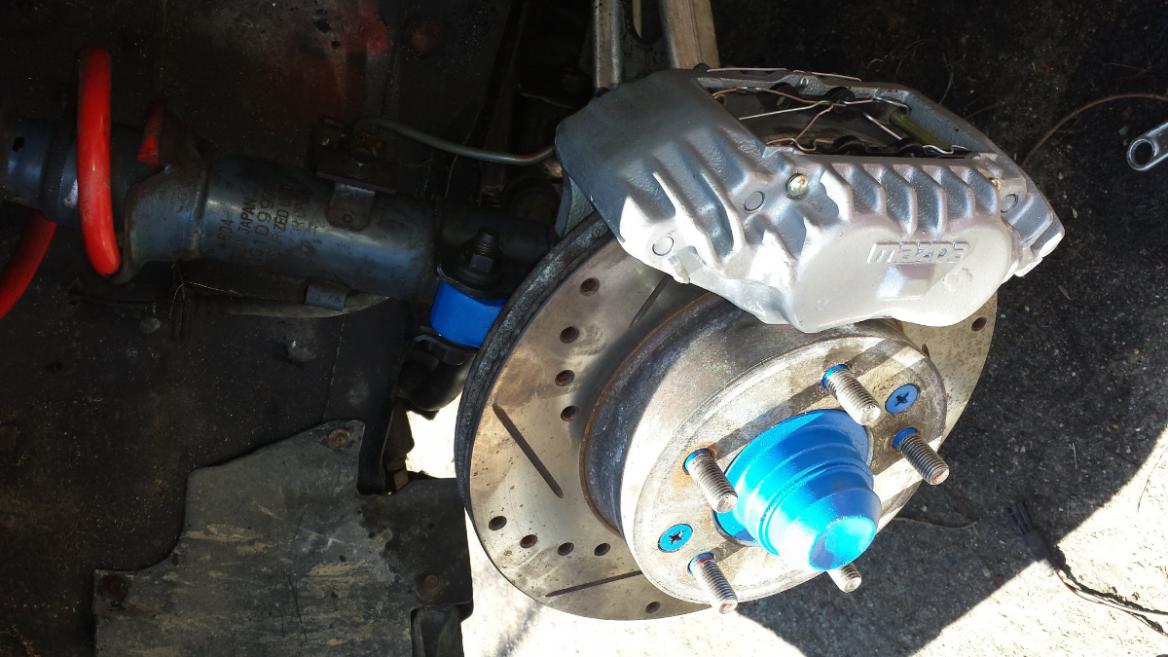

Now it's all on , just have to bleed the brakes, installed a new heater core to pipe hose to replace the universal that was somewhat kinked and hindering flow.

Also found out my mount for my filter filter I bought was too big and not the right size..


My power steering seems to be leaking from somewhere unknown and I'm not sure if I'm leaking transmission oil or if it's just oil from the power steering.

Will be rewiring the fuel pump soon and doing alot more.



My sweet 87 Turbo2 project-forumrunner_20140320_141440.jpg



My sweet 87 Turbo2 project-forumrunner_20140320_141423.jpg
wthdidusay82 is offline
Old 03-21-14, 06:32 PM
  #188
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
Just got the brakes all bled, should brake really well with all the new pads ive put on, stoptech perormance pads on front made of some special material , on the rear wagner quick-stop ceramic pads.

Also replaced a kinked universal coolant Hose going from the heater core to the metal pipe , got got a nice new preformed mazda oem hose.

The fuel filter mount wasn't the right size , so zip tied it to a part of the wiring harness where it's held up high enough to have better clearance.

Put a bigger zip tie on the steering boot where I had to rip to slide it over , also replaced the washer on the bottom huge banjo bolt to the oil cooler , this one isn't to a line but actually to the thermostat (mine was leaking , didn't replace it after the oil cooler was cleaned and this bolt etc was removed).

More work tommorow , haven't tested anything out yet , being patient.

Also got some gsl-se injectors so I can run all 720cc injectors , they need to be cleaned and flow tested , then I'll upgrade my ecu to a 1.8 rtek (currently 1.7) , also planning on getting an adjustable fuel pressure regulator to ensure my car is getting the proper fuel pressure , stock fpr is okay but not great in my opinion.
wthdidusay82 is offline
Old 03-23-14, 07:25 PM
  #189
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

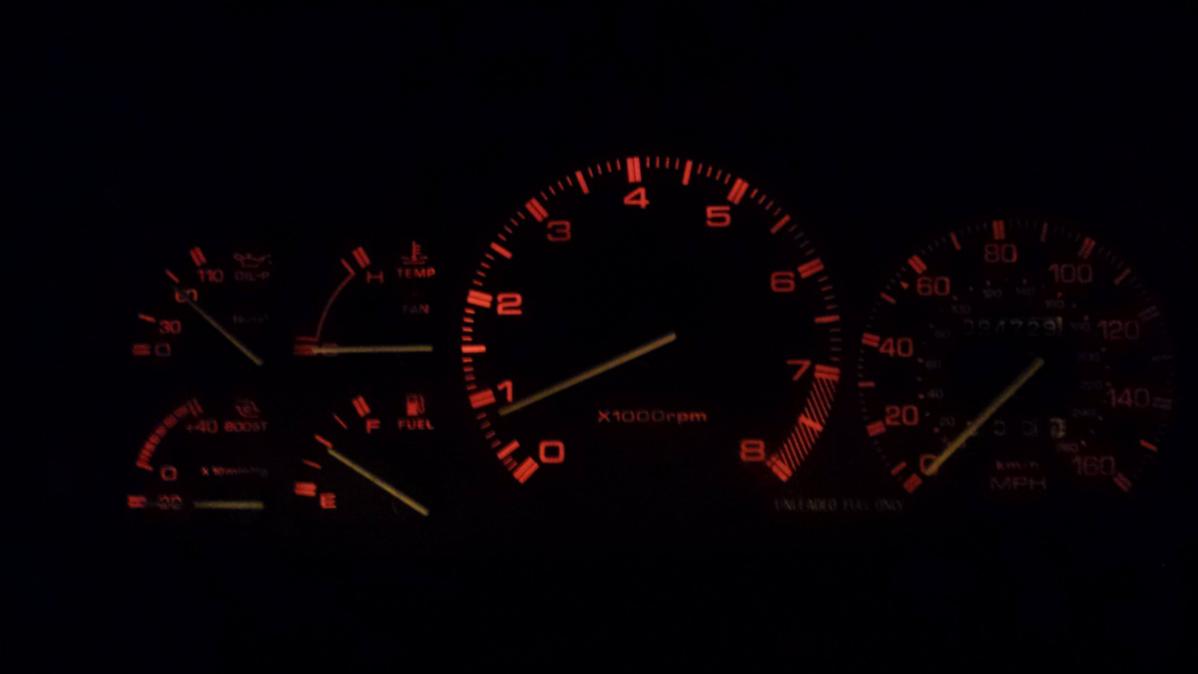

Fuel pump rewire has been done , car starts up and Idles better from my first two experiences starting it up.



My sweet 87 Turbo2 project-forumrunner_20140323_202517.jpg
wthdidusay82 is offline
Old 04-03-14, 06:59 AM
  #190
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
Update-

Fixed my temp gauge by putting a new wire in going to the cluster.

Got two oil coolers to replace my leaking one, one on there now is beat up and temporary until I install my cleaner one.

Lowered idle , reset my tps, washed and waxed the car.

Purchased an aem meth injection kit , jacobs fc1000 ignition amplifier, turbo xs manual boost controller , clutch slave and master cylinder.

Boost is hitting 7 psi according to my gauge , so the wastegate is working great , I want at least 10 psi though.

Need to get my wideband fixed , the connections on it are not solid in the sensor box and it's really annoying.

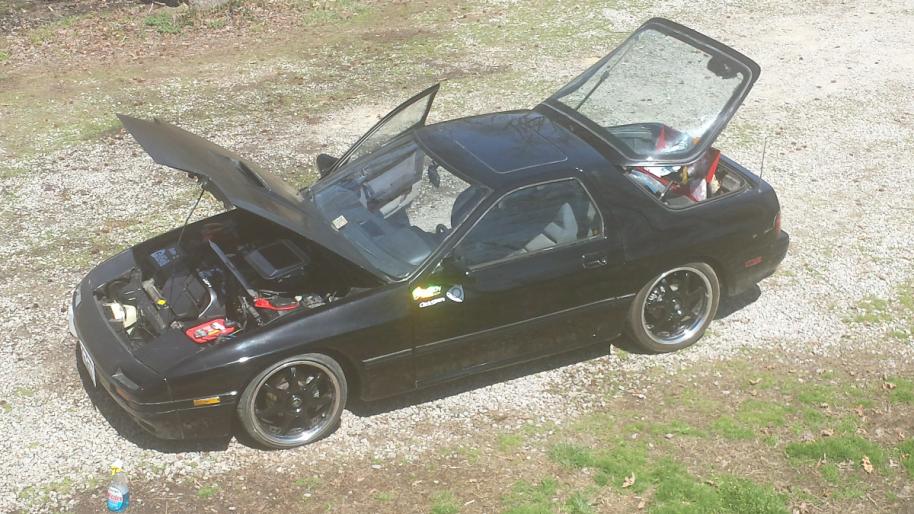

Here's a new pic of the beast.

My sweet 87 Turbo2 project-forumrunner_20140403_075909.jpg
wthdidusay82 is offline
Old 07-29-14, 04:00 PM
  #191
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
About to swap everything into a donor shell and I'll have the following upgrades

1. Microtech lt10s standalone
2. Evo 8 fmic
3. Act lightweight 9.8 lb flywheel
4. Id 725/1000cc injectors
5. S5 hybrid stage 2 bnr style turbo with hks wastegate actuator
6. 3" full exhaust
7. Progressive meth injection kit
8. Fd uim
9. Parralell fuel rail setup with an fittings and adjustable fpr
10. Brembo drilled brake rotors
11. Adjustable front camber plates
12. Racing beat lowering springs
13. Battery relocation to rear bin
14. Racing beat sway bars
15. 2.5" intercooler piping
16. Manual steering rack

Etc...

Pics to come , extra stuff will be put for sale
wthdidusay82 is offline
Old 12-07-14, 04:50 PM
  #192
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

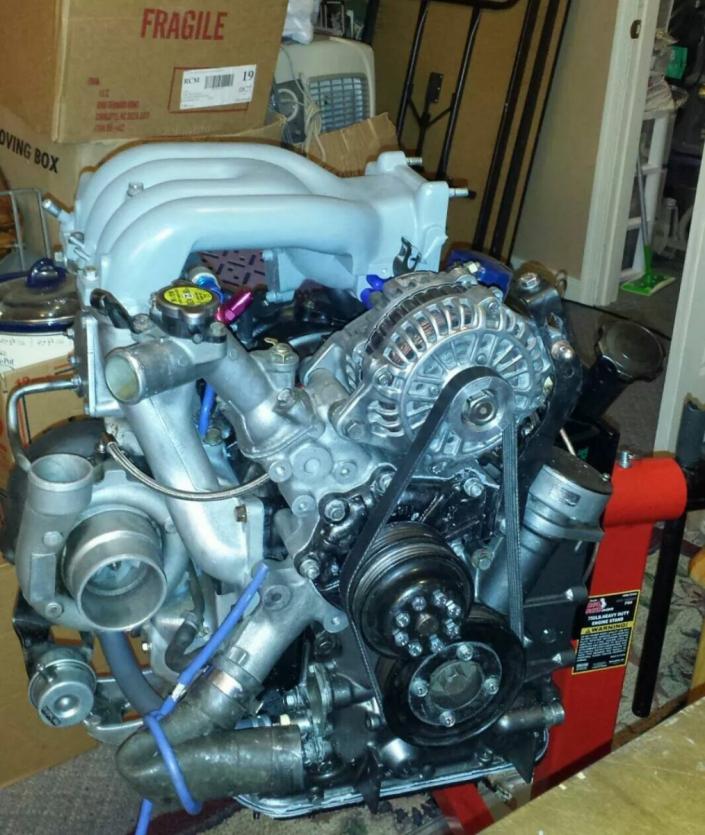

The new setup for the engine is all put together on the stand.

Need to prep the car for the engine now, progress has been slow lately.



My sweet 87 Turbo2 project-forumrunner_20141207_174955.jpg
wthdidusay82 is offline
Old 12-07-14, 05:18 PM
  #193
whats going on?
iTrader: (1)

SirCygnus's Avatar

Join Date: Mar 2004
Location: atlanta ga
Posts: 4,878
Likes: 0
Liked 2 Times in 2 Posts
put a tie down on that damn battery. If you get into a wreck, it can come flying through the windscreen and lob you head clean off. no joke.
SirCygnus is offline
Old 12-07-14, 06:36 PM
  #194
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
Originally Posted by SirCygnus View Post
put a tie down on that damn battery. If you get into a wreck, it can come flying through the windscreen and lob you head clean off. no joke.
Plan on it. Though this one will be in the rear passenger storage bin.
wthdidusay82 is offline
Old 03-01-15, 06:19 PM
  #195
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
Will be working on the car soon again, everything is being swapped into another shell, will post pics of the progress.

Upgrading quite a few things and planning on making around 300whp with the new modifications
wthdidusay82 is offline
Old 09-09-15, 05:29 PM
  #196
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
My sweet 87 Turbo2 project

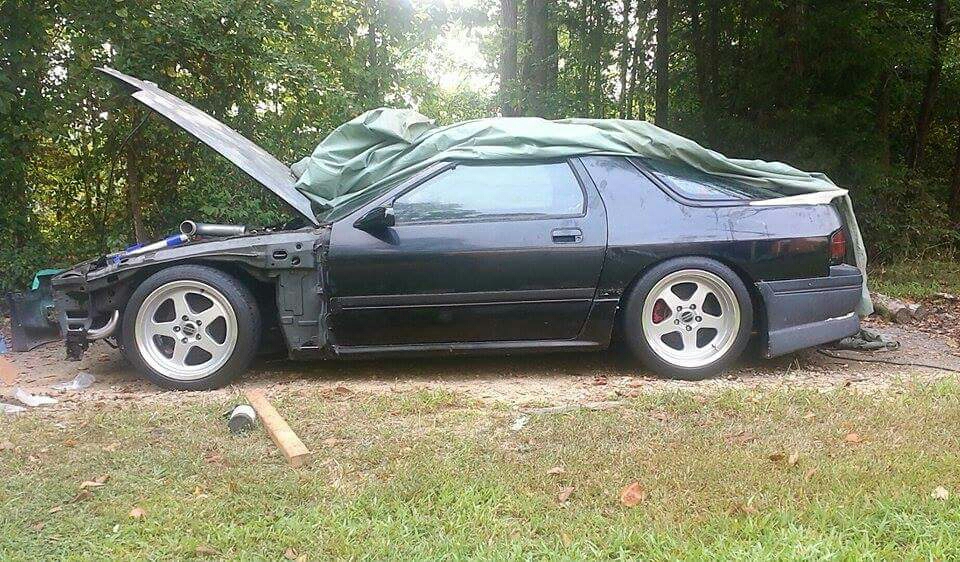

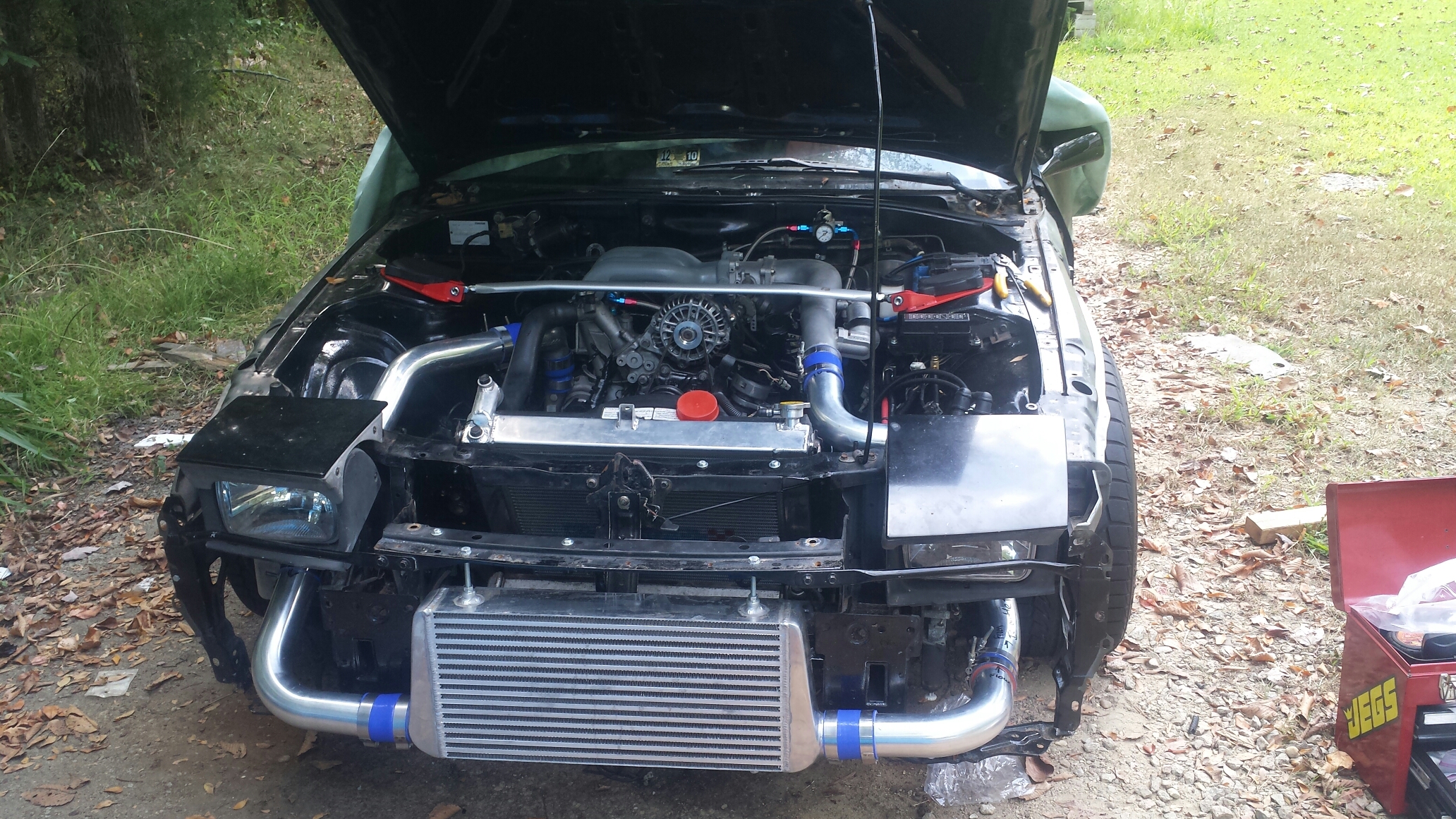

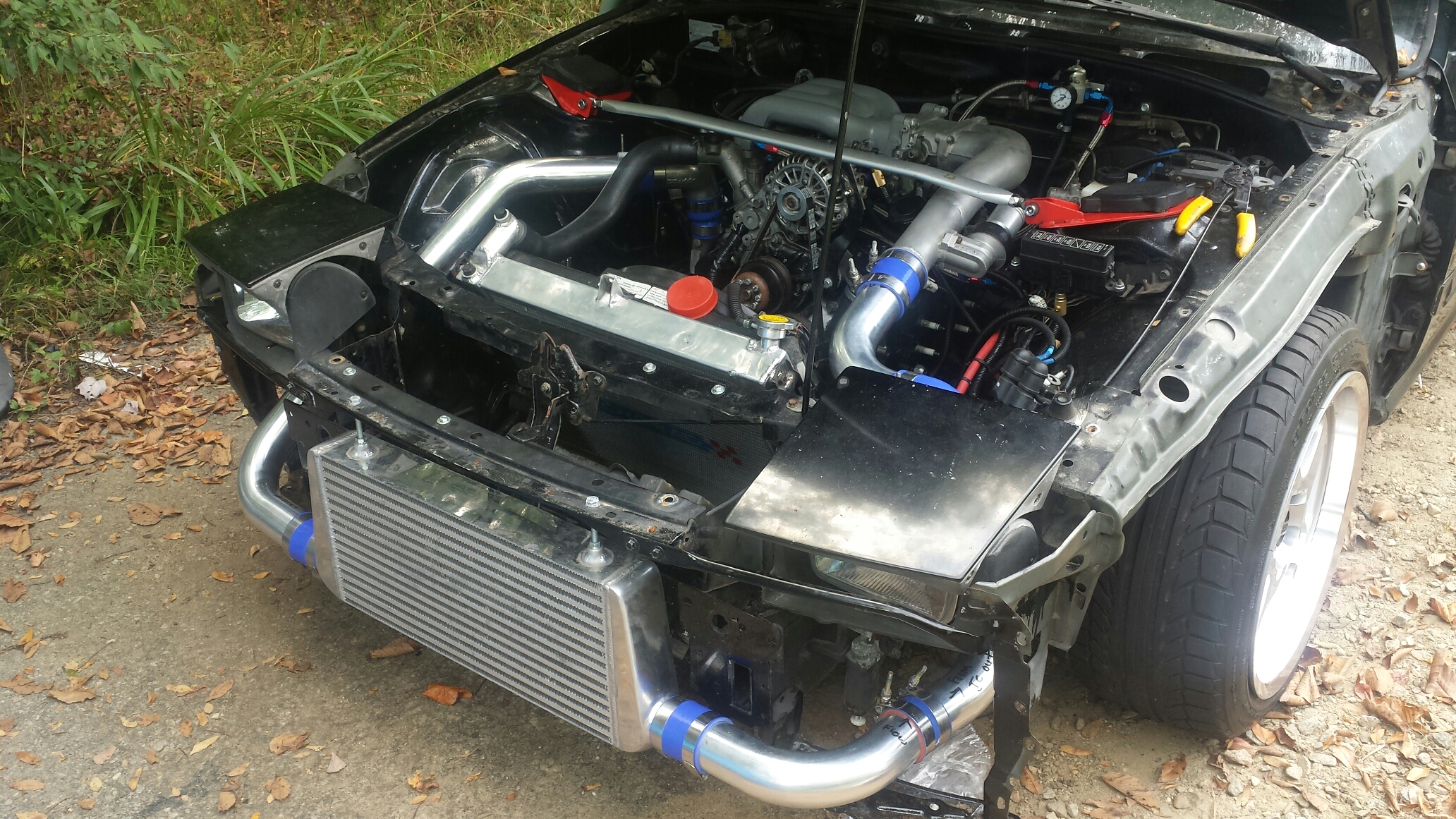

Everything has been installed into the new shell for the most part

This is the current progress -

Few new parts-

New stance coilovers
Battery relocated

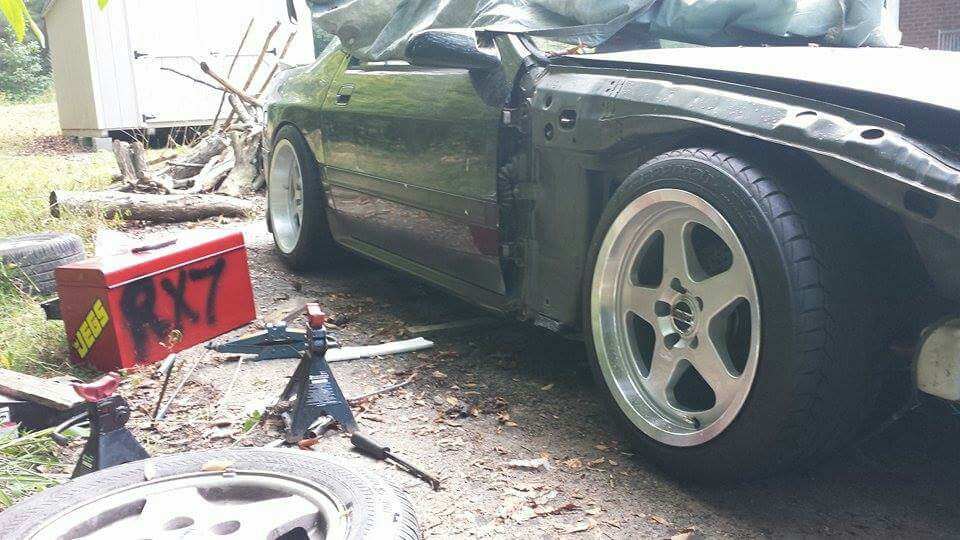

17x9 and 17x10 wheels with wide tires
Fd uim/s5 lim
Fmic ic with custom piping done by me
6an ss braided line run in parralell with an fittings to a adjustable fpr
Nissan quest efan
Attached Thumbnails My sweet 87 Turbo2 project-received_10153529402134463.jpeg   My sweet 87 Turbo2 project-received_bwvzc2fnzv9ibg9ix2f0dgfjag1lbnq6mtaxntm1mjgxndu2otq0njm.jpeg   My sweet 87 Turbo2 project-20150907_122509.jpg   My sweet 87 Turbo2 project-20150907_122425.jpg

Last edited by wthdidusay82; 09-09-15 at 05:32 PM.
wthdidusay82 is offline
Old 12-13-15, 02:36 AM
  #197
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

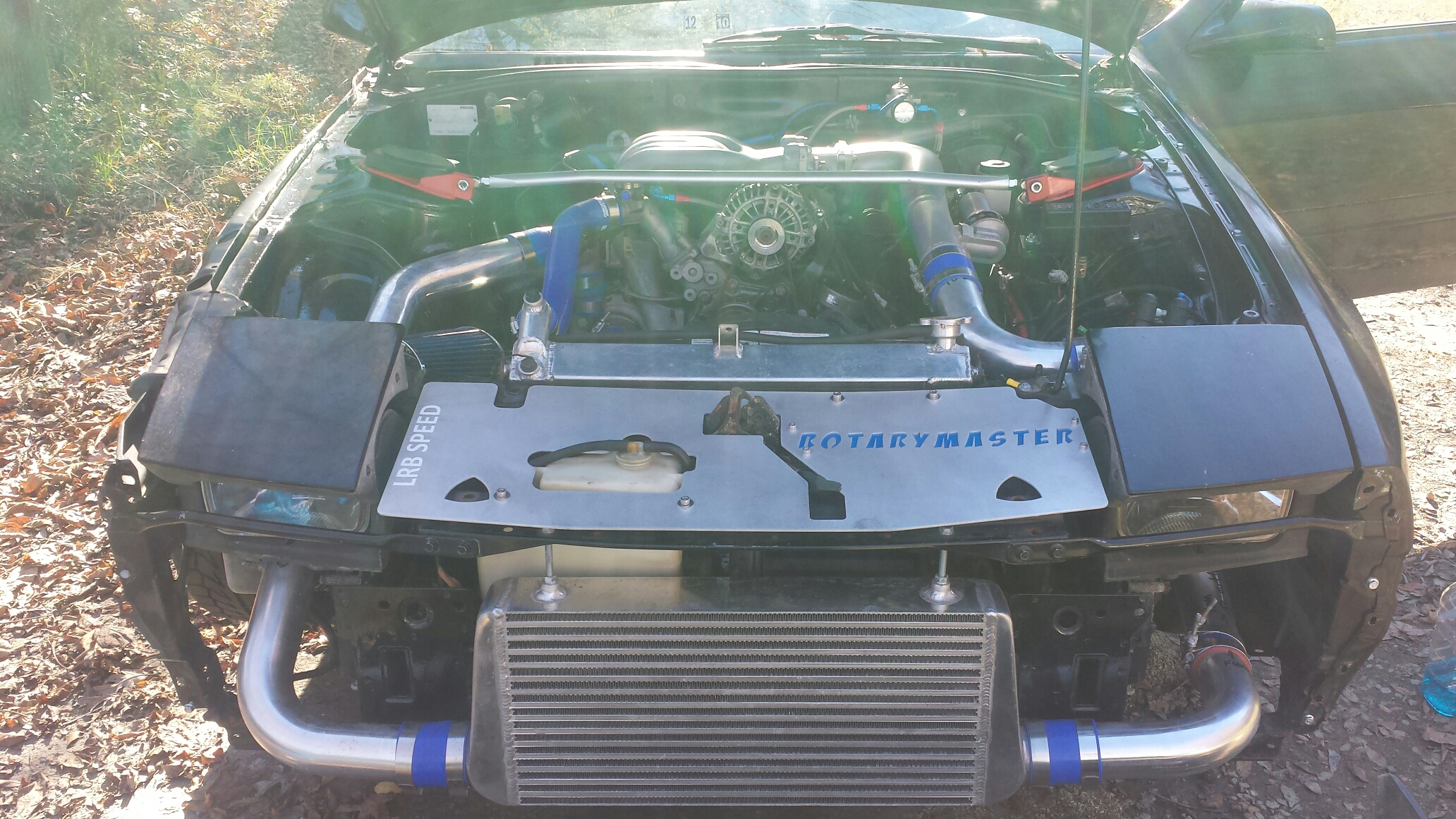

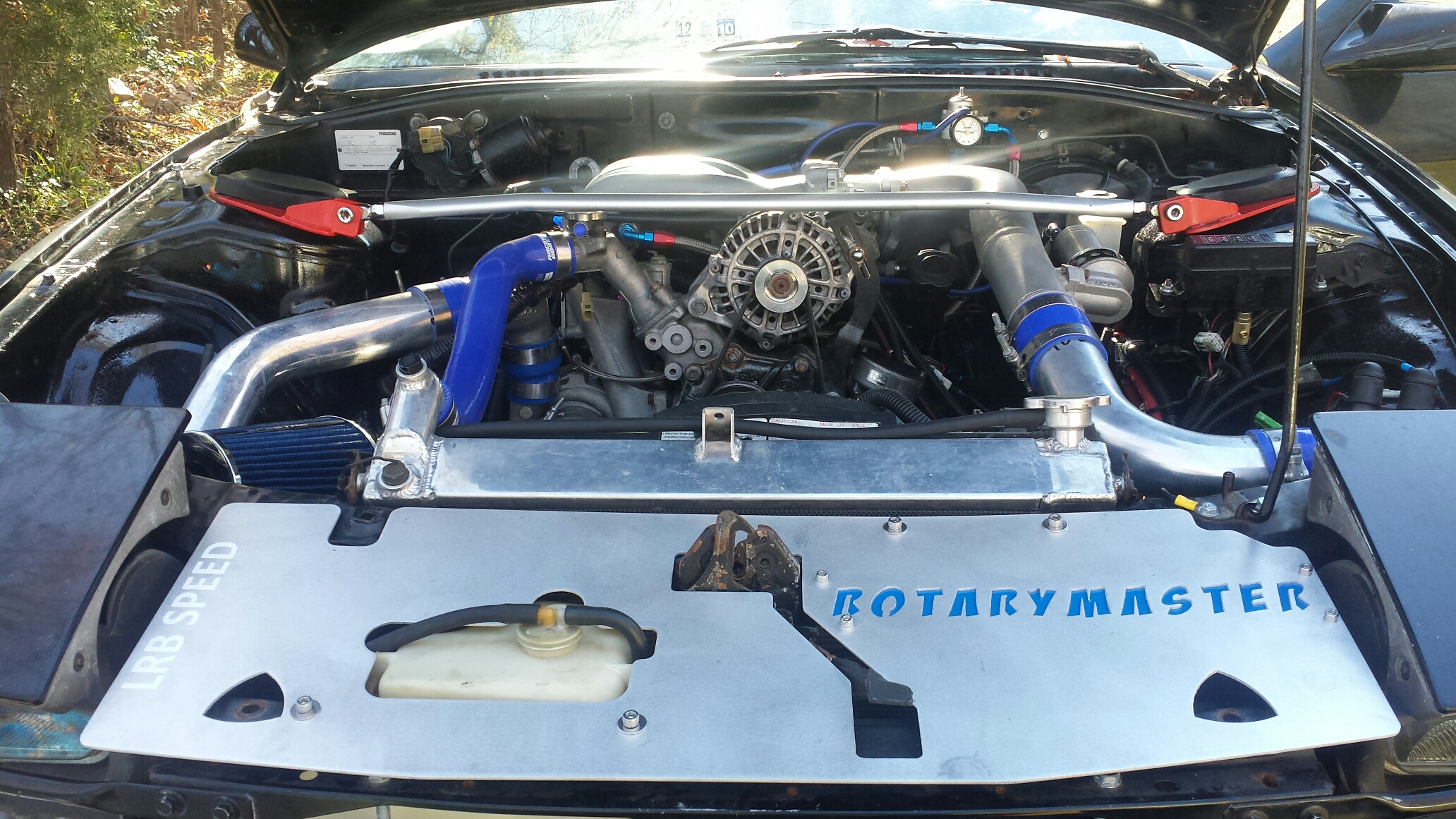

Car runs now and idles , tuning to the base map needs to be finalized before driving it on the street can be done, running a microtech lt10s on stock fc ignition coils.

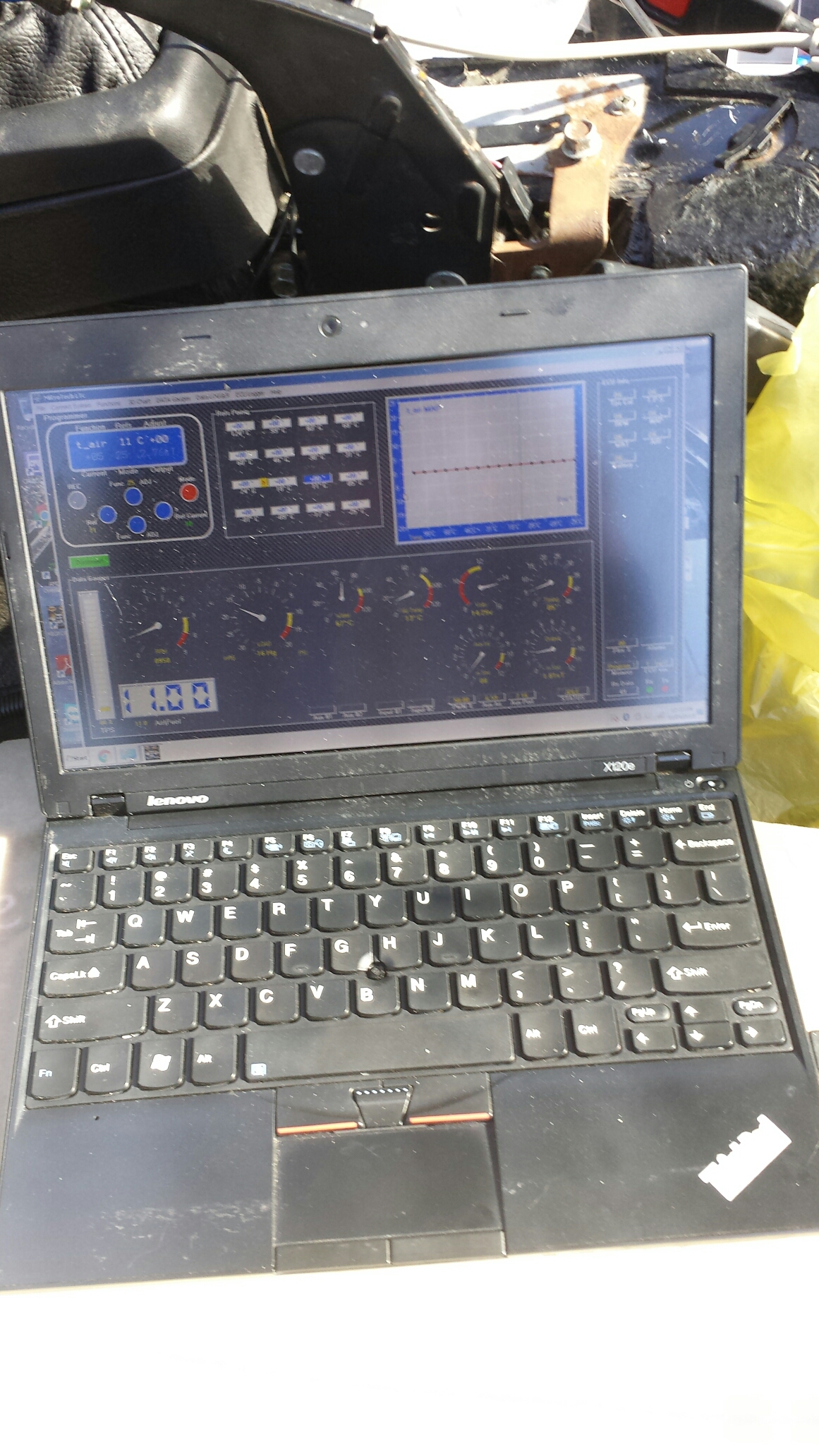

I'll be tuning the car myself, with the help of much research and patience.
Attached Thumbnails My sweet 87 Turbo2 project-20151116_124155.jpg   My sweet 87 Turbo2 project-20151116_124141.jpg   My sweet 87 Turbo2 project-20151121_123343.jpg
wthdidusay82 is offline
Old 07-01-16, 02:57 PM
  #198
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts

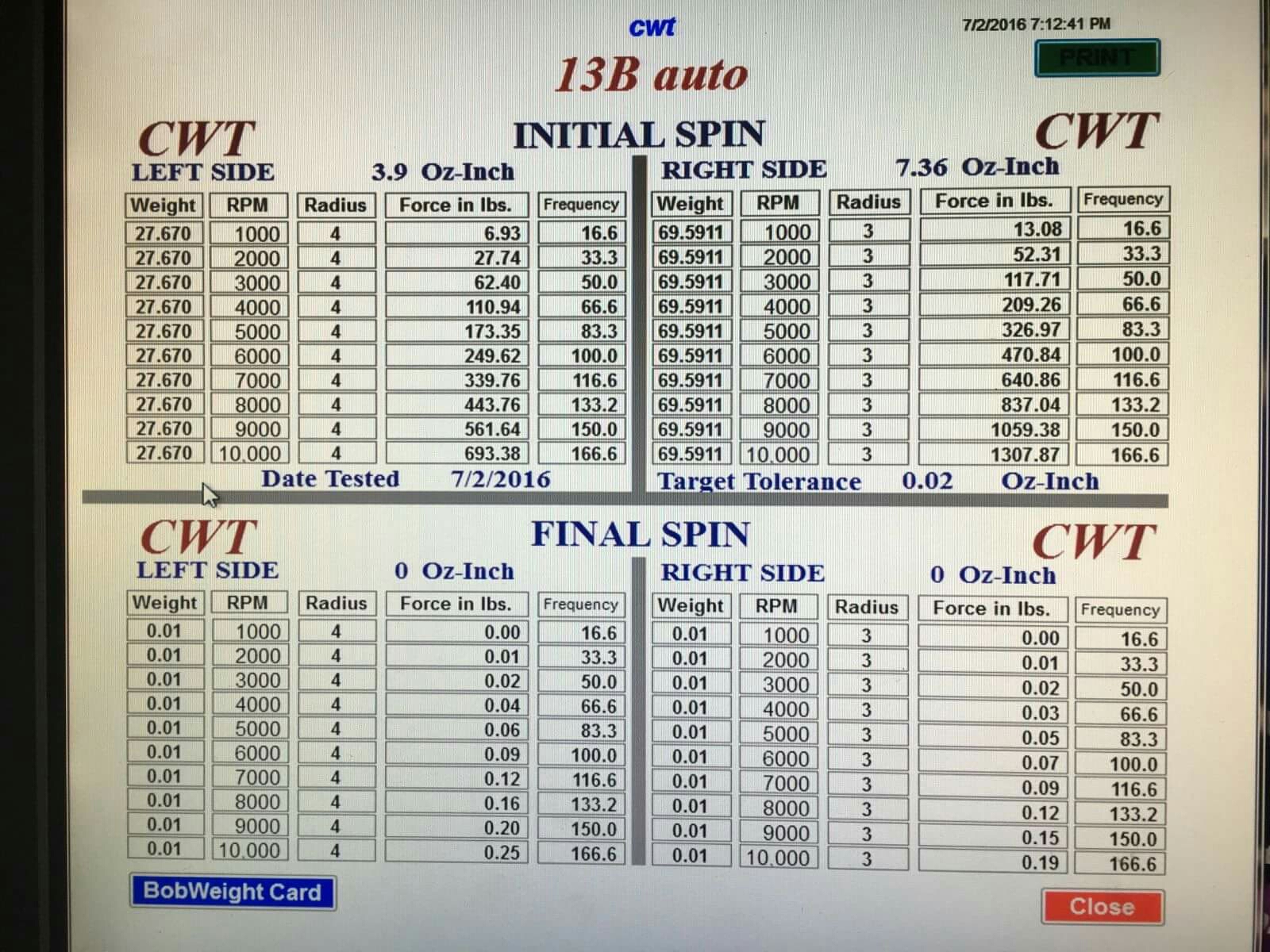

Setup is getting some changes, engine is currently being built at E & J autoworks in Miami Florida, getting 3 oversized studs, balanced, and clearances, ported intake exhaust and all new seals.

Full turbo upgrade with hks log manifold anf custom t4 turbo built by bnr , 60-1 with p-trim turbine and t04s compressor housing with 3" vband
wthdidusay82 is offline
Old 07-03-16, 09:33 AM
  #199
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
Balance sheet from e and j and balancing whiz. Looks like it was pretty far off before
Attached Thumbnails My sweet 87 Turbo2 project-received_10207861272024322.jpeg
wthdidusay82 is offline
Old 07-03-16, 09:41 AM
  #200
Rotary Power
10 Year Member
Thread Starter
iTrader: (15)

wthdidusay82's Avatar

Join Date: Sep 2004
Location: Dinwiddie, Va
Posts: 3,706
Liked 2 Times in 2 Posts
Also decided to use a complete s5 intake setup instead of using the fd uim mounted it the s5 lim.

The fd uim poorly sealed on the intake runners and I wanted it to fit properly. Decided to use the s4 throttle body on it incase I run my omp adapter and premix and run the omp at the same time..not sure if I will.
wthdidusay82 is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
Smokeyfb33
Old School and Other Rotary
10
10-01-15 12:10 PM
choddaboy
Introduce yourself
0
09-26-15 06:35 PM


Thread Tools
Search this Thread
Quick Reply: My sweet 87 Turbo2 project


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
