My RX7 FC3S 88 NA

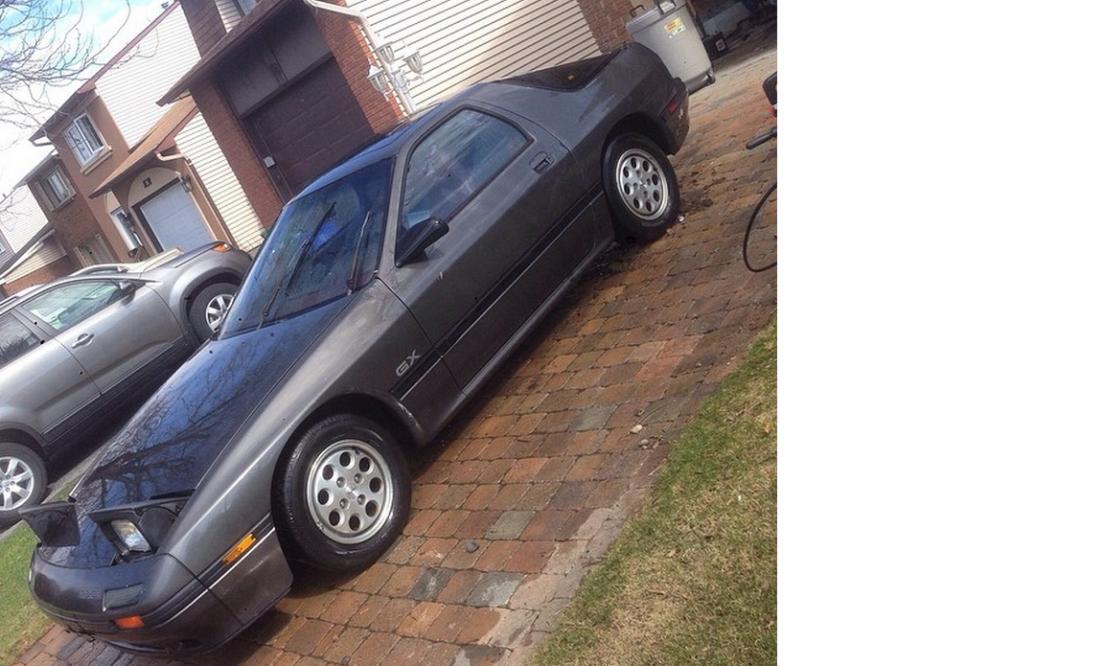

Took me about a year to figure out that this was going to be my next daily car. I found this through a friend. $400 with only 96k!!

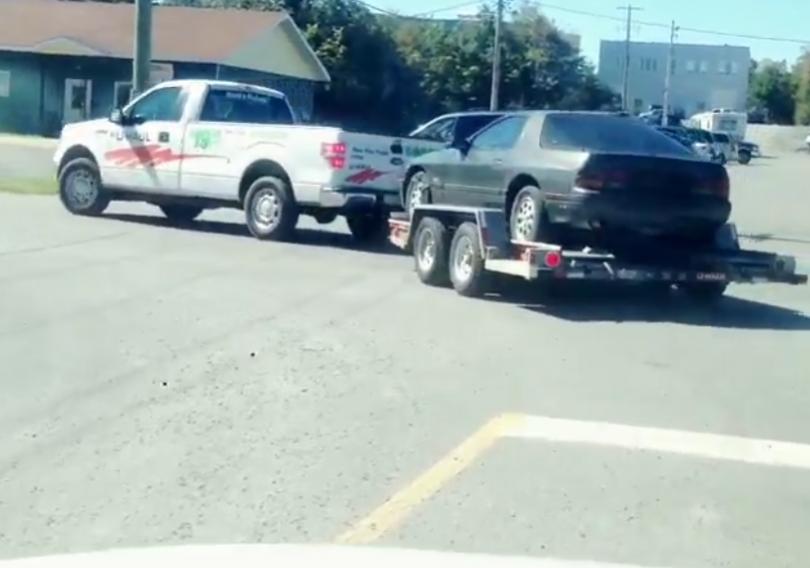

two of my friends and i said " man lets build a drift car" So we drove out at around 1am to check out the car. It was out in the middle of no where. Took us about 30 min to find it behind some trees:P we came back the next week when the owner was there. He told us he couldnt seem to get the car to start. I peeped my head in the car and saw the fuel sender unit on the floor. i turned around and said ill take it! Towed it home to one my my friends home. went to the junk yard and $16 and an old fuel pump later it ran!(old pump was missing from sender unit) Only two weeks later, one off my friends wanted out of the build, we gave him his money... and then their were two. We got temps for the car and screwed around for 10 days. Parked the car on a farm for 7 months. Spring came along and my other friend bought a miata and wanted out (lord help his soul). Finally mine at last. Ive done a couple things so far, nothing impressive. I will post a pic of my current daily so that you can see my taste into where this build may go. So many plans for it but with school coming up it may be awhile. Here are some pics of it!! Enjoy my fellow wanklers
two of my friends and i said " man lets build a drift car" So we drove out at around 1am to check out the car. It was out in the middle of no where. Took us about 30 min to find it behind some trees:P we came back the next week when the owner was there. He told us he couldnt seem to get the car to start. I peeped my head in the car and saw the fuel sender unit on the floor. i turned around and said ill take it! Towed it home to one my my friends home. went to the junk yard and $16 and an old fuel pump later it ran!(old pump was missing from sender unit) Only two weeks later, one off my friends wanted out of the build, we gave him his money... and then their were two. We got temps for the car and screwed around for 10 days. Parked the car on a farm for 7 months. Spring came along and my other friend bought a miata and wanted out (lord help his soul). Finally mine at last. Ive done a couple things so far, nothing impressive. I will post a pic of my current daily so that you can see my taste into where this build may go. So many plans for it but with school coming up it may be awhile. Here are some pics of it!! Enjoy my fellow wanklers
09-07-14, 01:01 AM
#2
Full Member
Thread Starter
paint... lol jk just primer

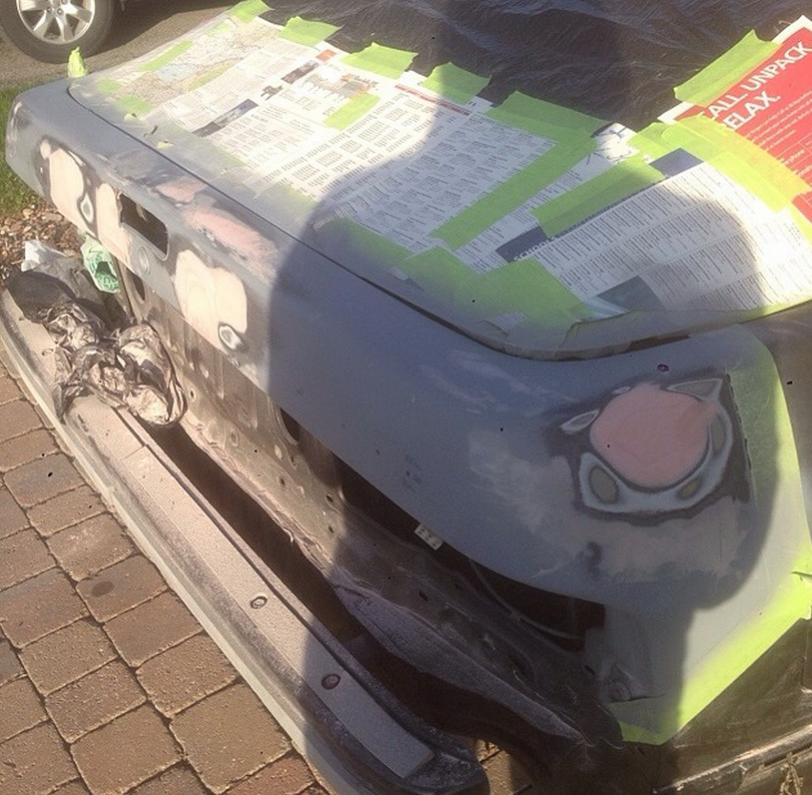

the car is now grey (primed) Lots of body work was done by yours truly. No rust, just dents and scratches. This is pretty rare, due to the fact that i live in Ottawa where mass amounts of salt are thrown on the road. planing on painting it black with some sort of flake in it!!
09-07-14, 08:03 AM
#3
Senior Member
iTrader: (1)
Join Date: Oct 2012
Location: Ontario
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
Nice find! how far are you planning to go if you want to build a drift car? you could just weld the diff and call it a day. the local track is nice and cheap so you could always shakedown the car and see where its at.
09-07-14, 12:59 PM
#6
Full Member
Thread Starter
Hey guys! Only seen a couple others around. Good to know theirs more out there!:P Welding the diff was first thing on my list but now i want to make this car my daily so lsd is know in mind. I know many people are against this but i may be taking the rotary out and swapping in a 1jz:P
09-07-14, 01:19 PM
#7
Hey guys! Only seen a couple others around. Good to know theirs more out there!:P Welding the diff was first thing on my list but now i want to make this car my daily so lsd is know in mind. I know many people are against this but i may be taking the rotary out and swapping in a 1jz:P
Trending Topics
09-07-14, 01:20 PM
#8
Full Member
Thread Starter
Painting of the seat 8)

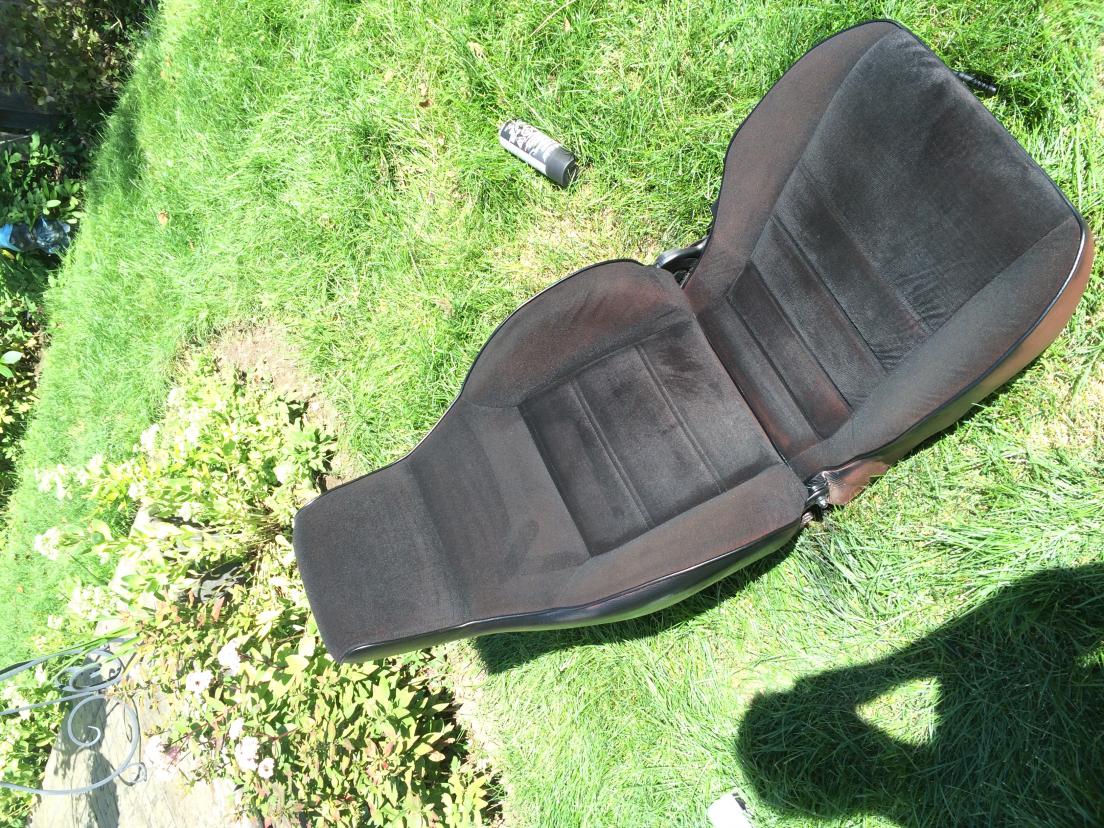

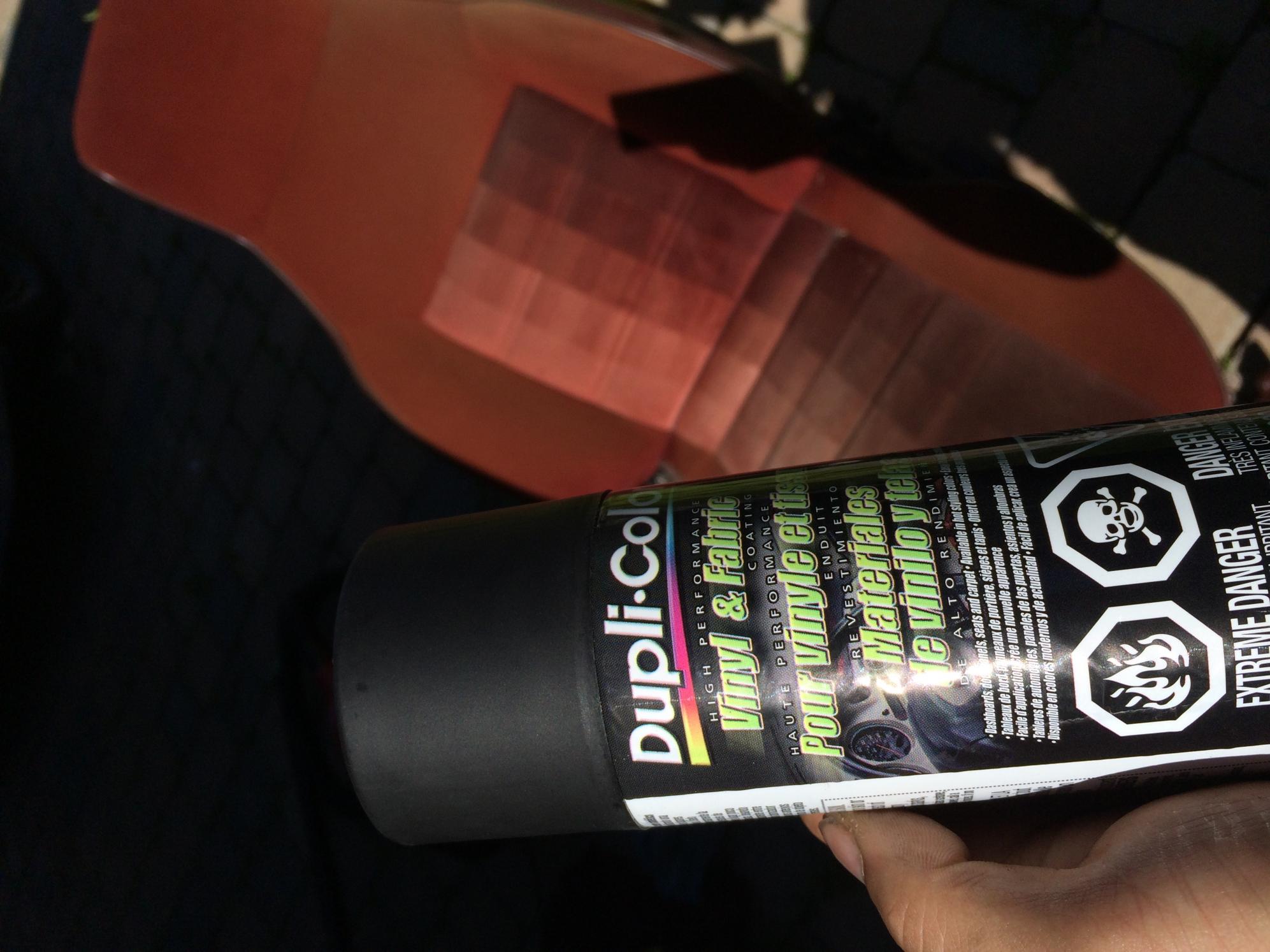

We actually have decent looking seats, just took a little bit of paint to notice it:P I have the burgundy type interior. The seats were badly faded. It was in need of restoration. Decided to paint them using Dupli colour paint "vinyl and fabric" flat black. Took a while to get the paint too soak in. About 2 1\2 cans of paint Looks much better now. The seat feels a little rough now, but it will do for now. Here is some pics!
