FC RX7 Project Car - Street/Time Attack Build

Old 10-20-18, 04:26 AM
  #126
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Unfortunately I missed the chance to enter the car into Rotary Revival. Which is tomorrow

So I've told myself that it's time to pull the finger out & this weekend the car WILL be dropped on the ground to be ready for a tow truck.

I got my Old Man around to help me with some of the more fiddly stuff while I worked on the Wheel Hubs. He went about making an intake from my old 3"stainless exhaust. The thing needed a good clean Inside to remove the old **** and but it came up really neat.

He also fabbed up some Dash brackets for me which incorporated the Bonnet Latch. I'll paint them black and re-install when I get the chance.

























Reckless_Panda is offline
Old 10-20-18, 04:28 AM
  #127
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Lately I've been addicted to watching #Mickeyspec build his FD on the youtube channel Throtl, so I thought I would follow suit and try and "Mickeyspec" the LCA's, Hubs & Stub Axles.

While my old man worked on the fiddly stuff I got my hands dirty on these wheel hubs. The things were absolutely filthy... 30 years of grime and bullshit caked on all over them but I got stuck in with a toothbrush and scourer pads to try and bring them back to life as best I could.

Next up was a thorough clean inside of the hubs, wheel bearings and castle cap etc. Once they were clean I would put them aside on a fresh towel and covered them to avoid any dirt/dust getting in.

Assembly and re-packing I decided to use the Palm-F*&k method and created an absolute Mess! hahahah There has to be an easier way of packing wheel bearings

But all in all it was a good experience to learn how the Mazda hubs are put together and I can rest easy knowing they are fresh now.. Weird that you can't replace the races without modifying the hub itself. I guess Mazda wanted people to buy $1000 worth of hubs everything they needed replacing.




















Reckless_Panda is offline
Old 10-21-18, 02:49 AM
  #128
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Nothing like a solid weekend working on the car!! Just a great time to button up all the little things I kept telling myself were easy jobs and they could wait.

Got on to installing the fresh hubs this morning. Seems even though they were pressed in as straight as possible, they still needed a bit of persuasion to fall into place. grabbed the Torque Gun and some throw away nuts and rattled the studs into place.

Went to re-install the brake calipers and noticed the old bolts were all cross threaded and cut down way too short, only hanging on by a few threads.... FFS the Previous Owner was definitely on the spectrum with some of the mods done to this thing... Off to Repco to grab some 8.8 Bolts, cut them down to correct size & re-install.

Note: Calipers definitely need painting but they can wait till the car is tuned.

Next up was just fiddly stuff. Finalising Intercooler clamps, Front Bar Install, Piping brackets and all the small stuff that needed doing prior to getting back on the road. But God Damn it feels good to have it back on the ground and knowing that I've gone over everything. I've ordered some Mishimoto Open Ended Nuts and they should arrive end of the week to replace the interim ones on the car.

Next step from here is to call my Towie and organise a drop off time for Dyno and boost. Not sure on his schedule but hopefully I can get it done in the next month.


























Last edited by Reckless_Panda; 10-21-18 at 02:57 AM.
Reckless_Panda is offline
Old 10-21-18, 03:49 AM
  #129
Full Member

YLD 78U's Avatar

Join Date: Dec 2006
Location: Australia
Posts: 173
Liked 2 Times in 2 Posts
woohooo! epic work mate!! killer!

Cant wait to see how it ends up going!
YLD 78U is offline
Old 10-21-18, 04:33 AM
  #130
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by YLD 78U View Post
woohooo! epic work mate!! killer!

Cant wait to see how it ends up going!
Thanks mate. Awesome feeling getting back on the ground.

Not here to **** spiders... just gonna tell the tuner to send it
Reckless_Panda is offline
Old 11-05-18, 12:31 PM
  #131
Full Member

Join Date: Oct 2006
Location: south jersey
Posts: 124
Likes: 0
Liked 3 Times in 3 Posts
Very nicely done. Had to catch up a bit but everything is looking great. And yeah love that mickeyspec rx7
007fc is offline
Old 11-07-18, 08:37 PM
  #132
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by 007fc View Post
Very nicely done. Had to catch up a bit but everything is looking great. And yeah love that mickeyspec rx7
Thanks mate Few more weekends to do a bit of tidy up and final checks then it's booked in for dyno time on the 25th November. Exciting times!
Reckless_Panda is offline
Old 11-08-18, 08:20 PM
  #133
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
More parts still arriving slowly... Open Ended Wheel Nuts just rocked up.

Mishimoto were out of stock so picked up these Muteki racing ones.... I prefer steel wheel nuts anyway, they don't back off when you torque them.





Reckless_Panda is offline
Old 11-09-18, 02:41 AM
  #134
Full Member

YLD 78U's Avatar

Join Date: Dec 2006
Location: Australia
Posts: 173
Liked 2 Times in 2 Posts
Goood mate, for track work steel are better!
YLD 78U is offline
Old 11-10-18, 05:02 PM
  #135
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Just the little things left to on the RX7 prior to the tune... Incoming Bullet point list :P
  • Adjust Wheel Bearing Torque (Ghetto but it still works, hang 1kg of dumbells off some electrical wire, back off nut till it spins... Winner)
  • Adjust Clutch Pedal (Way too short, but dear god I hate getting under this dash)
  • Air Pressure in tyres (My spidey senses were tingling and I was right - 14 psi )
  • Install New Wheel nuts (Sexual, except for the XXR's.... don't worry I'm working on that)
  • Drive a 400kw Bright Yellow Evo 9 (Holy **** this thing is out of control quick)
  • Tidy up the Engine bay & Wash the car. (Mrs loves washing the cars so I enjoyed a Lazy Bear)
That was my Saturday in bullet form. Now to just wait for the last car parts to arrive to install next weekend


























Last edited by Reckless_Panda; 11-10-18 at 05:23 PM.
Reckless_Panda is offline
Old 11-18-18, 03:49 PM
  #136
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Thanks to the solid advice from Scott, I ordered some new spark plugs.

Seems there is a lot of evidence from bumpstart, and the forums in general to use BR9EG, BR10EG when using a Microtech ECU to limit noise and mis-fires at the top end.

So I used 2 x BR9EG in leading.... 2 x BR10EG in trailing and gapped them to 0.7. (At $25 each for the 10's and $14 each for the 9's they better be good! hahahaha)

Also over the weekend I managed to just give everything one last tidy up / check over prior to tuning this Sunday. Next post you see from me will be after the Dyno Time.... Wish me luck








Reckless_Panda is offline
Old 11-24-18, 08:23 PM
  #137
Full Member

YLD 78U's Avatar

Join Date: Dec 2006
Location: Australia
Posts: 173
Liked 2 Times in 2 Posts
Nice mate! keen to see your results!
YLD 78U is offline
Old 11-25-18, 08:50 PM
  #138
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
If I had to describe the weekend it would be "A little bit good, A little bit ****"

Edit: Just noticed this turned into a fkn novel so cliff notes = Engine ran great, sounded healthy! Got to drive it home but having massive overboost issues with no way to control the boost, suspected non-functional actuator and also have a dead aeroflow FMIC which I suspect was always broken. Car made around 230hp at 7psi so there is plenty of potential

Spent most of Saturday doing the boring stuff, mostly just to keep myself busy! Final checks on the car, packing tools (because Dyno Time never goes to plan) loaded up the back seat with Jerry's and gave the car a wash and vacuum.

Come Sunday, Car was strapped up to the tow truck and made the journey East to Diversion Garage.... Just wanted to say 'All Kind Towing' were awesome.... super gentle & careful getting the car over to Diversion garage.

The last time I remember being this anxious was when my wife went into labour …. I throw the keys to my tuna and just tell him to send it! Haven’t come this far to muck around… On a funny note, I’m about 5’8” and set the car up for me… He is around 6’4” so it looked painfully awkward for him to drive my car… Sorry Matt…

All pre-checks & loading looked great, just going through the motions the car was doing everything it was supposed to do ….. then it came time for Boost…. And Holy **** did she boost. LOL OK… no drama, might have rigged up the boost controller wrong, so we fully disconnected the 3-port and try again… Same thing. Just sends the boost sky rocketing with no way to control it…

Seems we may have a problem with the turbo setup.. My guess would be a non-functional actuator or a modified spring as even 15psi wouldn't move it. If anyone has had similar issues with a S5 High Flow Please feel free to respond as I'm about to buy a Turbosmart Universal 10psi

While it was cooling down we decided to do a boost leak test and see what pressure the actuator actually moves and by doing that we found a few leaks, one in the UIM that one of the previous owners had blocked off unsuccessfully… (Easy Fix) but the worst one was my aeroflow which has never seen any boost, had a hole in it in one of the cores… Really disappointed with that as it was still pretty much brand new. We added some smoke and sure enough, it just pisses out the top of the Intercooler. FML..

I know I sound defeated but on the whole this was a massive win for me. No electrical gremlins this time, the car was happy idling and playing the dyno game boosting away, and I even got to drive it home… Car made approx 230hp (170kw) at 7psi so It has potential......Although that alignment and balance was TERRIBLE hahaha

























Last edited by Reckless_Panda; 11-25-18 at 08:57 PM.
Reckless_Panda is offline
Old 11-26-18, 08:07 PM
  #139
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
After chatting to several suppliers yesterday and them offering little to no advice on a bolt in solution for an S5 Wastegate Actuator (Which still baffles me as these cars have been around for 30 years) I got home to find mine is already dead straight. Winner... I'm guessing mine has been modified before as the stock ones have a definite kink in the rod.

So I'm just going to order the Turbosmart Universal 150mm with a 10mm Clevis Extension & a 10psi spring. Fingers crossed it does the job.





Reckless_Panda is offline
Old 11-27-18, 04:12 PM
  #140
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Just a small update but Aeroflow are sending me a replacement Intercooler free of charge. This speaks volumes to me from a local company, especially since I made the purchase 18 months ago. That saves me a lot of cash and I can get the car back to the Dyno sooner than expected.



Reckless_Panda is offline
Old 11-28-18, 04:20 AM
  #141
Full Member

YLD 78U's Avatar

Join Date: Dec 2006
Location: Australia
Posts: 173
Liked 2 Times in 2 Posts
Nice updates mate! The IWG75 will get you out of trouble! and hopefully that cooler will be good! I will be interested to know what your AIR temps are...
YLD 78U is offline
Old 11-28-18, 04:09 PM
  #142
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by YLD 78U View Post
Nice updates mate! The IWG75 will get you out of trouble! and hopefully that cooler will be good! I will be interested to know what your AIR temps are...
Thanks mate.... Sooooooo close to being 100% ish... Air temps in QLD at the moment wouldn't be ideal hahaha Bloody heatwave, 43 degree ambient temperatures. Bring back Winter!!

Wheel Alignment and Balance this weekend so should take away that god awful steering feeling.
Reckless_Panda is offline
Old 12-03-18, 08:44 PM
  #143
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Quiet weekend while I wait for parts to arrive.

I wanted to get the vibration sorted in the front end.. The munted bushings would only cause a slight knocking in the steering. My guess was wheel balance but after getting it to the shop it seems the 22mm of total toe in at the front was the main culprit I guess eye balling the alignment at the dyno wasn't the greatest idea! Drives nice and straight now and the steering wheel isn't totally skewed when driving!

Next up was the Intercooler... Aeroflow wanted to see it destroyed before sending through the replacement... I could have gotten creative with how to break it but went with a trusty old hammer.

Last on the weekend to do list was ripping off the old actuator... **** easy as I have nothing left in the way of my setup.. although the little circlip went flying and it took me 20 mins to find it! hahaha Measure up confirms the 150mm Turbosmart will work.... Fixed up the Bracket so it's ready for when the parts arrive!















Reckless_Panda is offline
Old 12-08-18, 04:30 PM
  #144
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
That one time when parts arrive well before they were expected! Managed to get the FMIC and the Actuator all buttoned up yesterday!

Actuator was an easy install... I went with the 10PSI IWG75 Turbosmart Universal Actuator 150mm and the 1/4"long, 6.3mm DIA Clevis Extension. Top Tip - Use your bike bump to extend the arm for a super easy install. All looks good and it starts to move around the 10psi mark.

Note: This combo will need slight bending, cutting down thread and modifying to work but nothing crazy. I have a gut feel that my original actuator may have been operational, just forced into position when installed, unable to extend when it was jammed where it was. The main bracket had to be opened up from 90deg to around 110. and the Clevis had to have a slight bend as well to mate up. Only around 10 deg. If you are new to installing parts like this, just remember the actuator clevis should be a straight shot to the Turbo otherwise it puts pressure on the diaphragm and rod.

FMIC was supposed to be the easy one but the threaded boss centres were different between the two coolers. 10mm difference in centres meant I had to slot the mounting bracket. Easy enough but still a pain for the same part number. Got it installed though and it's all ready for it's finishing tune over Christmas Holidays!!! Time for proper boost

















Reckless_Panda is offline
Old 04-02-19, 04:40 PM
  #145
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
Long time between postsÖ

The car is still in my possession, Iíve just been giving her the silent treatment for the last few months. It was either that or it was going up for sale as scrap parts as my patience was wearing thin. Between the Wastegate, The alternator and hulk smashing old brittle window switches, it was enough for me to need a relationship break! Big thanks to Scott & Aaron for talking me out of selling.

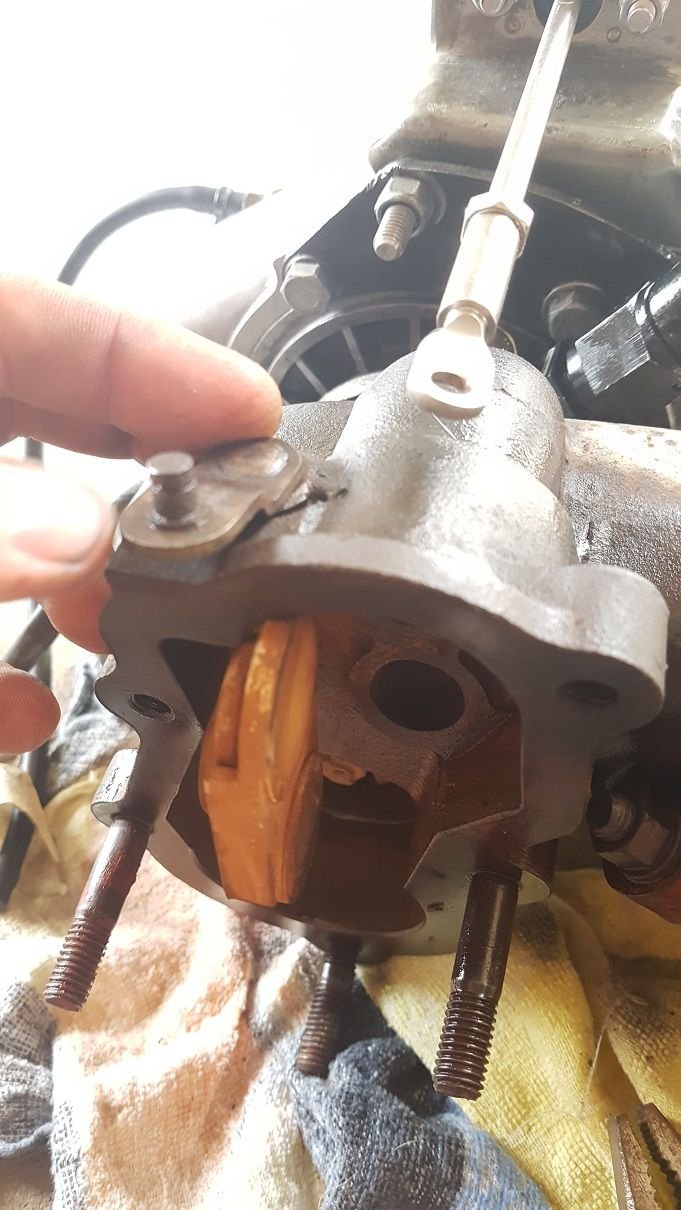

The tune end of last year was cut short again due to the wastegate flapper now hitting the dump pipeÖ. But it was really my fault as I should have checked the FULL actuation prior to putting it back on the dyno. Iíve been working up the motivation to put her back on stumps to take the dump pipe off and see what the hell is going on..

The alternator has also been playing silly buggers & annoying the **** out of me especially at night! I test at the post and at the battery, everything is fine but after getting up to operating temp and below certain revs it stops charging and the Microtech reads 12.5 downwards to 11 at some points. So bloody frustrating but Iím not sure if itís a gilmer thing with the revs at idle or if itís the Alternator on itís way out? Either way I managed to purchase a High output 120A alternator so Iíll install that ASAP and hope for the best.

On a good note, it made 18psi with no hesitation so itís making plenty of boost! If I drive it, I have to be careful not to go over 10psiÖ Itís honestly a big tease, like sex without the climaxÖ. So I donít even bother driving it as it sits! hahaha



Reckless_Panda is offline
Old 04-03-19, 11:32 PM
  #146
Full Member
Thread Starter

Reckless_Panda's Avatar

Join Date: Aug 2017
Location: Brisbane QLD
Posts: 144
Likes: 0
Liked 0 Times in 0 Posts
After chatting to a few friends, most cost effective and least painful Plan of attack to fix my boost issue (Sorry Scott, No GTX for me yet :P )

1. Dump and Turbo off
2. Measure Up and lasercut back plate to create an S5 HT18 flange
3. Port out S5 IWG holes as much as possible
4. Cut flange off current dump
5. Bell Mouth current dump pipe to allow full actuation.
6. Pray to the car gods it's enough to control the bloody boost!!!!!!

Time to get to work.... Again!







Reckless_Panda is offline
Old 04-06-19, 12:38 AM
  #147
Full Member

YLD 78U's Avatar

Join Date: Dec 2006
Location: Australia
Posts: 173
Liked 2 Times in 2 Posts
haha, aww why no GTX? :P too much power to handle? hehe jokes.. Glad you kept it mate, looking forward to seeing what comes of it!
YLD 78U is offline
