if you do the REW-FC, make it so you can use FC engine mounts, mine uses FD engine mounts. the FC engine mounts are like $30 new and the FD mounts are like $350 each new...
#32
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
The Lady of the Lake,
[angels sing]
her arm clad in the purest shimmering samite, held aloft Excalibur
from the bosom of the water signifying by Divine Providence that I,
Arthur, was to carry Excalibur.
so i took Excalibur and chopped down the 3rd biggest transmission in the forest.
[angels sing]
her arm clad in the purest shimmering samite, held aloft Excalibur
from the bosom of the water signifying by Divine Providence that I,
Arthur, was to carry Excalibur.
so i took Excalibur and chopped down the 3rd biggest transmission in the forest.
#34
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts

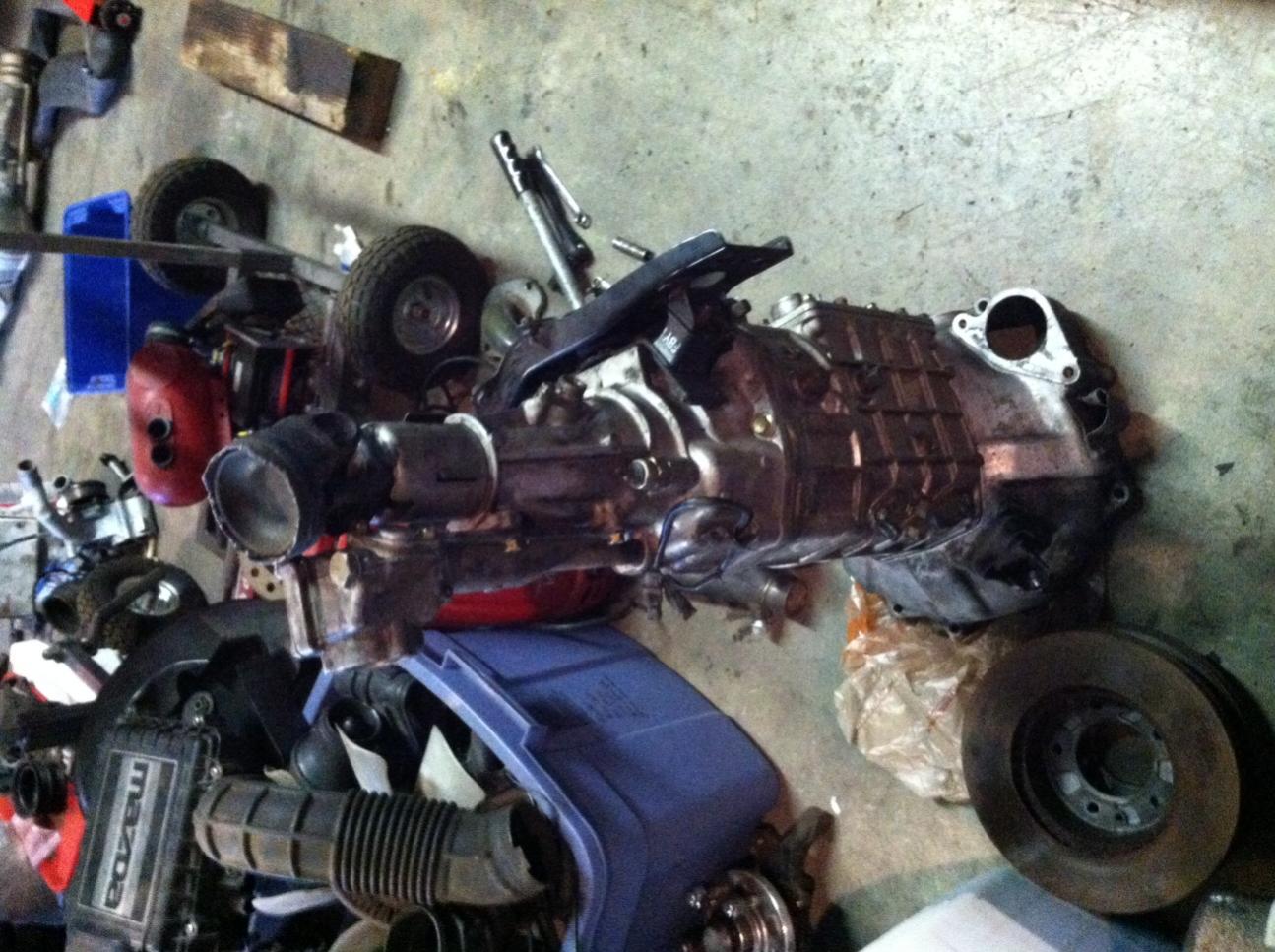

so with 11 days left, i have the engine and trans mated, although they still need to hop in the car, preferably by themselves. then i need to plumb everything, although it should be pretty straightforward.
then i need to figure out what wiring/ecu to use, 2013 seems to have all the smog techs spooked, so i might need to label all the emissions devices 60's batman style. i have both S5 and FD ecu and harnesses, i'm just undecided if its easier to adapt S5 harness to FD engine and ECU, or FD harness to S5 body.
i have new bearings for the front hubs that need to be installed @greased. i found the front sway bar, but i'm missing the brackets, like the rear CW they are somewhere! a search for an S5 CW turned up THREE in the shop... although with 650 front springs (the softest we had laying around!), maybe i don't need a swaybar or suspension arms that move
then i don't have a dashboard, my steering wheel is missing, the outside of the car is still dust bunnies...
there is a shelf full of turbo parts, but its literally parts. since i'm short on time, and the smog techs are spooked, i may just stay NA for the moment, i do have the T2 and NA stock exhausts
and then?
i had grand plans for a plywood front splitter, nothing crazy, but its gonna need something down there, and the Greddy IC makes the stock undertray impossible
i also had plans to fit my Volk Group C's on there, but i didn't get the adapter so it needs to be made....
and then?
PS, i wanna keep that, so getting the FC rack to mate with either the FD or FC pump and belt setup will be fun.
then i need to figure out what wiring/ecu to use, 2013 seems to have all the smog techs spooked, so i might need to label all the emissions devices 60's batman style. i have both S5 and FD ecu and harnesses, i'm just undecided if its easier to adapt S5 harness to FD engine and ECU, or FD harness to S5 body.
i have new bearings for the front hubs that need to be installed @greased. i found the front sway bar, but i'm missing the brackets, like the rear CW they are somewhere! a search for an S5 CW turned up THREE in the shop... although with 650 front springs (the softest we had laying around!), maybe i don't need a swaybar or suspension arms that move
then i don't have a dashboard, my steering wheel is missing, the outside of the car is still dust bunnies...
there is a shelf full of turbo parts, but its literally parts. since i'm short on time, and the smog techs are spooked, i may just stay NA for the moment, i do have the T2 and NA stock exhausts
and then?
i had grand plans for a plywood front splitter, nothing crazy, but its gonna need something down there, and the Greddy IC makes the stock undertray impossible
i also had plans to fit my Volk Group C's on there, but i didn't get the adapter so it needs to be made....
and then?
PS, i wanna keep that, so getting the FC rack to mate with either the FD or FC pump and belt setup will be fun.
#35
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
lol! TIM: To the north there lies a cave -- the cave of Kyre Banorg --
wherein, carved in mystic runes upon the very living rock, the last
words of Ulfin Bedweer of Regett [boom] proclaim the last resting
place of the most Holy Grail.
wherein, carved in mystic runes upon the very living rock, the last
words of Ulfin Bedweer of Regett [boom] proclaim the last resting
place of the most Holy Grail.
#36
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
aAAAaaaaaand skipping a bunch of pics
#37
Theoretical Tinkerer
iTrader: (41)
then i need to figure out what wiring/ecu to use, 2013 seems to have all the smog techs spooked, so i might need to label all the emissions devices 60's batman style. i have both S5 and FD ecu and harnesses, i'm just undecided if its easier to adapt S5 harness to FD engine and ECU, or FD harness to S5 body.
edit: I guess this is just for using stock ecu. An Rtek/PFC should make it fully functional.
#38
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
Do the OMP's swap between the two blocks? How bout will the S5 OMP play well with an FD ecu? If not, looks like it'll have to be an FD omp/ecu. Then on to figuring out how to make the ecu happy without all the extra solenoids and controls.
edit: I guess this is just for using stock ecu. An Rtek/PFC should make it fully functional.
edit: I guess this is just for using stock ecu. An Rtek/PFC should make it fully functional.
i was initially going to build a little resistor block to simulate the solenoids i'm not using, but in light of the smog situation i might just put all the solenoids in, and just not have the vacuum connected to the ones i'm not using. either way the ECU needs to run the car with no CEL's.
#39
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
so today's update. monday.

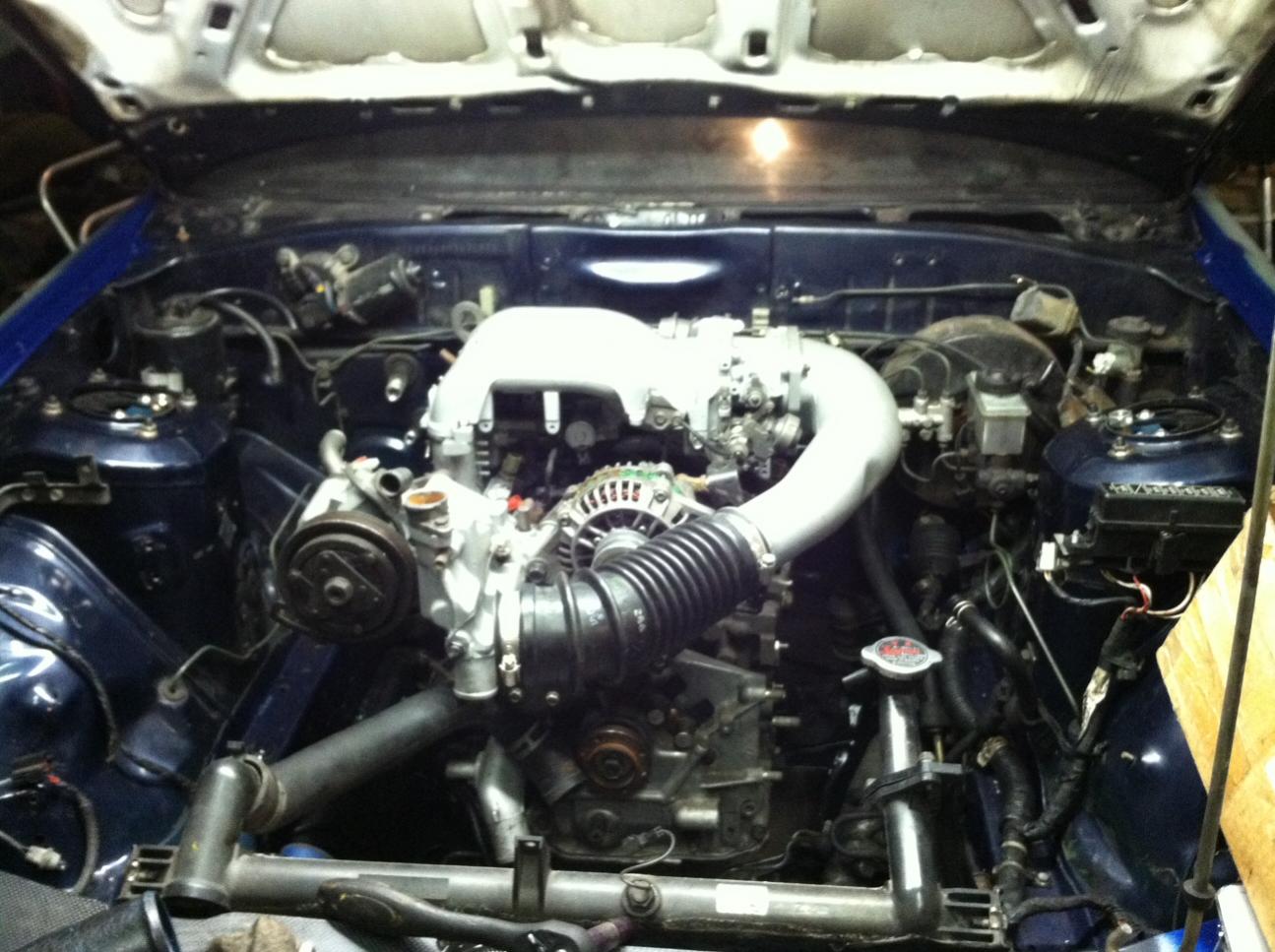

i cut the hole for the only IC pipe that needs a hole cut, installed it to find it hits the PS loop AND the horn, so i had to relocate those AGAIN.
then i dropped a nut down the intake, so the lower intake (which went on yesterday) had to come off. the nut was right in the port, but still.
so then i just decided to change venues, and start repacking the front hubs. so i had one repacked, installed the seal, crooked.
so with seal 2, i used the floor to put it in straight, and somehow it still ended up crooked!
seal #3 is better, but still not right, wtf!
tomorrow i'll try my OEM seals.... if i go! i'm tired
still on the list are oil cooler hoses, i have stock FD and stock FC, but i need like a FCD or something, turbo, exhaust, there are two wires that run into the frame rail and go ????
i cut the hole for the only IC pipe that needs a hole cut, installed it to find it hits the PS loop AND the horn, so i had to relocate those AGAIN.
then i dropped a nut down the intake, so the lower intake (which went on yesterday) had to come off. the nut was right in the port, but still.
so then i just decided to change venues, and start repacking the front hubs. so i had one repacked, installed the seal, crooked.
so with seal 2, i used the floor to put it in straight, and somehow it still ended up crooked!
seal #3 is better, but still not right, wtf!
tomorrow i'll try my OEM seals.... if i go! i'm tired
still on the list are oil cooler hoses, i have stock FD and stock FC, but i need like a FCD or something, turbo, exhaust, there are two wires that run into the frame rail and go ????
#40
Cake or Death?
iTrader: (2)
Some days you eat the bear, some days he takes a giant crap in your Cheerios.
(I dropped something in my LIM too...it was infuriating. Much easier to remove/install that manifold with the engine out, I discovered.)
How and where do the cooler lines mate to the block?
And...I was just all over my bay and there are no stock wires that run in the framerail.
That should be interesting.
(I dropped something in my LIM too...it was infuriating. Much easier to remove/install that manifold with the engine out, I discovered.)
How and where do the cooler lines mate to the block?
And...I was just all over my bay and there are no stock wires that run in the framerail.
That should be interesting.
#41
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
Some days you eat the bear, some days he takes a giant crap in your Cheerios.
(I dropped something in my LIM too...it was infuriating. Much easier to remove/install that manifold with the engine out, I discovered.)
How and where do the cooler lines mate to the block?
And...I was just all over my bay and there are no stock wires that run in the framerail.
That should be interesting.
(I dropped something in my LIM too...it was infuriating. Much easier to remove/install that manifold with the engine out, I discovered.)
How and where do the cooler lines mate to the block?
And...I was just all over my bay and there are no stock wires that run in the framerail.
That should be interesting.
the front cooler line is in the normal spot, but the FD uses a banjo bolt, so its a different thread. in the rear the fitting is on the oil filter pedestal, so its longer. the stock FD rear line is a pipe, that goes to a quick disconnect, then goes to whatever the FD has. the quick disconnects are neat http://mazdatrix.com/b6.htm about halfway down. instead of the PITA the FC has, its 2 clips on the FD/Rx8
the maximum work answer is that my vert needs oil cooler lines, and this car had good ones, but i think i will take a set of lines and cut the flexible stuff and use the earls hose Earl's Performance Super Stock Hose 791008ERL - SummitRacing.com
i COULD go AN lines, but i hate em
#43
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts
if you use the earls fitting, its got a couple of barbs, and then we put a hose clamp on just to feel like we did something, but the only way to get it off is to cut it. we've run it on the race car for years, its more flexible than the stainless braided stuff, and it doesn't act like a saw either
#44
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts

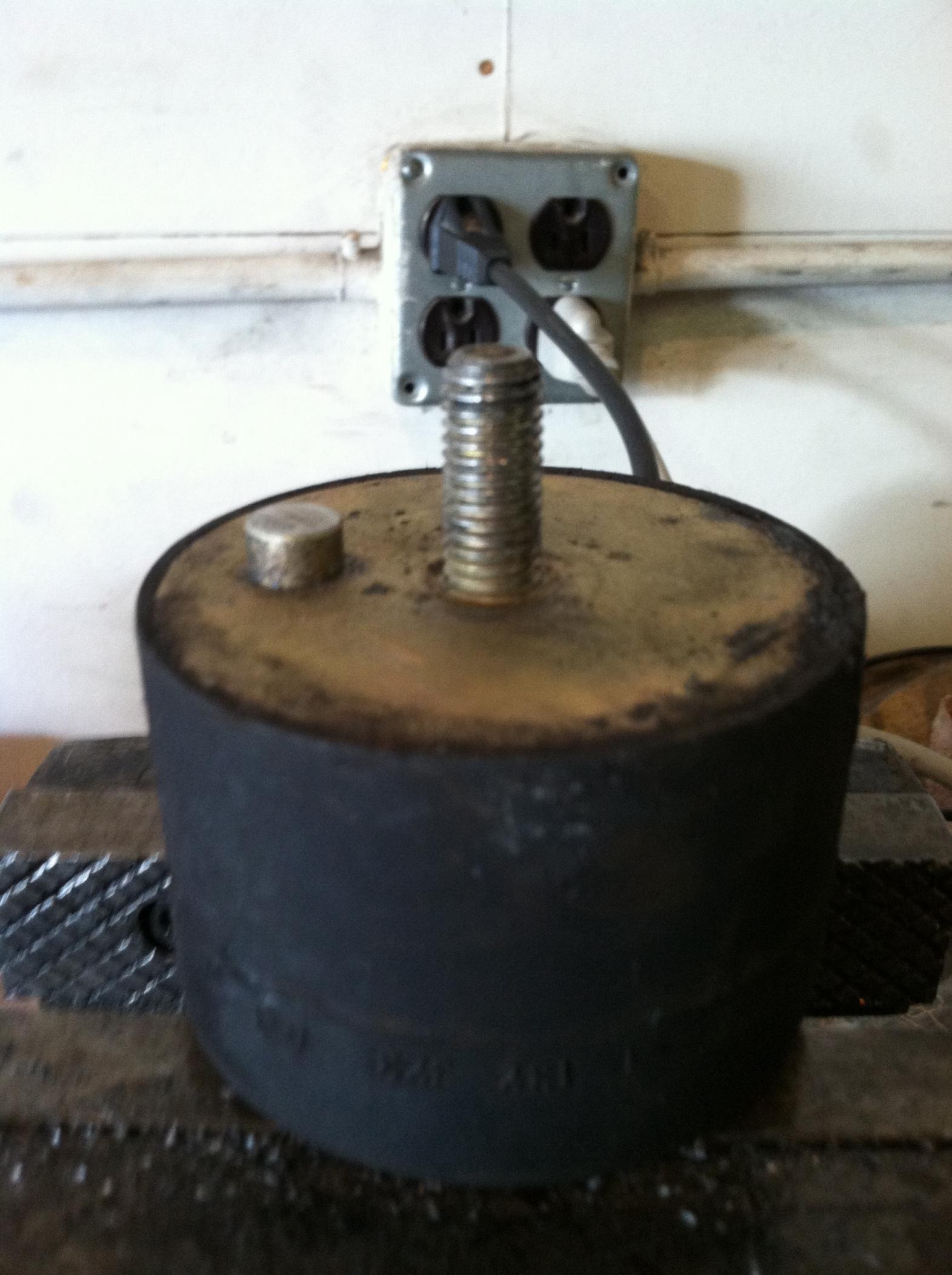

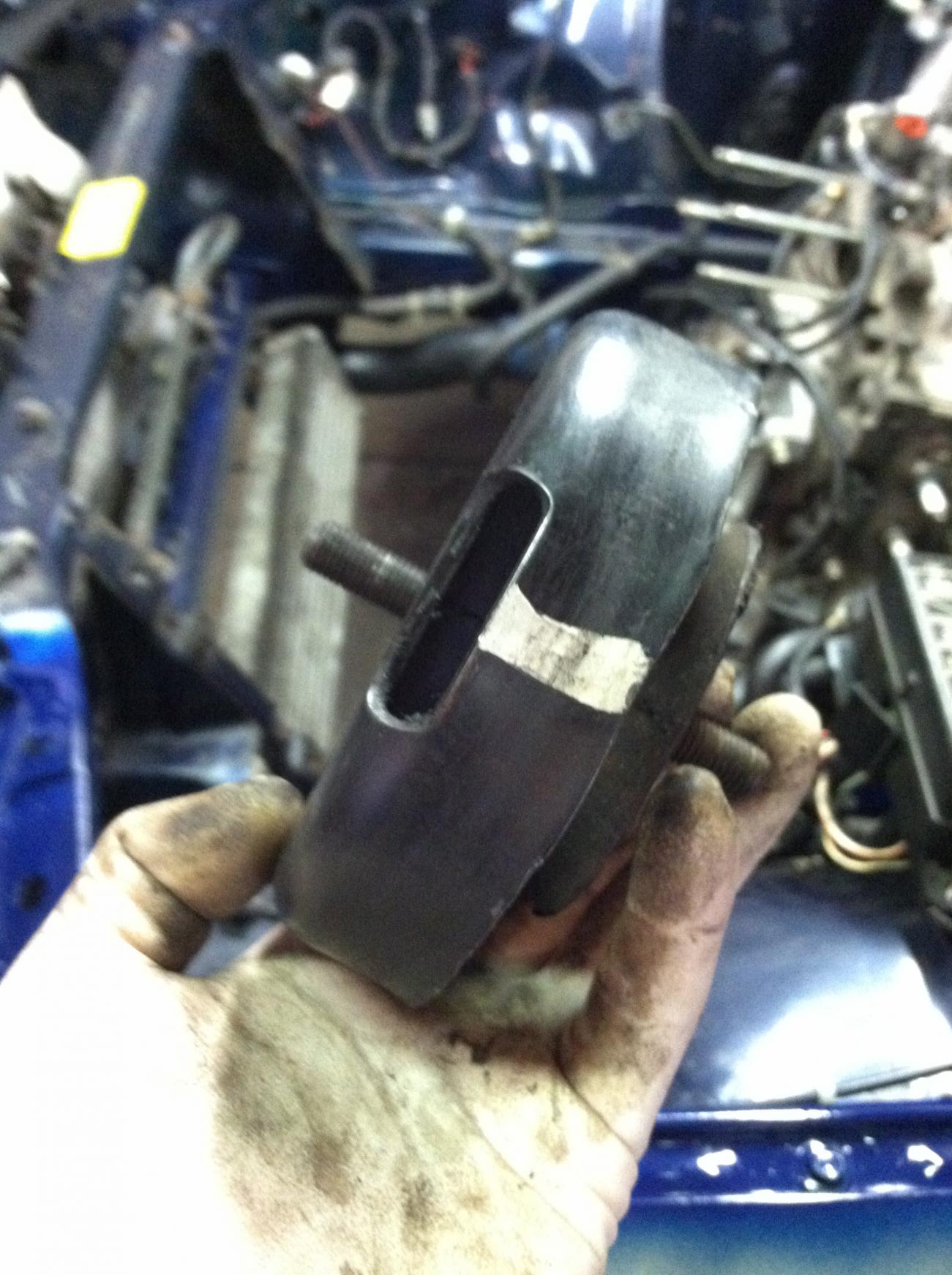

pics! ok so i was going to use the E30 BMW mounts, but that giant tit sticking out had nowhere to go on any of the mazda parts, so i switched to stock FC mounts. the big diameter of these means i needed to grind em a little for clearance, as the subframe isn't flat right there!
#45
Moderator
Thread Starter
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,826
Received 2,594 Likes
on
1,842 Posts

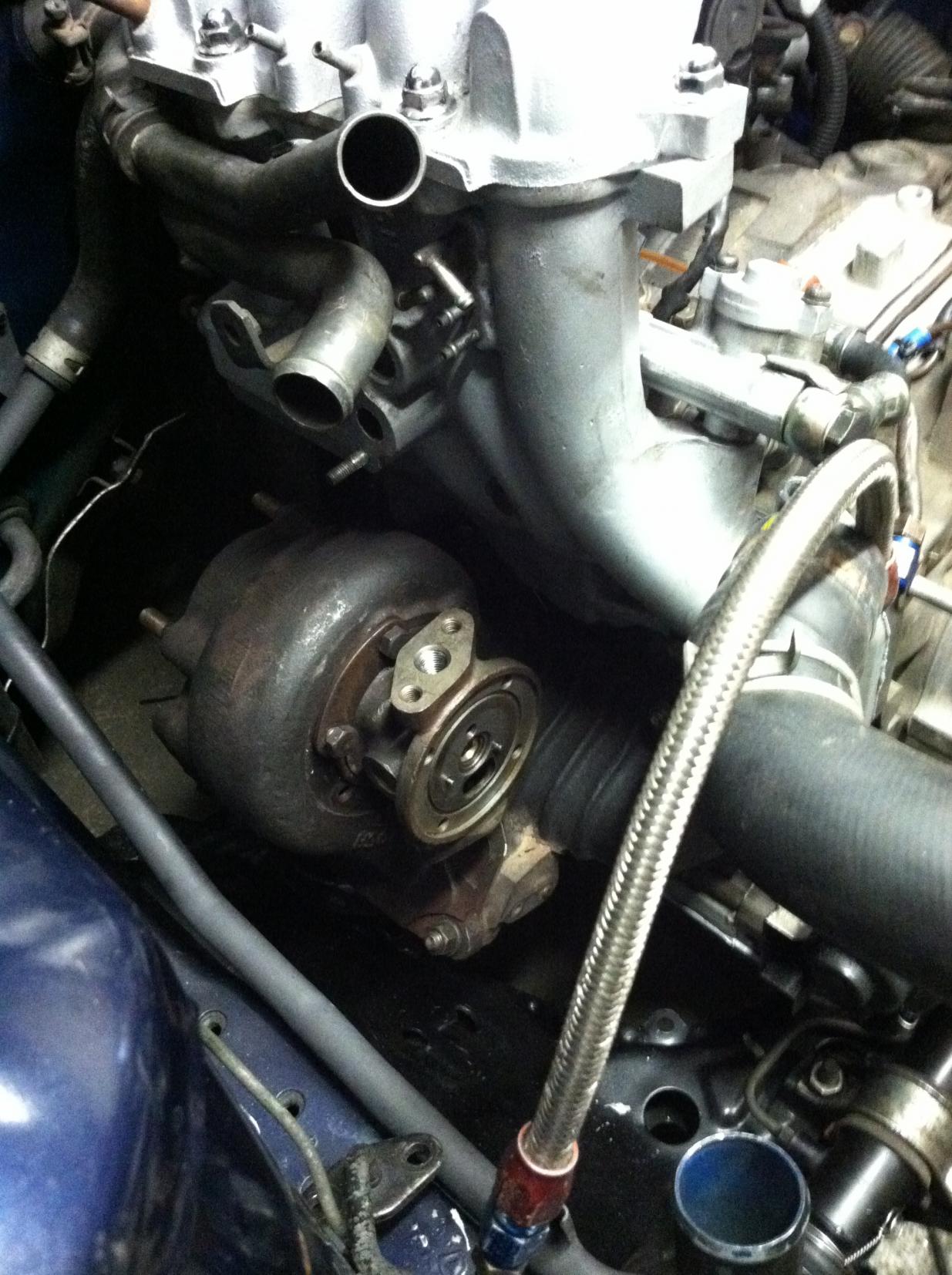

more from yesterday, its started growing a turbo, i've been watering it, and giving it plenty of sunlight
i'm going to start with a stock S4 because the manifold has an EGT bung, so i can do egt and then back pressure, the plan is to start stock, and then do the H compressor, and then the V compressor and see what the car wants, kind of like howard colemans turbo test, but in miniature. Mine has probably take as long as his already...

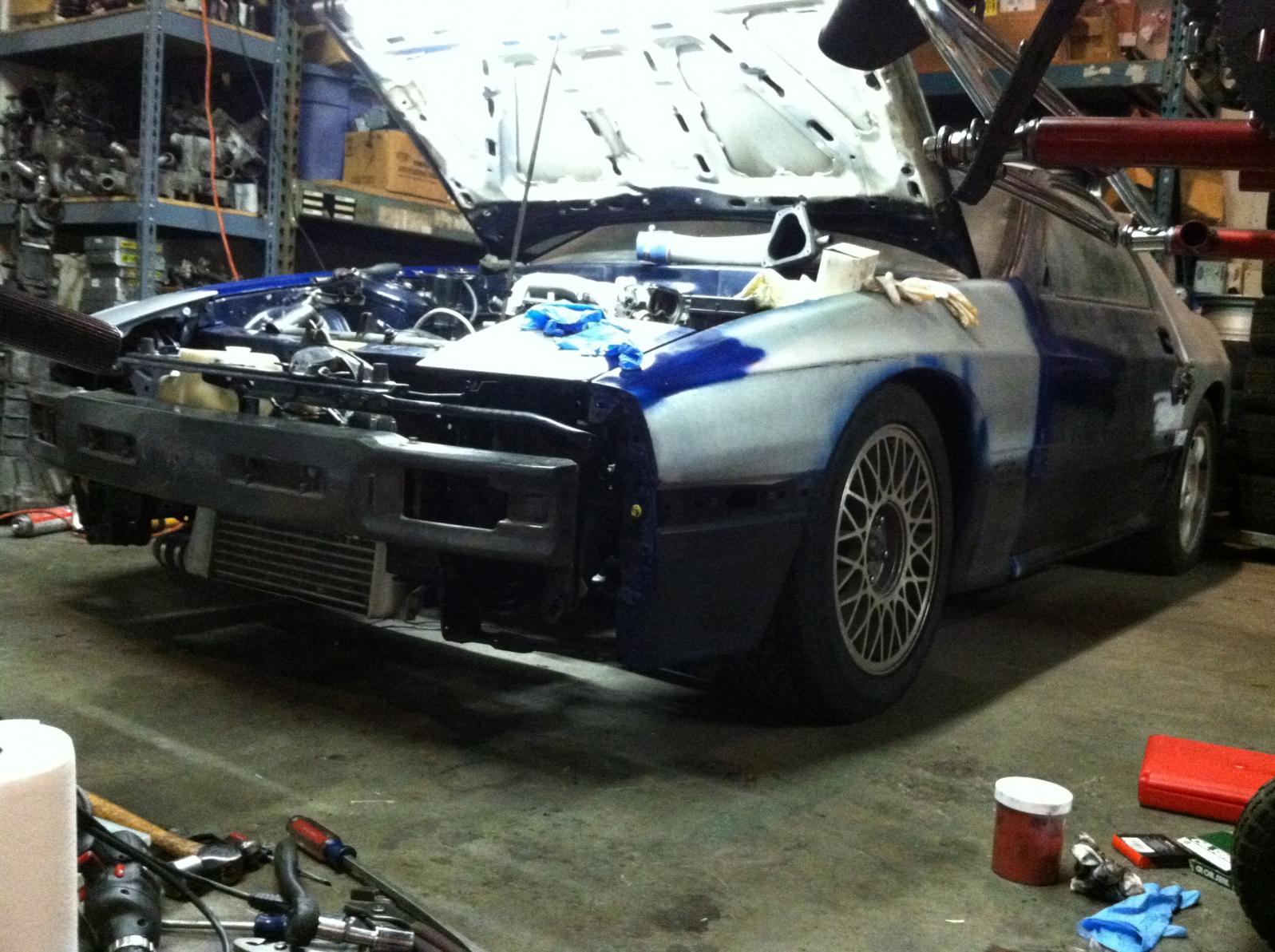

car on the ground! just for inspiration, and it was up way too high to work on, and now its too low! its like knee high, for the ricers the coil overs are up as high as they will go, for everyone else, i need a longer spring.... my suspension spreadsheet, which isn't dialed 100% yet, says i need about 1.5" of travel @1G, and then i want to add another 1.5" for bumps. i know from previous f-ing around that the first thing to bottom out in the front is the tire hitting the upper frame, and actually where it sits right now is close to 3" from the tire to the frame, so its actually about where i want it, it is f-ing slammed though.
camber is -4.6 all the way around too

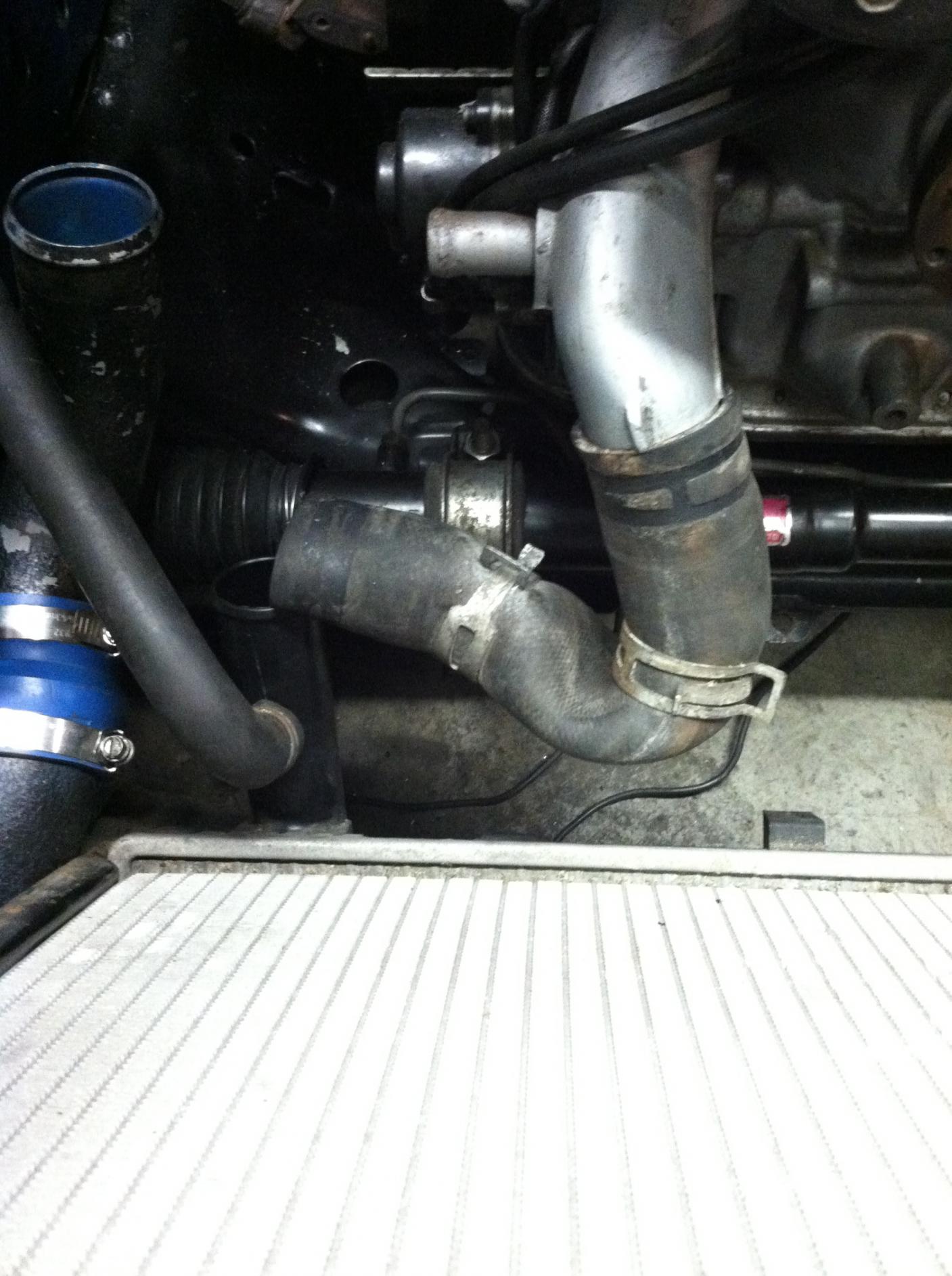

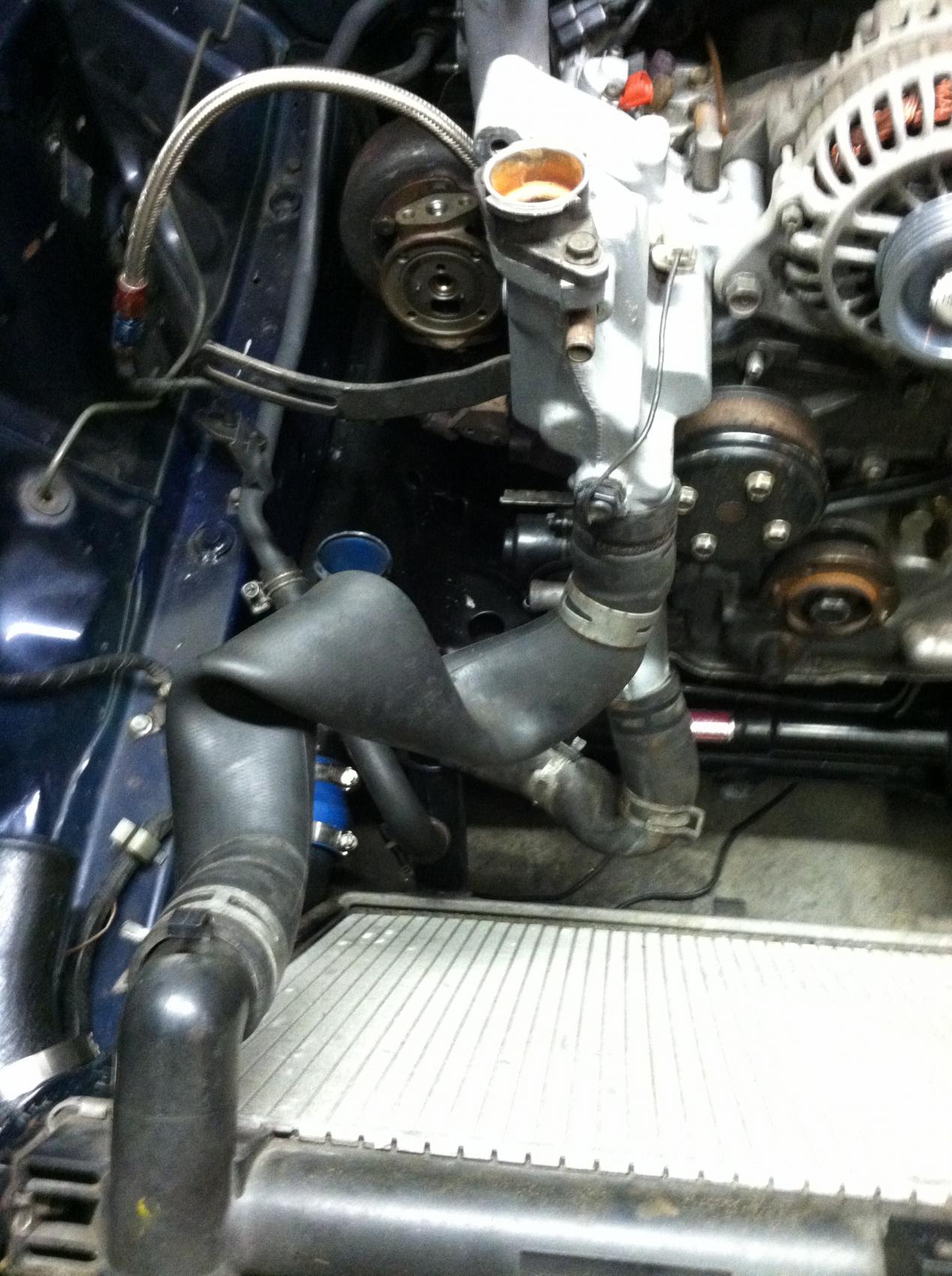

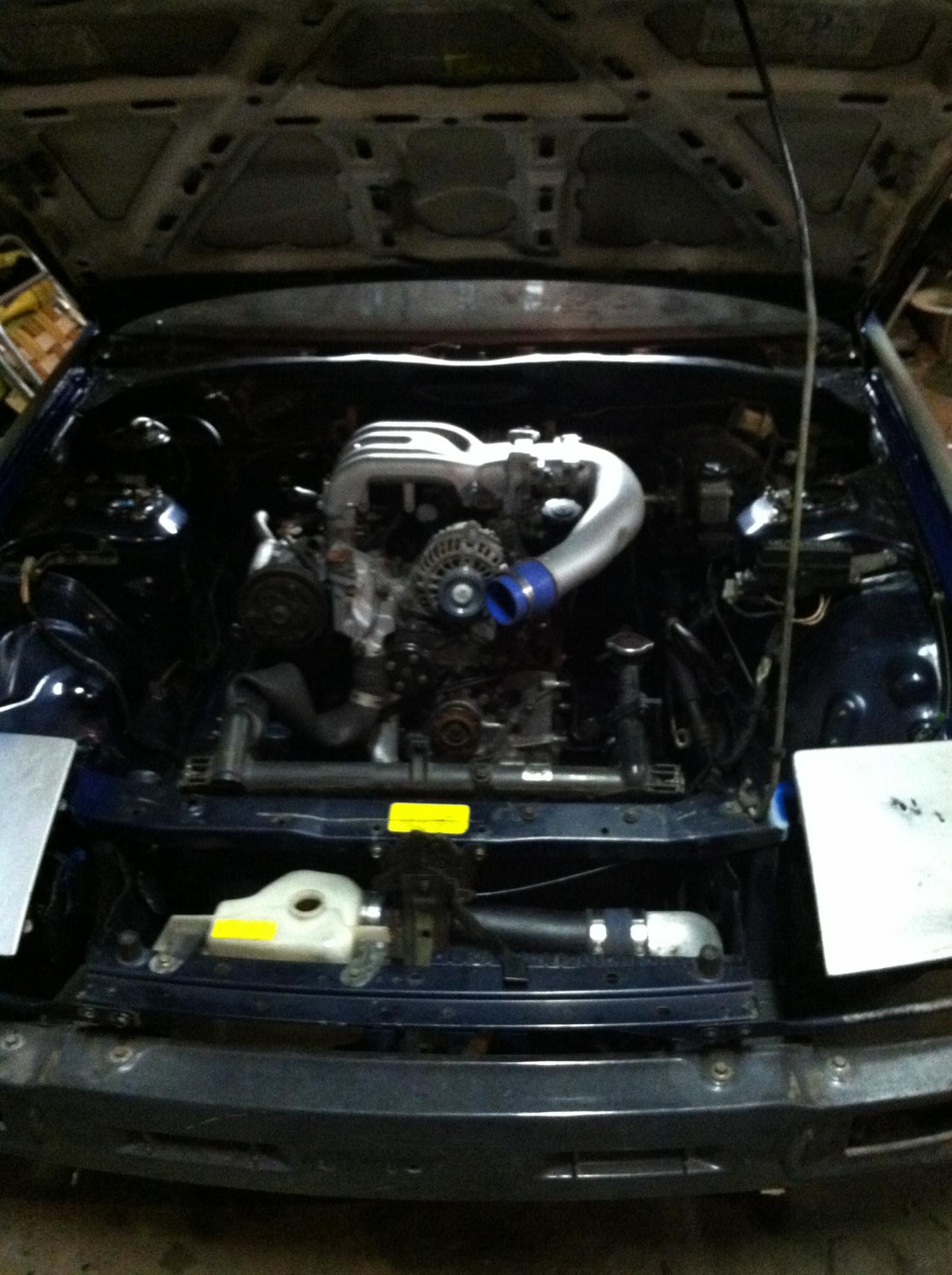

next radiator hose mockups, i think its fine, right?
