Long time since my last post, winter slowing things down and Im trying to save up for gas and entry fees for upcoming season. i made some progress with the IC setup though. Here are some pictures of mocked brackets and how everything should kinda look like, I have a load of stuff to finish and need the car to be done in about 6 weeks.

Name:  13208_10200579438918190_1456059578_n_zps6c974a26.jpg
Views: 364
Size:  103.9 KB

Name:  179276_10200579439598207_2082333773_n_zpsa6c3c956.jpg
Views: 369
Size:  115.0 KB

Name:  541443_10200579439318200_1958597707_n_zpsf19bf19a.jpg
Views: 360
Size:  112.9 KB

Name:  555066_10200579439438203_349799268_n_zps0d6a2d55.jpg
Views: 360
Size:  117.7 KB
Rotary91 is offline
Old 03-05-13, 07:59 PM
  #27
rottary89
iTrader: (1)

Join Date: Nov 2004
Location: OH, Cleveland
Posts: 323
Thanks: 0
Thanked 0 Times in 0 Posts
Looks awesome, keep up the good work.
2RotorSpeed is offline
Old 04-13-13, 01:32 AM
  #28
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
Finally nice weather to work on the car!

Engine bay clean up and painted
Wiring organized and cleaned off from oil spills
Finished making a strong support for radiator and IC
Replaced oil line crush washers
Replaced steering rack o-rings
Relocated battery to the back with a kill-off switch
Ran new brake lines throughout the car

The IC will get an electric fan and will duct the bottom for the radiator

Here are some progress pictures so far

Name:  0408130341_zps4f5a23c7.jpg
Views: 381
Size:  94.1 KB

Name:  0408130339a_zpsbc414445.jpg
Views: 357
Size:  88.7 KB

Name:  0408130324b_zps67926152.jpg
Views: 361
Size:  117.4 KB

Name:  0408130324a_zpsb22907ba.jpg
Views: 378
Size:  99.3 KB

Name:  0407131757b_zpsb73a65a8.jpg
Views: 355
Size:  118.9 KB
Rotary91 is offline
Old 04-14-13, 09:19 AM
  #29
rottary89
iTrader: (1)

Join Date: Nov 2004
Location: OH, Cleveland
Posts: 323
Thanks: 0
Thanked 0 Times in 0 Posts
Awesome progress man, keep up the good work.
2RotorSpeed is offline
Old 04-22-13, 05:14 PM
  #30
Junior Member

Join Date: Mar 2013
Location: St. Louis Mo.
Posts: 12
Thanks: 0
Thanked 0 Times in 0 Posts
Sweeeeettttt!
Thasmer12 is offline
Old 05-03-13, 03:44 AM
  #31
Junior Member
iTrader: (1)

Join Date: Apr 2013
Location: Tennessee
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
Coming along nicely, keep the updates coming
mrhernandez is offline
Old 05-03-13, 04:08 PM
  #32
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
Talking

Got some more work done to finish off little bits.

AWR racing camber links installed, will run about -.5 instead of -3 degrees I ran last year.
All fluids filled and wiring finalized.

Car started on the 4th try after sitting for 6 months filled with Marvel Mystery oil.
Pretty sure this engine has been rebuild before being shipped to US.

All that's left to do is get it aligned sometime next week and get ready for a drift event on the 12th.

Going to leave a few pictures of it as of now

Name:  0503131512_zps7d52b078.jpg
Views: 375
Size:  141.3 KB

Name:  0503131512b_zpsf8dff5ef.jpg
Views: 378
Size:  114.9 KB

Proper rear camber ftw.

Name:  0503131513_zpsfa7f4068.jpg
Views: 374
Size:  67.7 KB
Rotary91 is offline
Old 05-09-13, 10:19 PM
  #33
Full Member

spencababy's Avatar

Join Date: May 2011
Location: mooresville nc
Posts: 73
Thanks: 0
Thanked 0 Times in 0 Posts
great build cant wait to see it finish
spencababy is offline
Old 05-09-13, 11:07 PM
  #34
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by spencababy View Post
great build cant wait to see it finish
Car drives as of now, got an alignment appointment tomorrow and a drift event on Sunday, will update with more detail after I know everything works well.
Rotary91 is offline
Old 05-13-13, 11:29 PM
  #35
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
Talking

Finally! Got to drive a Clubloose Midvale event. Car felt so much better than last year. Got an alignment, -.7 rear really made a huge impact on the amount if grip in the back. Abercrombie's knuckles are the best investment I made over the winter, new IC setup really improved the response and I had to problem moderating the throttle. Water temps haven't gone past 194 during a run and dropped within 10 seconds back to 187, IC hasn't heat soaked, however, it was only 60F ambient temperature, it WILL get a fan during the summer. Here are some pictures and a short video toward the end of the day, I had close to no tread left on the tires.


Name:  919399_10151354800317805_1234691859_o_zpsbbf3f95f.jpg
Views: 357
Size:  94.6 KB

Name:  966833_10151354797317805_931548569_o_zpsd010c9f1.jpg
Views: 376
Size:  73.9 KB

Name:  967139_10151354795092805_763903262_o_zps0fe264d9.jpg
Views: 355
Size:  69.4 KB
Rotary91 is offline
Old 05-15-13, 03:26 PM
  #36
Junior Member

Join Date: Aug 2012
Location: fort worth Tx
Posts: 9
Thanks: 0
Thanked 0 Times in 0 Posts
I like your build.
Its a Dope Fc!
flipsk8er1213 is offline
Old 05-17-13, 02:27 AM
  #37
Junior Member

Join Date: Apr 2013
Location: 909 SoCal
Posts: 18
Thanks: 0
Thanked 0 Times in 0 Posts
Sweet build. Definitely going to be following. I plan on doing a drift set up as well. A lot of time n wrench to get it running healthy I see
Lunchpail J is offline
Old 06-01-13, 12:04 AM
  #38
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
So toward the end of the event and after I noticed to feel that the clutch is starting to give up, engagement point was crap and I knew that the disk wouldn't have much left in it since it is used and has slipped before. In a hurry to make another Midvale even in June I started to gather everything to replace the clutch kit and resurface the flywheel. Went to Harbor Freight to buy a 3/4 drive breaker bar for the 54mm socket to remove the flywheel bolt and I have to say the breaker bar is pretty insane, rated for 750ft/lbs I do not see that thing failing anytime soon. I ordered a Spec stage 3, 6 puck sprung disk kit. Got the flywheel resurfaced by NAPA for 50$ and just waiting for local Mazda dealer to transport rear oil seal sometime next week. I got blue thread locker for the flywheel nut to be safe and made my own flywheel holder and puller out of spare bolts and metal.
Picture update for now

Name:  966659_10201134054183225_5038535_o_zps19cc97d2.jpg
Views: 364
Size:  123.0 KB

Name:  461170_10201134154585735_1182998706_o_zpsefa8ec8a.jpg
Views: 360
Size:  137.0 KB

Name:  981893_10201137634112721_1963767916_o_zps57260139.jpg
Views: 368
Size:  71.7 KB
Rotary91 is offline
Old 06-06-13, 08:03 PM
  #39
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
Talking

Finally got the time and tools to install the clutch.
Bought moly grease for the shaft, bearing, and fork lubricant.
Installed a new pilot bearing seal.
Replaced the rear oil seal. (in the pictures you'll see oil track it was leaving on the rear iron)
Replaced and greased the throughout bearing.
Tightened the flywheel nut with the 3/4 drive beaker bar I bought to the factory marks and used a 250ft/lbs torque wrench to make sure I was above the minimum range, I also put blue thread locker on it.
Tightened the pressure plate bolts and voila!
Will put the tranny in with everything else to run the car this weekend as I need to break the clutch in on Tuesday in one day! Next drift event being on the 16th of June.

Name:  0606131633_zps371c7c60.jpg
Views: 356
Size:  83.6 KB

Name:  0606131820a_zps62199265.jpg
Views: 359
Size:  77.5 KB

Name:  0606131841_zpse21a5a21.jpg
Views: 355
Size:  97.1 KB
Rotary91 is offline
Old 06-06-13, 10:41 PM
  #40
OMG a Chupacabra!
iTrader: (25)

Broke_A_Baller's Avatar

Join Date: May 2012
Location: Minnesota
Posts: 1,334
Thanked 5 Times in 5 Posts
So curious....I know you said that the radiator/temps haven't exceeded 1xx, but doesnt it seem like the way that the radiator is placed along with the intercooler set up have a much poorer air flow causing it to have a higher chance of over heating? Maybe I'm not seeing something or maybe I am just wrong with my thought(s).
Broke_A_Baller is offline
Old 06-06-13, 10:52 PM
  #41
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by Broke_A_Baller View Post
So curious....I know you said that the radiator/temps haven't exceeded 1xx, but doesnt it seem like the way that the radiator is placed along with the intercooler set up have a much poorer air flow causing it to have a higher chance of over heating? Maybe I'm not seeing something or maybe I am just wrong with my thought(s).
The only thing blocking air to the radiator is the stock oil cooler, and a taurus fan is pulling air, its ice cold water and oil. Intercooler gets less air, but still doesn't seem to get hot at all, I run 10psi which is a little more than stock and the IC is way better than the stock top mount. Temps are great so far.

[R]
[A] [INTERCOLLER] <--------Air
[D] <--------Air
[I] <--------Air
[A] <--------Air
[T] [O] <--------Air
[O] [I] <--------Air
[R} [L] <--------Air

If that makes sense
Rotary91 is offline
Old 06-06-13, 11:13 PM
  #42
OMG a Chupacabra!
iTrader: (25)

Broke_A_Baller's Avatar

Join Date: May 2012
Location: Minnesota
Posts: 1,334
Thanked 5 Times in 5 Posts
Originally Posted by Rotary91 View Post

The only thing blocking air to the radiator is the stock oil cooler, and a taurus fan is pulling air, its ice cold water and oil. Intercooler gets less air, but still doesn't seem to get hot at all, I run 10psi which is a little more than stock and the IC is way better than the stock top mount. Temps are great so far.

[R]
[A] [INTERCOLLER] <--------Air
[D] <--------Air
<--------Air
[A] <--------Air
[T] [O] <--------Air
[O] <--------Air
[R} [L] <--------Air

If that makes sense
Haha yeah. Makes sense. Pretty interesting tho. Just looking at it from the pics makes it seem not as "air" efficient so to speak.
Broke_A_Baller is offline
Old 06-07-13, 02:44 AM
  #43
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts

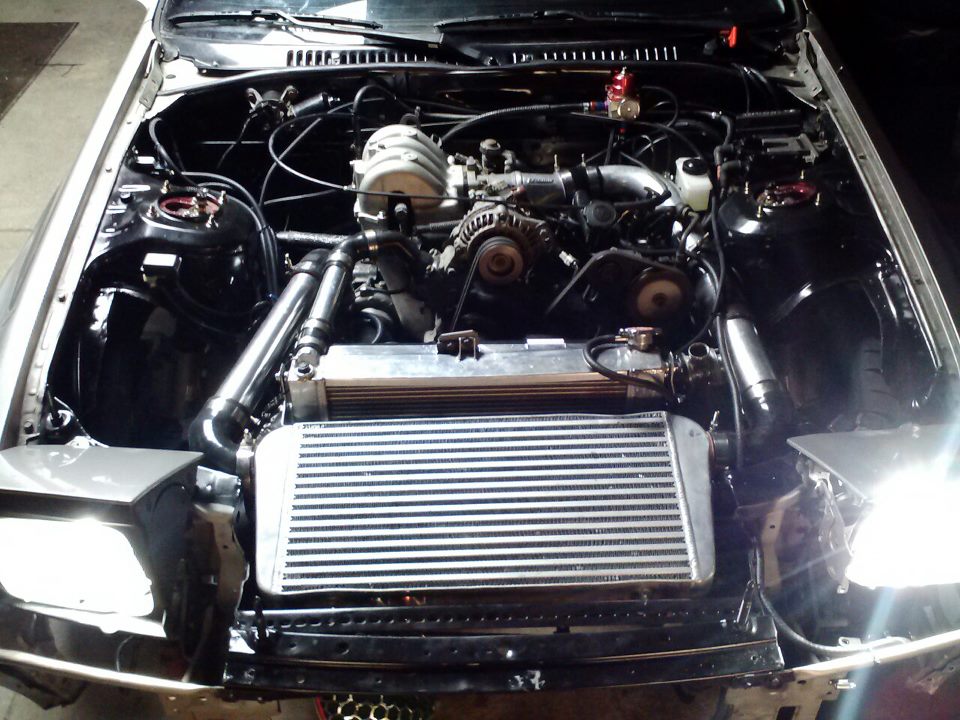

Better view

Name:  417821_10200937022177548_137882487_n_zpsab16d7bc.jpg
Views: 356
Size:  128.3 KB
Rotary91 is offline
Old 06-16-13, 11:50 AM
  #44
rottary89
iTrader: (1)

Join Date: Nov 2004
Location: OH, Cleveland
Posts: 323
Thanks: 0
Thanked 0 Times in 0 Posts
I heard the factory manual (or common sense) recommends to drain the transmission before you remove it, or before you put it back in. I'd hate to know what will happen if you don't.
2RotorSpeed is offline
Old 06-17-13, 05:02 AM
  #45
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by 2RotorSpeed View Post
I heard the factory manual (or common sense) recommends to drain the transmission before you remove it, or before you put it back in. I'd hate to know what will happen if you don't.
Yeah, common sense, I used a metal pan to capture the oil, made sure it's very clean so I can reuse it and not waste a fortune.
Rotary91 is offline
Old 07-09-13, 03:59 AM
  #46
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
Haven't updates this in a while, so here it goes.

Clutch is finally broken in, however, I found more stupid sh*t wrong with the car. Whoever did the 5 speed swap in this car completely f**cked sh*t up. The clutch pedal is missing the assistant spring, letting the clutch master return the pedal, not good. From last drift event I guess I bent a rod that's part of the tie rod end so I had to replace that in a hurry for an event that happened this past weekend.

Here's the picture of the tie rod damage and its replacement.

Name:  0701131826a_zps0ae5eb21.jpg
Views: 358
Size:  76.4 KB

Name:  1063949_10201363306514390_551752627_o_zps1d19ef67.jpg
Views: 355
Size:  93.3 KB

And a pic from the recent event.

Name:  1064324_560708847300640_1255958910_o_zps2cc8a9d1.png
Views: 357
Size:  503.9 KB
Rotary91 is offline
Old 07-18-13, 04:53 PM
  #47
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts

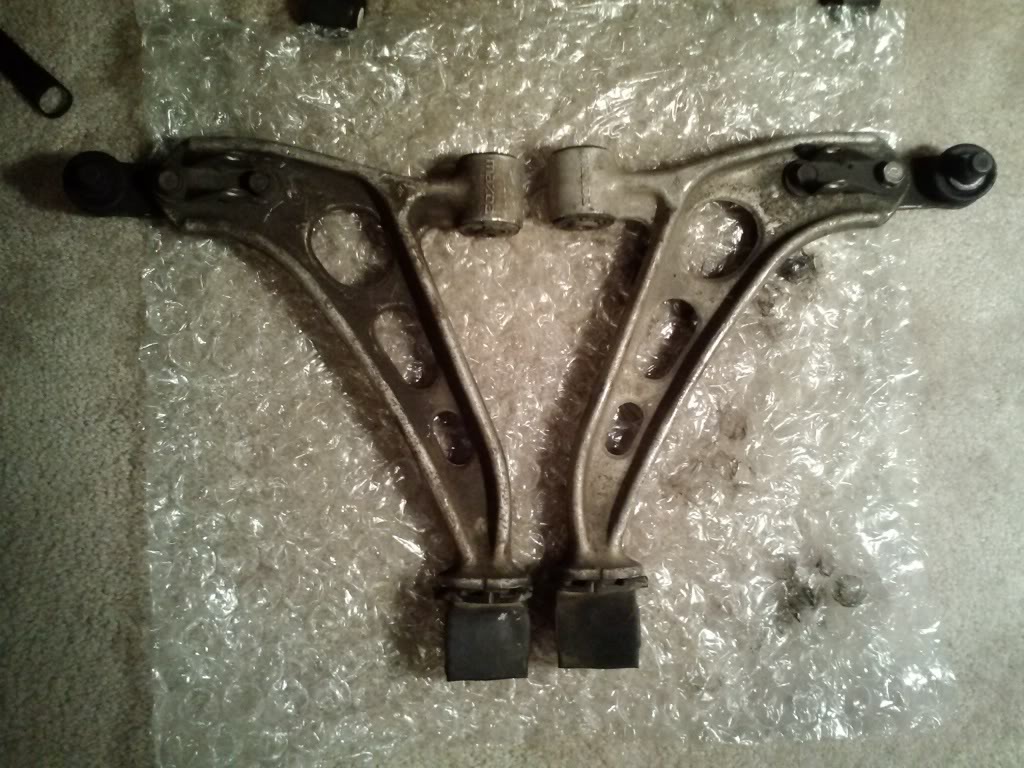

Got something to work with during the winter.

Name:  0718130056_zps4b7fa6d8.jpg
Views: 356
Size:  148.3 KB
Rotary91 is offline
Old 07-25-13, 08:10 AM
  #48
rottary89
iTrader: (1)

Join Date: Nov 2004
Location: OH, Cleveland
Posts: 323
Thanks: 0
Thanked 0 Times in 0 Posts
How's the new clutch setup?
2RotorSpeed is offline
Old 07-26-13, 06:22 PM
  #49
Full Member
Thread Starter
iTrader: (3)

Rotary91's Avatar

Join Date: Jun 2010
Location: North-East Ohio
Posts: 144
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by 2RotorSpeed View Post
How's the new clutch setup?
Its great, no slips
Rotary91 is offline
Old 10-06-13, 03:15 AM
  #50
Banned. I got OWNED!!!

Join Date: Jul 2007
Location: painesville
Posts: 23
Thanks: 0
Thanked 0 Times in 0 Posts
where at in ohio are you? im in the north east
FCdrifter88 is offline

Thread Tools
Search this Thread
Quick Reply: '90 FC3s 13B Turbo Build


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

© 2019 MH Sub I, LLC dba Internet Brands

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
