My New 84GSL jetting help needed
#1
Junior Member
Thread Starter
Join Date: Feb 2014
Location: Kansas City
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
My New 84GSL jetting help needed

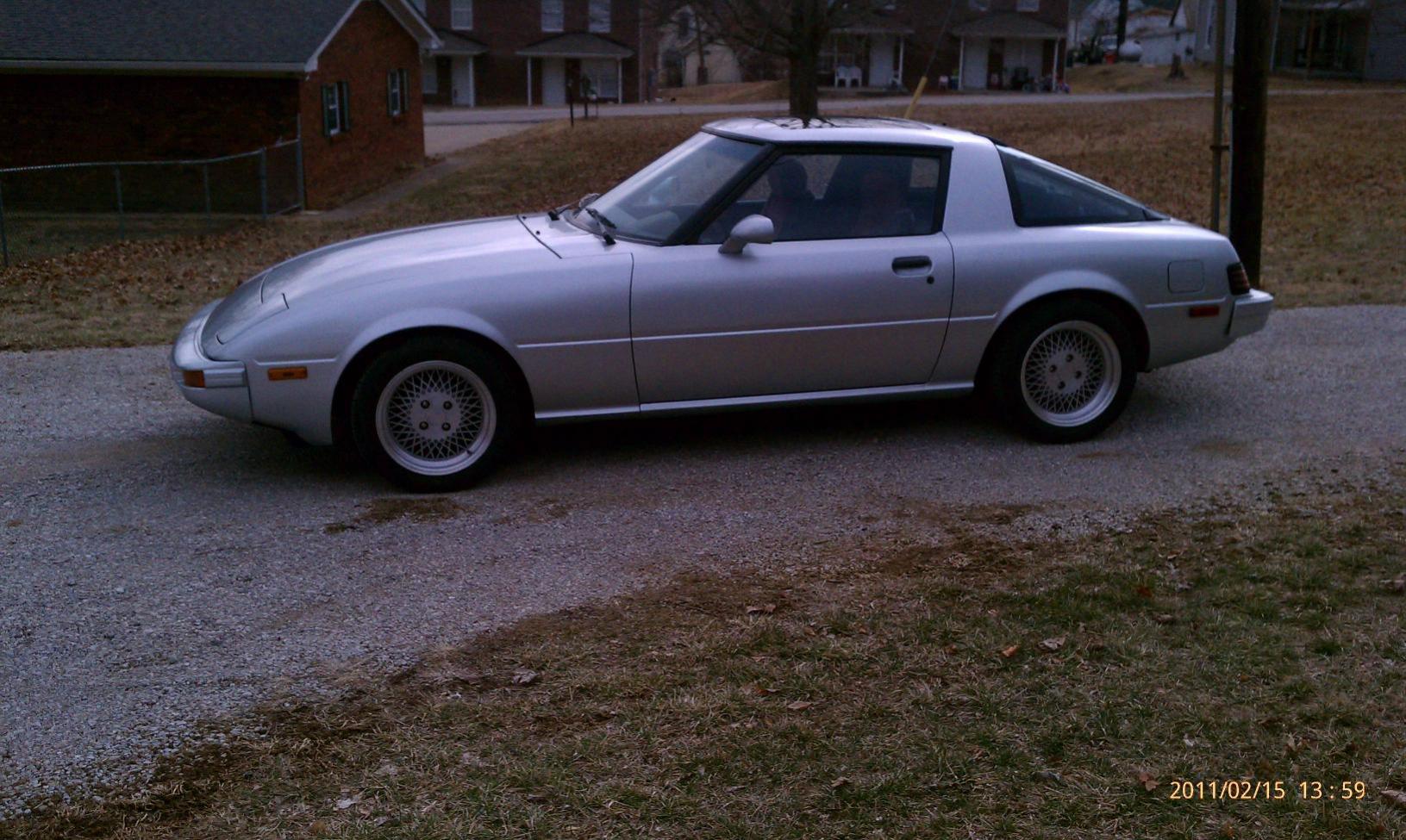

So I just purchased an 84 GSL from a member on here who purchased it from another member on here. It has a half bridge ported 4port 13b with down draft weber 48mm ida carbies. it has racing beat header and muffler 2.5" exhaust . So I haven't had a chance to put a wide band on it but has a real lean spot on transition off of the idle circuit. I thought that maybe the float adjustment might be the cause but I pulled the jets out and I have a
135 air corrector jet
F8 emulsion tube
185 main jet
10/55 idle jet
According to racing beat http://www.racingbeat.com/manuals/16602%20Weber.pdf
they have the main jet around 230. Their site doesn't have my exact setup but 185-230 is a large difference. However after the transition lean stumble the car runs smooth to redline.
135 air corrector jet
F8 emulsion tube
185 main jet
10/55 idle jet
According to racing beat http://www.racingbeat.com/manuals/16602%20Weber.pdf
they have the main jet around 230. Their site doesn't have my exact setup but 185-230 is a large difference. However after the transition lean stumble the car runs smooth to redline.
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
typically there is a lean spot between the idle and main circuits, however with an F8 tube its possible to have a RICH spot there.
some things you can try:
the air corrector controls when the mains come on, you might try a smaller one (comes on sooner) or a larger one (comes on later, start with richer first). it is perfectly valid to put a tooth pick in there, or remove it completely
second thing to try is a different idle jet.
for what its worth, i have a 12A P port, and my jetting is close to yours, i started with the RB jetting, and it doesn't run at all, i suspect that their open exhaust and my muffled exhaust make a huge difference...
some things you can try:
the air corrector controls when the mains come on, you might try a smaller one (comes on sooner) or a larger one (comes on later, start with richer first). it is perfectly valid to put a tooth pick in there, or remove it completely
second thing to try is a different idle jet.
for what its worth, i have a 12A P port, and my jetting is close to yours, i started with the RB jetting, and it doesn't run at all, i suspect that their open exhaust and my muffled exhaust make a huge difference...
#3
Junior Member
Thread Starter
Join Date: Feb 2014
Location: Kansas City
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Great advise!
So you are saying I can just block off the air corrector jet and it will cause the main to come on much sooner ?
The idle jet Seems about right with 2 turns out on the adjustment.
So you are saying I can just block off the air corrector jet and it will cause the main to come on much sooner ?
The idle jet Seems about right with 2 turns out on the adjustment.
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
Re the air corrector if you look at a cross section of the main circuit it looks like a lower case "t" with only one side of the cross. at the bottom is the fuel jet, and at the side is the passage into the venturi, and then engine. at the top is the air corrector.
so the air passing through the Venturi puts a vacuum on the fuel passage and pulls the fuel up and over, and into the engine. the air corrector sits at the top, and mixes a little air in with the fuel, but it also acts as a vacuum leak on the engines signal.
so if you make the air corrector really big, the main will have a bigger leak, and come on later, really small has the opposite effect. its perfectly valid to just plug the air corrector (tooth pick), to see what it does.
#5
Junior Member
Thread Starter
Join Date: Feb 2014
Location: Kansas City
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Ok so I got a wideband hooked up and I was correct. Right around 2000-2500 it goes way lean. If I plug the air corrector jet it seems to help some but runs way rich up top. Right now I am with a 55 idle jet. Should I go down to a 45? or even a 40?
#6
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
with the idle jet, smaller number = smaller hole = less fuel, so if anything you'd want a 60.
if it goes lean @2000-2500rpm, than you either need to get the main circuit working sooner, or the idle/transition circuit to keep working longer. or a little of both.
the idle jet holder has an air hole, and off the top i think the default is a 120, getting a 100, or making yours a 100, will extend the idle circuit a little higher.
you can also drill a 3rd transition hole, if your carb doesn't have it already.
if it goes lean @2000-2500rpm, than you either need to get the main circuit working sooner, or the idle/transition circuit to keep working longer. or a little of both.
the idle jet holder has an air hole, and off the top i think the default is a 120, getting a 100, or making yours a 100, will extend the idle circuit a little higher.
you can also drill a 3rd transition hole, if your carb doesn't have it already.
#7
Junior Member
Thread Starter
Join Date: Feb 2014
Location: Kansas City
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
3rd transition circuit? Do you have a link for this ? When I plugged the air corrector it still stumbled hard at the same rpm so I think my correction needs to be else where .
