Build Threads The place for complete build threads of 1st Gen RX-7s.

my 85 gs swapping in a gsl-se drive line

Thread Tools

Search this Thread

Old 07-01-14, 09:14 PM
  #1
back in the drivers seat

Thread Starter

rx78581's Avatar

Join Date: Mar 2007
Location: peoria
Posts: 79
Likes: 0
Received 0 Likes on 0 Posts
IL my 85 gs swapping in a gsl-se drive line

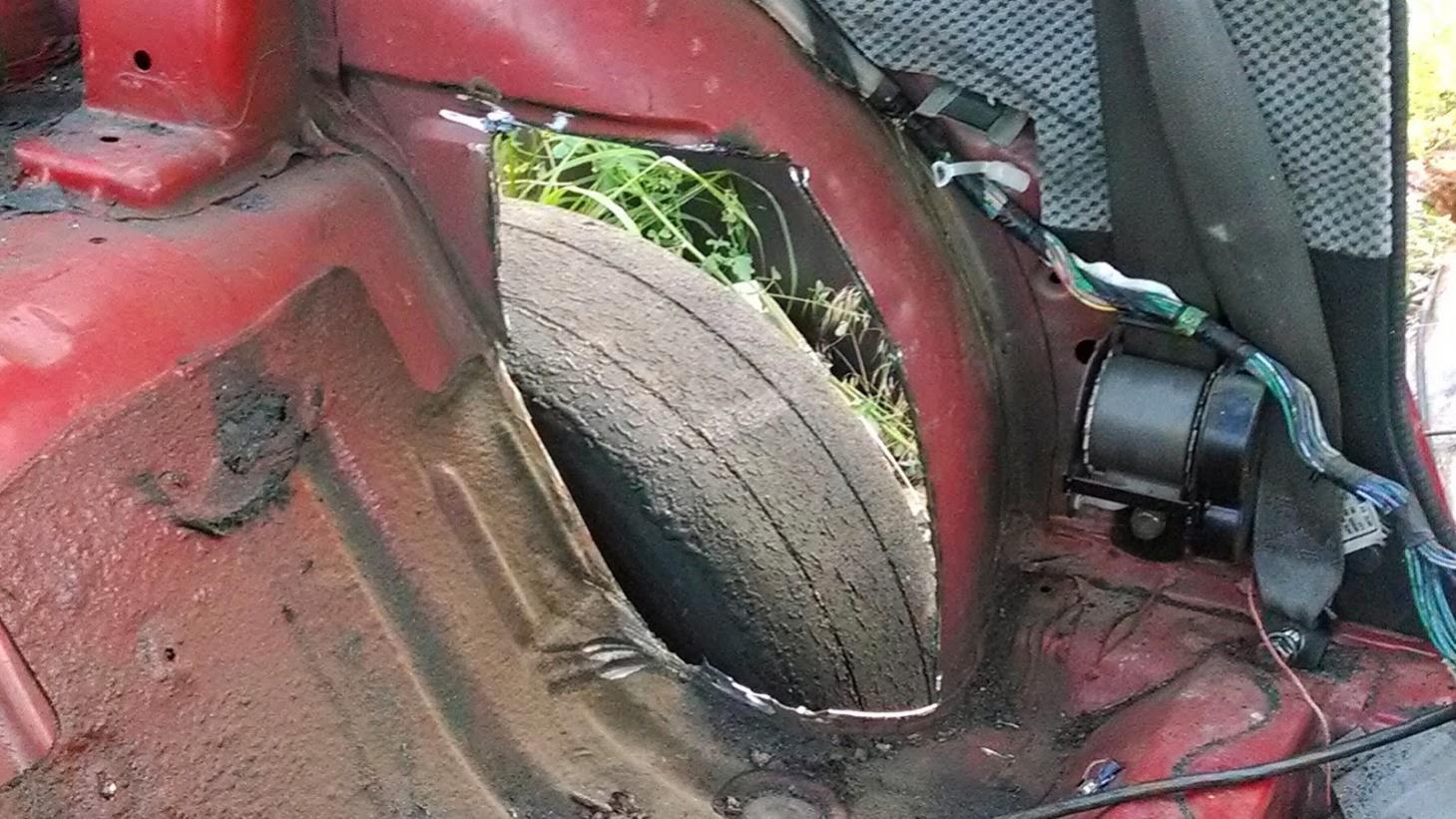

Well let me start with the history of this car. I seen it at a dealer when i was 23 back in 2002 but didnt have the money being a punk kid i meet this girl that was really into racing and her family raced formula vee in the scca circuit she seen how much i really wanted this car so she kicked my but in gear and i found a decent job on my 25 birthday she called me up and said grab my check book and to meet her at her place so i got off work and did just back she drove me to the dealer where she already had worked a deal out to a price of 1000$ i looked at her and said i dont have that much she said i know i am putting in the rest so you can afford it. I drove this car proudly till in 2005 i blew a apex seal. So it has been sitting ever since till my 35th birthday now 2014 when my now beautiful wife found me a 85 gsl-se that was running but was rotted out bad picked it up for 300$ and had it waiting for me at the house. so i am in the middle of a resto and engine swap here are some pics my 85 gs swapping in a gsl-se drive line-img_20140605_200057543.jpg

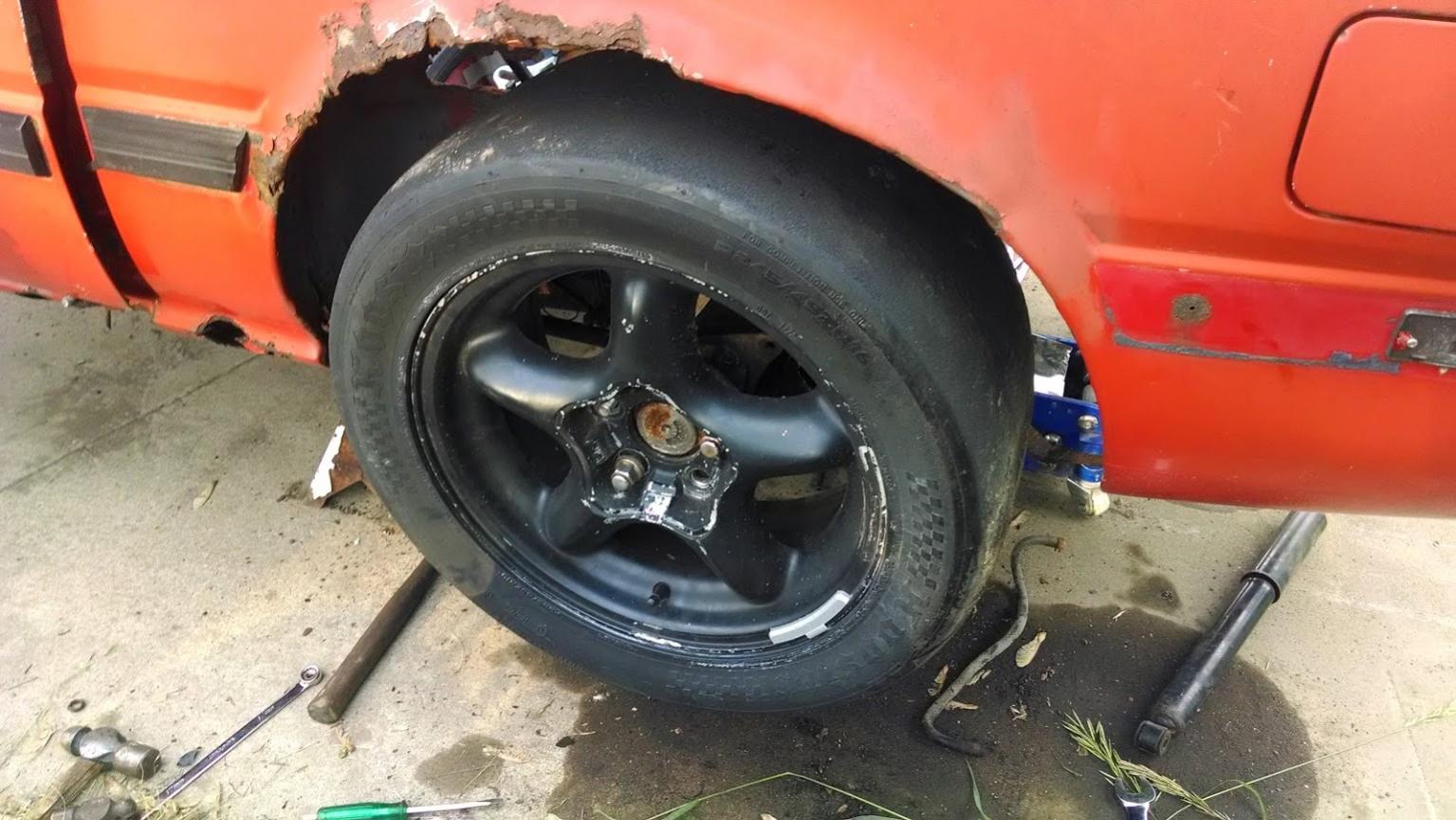

my 85 gs swapping in a gsl-se drive line-img_20140604_190642556.jpg

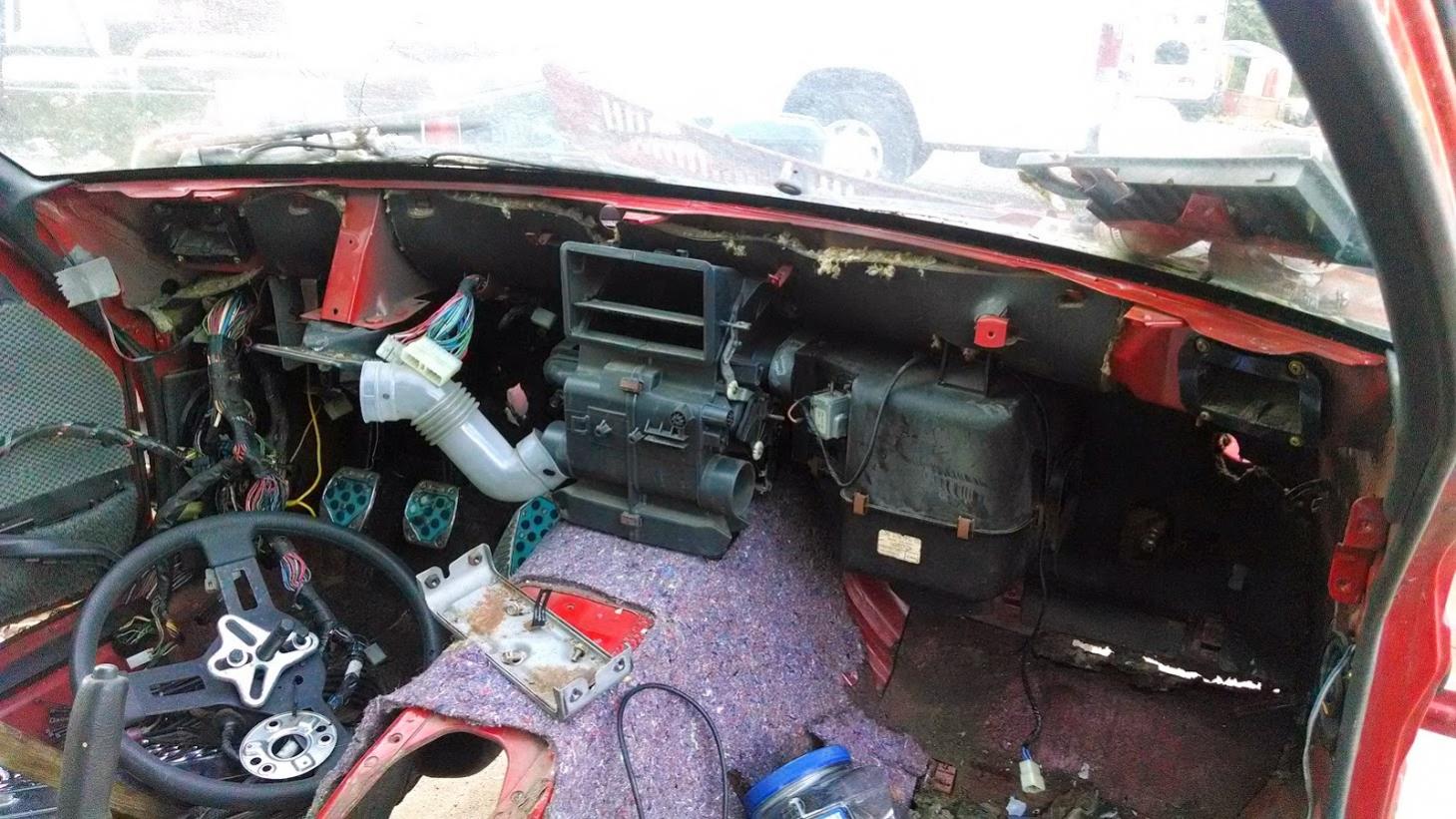

my 85 gs swapping in a gsl-se drive line-img_20140605_200111900.jpg

my 85 gs swapping in a gsl-se drive line-img_20140621_211608404.jpg

my 85 gs swapping in a gsl-se drive line-img_20140629_191249217.jpg

my 85 gs swapping in a gsl-se drive line-img_20140629_191306753.jpg
Old 07-01-14, 09:19 PM
  #2
back in the drivers seat

Thread Starter

rx78581's Avatar

Join Date: Mar 2007
Location: peoria
Posts: 79
Likes: 0
Received 0 Likes on 0 Posts
I do have a question in the middle of this I went to bolt up the trans mount and for some reason its not lining up can some one help
Old 07-01-14, 10:55 PM
  #3
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts
did you slot the front engine bracket to install the 6port?
Old 07-02-14, 07:01 AM
  #4
back in the drivers seat

Thread Starter

rx78581's Avatar

Join Date: Mar 2007
Location: peoria
Posts: 79
Likes: 0
Received 0 Likes on 0 Posts
No I didn't so the front subframe are different
Old 07-02-14, 08:06 AM
  #5
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts
13-B is longer than 12-A. Without the slot, you've pushed the engine and tranny back. Reinstall them, tranny/mount first then work on the engine bracket
Old 07-02-14, 08:19 AM
  #6
back in the drivers seat

Thread Starter

rx78581's Avatar

Join Date: Mar 2007
Location: peoria
Posts: 79
Likes: 0
Received 0 Likes on 0 Posts
I have the subframe from the gsl-se so can I just install it and correct the issue
Old 07-02-14, 08:20 AM
  #7
RX for fun

iTrader: (13)

Siraniko's Avatar

Join Date: Aug 2001
Location: Socal
Posts: 15,926
Likes: 0
Received 22 Likes on 19 Posts
Originally Posted by rx78581
I have the subframe from the gsl-se so can I just install it and correct the issue
i havent tried that yet snce slotting is less work.
Old 07-02-14, 04:47 PM
  #8
back in the drivers seat

Thread Starter

rx78581's Avatar

Join Date: Mar 2007
Location: peoria
Posts: 79
Likes: 0
Received 0 Likes on 0 Posts
Did u just use a dremel tool to notch it
Old 07-02-14, 07:12 PM
  #9
back in the drivers seat

Thread Starter

rx78581's Avatar

Join Date: Mar 2007
Location: peoria
Posts: 79
Likes: 0
Received 0 Likes on 0 Posts
Thanks for the tip knotched the bracket went right in
Old 07-07-14, 09:55 PM
  #10
back in the drivers seat

Thread Starter

rx78581's Avatar

Join Date: Mar 2007
Location: peoria
Posts: 79
Likes: 0
Received 0 Likes on 0 Posts
Well tonight was a good night fired up the car for the first time in 9years sounds great will post more pics when I am finished
