Fd 20b & fb 13b build
Modifications to Build Include:
HP Goal: Anywhere between 450-500 not exceeding 10psi

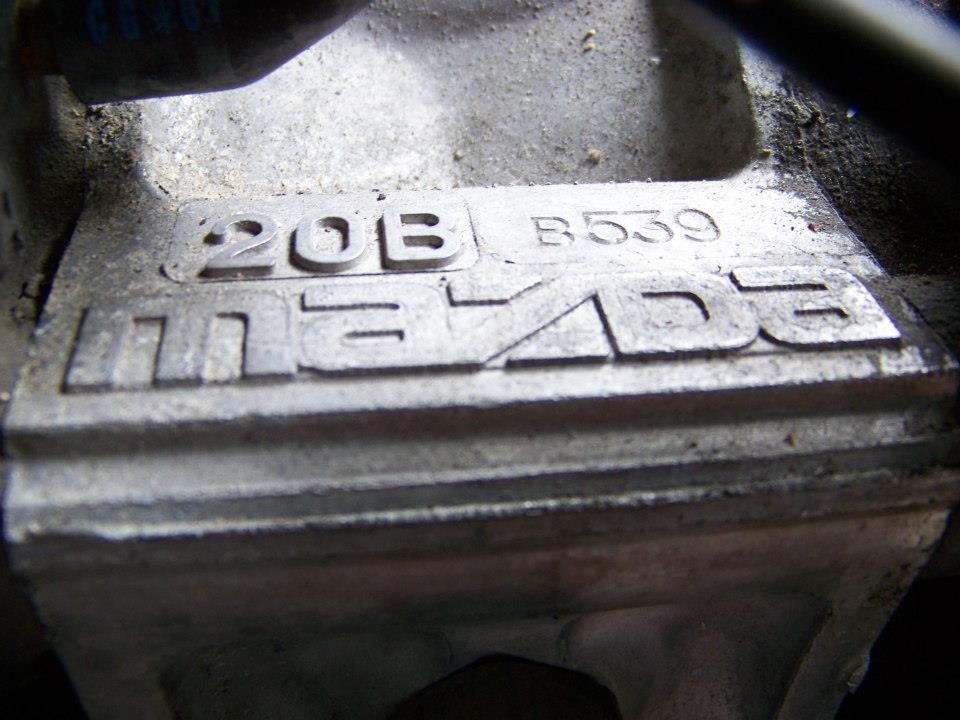

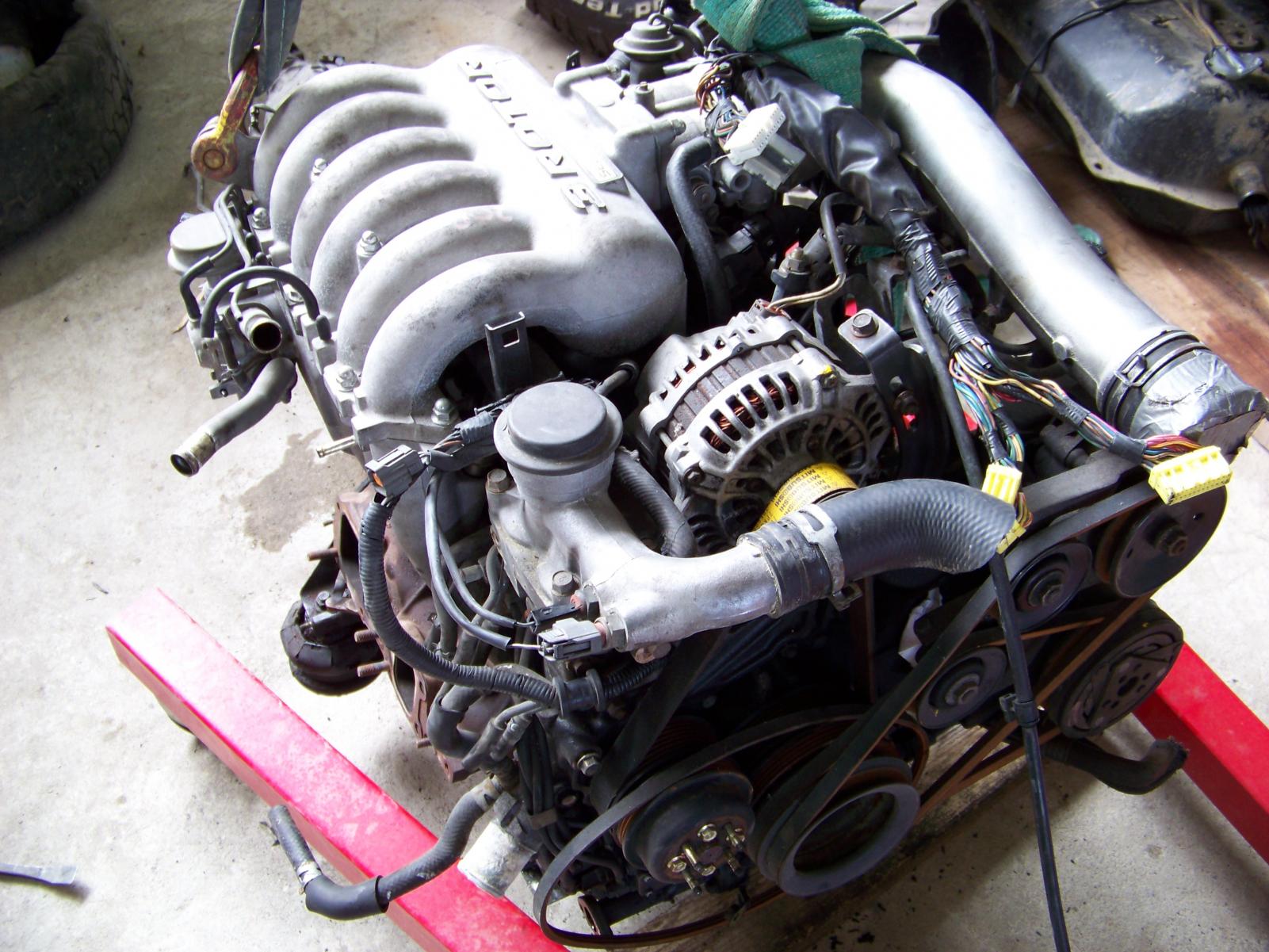

-Engine Code B539
-Defined Autoworks Subframe Kit
-Stock FD Transmission
-Small Street Port
-FD Titanium Exhaust Sleeves
-Haltech PS2000 ECU
-AEM Smartcoils
-Koyo N Flow Radiator
-KG Parts Secondary Rail and Bosch 1600cc injectors
-Stock Primary Rail (Modified To accept 6an fitting)
-CJ Motorsports Twin walbro fuel pump assembly
-Aeromotive Fuel Pressure Regulator
-Aeromotive Fuel Filter
-Earls 25 Row dual Oil coolers
-Banzai Racing Oil-pan and Diff Brace
-FD Throttle Body
-Greddy elbow

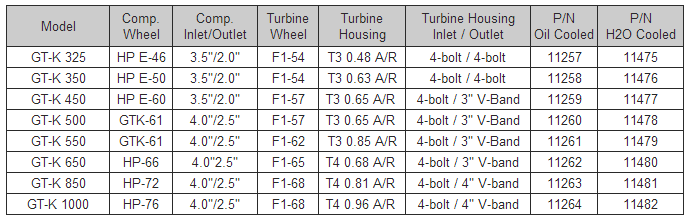

-Need Help deciding which turbo to use: I am leaning towards A Turbonetics GTK 850 Billet Turbo with a 0.96 Turbine Housing.
-TIAL V60 watstegate
-Tial Q BOV
-Coolingmist Water injection Kit
PROBLEMS / PARANOIA:
- I have done alot of research and there were mixed views on the issue of studding the motor. My motor being a Earlier series (B539) some said I should definitely get it studded, others say for my HP goals I should not stud it. I would definitely like to have the motor studded for peace of mind however finding somone to do it properly where I live is proving to be difficult and shipping cost is high.

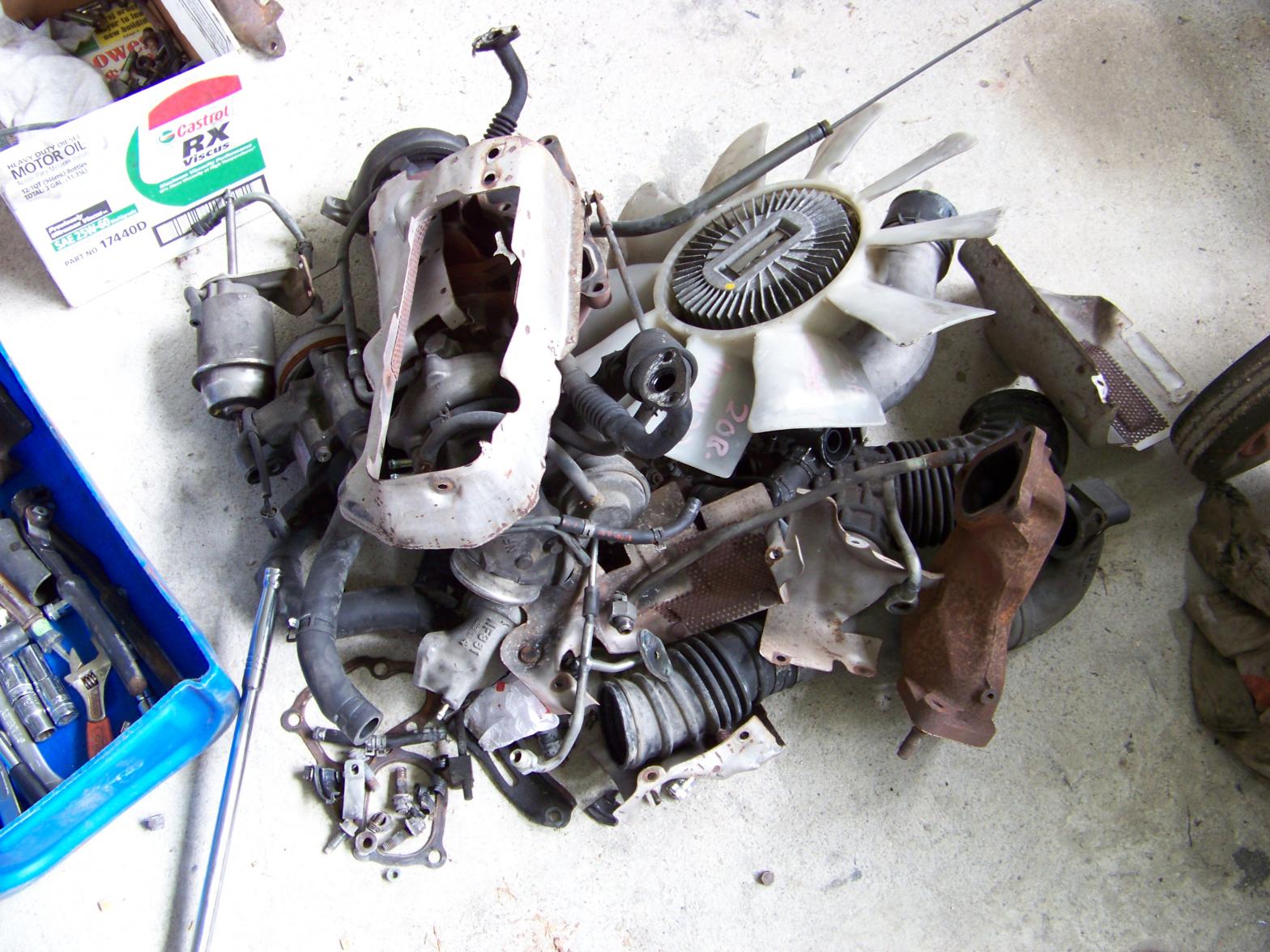

OK, So the motor that was previously in this car my intentions were to part it off and sell it but due to time and the issue of having to almost give away my recently built motor, I just decided to get a 1st gen and drop it inside:
Modifications include:
Streetported 13B Motor
ALS apex seals
APEXi Power FC
HKS Cast Iron Manifold
Turbonetics 62-1
Tial 44mm wastegate
Tial 50mm BOV
CJ motorsports pri and sec fuel rails
Siemens 550cc and Bosch 1600cc injecotors
Aeromotive Fuel Pressure Regulator
Aeromotive Fuel filters
HKS twin power ignition
Magnecore 10.5 mm Race spark plug wires
Greddy Pully Kit
Greddy Elbow
Present Situation on both cars:

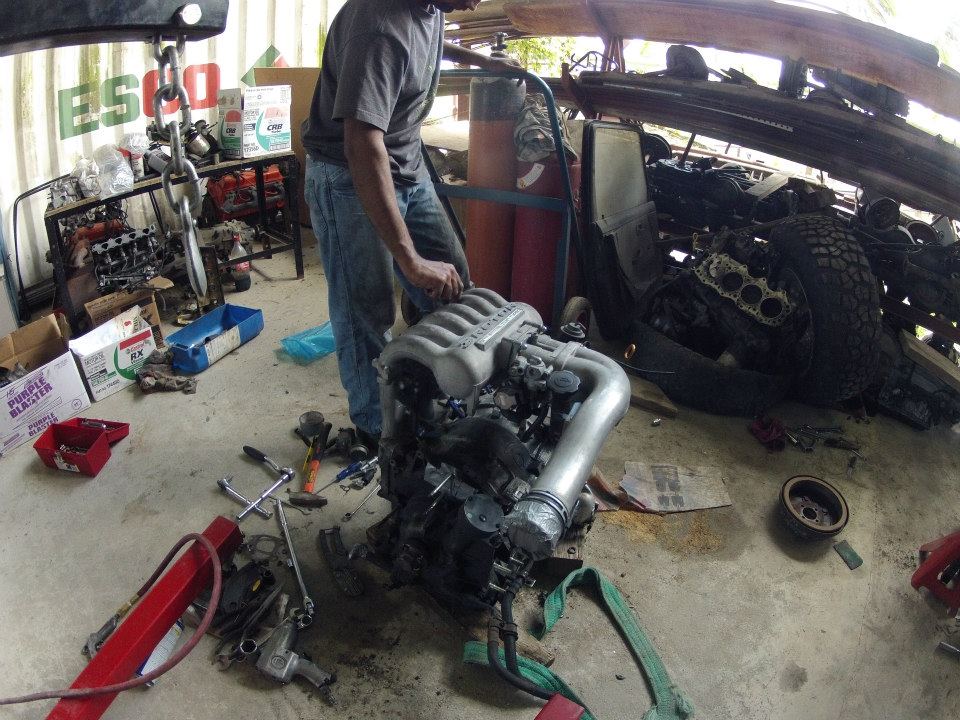

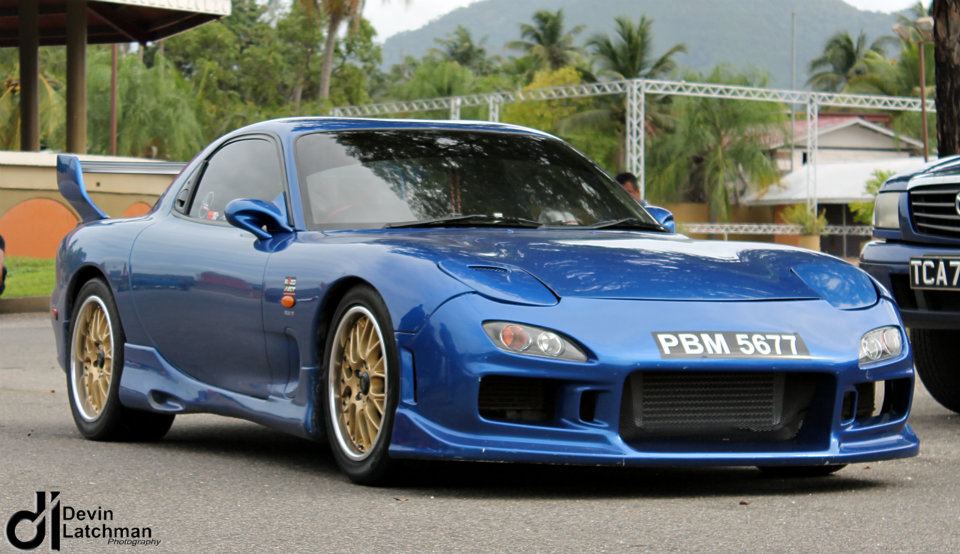

3rd gen : Motor stripped, Engine bay cleaned to be painted, awaiting subframe kit from defined autoworks

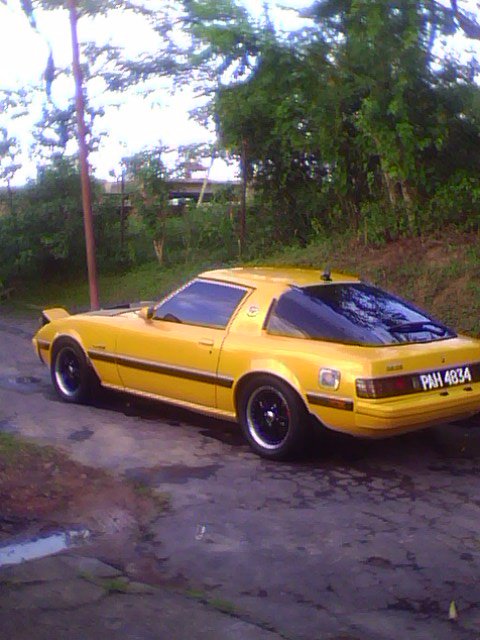

1st gen: Engine awaiting to be installed in the car.
ANY THOUGHTS AND SUGGESTIONS ON THE 20B PROJECT WOULD BE GREATLY APPRECIATED.
HP Goal: Anywhere between 450-500 not exceeding 10psi
-Engine Code B539
-Defined Autoworks Subframe Kit
-Stock FD Transmission
-Small Street Port
-FD Titanium Exhaust Sleeves
-Haltech PS2000 ECU
-AEM Smartcoils
-Koyo N Flow Radiator
-KG Parts Secondary Rail and Bosch 1600cc injectors
-Stock Primary Rail (Modified To accept 6an fitting)
-CJ Motorsports Twin walbro fuel pump assembly
-Aeromotive Fuel Pressure Regulator
-Aeromotive Fuel Filter
-Earls 25 Row dual Oil coolers
-Banzai Racing Oil-pan and Diff Brace
-FD Throttle Body
-Greddy elbow
-Need Help deciding which turbo to use: I am leaning towards A Turbonetics GTK 850 Billet Turbo with a 0.96 Turbine Housing.
-TIAL V60 watstegate
-Tial Q BOV
-Coolingmist Water injection Kit
PROBLEMS / PARANOIA:
- I have done alot of research and there were mixed views on the issue of studding the motor. My motor being a Earlier series (B539) some said I should definitely get it studded, others say for my HP goals I should not stud it. I would definitely like to have the motor studded for peace of mind however finding somone to do it properly where I live is proving to be difficult and shipping cost is high.
OK, So the motor that was previously in this car my intentions were to part it off and sell it but due to time and the issue of having to almost give away my recently built motor, I just decided to get a 1st gen and drop it inside:
Modifications include:
Streetported 13B Motor
ALS apex seals
APEXi Power FC
HKS Cast Iron Manifold
Turbonetics 62-1
Tial 44mm wastegate
Tial 50mm BOV
CJ motorsports pri and sec fuel rails
Siemens 550cc and Bosch 1600cc injecotors
Aeromotive Fuel Pressure Regulator
Aeromotive Fuel filters
HKS twin power ignition
Magnecore 10.5 mm Race spark plug wires
Greddy Pully Kit
Greddy Elbow
Present Situation on both cars:
3rd gen : Motor stripped, Engine bay cleaned to be painted, awaiting subframe kit from defined autoworks
1st gen: Engine awaiting to be installed in the car.
ANY THOUGHTS AND SUGGESTIONS ON THE 20B PROJECT WOULD BE GREATLY APPRECIATED.
Last edited by ROTARY BRAIN; 07-15-13 at 11:16 PM.
