Updates as of Late:
FMIC, Optima Red Top, Optima battery box, relocation to storage bin, and some other parts will be ordered tomorrow and will be installed as soon as I get them all in so that I can close the hood.
Pure Evil Genius
I've now put a few hundred miles on the car and have loved them all. Just within the last few days however I've had some dastardly evil thoughts cross my mind...
We set record lows here in MN for July, like highs of 60's and lows towards 50's and with 6 month winters (winter described as having snow on the ground, could be extended to 7 or 8 months with temperatures reaching freezing at night) you're always thinking about getting ready for winter...winter......winter storage!
I have some huge plans and updates that will be revealed within the next week or so after figuring out some final details on this school year. Just be assured that they are going to alter this car for the better, faster and stronger
#207
Never Follow
iTrader: (18)
Shrimp - I agree, a 12a would be more fun than a Mustang, but that's because Rx7 > all other cars lol :P
Yeah man, glad I could help you with the swap. One of these days I'd like to make a "how-to" thread about it. Currently most of the swap info is hidden within build threads like ours. Would be nice to have a how-to like I see a lot of on the Subaru forums I'm on. Oh well, maybe someday.
Yeah man, glad I could help you with the swap. One of these days I'd like to make a "how-to" thread about it. Currently most of the swap info is hidden within build threads like ours. Would be nice to have a how-to like I see a lot of on the Subaru forums I'm on. Oh well, maybe someday.
#208
Yeah man, glad I could help you with the swap. One of these days I'd like to make a "how-to" thread about it. Currently most of the swap info is hidden within build threads like ours. Would be nice to have a how-to like I see a lot of on the Subaru forums I'm on. Oh well, maybe someday.
Updates as of Yet
This week marks the two year anniversary of the car and myself. I went to my fiance's grandpa's house for his birthday (he's the one who bought the car and sold it to me) and thought I'd take a few pics.
1st Pics I Ever Received Of The Car
As She Sits
Hanging out with some buddies, mainly working on the Monster Audi
FMIC piping kit with everything necessary for installation
From turbo to TB
2.0" to 2.5" 90deg silicone elbow
2.0" t-bolt clamp for turbo
2.5" BOV adapter kit with BOV
2.5" 12 piece piping kit with 18x12x3" outside (12x11x3" core) FMIC and silicone adapters and clamps
3.25" to 2.5" silicone reducers for piping to FMIC inlet and outlet
2.5" ~2ft extra pipe
GReddy throttle body adapter
AAAAAAAAANNDD the bombshell.
I was adjusting the TPS on the car since it felt a little off. Sure enough it was at 0.7v at idle and I adjusted it up to 1.0v. While driving it would cut out at about 3,500RPM while starting to make boost. I was testing this and found that it kept doing it so I adjusted it a little more and tried again.
I boosted it and let it go back to idle and it died. Like completely died. While cranking there's no oil pressure, even while cranking with the low oil pressure problem. Car won't even fire anymore. Seriously scared I wrecked an apex seal and will need to move the rebuild date up much much sooner than expected.
You don't want to run too rich or lean, but I don't think adjusting the TPS to the correct voltage would have done that. Of course, I don't know what happened just hoping that wasn't it. I adjusted that other screw that's on the driver's side closest to the throttle body (not the one with the 8mm nut securing it) before it happened but I wouldn't think that would have done it either. I didn't check AFR's after the adjustment so that worries me. Will be testing compression first thing when I have time.
Headed down to a Dr. appointment tomorrow for a long needed surgery consultation and will try to make enough time to come home and test compression to make sure it's still good. If it's not I'm not sure what will happen with the car right now. Returning to college after the summer off really messes with your brain.
#209
Junior Member
Join Date: Sep 2012
Location: Saskatchewan
Posts: 19
Likes: 0
Received 0 Likes
on
0 Posts
The fact that it isn't firing makes me think its not an apex seal. My buddy blew 2 seals in his S4 and it still started. If the compression is good perhaps the ECU?
Whatever it is hopefully you get her diagnosed and back on the road quickly.
Whatever it is hopefully you get her diagnosed and back on the road quickly.
#210
I have a super terrible schedule here for the next week or two but hopefully I can make time to get it running and driving again. FMIC stuff should all be here and I'll start installing that no matter what here real soon
#211
Well went out and checked on the car for less than 5min last night. Found out that this fuse was blown:
So I replaced the fuse with a spare 60a fuse I had around (couldn't find a 30a) and tried cranking the engine over.
The car sputtered and fired, to which I got quite happy about. Then I noticed smoke coming from the wiring harness on my side of the car. I quickly ran and unhooked the battery and that's how the car sits right now.
I'll have to go over and through each wire to figure out if there's another fuse blown that's causing the melting wires. It's the same wire coming from that fuse to the Main Relay that was melted and I'll be double checking each and every fuse in the car as well as the grounds. Hopefully I don't need an ECU or anything.
So I replaced the fuse with a spare 60a fuse I had around (couldn't find a 30a) and tried cranking the engine over.
The car sputtered and fired, to which I got quite happy about. Then I noticed smoke coming from the wiring harness on my side of the car. I quickly ran and unhooked the battery and that's how the car sits right now.
I'll have to go over and through each wire to figure out if there's another fuse blown that's causing the melting wires. It's the same wire coming from that fuse to the Main Relay that was melted and I'll be double checking each and every fuse in the car as well as the grounds. Hopefully I don't need an ECU or anything.
#215
I never noticed a melted wire before the swap, no. I wrote that when I was really tired and I see how ya got that out of it.
Essentially:
I boosted the engine and it died when trying to idle afterwards.
I tried cranking it for maybe 3 or 4 minutes total right after it happened thinking I just killed it with an ill-adjusted idle.
I saw some smoke but thought it was just from some water I spilled on the engine when filling the cooling system.
Pushed the car and left it for a few days.
Came back and saw the EGI Comp fuse was blown and replaced it.
Again, while cranking the smoke appeared from the wiring.
I unattached the battery just to be safe and have left it again.
While feeling the wire I can feel that it is melting going to the Main Relay from the fuse box EGI Comp fuse.
I'll go through the whole wiring system tomorrow hopefully.
I have tomorrow morning off and it's pretty much my only day in the last 2 weeks and for another week. Wednesday I'm technically off but I'll be doing other things besides car work.
#216
My wiring issue:
I tested it today and it is the W/L (White/Blue) wire that goes from the 2nd gen fuse box labeled "EGI Comp" to the W/L wire in the large plug of the main relay. I tried cranking it and it melted the insulation for the length of the wire a second time. It's only that one that's out too and I already have sent money for one from a member with a good iTrader score so hopefully that can get here at the beginning of next week so I can install and test it. By then I hope to have the FMIC mounted and ready to go as well as some other things I'd like to see done in the car before too long.
New windshield installed! Now I don't have to look through a huge crack anymore and can actually enjoy the drive

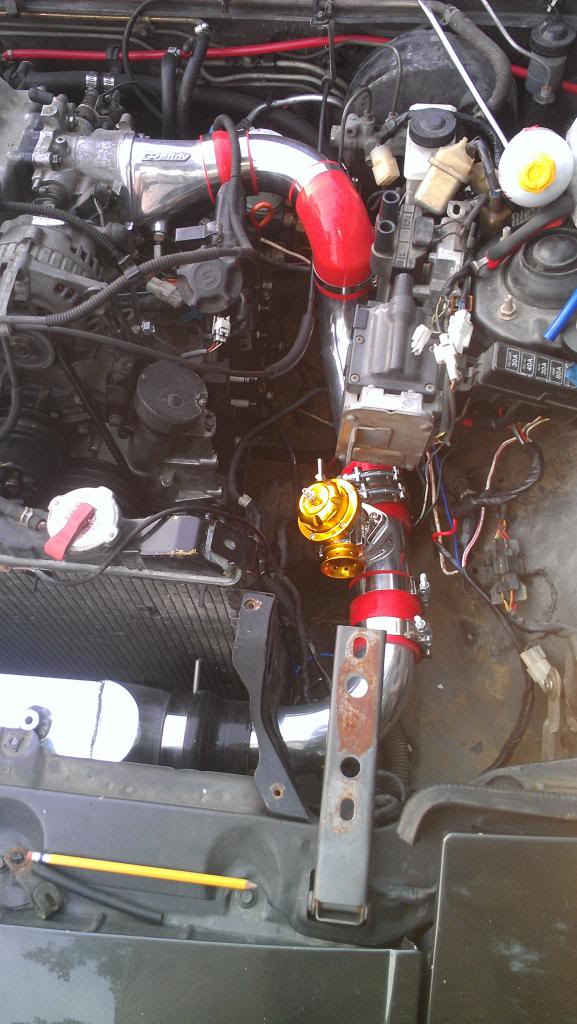

Hole through radiator support for FMIC piping - made it about 3.25in just for future needs up to 3" pipe and I'll be lining the hole with a hose cut in half so it doesn't scratch or cut into the silicone adapter that will be there

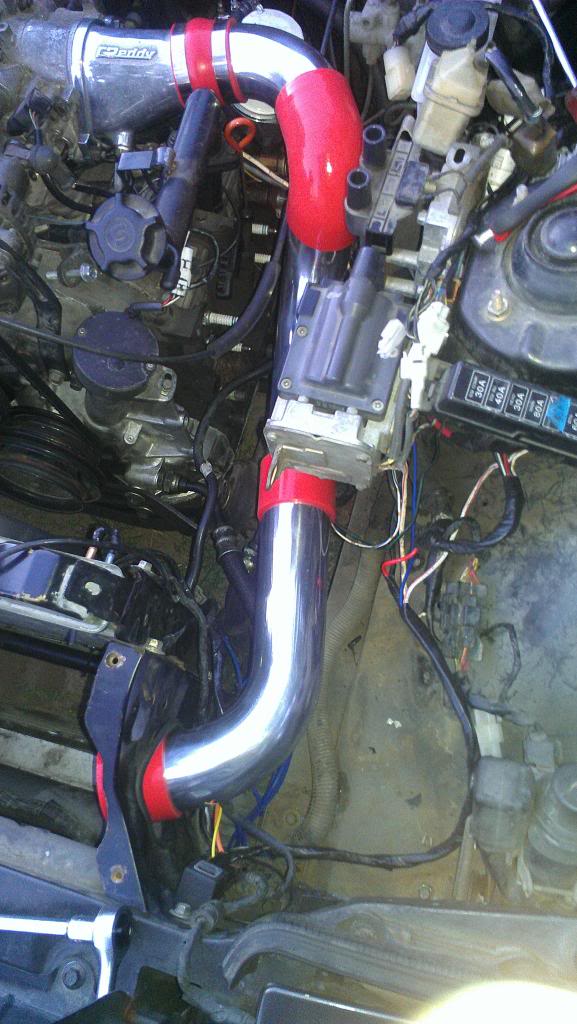

Top view of TB side of the piping - only way I could get it to clear the brake lines that made any sense. Luckily I got the kit with 12 pieces in it so I have all sorts of bends and interesting ways to run the piping
Pic of the TB adapter and its piping
Will try to make some more progress here over the next few hours before work - we will see!
I tested it today and it is the W/L (White/Blue) wire that goes from the 2nd gen fuse box labeled "EGI Comp" to the W/L wire in the large plug of the main relay. I tried cranking it and it melted the insulation for the length of the wire a second time. It's only that one that's out too and I already have sent money for one from a member with a good iTrader score so hopefully that can get here at the beginning of next week so I can install and test it. By then I hope to have the FMIC mounted and ready to go as well as some other things I'd like to see done in the car before too long.
New windshield installed! Now I don't have to look through a huge crack anymore and can actually enjoy the drive
Hole through radiator support for FMIC piping - made it about 3.25in just for future needs up to 3" pipe and I'll be lining the hole with a hose cut in half so it doesn't scratch or cut into the silicone adapter that will be there
Top view of TB side of the piping - only way I could get it to clear the brake lines that made any sense. Luckily I got the kit with 12 pieces in it so I have all sorts of bends and interesting ways to run the piping
Pic of the TB adapter and its piping
Will try to make some more progress here over the next few hours before work - we will see!
#218
Honestly I'm really not sure right now. When I crank the engine it melts that wire so I am assuming it's the Main Relay. That wire just goes straight from the 2nd gen fuse box (all the wires in the box are 12v+ hot, no duh) and none of the other wires are having an issue so I think it is the Main Relay. Will find out on Monday, have one on the way!

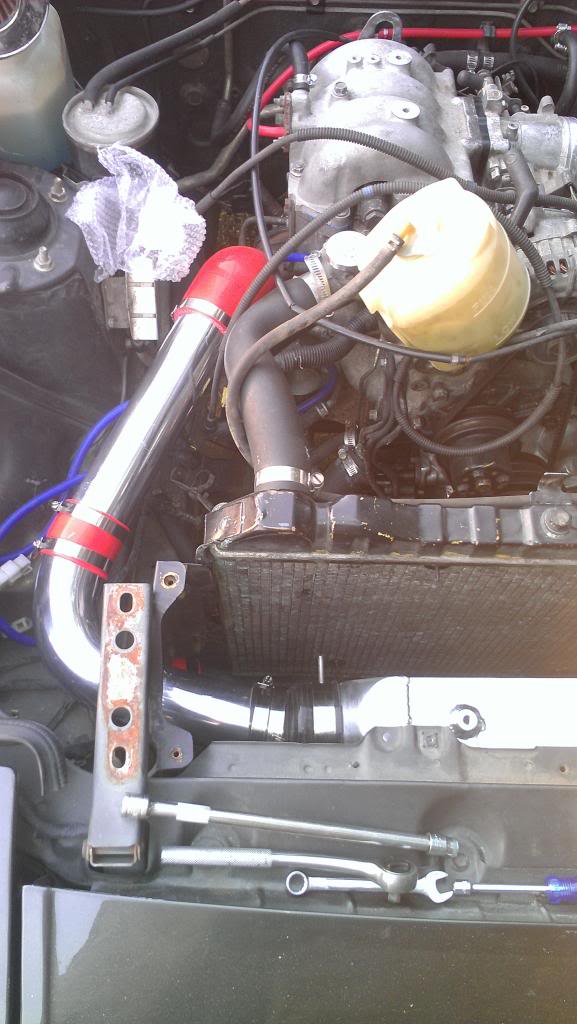

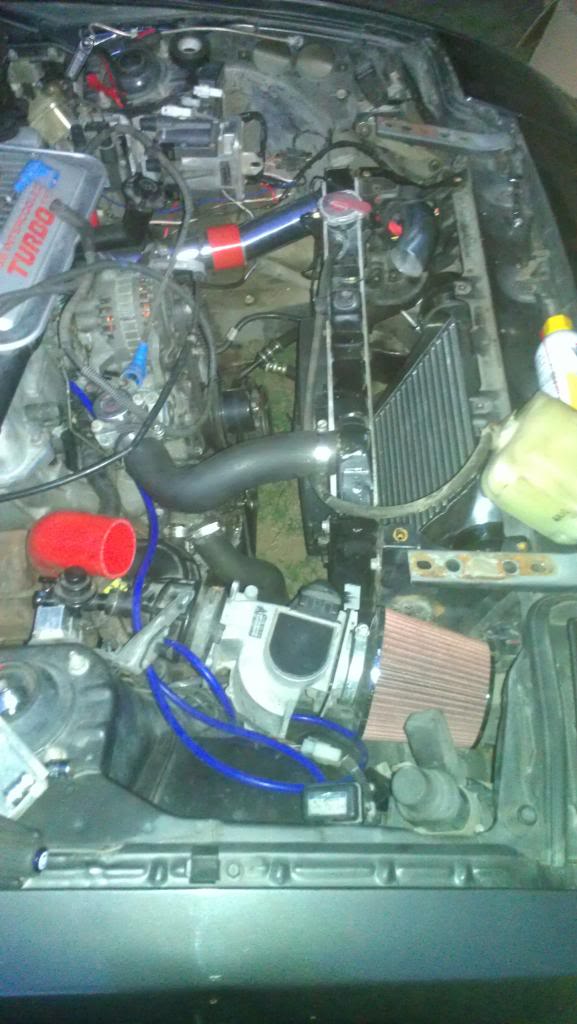

Some progress on the FMIC and finishing wiring tonight, pretty happy with its direction so far!
Wrapped up the wires near the firewall and cleaned them up tremendously so they actually look presentable now
Took out battery tray and cleaned up the wiring on that side a bit
TB side without battery tray and cleaned up wiring
How the engine bay looked after I couldn't take the mosquitos anymore
Some progress on the FMIC and finishing wiring tonight, pretty happy with its direction so far!
Wrapped up the wires near the firewall and cleaned them up tremendously so they actually look presentable now
Took out battery tray and cleaned up the wiring on that side a bit
TB side without battery tray and cleaned up wiring
How the engine bay looked after I couldn't take the mosquitos anymore
#219
Accidentally posted here. Woops.
Well, personal update just because then!
I'm going back to the University of Minnesota - Twin Cities campus here starting the day after Labor Day. I'll be living with family closer to the campus with the garage that I have stored my car in the last two winters. It's very small and cramped but if I play my cards right I can use it enough to swap out to an FC subframe and do a full 5 lug swap. This will be among other things but I won't disclose them until later when more things are decided. I also have to have a surgery over winter break so I wouldn't be able to use the almost month long break to get car stuff done but that's whatever.
Well, personal update just because then!
I'm going back to the University of Minnesota - Twin Cities campus here starting the day after Labor Day. I'll be living with family closer to the campus with the garage that I have stored my car in the last two winters. It's very small and cramped but if I play my cards right I can use it enough to swap out to an FC subframe and do a full 5 lug swap. This will be among other things but I won't disclose them until later when more things are decided. I also have to have a surgery over winter break so I wouldn't be able to use the almost month long break to get car stuff done but that's whatever.
Last edited by DreamInRotary; 08-16-13 at 10:32 PM.
#220

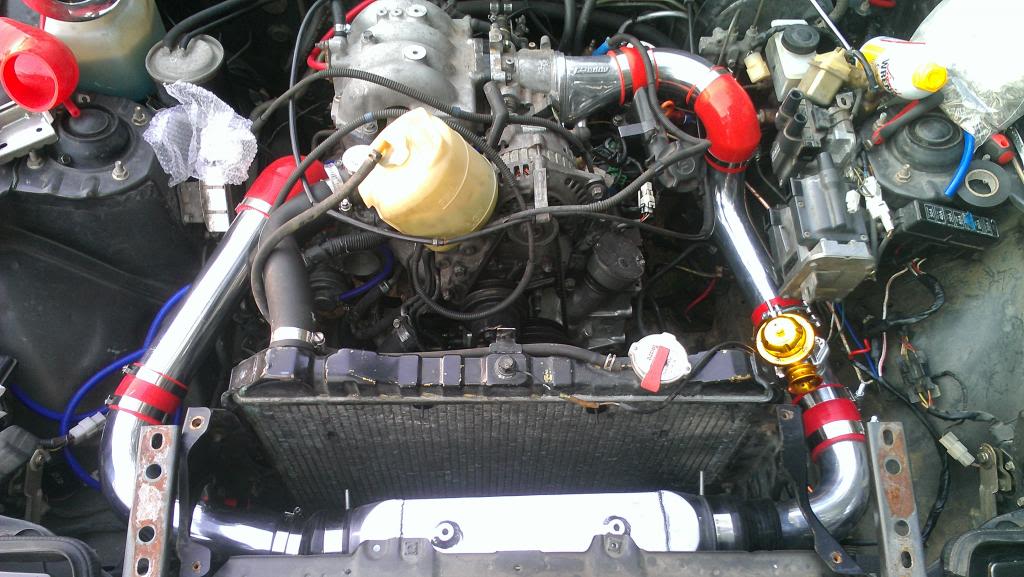

Got the FMIC and piping all finalized tonight!
Will be making brackets out of flat steel tomorrow morning probably and getting it all finished up. This is what it will look like though, pretty happy with it.

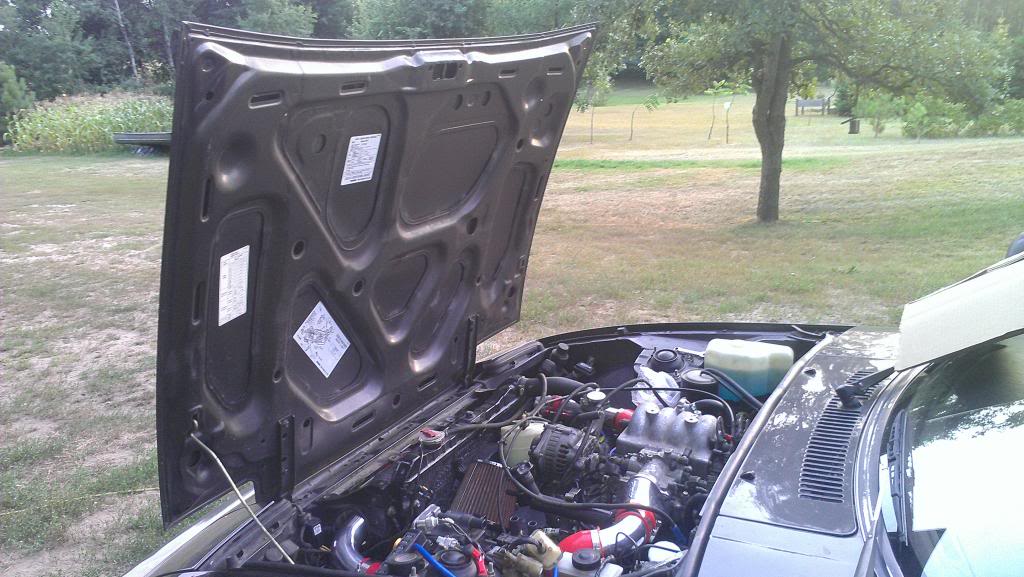

Also reunited my hood with my car, such a glorious reunion
Can't wait to get it running again!
Will be making brackets out of flat steel tomorrow morning probably and getting it all finished up. This is what it will look like though, pretty happy with it.
Also reunited my hood with my car, such a glorious reunion
Can't wait to get it running again!
