Old Jun 1, 2025 | 06:36 PM
  #51
t_g_farrell's Avatar
Waffles - hmmm good
Tenured Member: 20 Years
Community Favorite
iTrader: (1)

Joined: Jul 2004
Posts: 9,198
Likes: 440
From: Lake Wylie, N.C.
Mount them up by the battery and run some longer spark plug cables.
Reply
Old Jun 2, 2025 | 06:42 AM
  #52
82transam's Avatar
Never Follow
Tenured Member: 20 Years
iTrader: (18)

Joined: Feb 2002
Posts: 8,384
Likes: 112
From: North Jersey
I am using IGN-1A on mine and drew up a custom bracket and had sendcutsend laser it out. Puts all 4 coils back near the clutch/brake master cylinder. All the relays that used to live there are long gone so its unused space. The pic isn't the best, but there is plenty of space for plug wires (using 90 degree boots) and still plenty of room to access the clutch master cyl. Also note - that is a NB miata brake booster/master cylinder which takes up less space than the FB parts - but I believe this would still work with the stock booster. You are using different coils, but I imagine they are the same size, or smaller than the IGN-1A



Reply
Old Jun 4, 2025 | 11:29 AM
  #53
82transam's Avatar
Never Follow
Tenured Member: 20 Years
iTrader: (18)

Joined: Feb 2002
Posts: 8,384
Likes: 112
From: North Jersey
Worth noting - the Rx8 speedometer gets it's signals from the ABS/wheel speed sensors, there is no VSS on the transmission itself. To run my speedometer I use a speedhut speedbox - specifically the one with the Ford clip on style connection. A bit of trimming is needed, but it fits the SA/FB/FC speedometer perfectly.

https://speedhut.com/accessories/sen...eed-converter/

Reply
Old Jun 4, 2025 | 12:06 PM
  #54
GySgtFrank's Avatar
Senior Member
Tenured Member: 15 Years
iTrader: (4)

Joined: Dec 2010
Posts: 619
Likes: 169
From: Stafford, Ks.
Originally Posted by 82transam
Worth noting - the Rx8 speedometer gets it's signals from the ABS/wheel speed sensors, there is no VSS on the transmission itself. To run my speedometer I use a speedhut speedbox - specifically the one with the Ford clip on style connection. A bit of trimming is needed, but it fits the SA/FB/FC speedometer perfectly.
Ooh! I need that too and didn't even know it yet. Thanks.
Reply
Old Jun 4, 2025 | 02:38 PM
  #55
t_g_farrell's Avatar
Waffles - hmmm good
Tenured Member: 20 Years
Community Favorite
iTrader: (1)

Joined: Jul 2004
Posts: 9,198
Likes: 440
From: Lake Wylie, N.C.
Yeah if I decide to swap in the 6 speed RX-8 tranny I'll definitely want one of these.
Reply
Old Jun 4, 2025 | 05:41 PM
  #56
Toruki's Avatar
Rotary Enthusiast
Tenured Member: 15 Years
Liked
Loved
Community Favorite

Joined: Oct 2010
Posts: 1,294
Likes: 345
From: MA USA
$500!

Neat thing though, and with it driving the speedometer mechanically, you'll also get an accurate odometer. It says no calibration necessary so I wonder how it adjusts to different scenarios. It knows the speed and distance by GPS, but how does it actually understand how many revolutions should be supplied to the back of the speedo?
Reply
Old Jun 4, 2025 | 06:11 PM
  #57
t_g_farrell's Avatar
Waffles - hmmm good
Tenured Member: 20 Years
Community Favorite
iTrader: (1)

Joined: Jul 2004
Posts: 9,198
Likes: 440
From: Lake Wylie, N.C.
If you read the directions it has a pretty neat way to recalibrate it for instance when tire or wheel size are not stock etc. Its worth the $500.00 price tag. It can use GPS and/or a digital tooth wheel pulse too.
Reply
Old Jun 5, 2025 | 11:05 AM
  #58
82transam's Avatar
Never Follow
Tenured Member: 20 Years
iTrader: (18)

Joined: Feb 2002
Posts: 8,384
Likes: 112
From: North Jersey
Yeah the instructions go into more detail, but basically the stock speedo is calibrated to be XXX rotations per mile per hour and this is a (mostly) standardized thing so that is what the speedhut defaults to. You can easily calibrate it if your speedo isn't 100% right - and it works very well.

$500 is a lot, but compared to the $3000+ worth of Haltech gear in the car it's not that bad lol
Reply
Old Jun 5, 2025 | 12:44 PM
  #59
82transam's Avatar
Never Follow
Tenured Member: 20 Years
iTrader: (18)

Joined: Feb 2002
Posts: 8,384
Likes: 112
From: North Jersey
Also, if you guys haven't seen need-a-t2's thread about Rene swapping an FC I will link it below - lots of great info and this is where I found that the Speedhut speedbox with Ford clip would work. He is also running the Rx8 ECU so that is an option if someone were inclined to do it that way.

https://www.rx7club.com/other-engine...s-how-1158992/
Reply
Old Jun 11, 2025 | 09:40 PM
  #60
Syscrush's Avatar
Full Member
Tenured Member: 20 Years

Joined: Oct 2003
Posts: 57
Likes: 3
From: Toronto, ON
Originally Posted by RX7_Renesis
I'm too far down the rabbit hole to revert back to the SA or FB transmission. The biggest challenge will be the clearance or height of the Renesis intake system. Chip was planning to fabricate some sort of elbow on his CNC machine. Unfortunately that was one of the custom parts that was not completed.
IMO it would make sense to go with 3D printing for the adapter. Consumer printers from Bambu can print in high temp, carbon fiber reinforced nylon, which is what modern intake manifolds and fuel rails are made from. Depending on how complex a part you need, I might be able to help. LMK.
Reply
Old Jun 12, 2025 | 11:38 AM
  #61
KansasCityREPU's Avatar
Out In the Barn
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (9)

Joined: Mar 2005
Posts: 6,668
Likes: 1,238
From: KC
Originally Posted by Syscrush
IMO it would make sense to go with 3D printing for the adapter. Consumer printers from Bambu can print in high temp, carbon fiber reinforced nylon, which is what modern intake manifolds and fuel rails are made from. Depending on how complex a part you need, I might be able to help. LMK.
I'm not that great at CAD, Fusion360, but I do have a BambuLab X1C so if anyone needs something printed let me know.
Reply
Old Jun 12, 2025 | 04:39 PM
  #62
yeti's Avatar
Rotary Enthusiast
Tenured Member: 20 Years
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Mar 2006
Posts: 1,015
Likes: 69
From: Knoxville, TN
I could be available to help in designing a solution.
Reply
Old Jun 30, 2025 | 06:25 PM
  #63
RX7_Renesis's Avatar
Thread Starter
Senior Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Aug 2021
Posts: 347
Likes: 143
From: Ontario, Canada
ON Project Update | Custom Side Mount Alternator Bracket

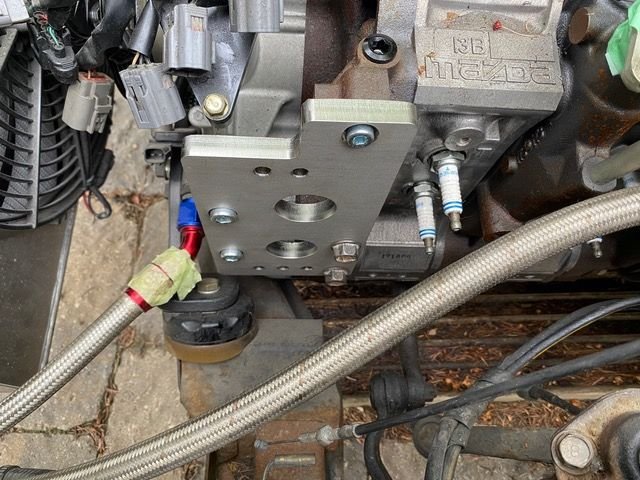

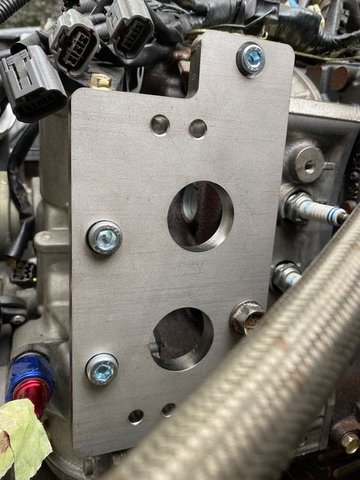

I have a sample template for my custom side mount alternator bracket. Interesting to note that the bolt thread pitch for the RX7 front iron is different than the thead pitch for the RX8 front iron. I will have to source some dress-up bolts to match.

Next step will be to fabricate this bracket out of aluminum.




Reply
Old Jul 7, 2025 | 08:36 AM
  #64
Syscrush's Avatar
Full Member
Tenured Member: 20 Years

Joined: Oct 2003
Posts: 57
Likes: 3
From: Toronto, ON
Are you doing the template in mild steel and the final part in aluminum? Wouldn't it make more sense to do the template from a material that's easier to machine?
Reply
Old Jul 7, 2025 | 09:12 AM
  #65
RX7_Renesis's Avatar
Thread Starter
Senior Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Aug 2021
Posts: 347
Likes: 143
From: Ontario, Canada
ON

The template was made from a scrap piece of steel that was close enough in size to start with.

The final part will be aluminum and powder coated.

Reply
Old Jul 11, 2025 | 08:05 AM
  #66
Syscrush's Avatar
Full Member
Tenured Member: 20 Years

Joined: Oct 2003
Posts: 57
Likes: 3
From: Toronto, ON
Originally Posted by RX7_Renesis
The template was made from a scrap piece of steel that was close enough in size to start with.

The final part will be aluminum and powder coated.
Cool.

LMK if you want help designing or printing an adapter for that intake.
Reply
Old Jul 11, 2025 | 09:54 PM
  #67
RX7_Renesis's Avatar
Thread Starter
Senior Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Aug 2021
Posts: 347
Likes: 143
From: Ontario, Canada
Thanks Syscrush .. PM sent.

Reply
Old Aug 4, 2025 | 11:04 AM
  #68
RX7_Renesis's Avatar
Thread Starter
Senior Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Aug 2021
Posts: 347
Likes: 143
From: Ontario, Canada
ON

A new challenge .. or as they say in today's work environment, a new opportunity.

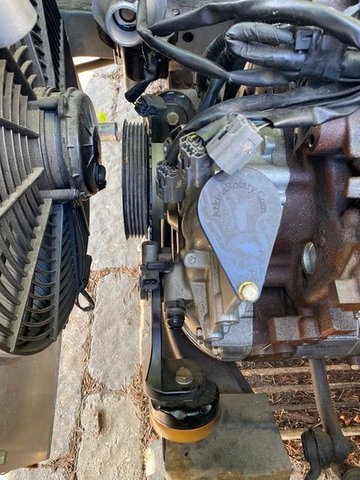

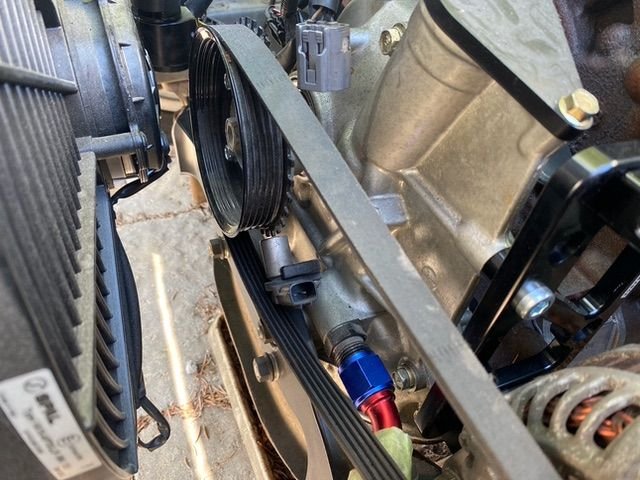

I temporarily installed the side mount alternator bracket (shout out to Franklin Motorsports for their support) and noticed that the factory V-Belt makes contact with the crank angle sensor. It is close to the oil cooler line but does not touch. I'm open to any ideas or suggestions.

** Stock 13B Renesis with GSL-SE front cover for mounting **











Reply
Old Aug 4, 2025 | 12:34 PM
  #69
GySgtFrank's Avatar
Senior Member
Tenured Member: 15 Years
iTrader: (4)

Joined: Dec 2010
Posts: 619
Likes: 169
From: Stafford, Ks.
The only reasonable suggestion that comes to me would be to mount your alternator lower, so the belt clears both the sensor and the oil cooler line. An idler pulley would not help you much.
Reply
Old Aug 4, 2025 | 03:23 PM
  #70
t_g_farrell's Avatar
Waffles - hmmm good
Tenured Member: 20 Years
Community Favorite
iTrader: (1)

Joined: Jul 2004
Posts: 9,198
Likes: 440
From: Lake Wylie, N.C.
Or go back to using a non ribbed OEM vbelt which is skinnier and should be very adequate for driving the AC compressor. Another thought is to shim the pulleys out a bit but not sure how that would workout.
Reply
Old Aug 6, 2025 | 10:01 AM
  #71
RX7_Renesis's Avatar
Thread Starter
Senior Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Aug 2021
Posts: 347
Likes: 143
From: Ontario, Canada
ON

Thank you both for your suggestions. I went through the box of spare parts that Chip (Chips Motorsports) had included, and I'm almost wondering if he had the same idea as what GySgtFrank suggested.

By mounting the alternator lower and feeding the oil cooler line through the upper and lower path of the alternator belt, there might be just enough room to clear without any interference. This will require another revision to the side mount alternator bracket.









Reply
Old Aug 6, 2025 | 10:12 AM
  #72
t_g_farrell's Avatar
Waffles - hmmm good
Tenured Member: 20 Years
Community Favorite
iTrader: (1)

Joined: Jul 2004
Posts: 9,198
Likes: 440
From: Lake Wylie, N.C.
Originally Posted by RX7_Renesis
Thank you both for your suggestions. I went through the box of spare parts that Chip (Chips Motorsports) had included, and I'm almost wondering if he had the same idea as what GySgtFrank suggested.

By mounting the alternator lower and feeding the oil cooler line through the upper and lower path of the alternator belt, there might be just enough room to clear without any interference. This will require another revision to the side mount alternator bracket.
If you do that then every time that belt needs changed, the oil line would have to be disturbed. It is a solution though.
Reply
Old Aug 8, 2025 | 12:49 PM
  #73
j9fd3s's Avatar
Moderator
Community Builder
Liked
Loved
Community Favorite
iTrader: (3)

Joined: Mar 2001
Posts: 31,796
Likes: 3,210
From: https://www2.mazda.com/en/100th/
maybe putting a stock water pump would be an option? then the alt would be out of the way.
i realize this is not any fun
Reply
Old Aug 8, 2025 | 07:37 PM
  #74
Toruki's Avatar
Rotary Enthusiast
Tenured Member: 15 Years
Liked
Loved
Community Favorite

Joined: Oct 2010
Posts: 1,294
Likes: 345
From: MA USA
For the oil cooler line could you go up with a 90 and then back and run behind the alternator, the dive under it toward the front? It's a longer line and kind of goofy but you wouldn't have to pull it off in order to change a belt.

For the crank angle sensor can you make a bracket to raise the sensor and then adjust the rotation of the teeth?

Sorry if these suggestions are just too goofy!
Reply
Old Aug 23, 2025 | 02:56 PM
  #75
RX7_Renesis's Avatar
Thread Starter
Senior Member
Liked
Loved
Community Favorite
iTrader: (1)

Joined: Aug 2021
Posts: 347
Likes: 143
From: Ontario, Canada
ON Custom Side Mount Alternator Bracket

The alternator pulley now lines up with the main crank pulley. I need to relocate the upper bracket forward just a few millimetres to line up with the RX8 alternator before I reproduce the bracket in aluminum.





This is physically as low as the alternator bracket can be mounted. I will shave a bit off the bottom of the alternator mount to help clear the engine front mount hockey puck.




The alternator belt still rubs against the crank angle sensor mount.




I'm going to look into reorienting the crank angle sensor to more of a horizontal vs. angled mount, similar to this 3-rotor engine.


Reply
