Started tear down of 13b. 100000kms
#1
Junior Member
Thread Starter
Join Date: Mar 2008
Location: brockville, ontario
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
Started tear down of 13b. 100000kms
No measurements yet. No gouges on any iron or housings just by feeling with fingernail. No copper visible on any of the bearings surfaces. Other than that can you guys guide me a bit by these pics? Thanks for your help.

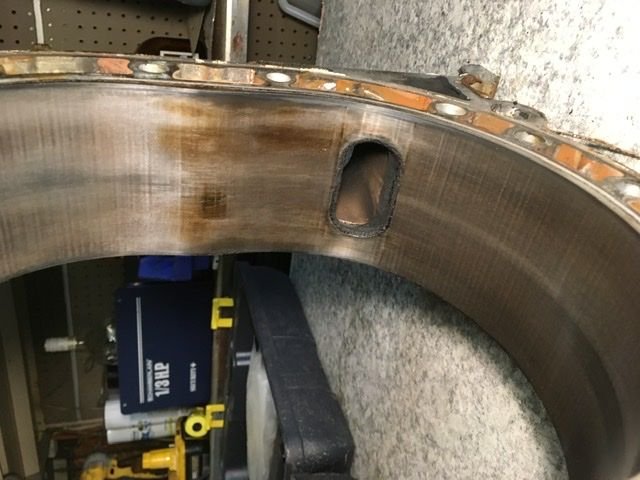

Rear iron 1
Rear iron 2
This was damaged while using a block of wood to stop rotating assembly from moving. Can I grind it down and smooth it out? Apex seal won’t come out. 3
Rear rotor 4
5
Rear housing 6
7
8
9
Front iron 10
Front housing 11
Front housing. 12
Rear iron 1
Rear iron 2
This was damaged while using a block of wood to stop rotating assembly from moving. Can I grind it down and smooth it out? Apex seal won’t come out. 3
Rear rotor 4
5
Rear housing 6
7
8
9
Front iron 10
Front housing 11
Front housing. 12
#2
RX-7 Bad Ass
iTrader: (55)
That rotor is done. The "block of wood" thing scares me .
One of the rotor housings looks like it has some chatter marks.
Dale
One of the rotor housings looks like it has some chatter marks.
Dale
The following users liked this post:
gracer7-rx7 (02-11-20)
#4
Junior Member
Thread Starter
Join Date: Mar 2008
Location: brockville, ontario
Posts: 16
Likes: 0
Received 0 Likes
on
0 Posts
This might be the culprit to chatter marks.
Apex seal was not seated properly which must have caused chattering in housing. Is there a company in Ontario that I can use to resurface my parts. I have searched with no definite solutions. I know about REC specialties but maybe someone more local. As long as my parts meet required specs for rebuild. Thanks for your help.
