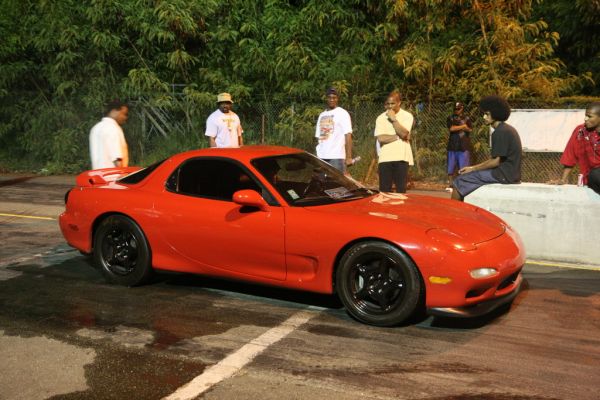

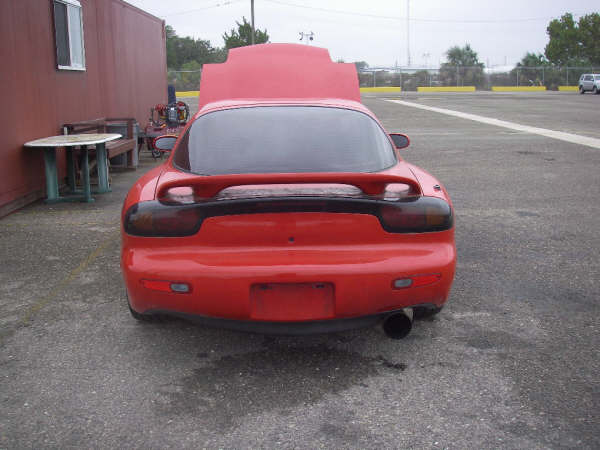

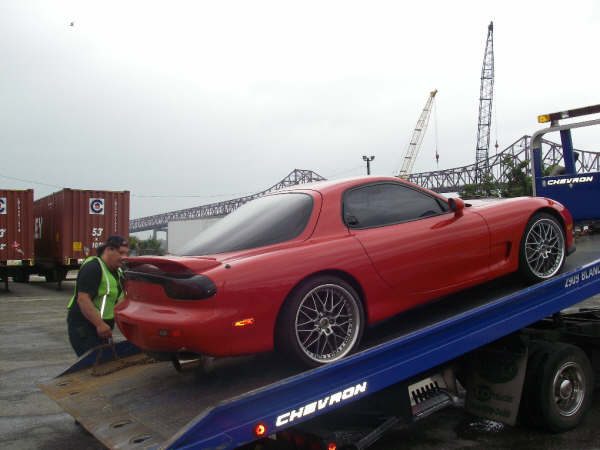

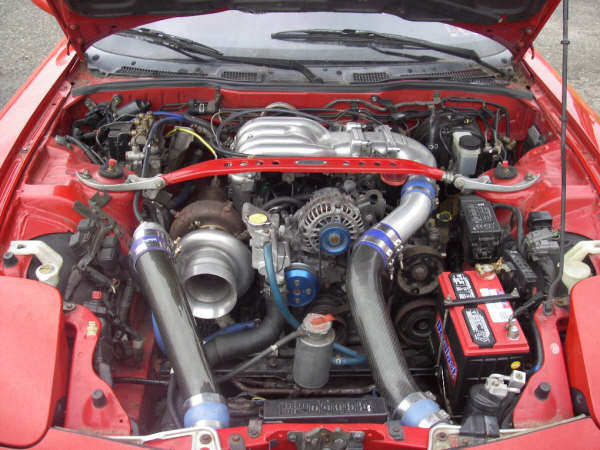

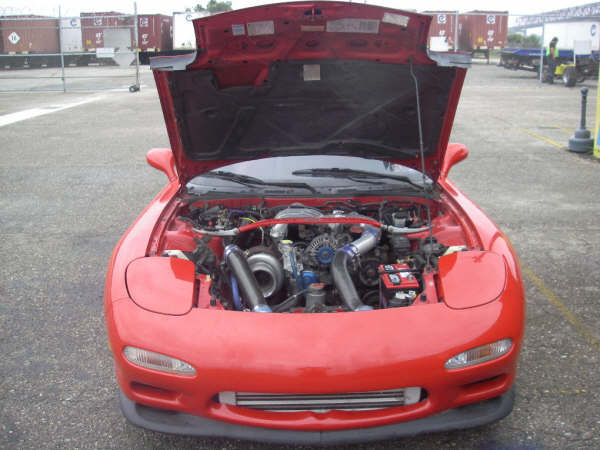

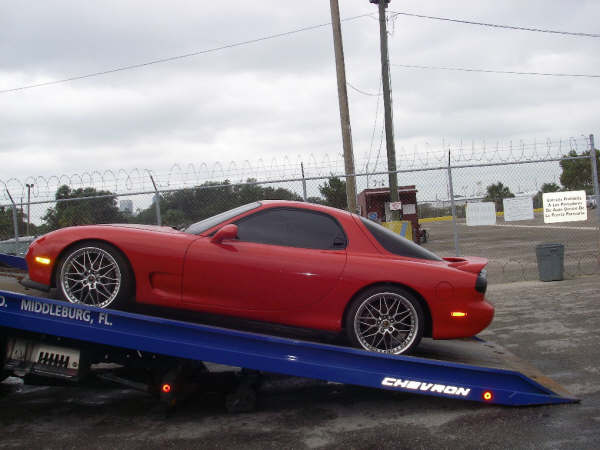

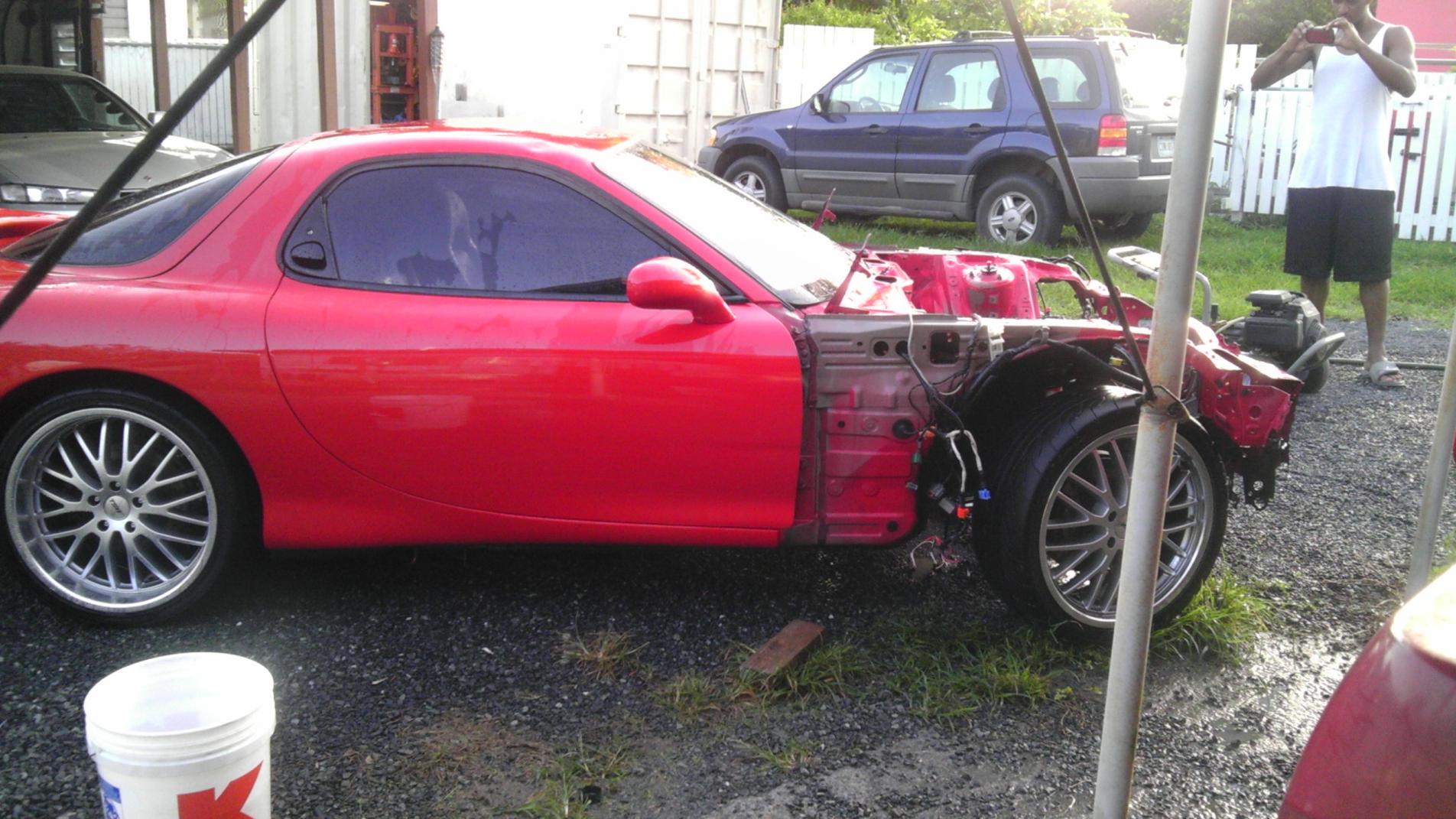

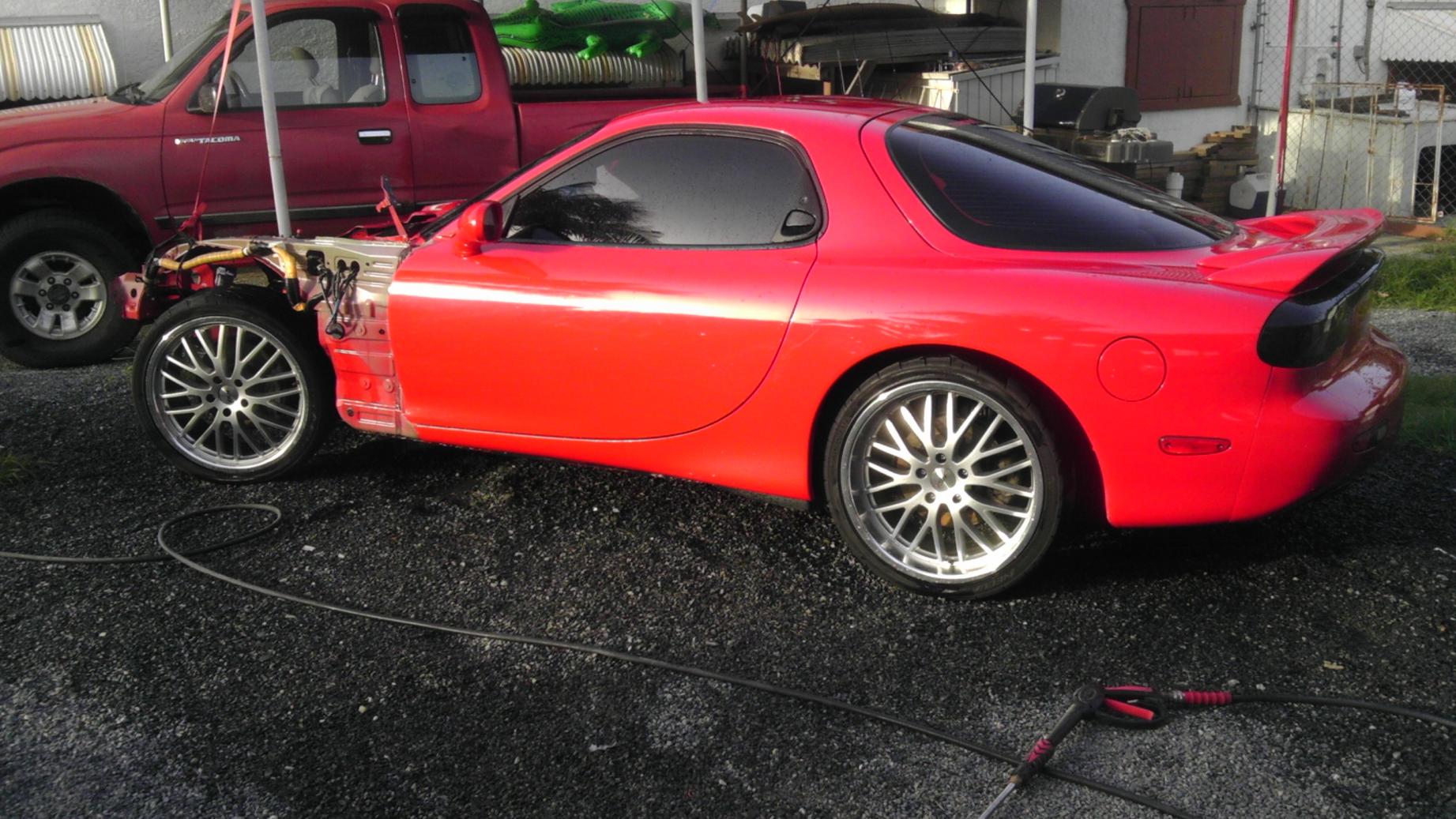

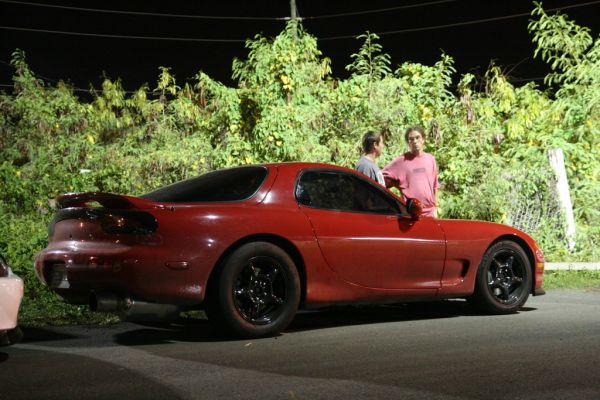

I guess the best place to start would be at the beginning. This is how my car looked when it finally reached St.Croix. I bought the car with a blown engine for $9500 back in 09. I bout a complete engine off of ebay for 2200 that included a full greddy t78 kit and Power FC. I had to put the engine in, in florida before it was shipped here.

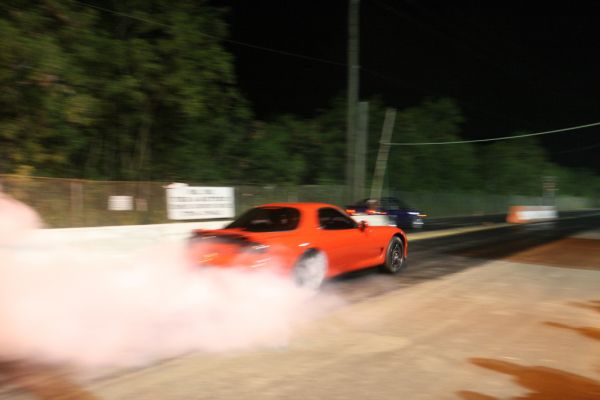

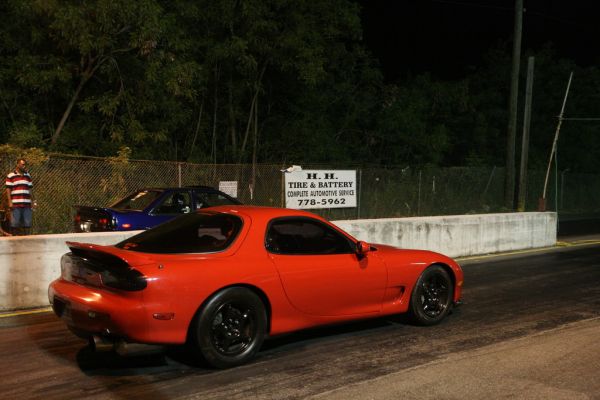

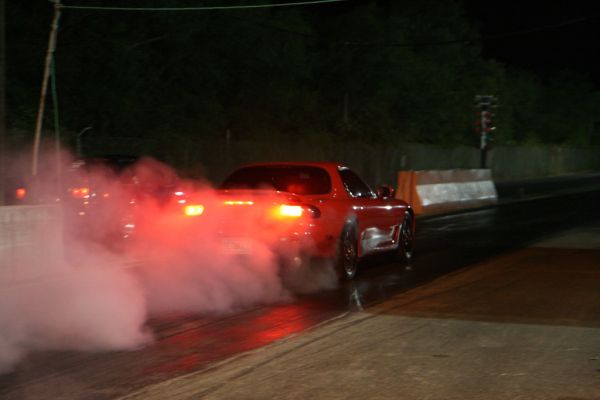

I raced the car for 3 years on the same used ebay motor. Going all the way to 27psi and running 11.1@121 completely off the gas past 1000ft.
I raced every chance i got, and drove it really hard on the street.

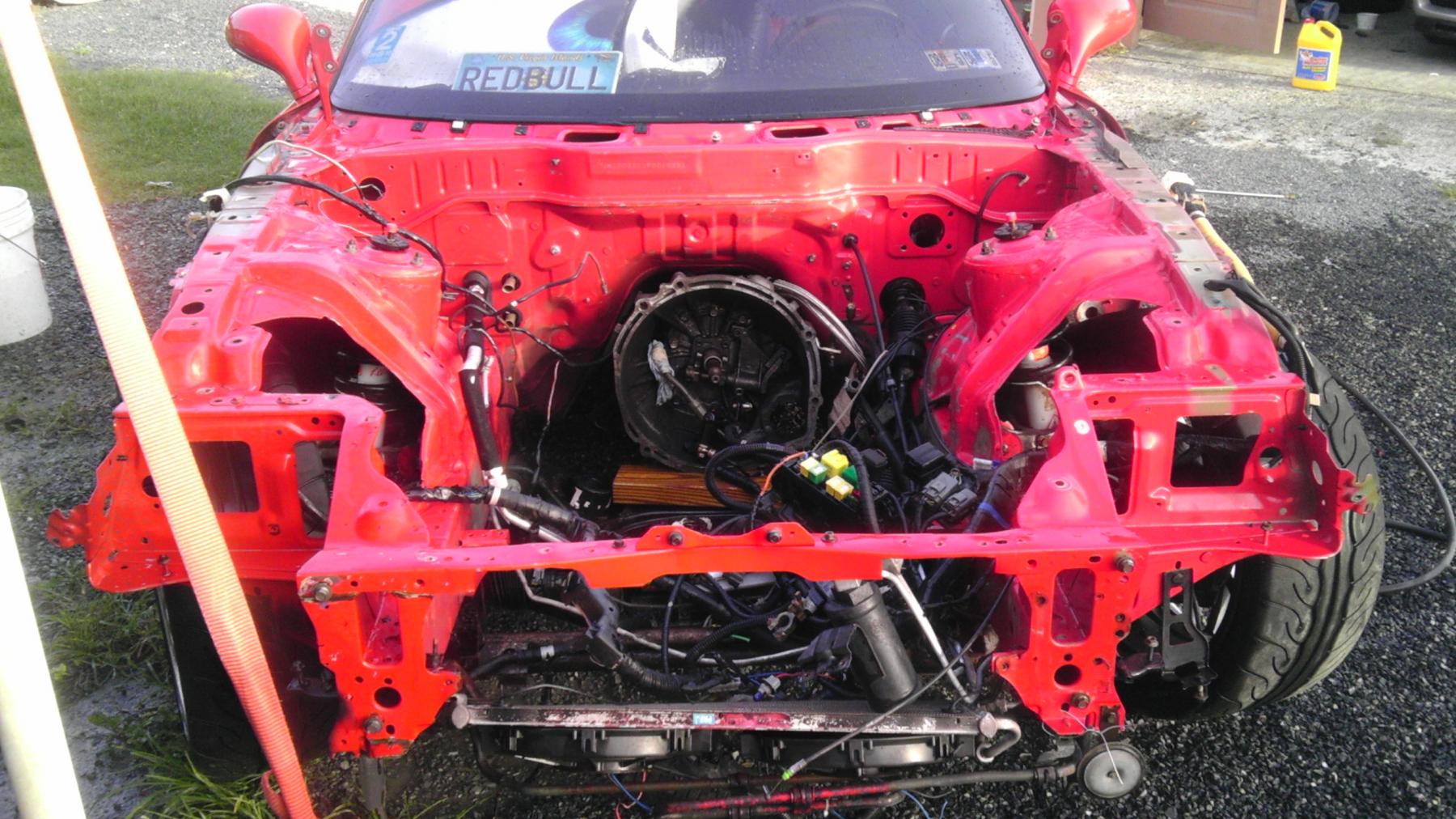

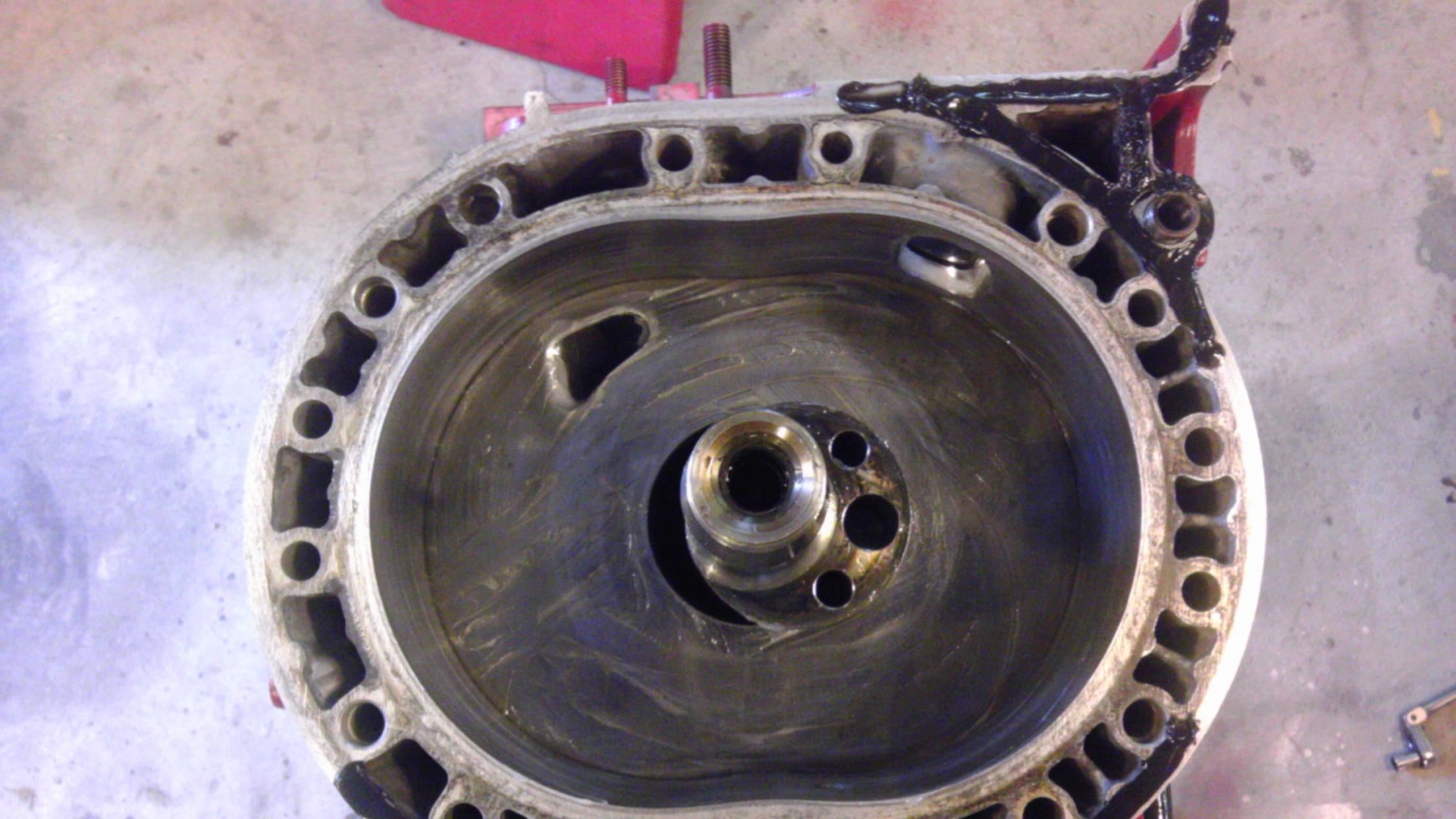

After 3 years of constant abuse. My ebay motor finally let go. Time to start over.

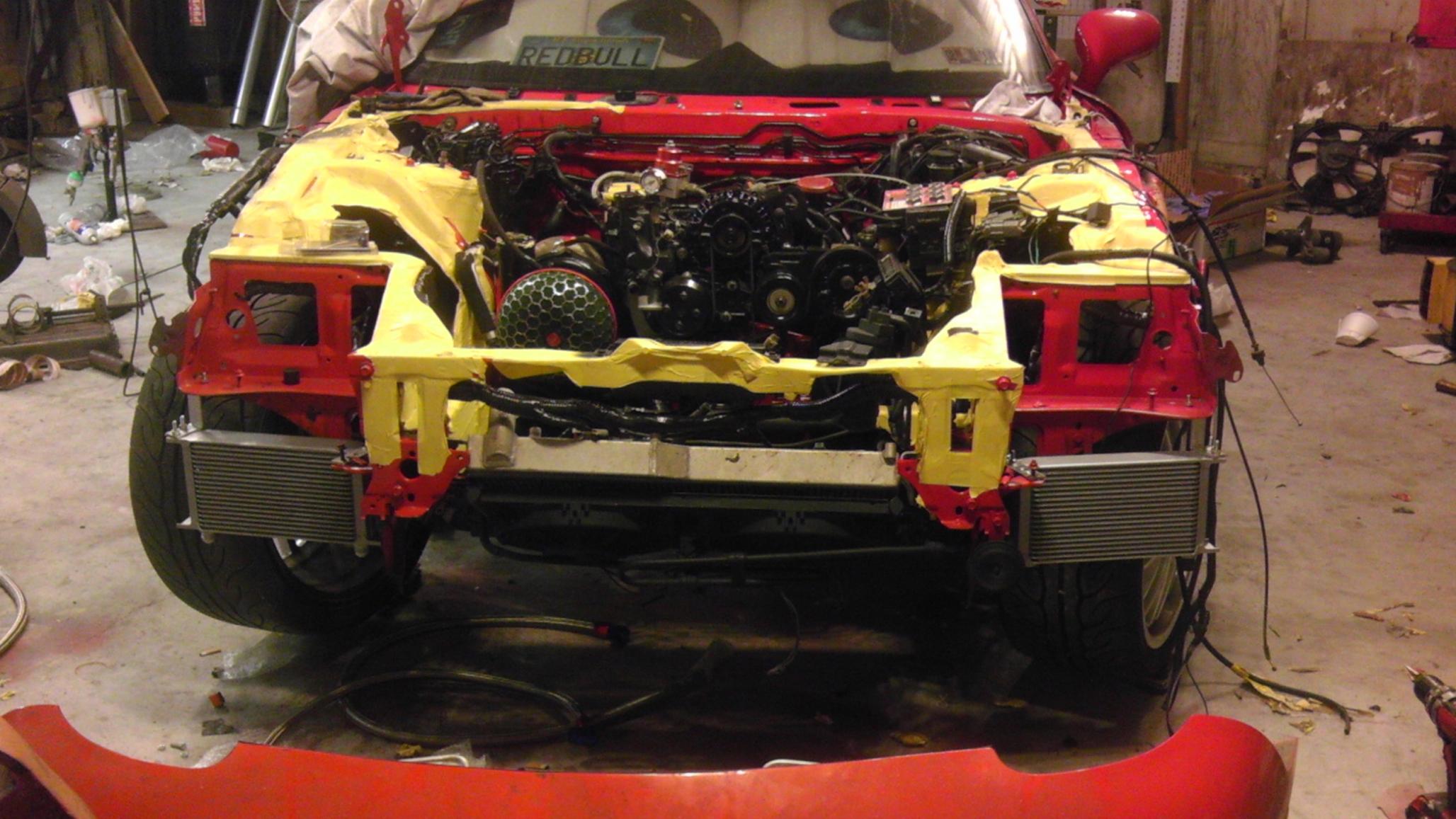

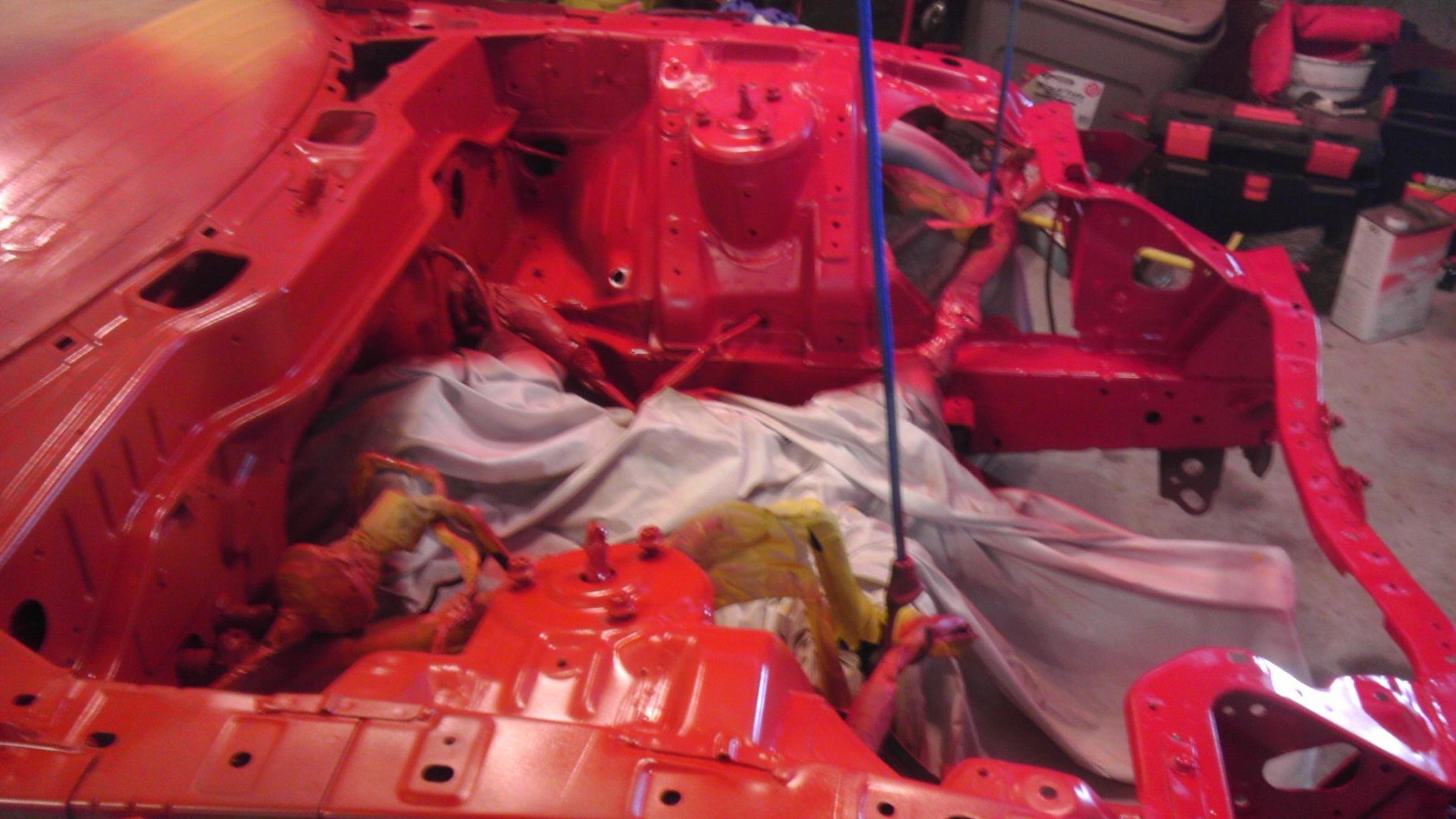

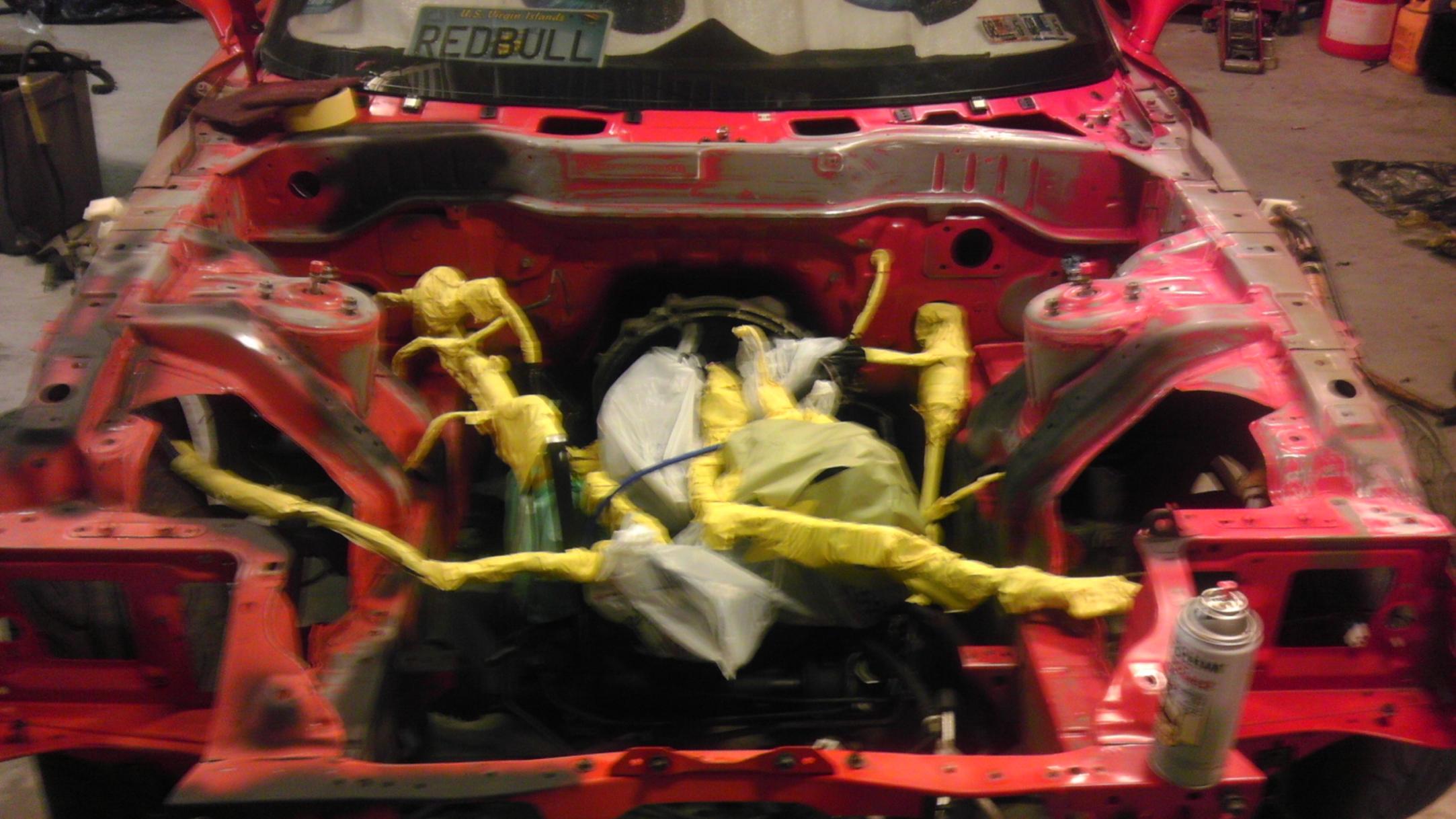

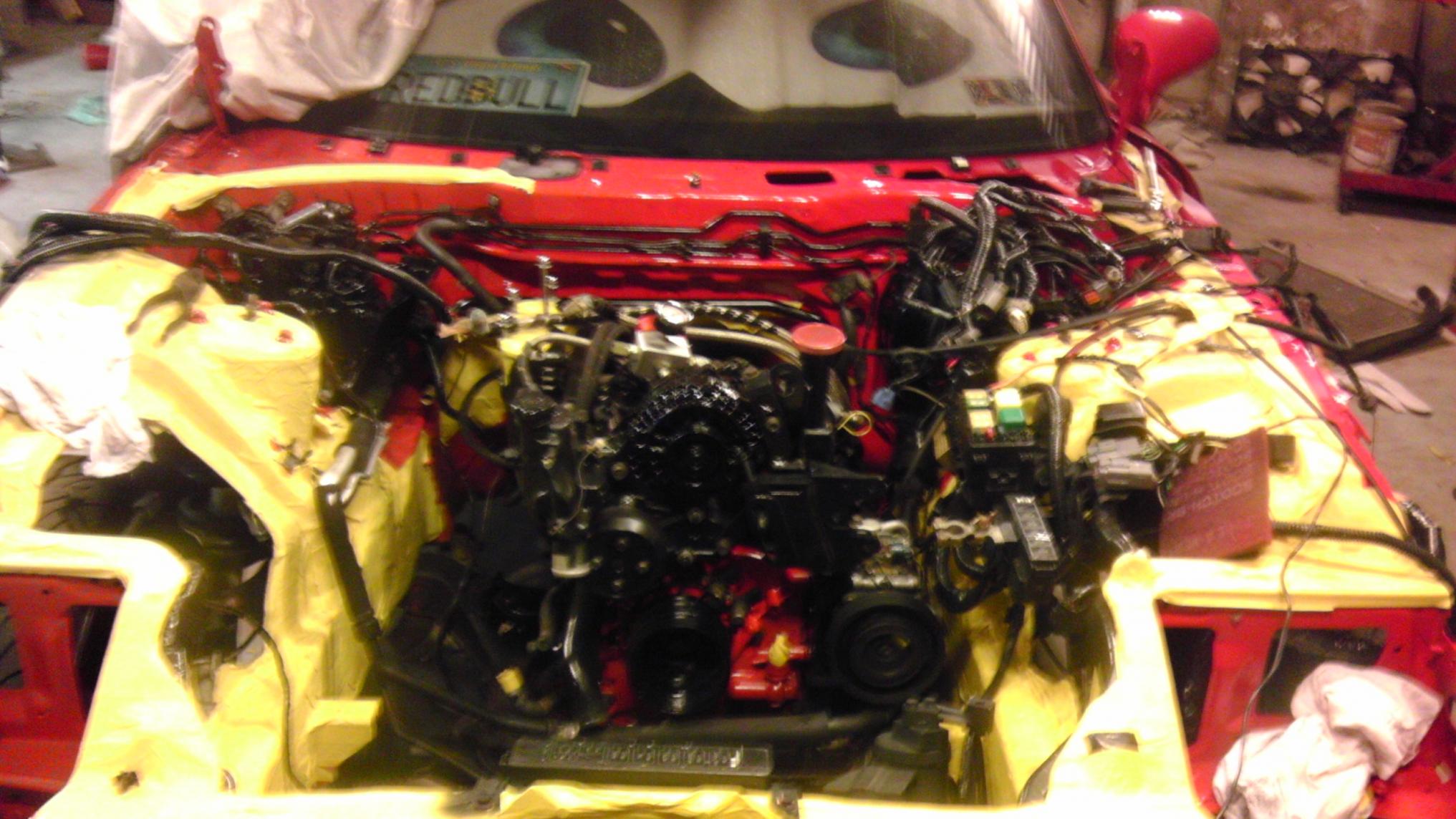

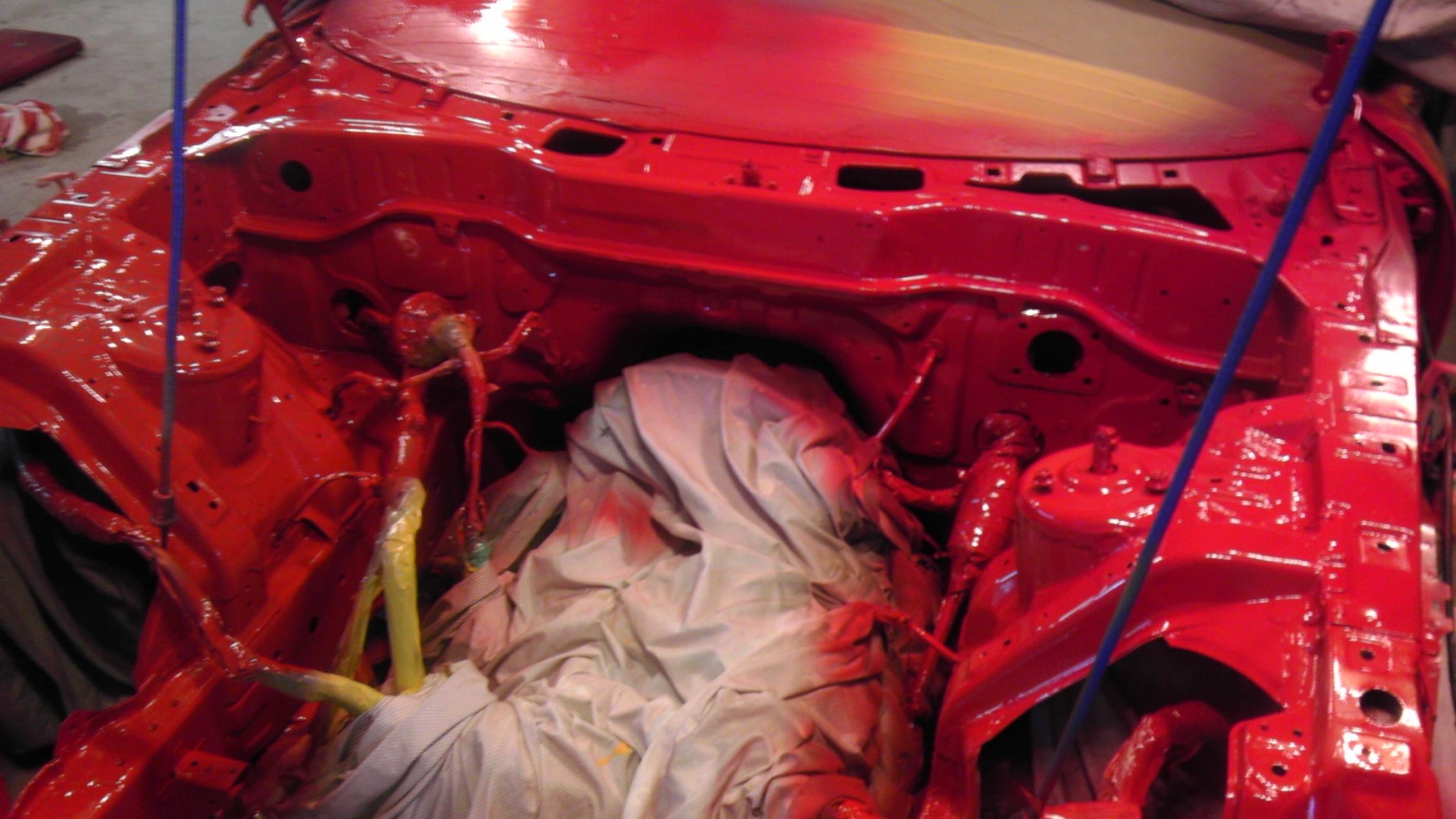

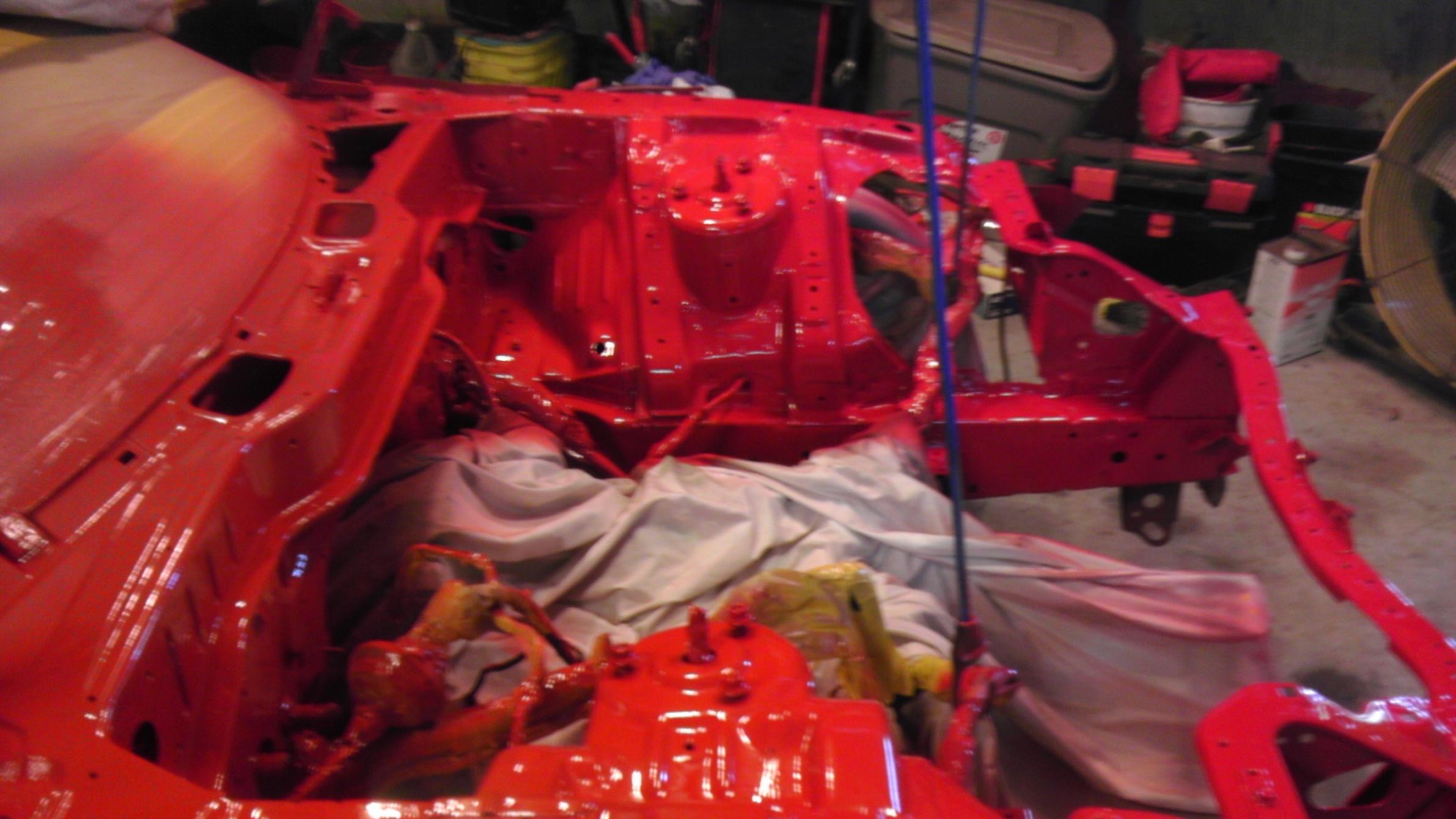

This is where im at now. i just made my last few orders which include my oil thermostat and all the fittings. My new odessey battery. and a few couplers , hoses, and misc stuff. it has been alot of work. 95% of which i did myself. But i love this car. and i know it will be even more fun this time



The more i think about all the parts that have been put into this car the more i realize. This car is a paint job and a set of coilovers away from being a FD enthusiast's complete package.
The rear trailing arms and toe links have all been replaced with heim joints. The rear end is a FD case with a FC LSD, and a RX8 4.44 ring and pinion. Urethane diff bushings and motor mounts.
Front and rear suspension techniques sway bars. With custom swaybar bracket/brace.
Garfinkle torque damper.
Tokico and eibach combo.
Brakes are stock with Carbotech pads. Stainless braided brake lines all around.

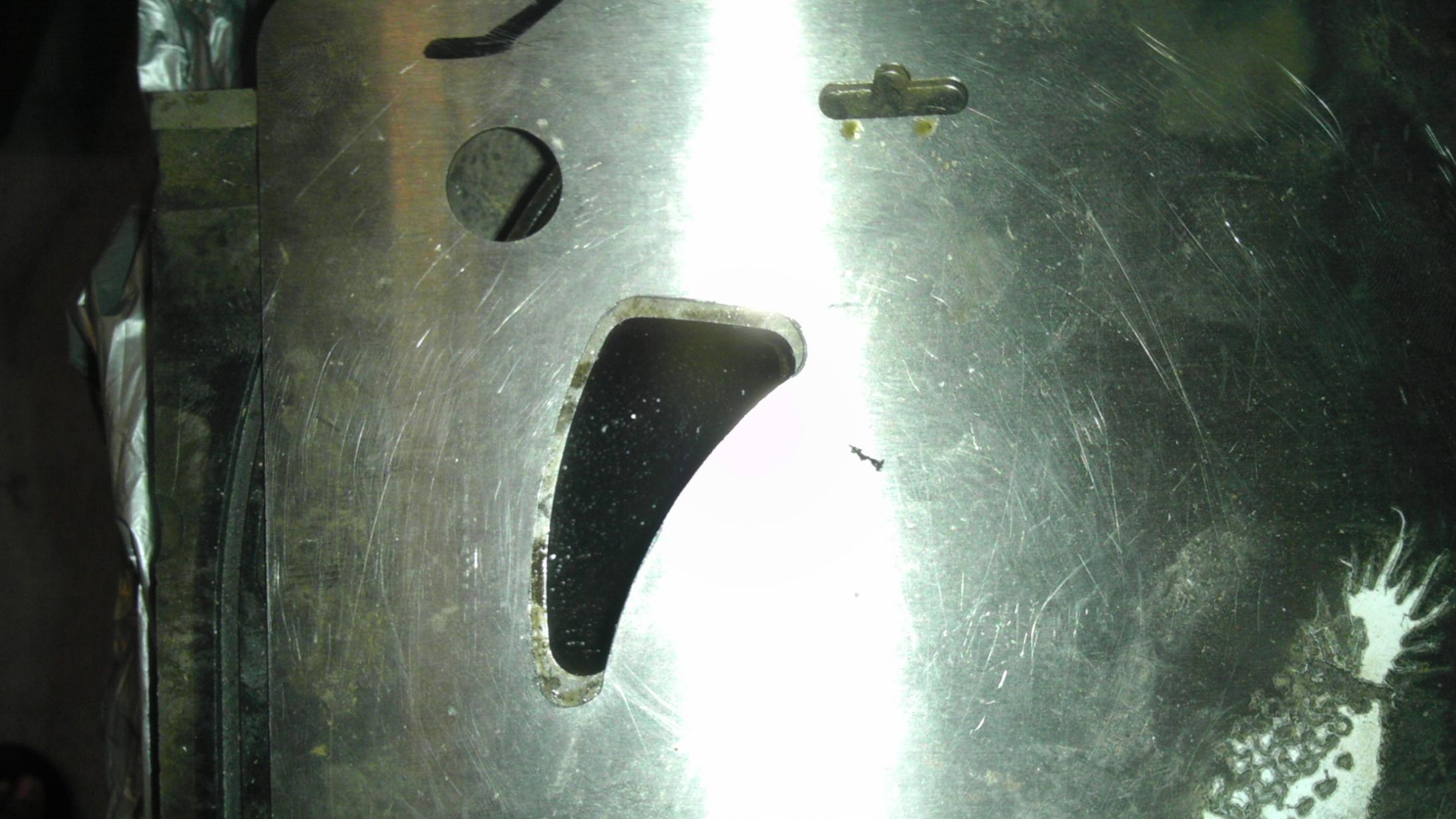

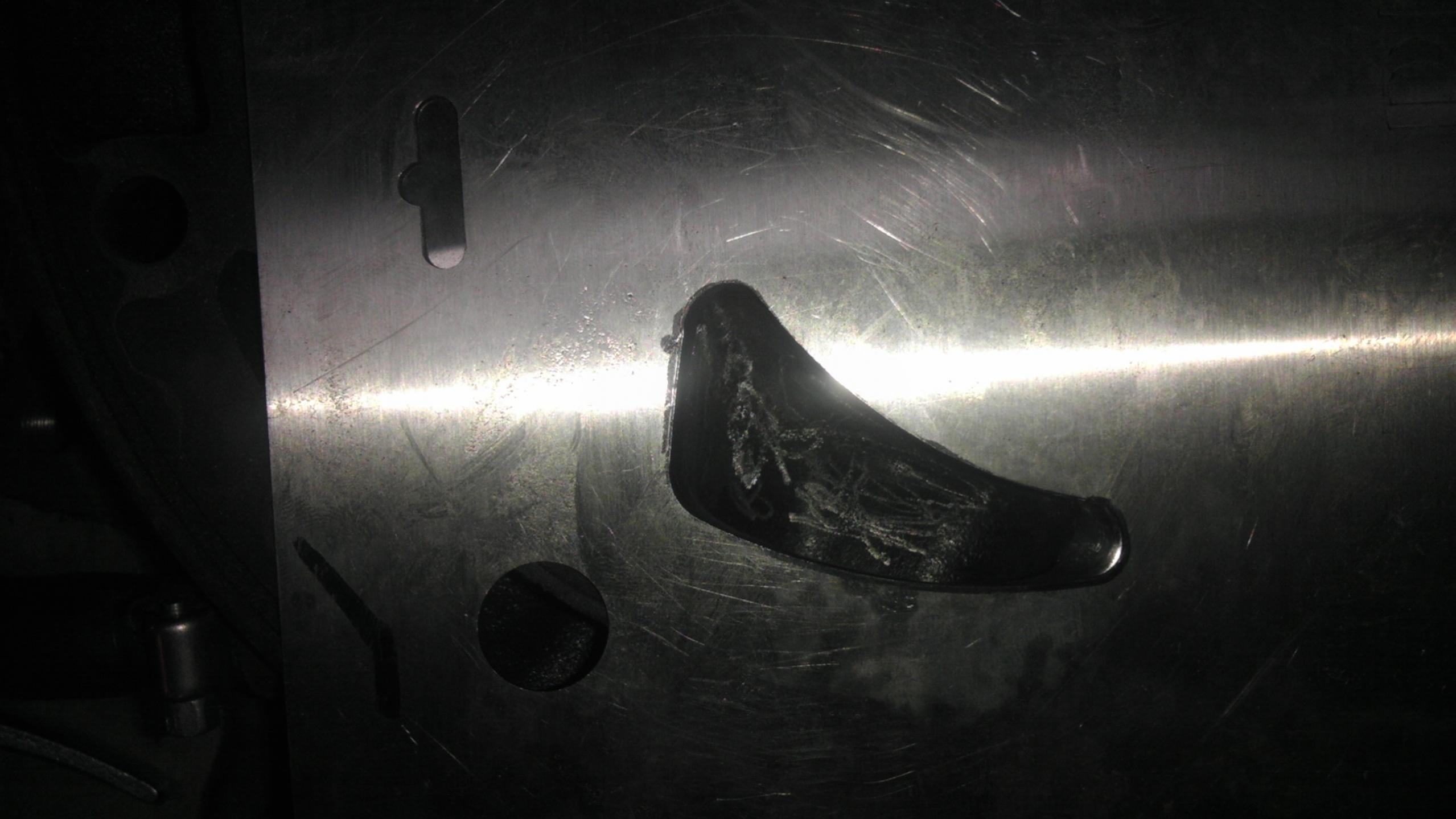

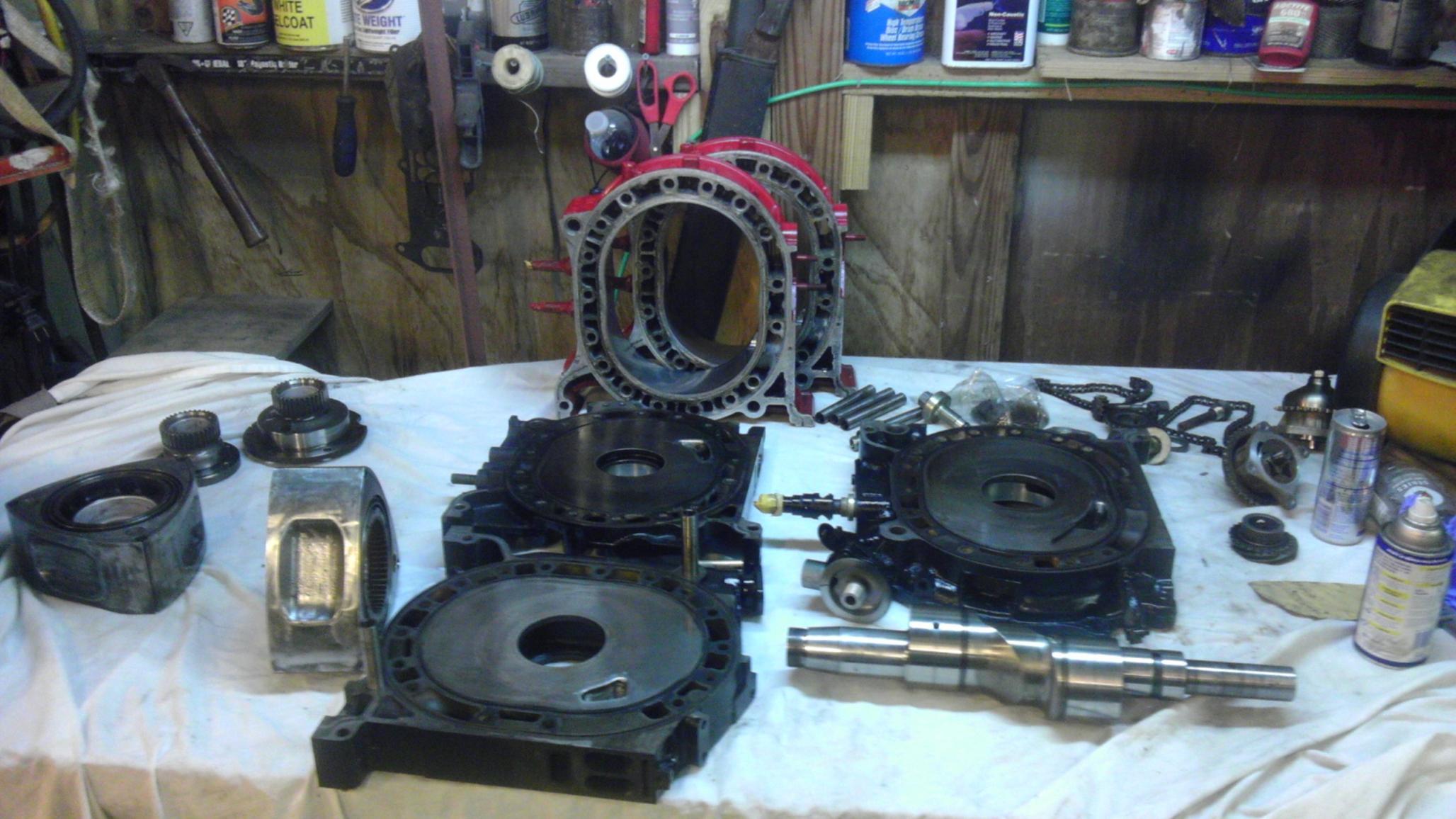

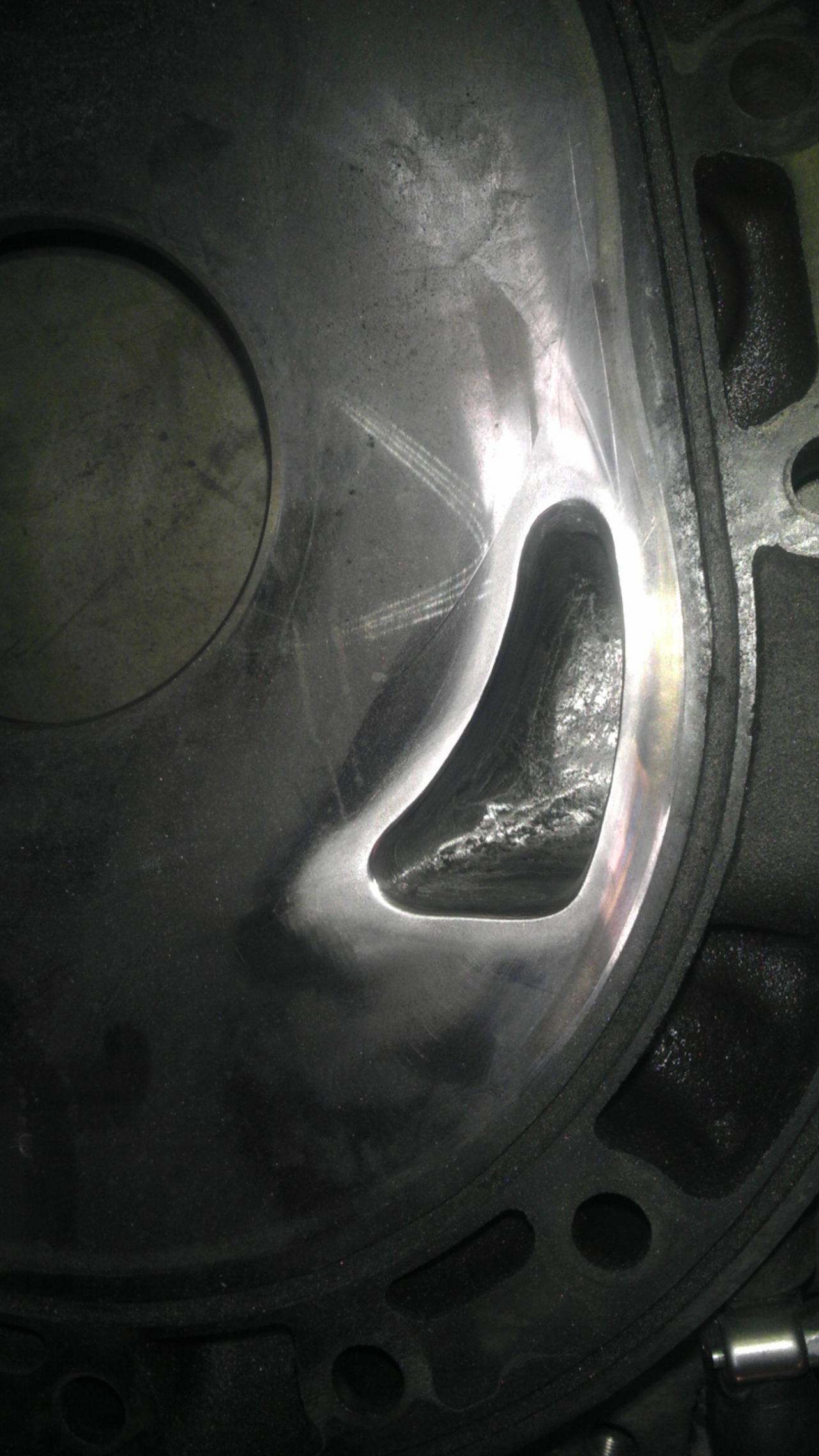

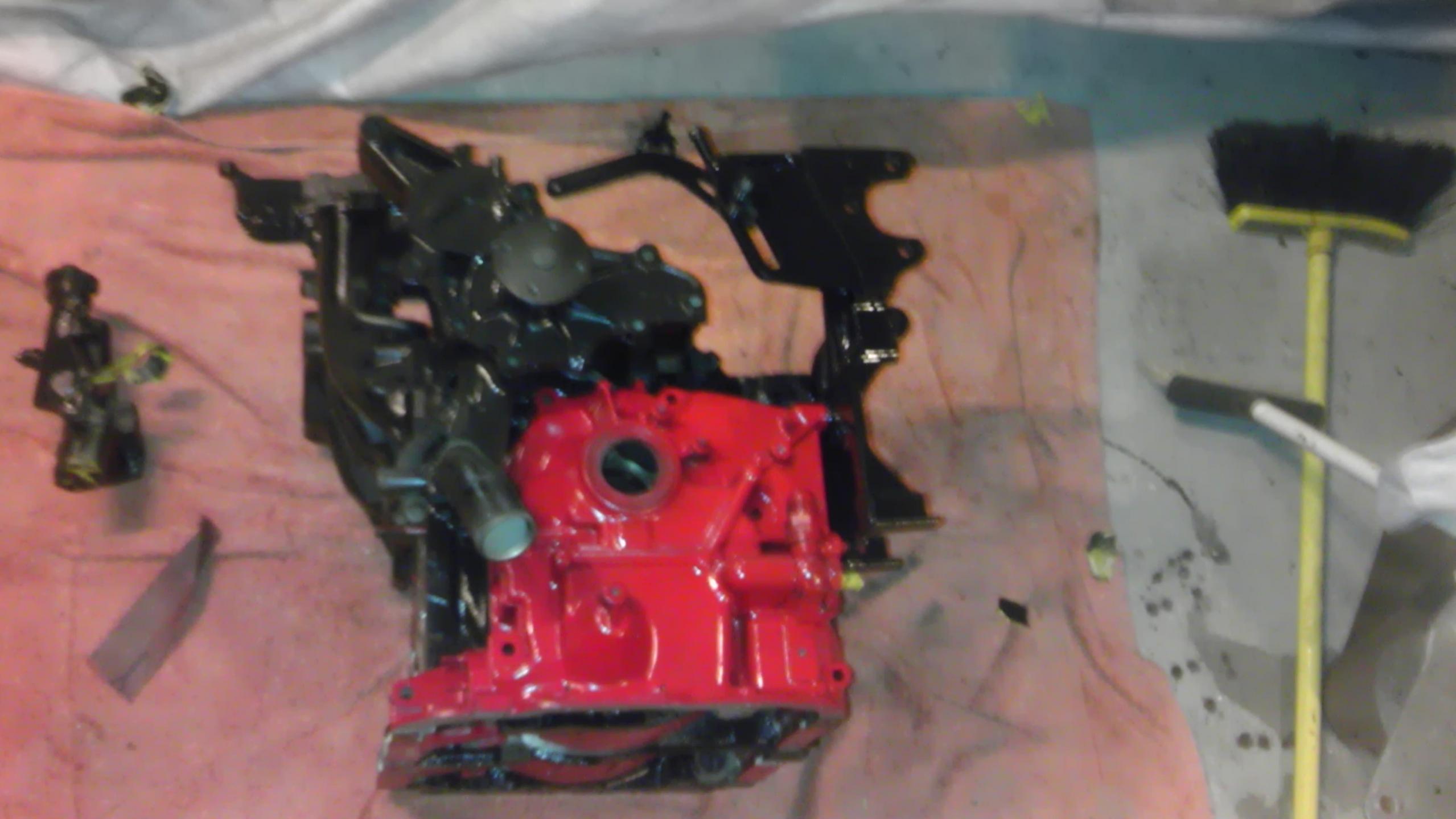

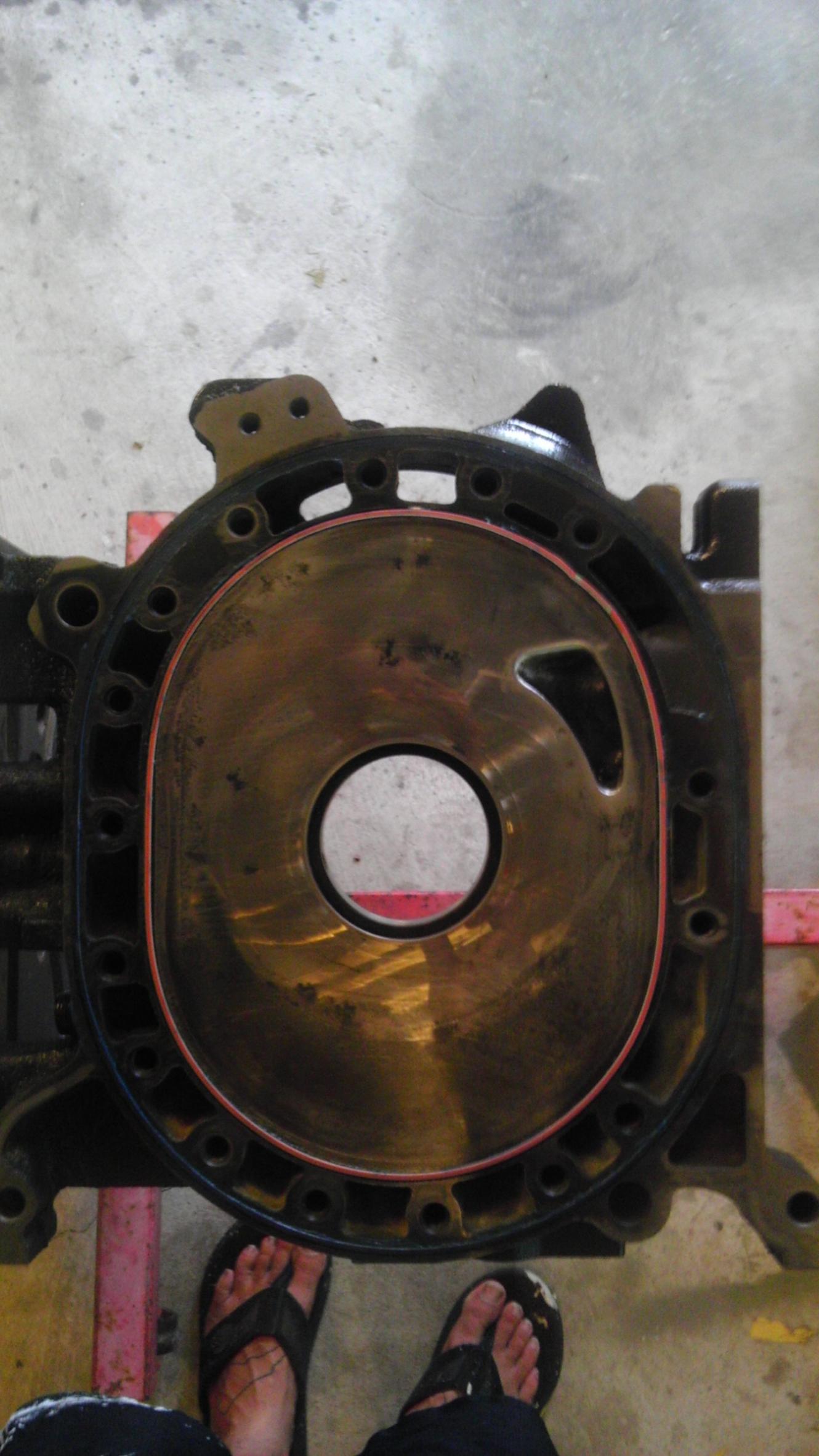

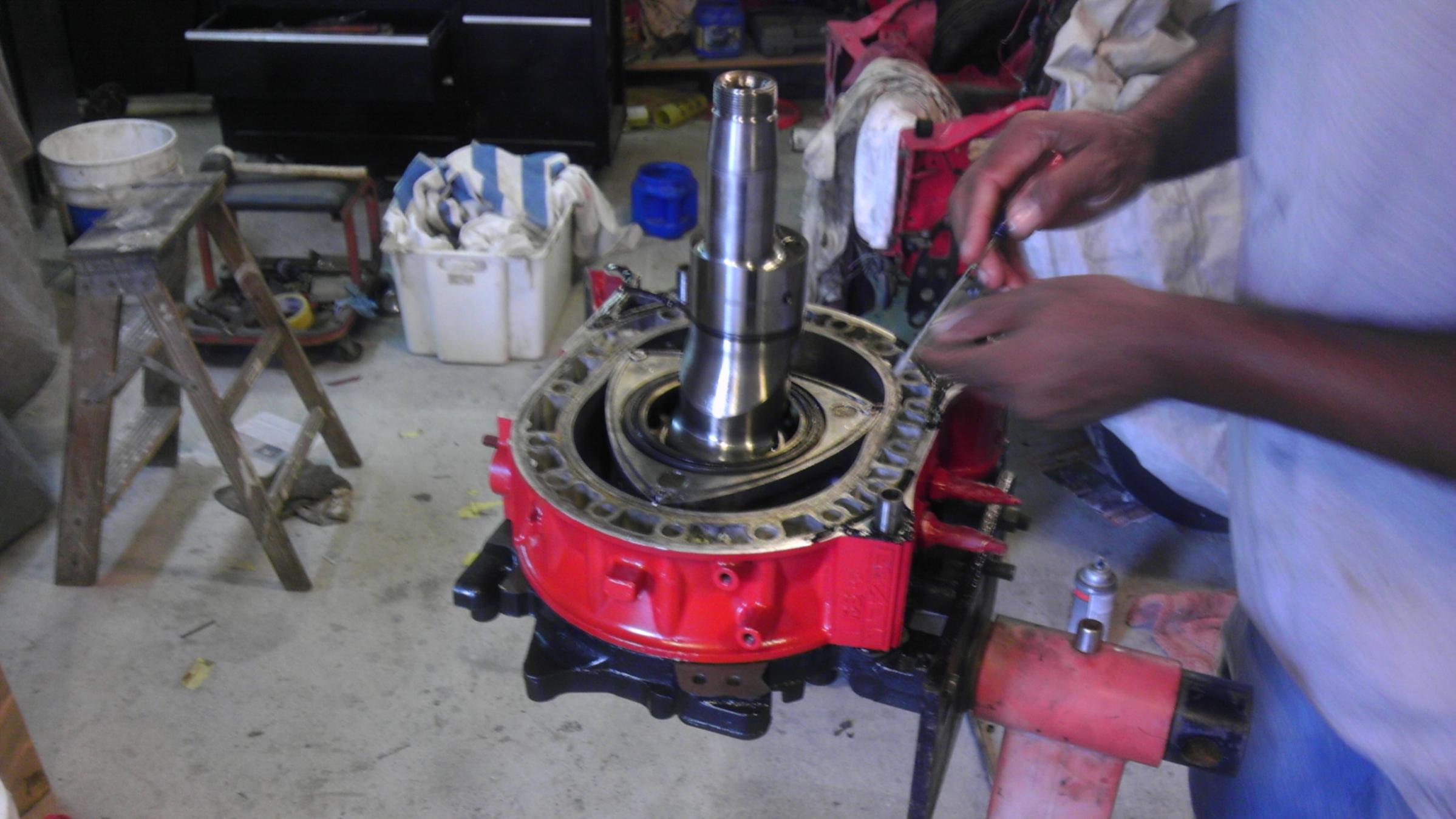

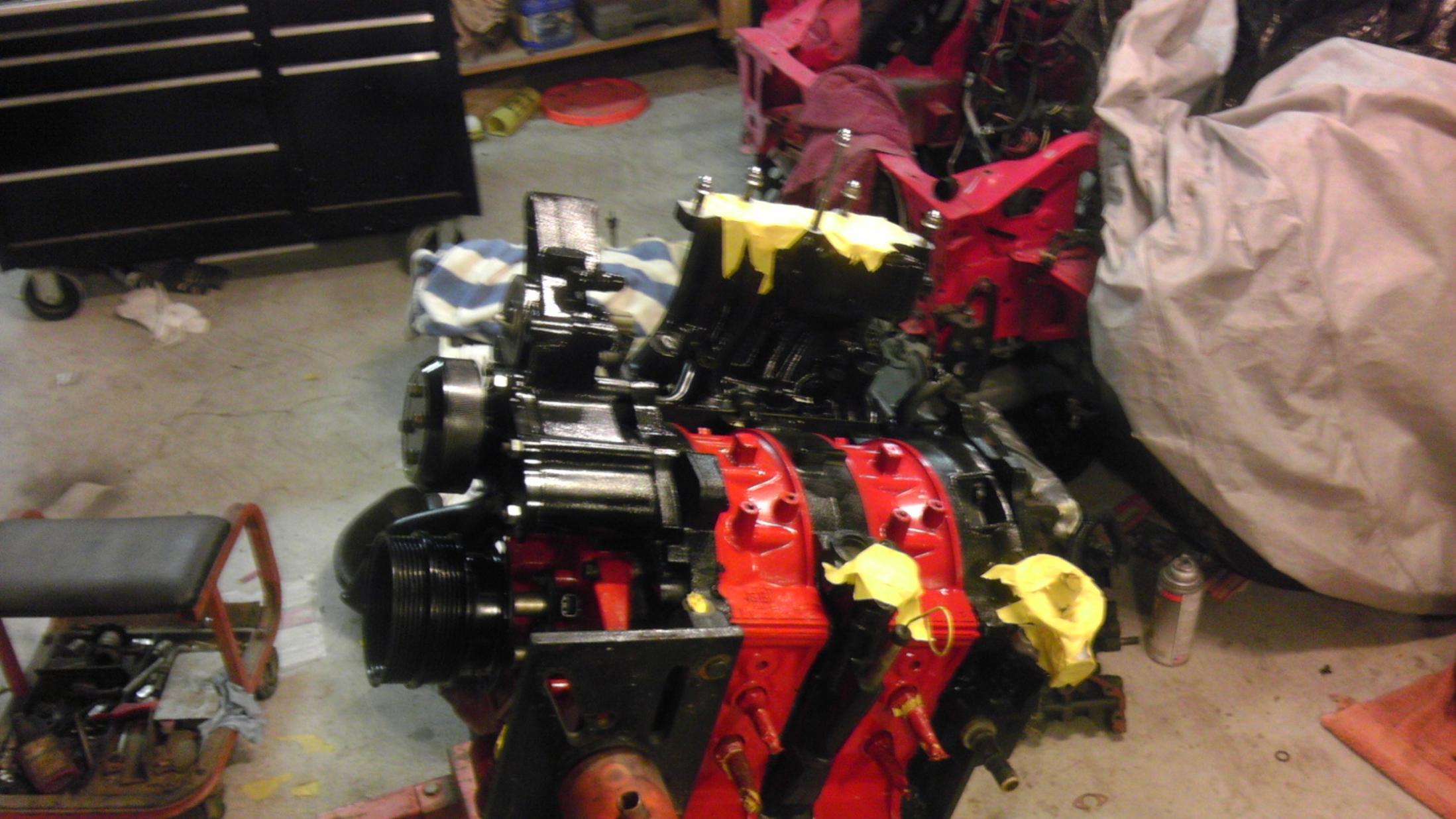

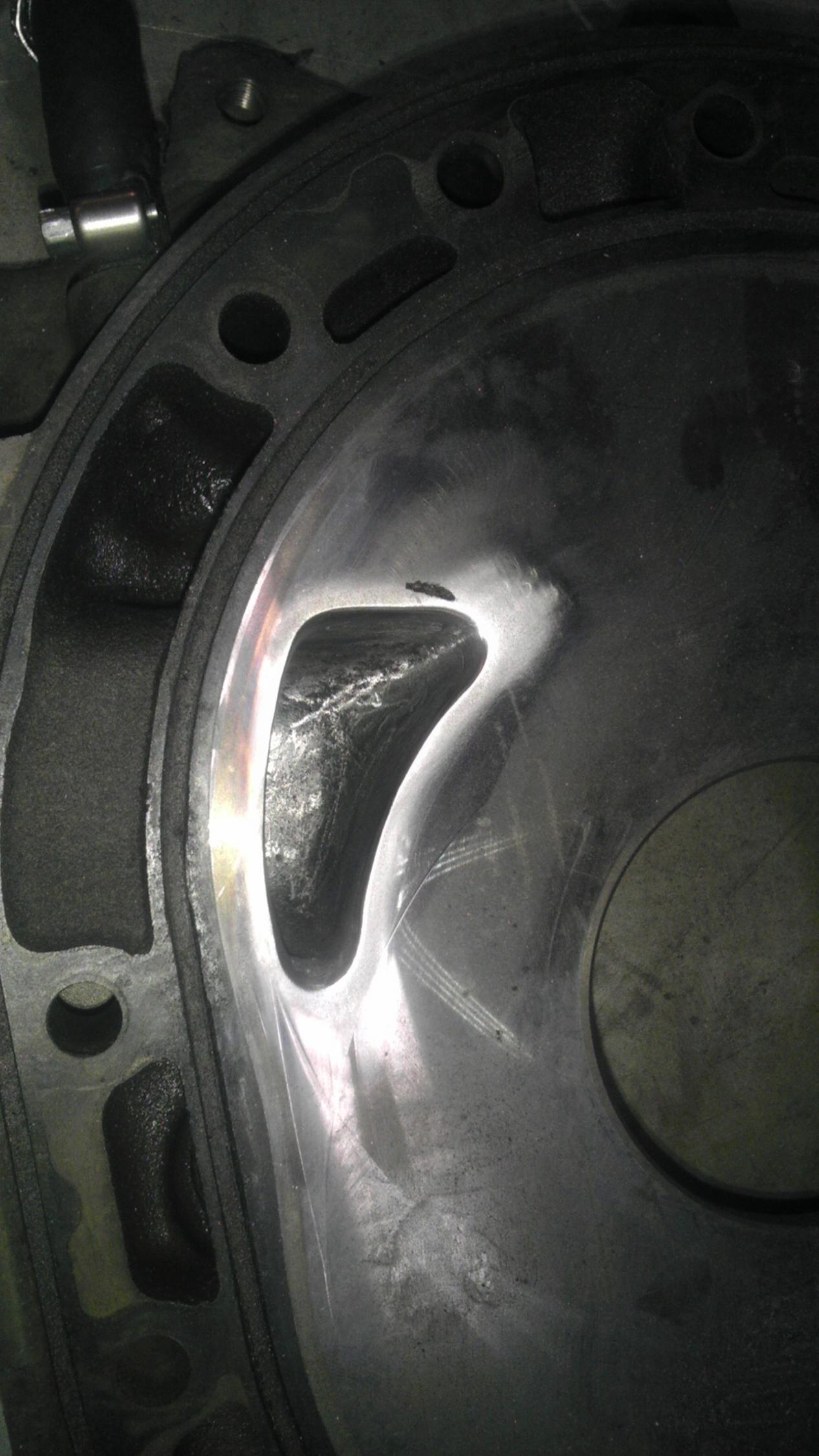

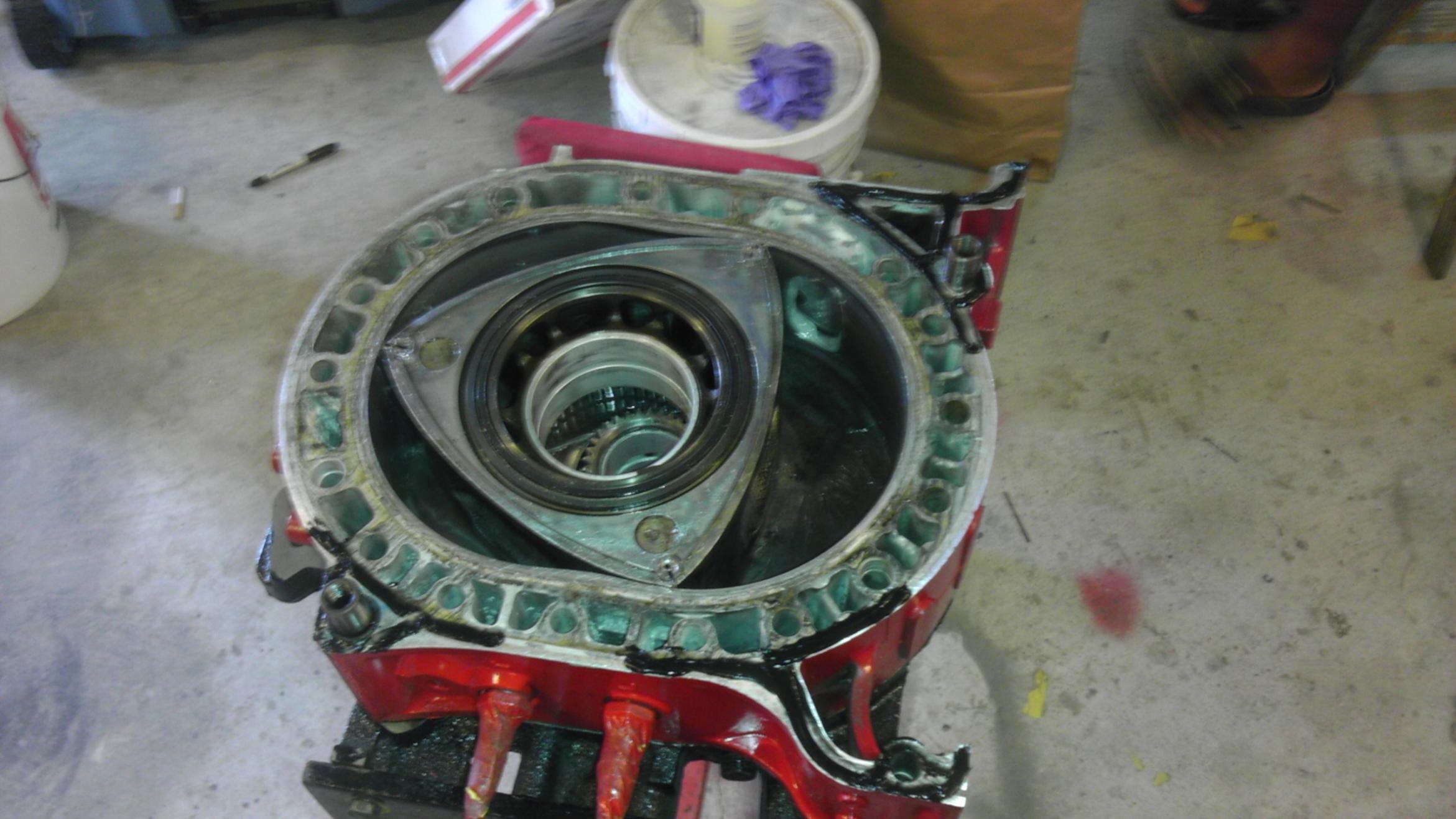

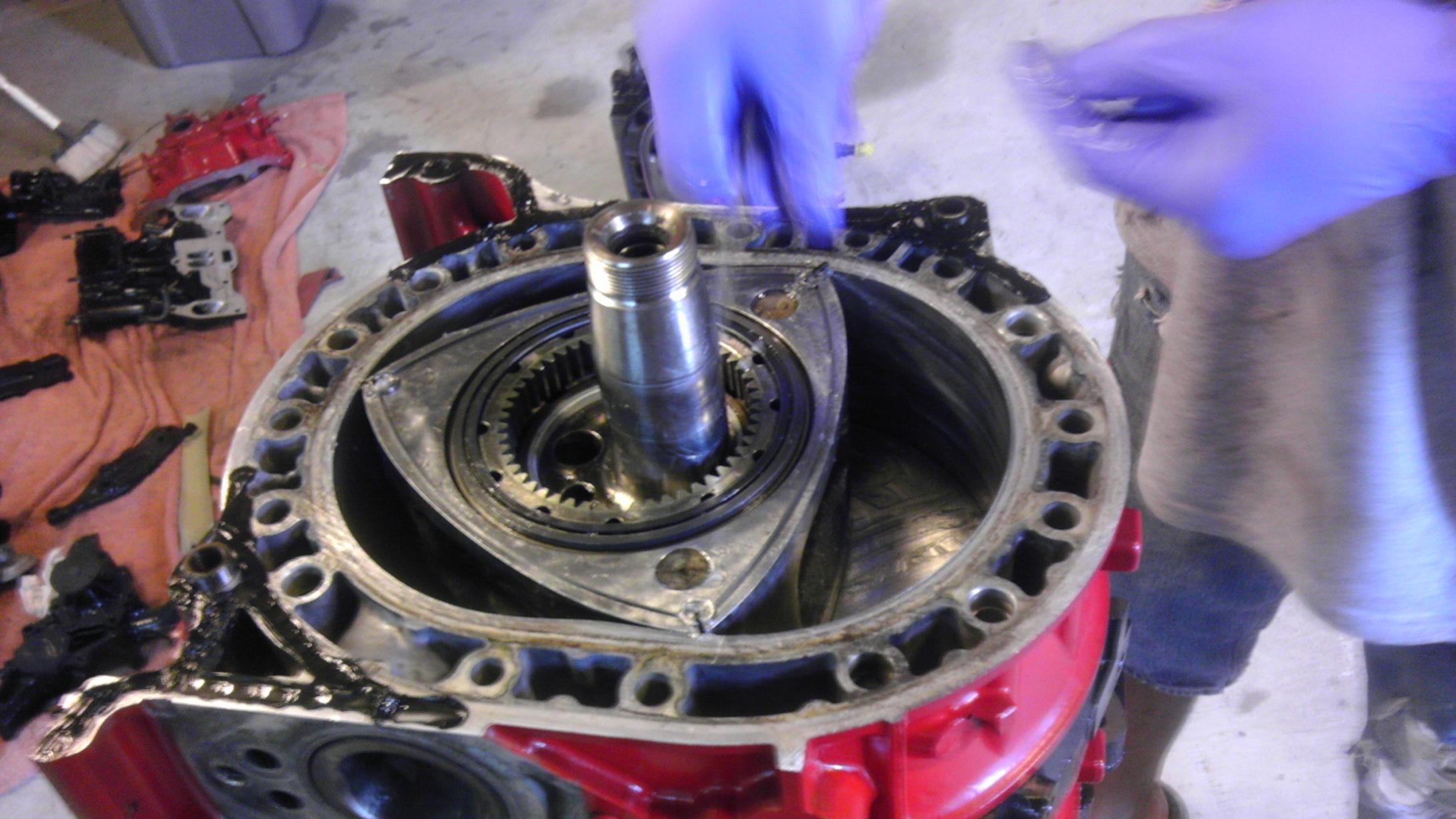

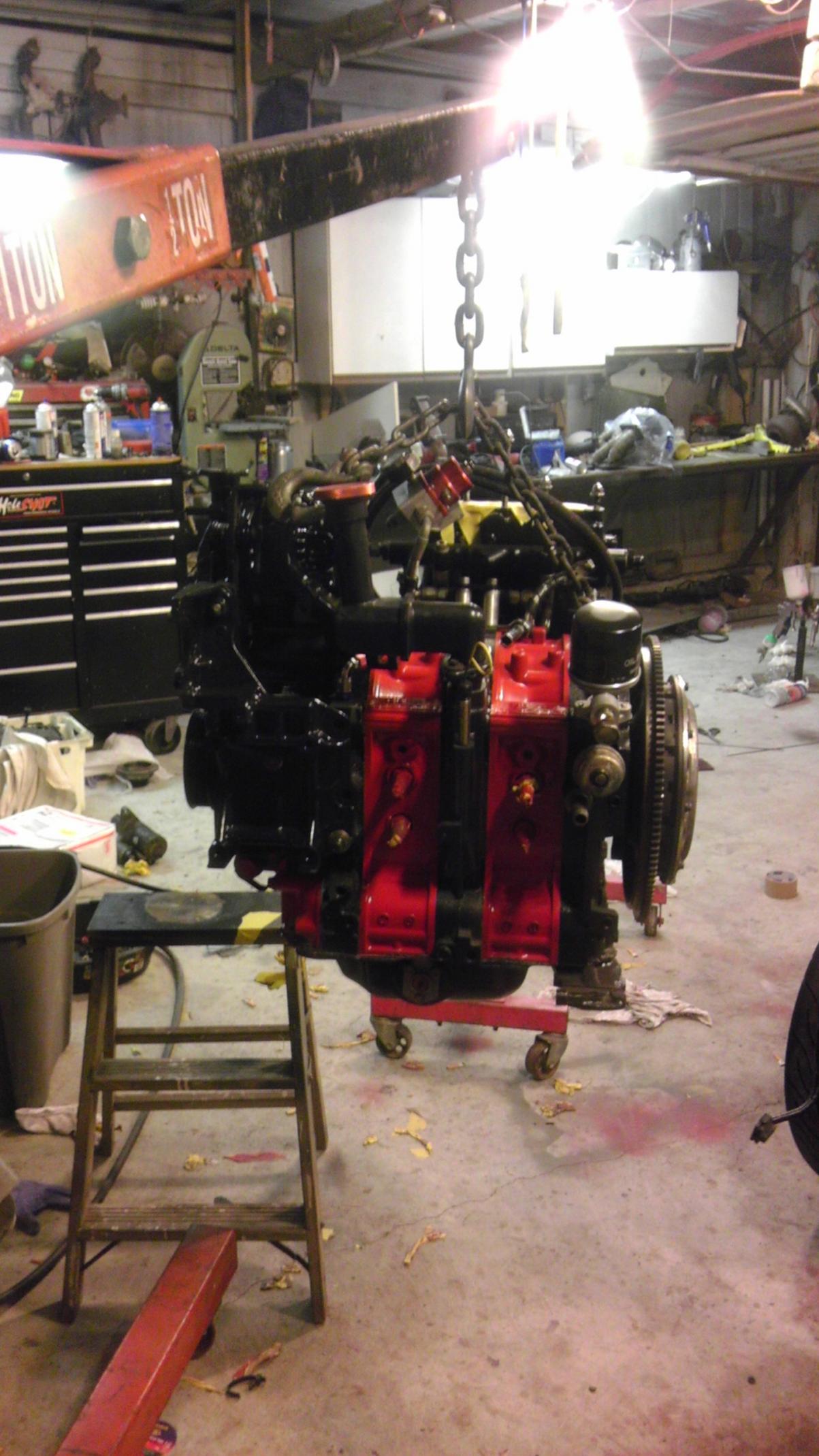

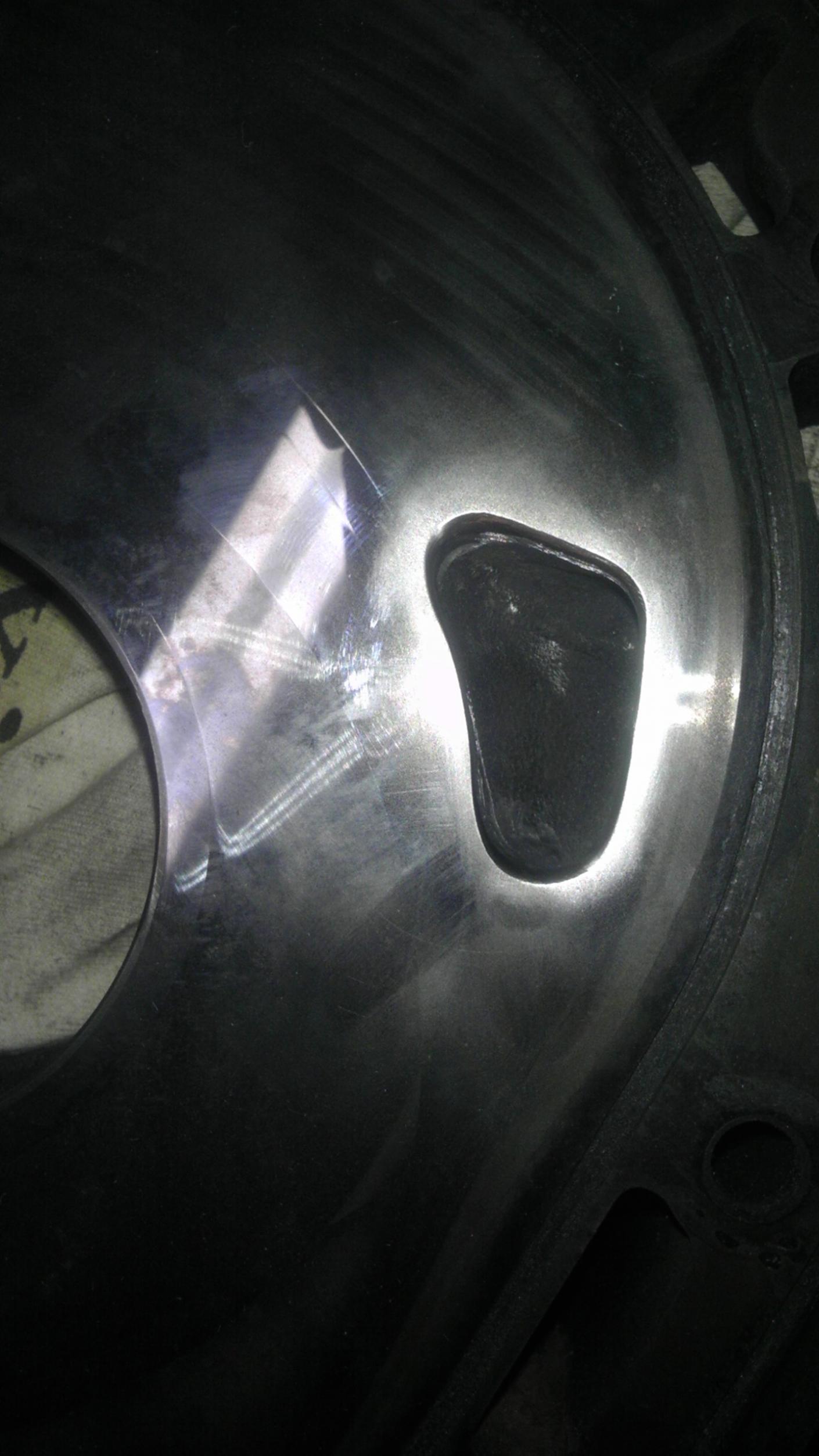

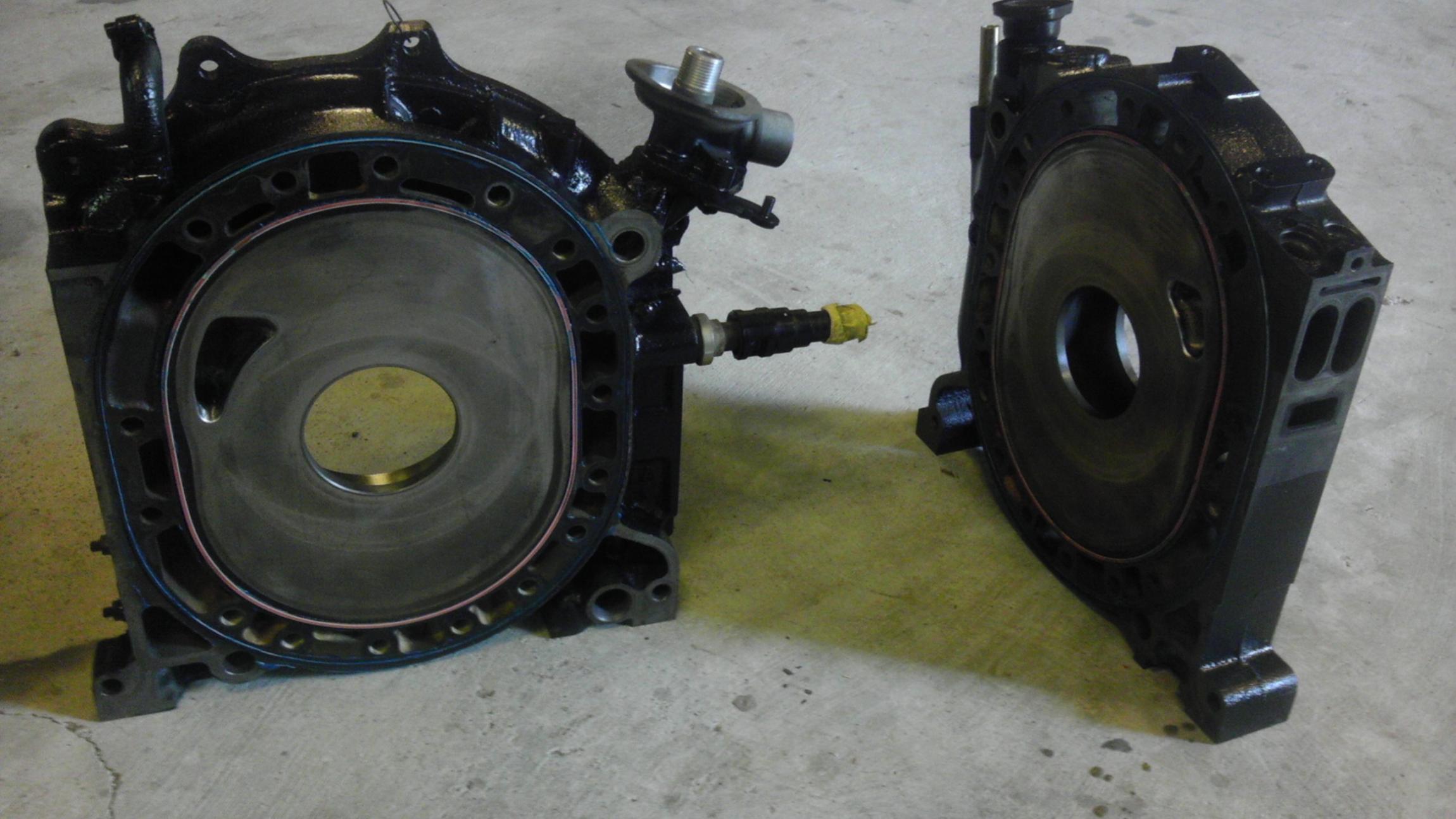

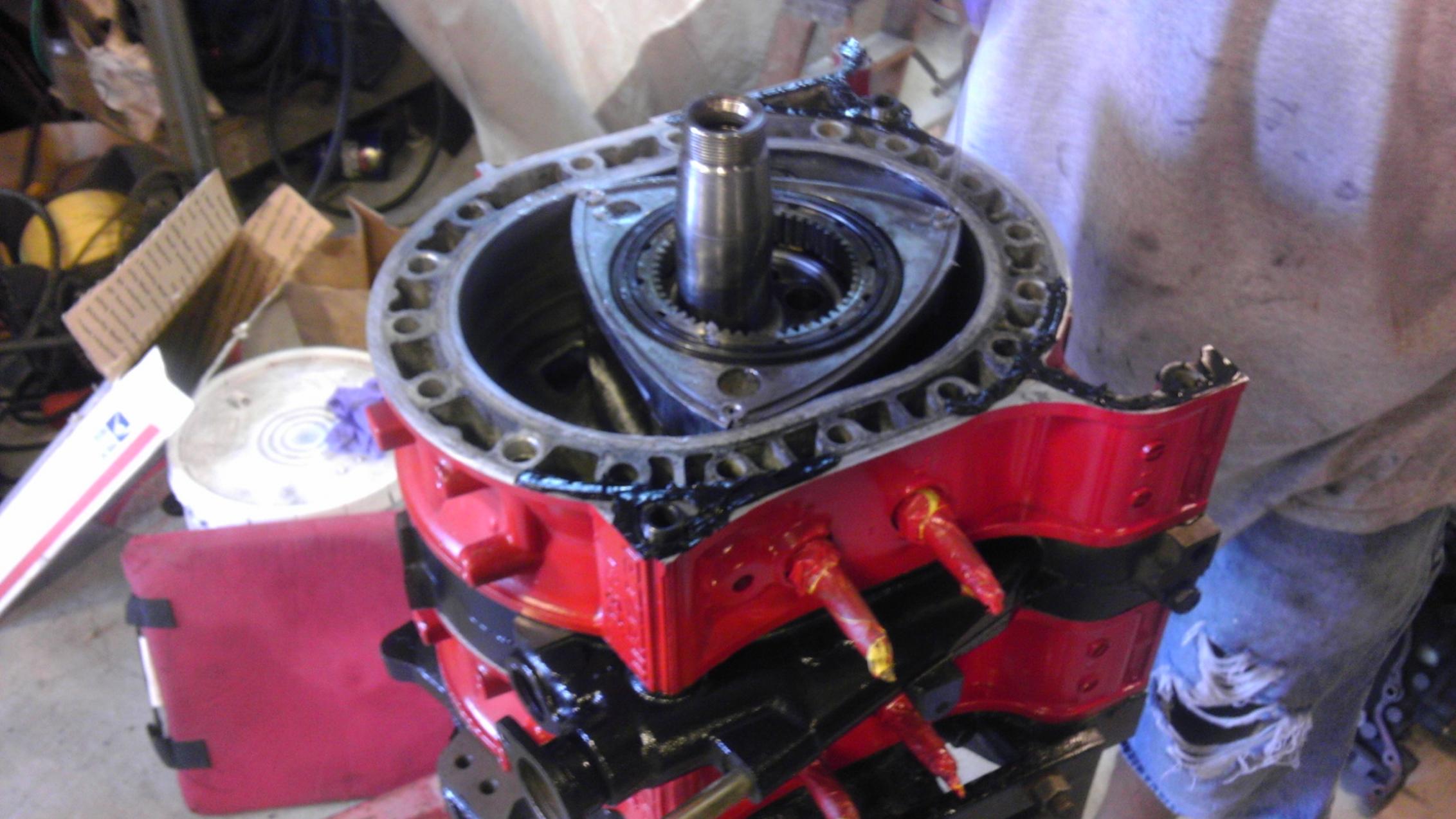

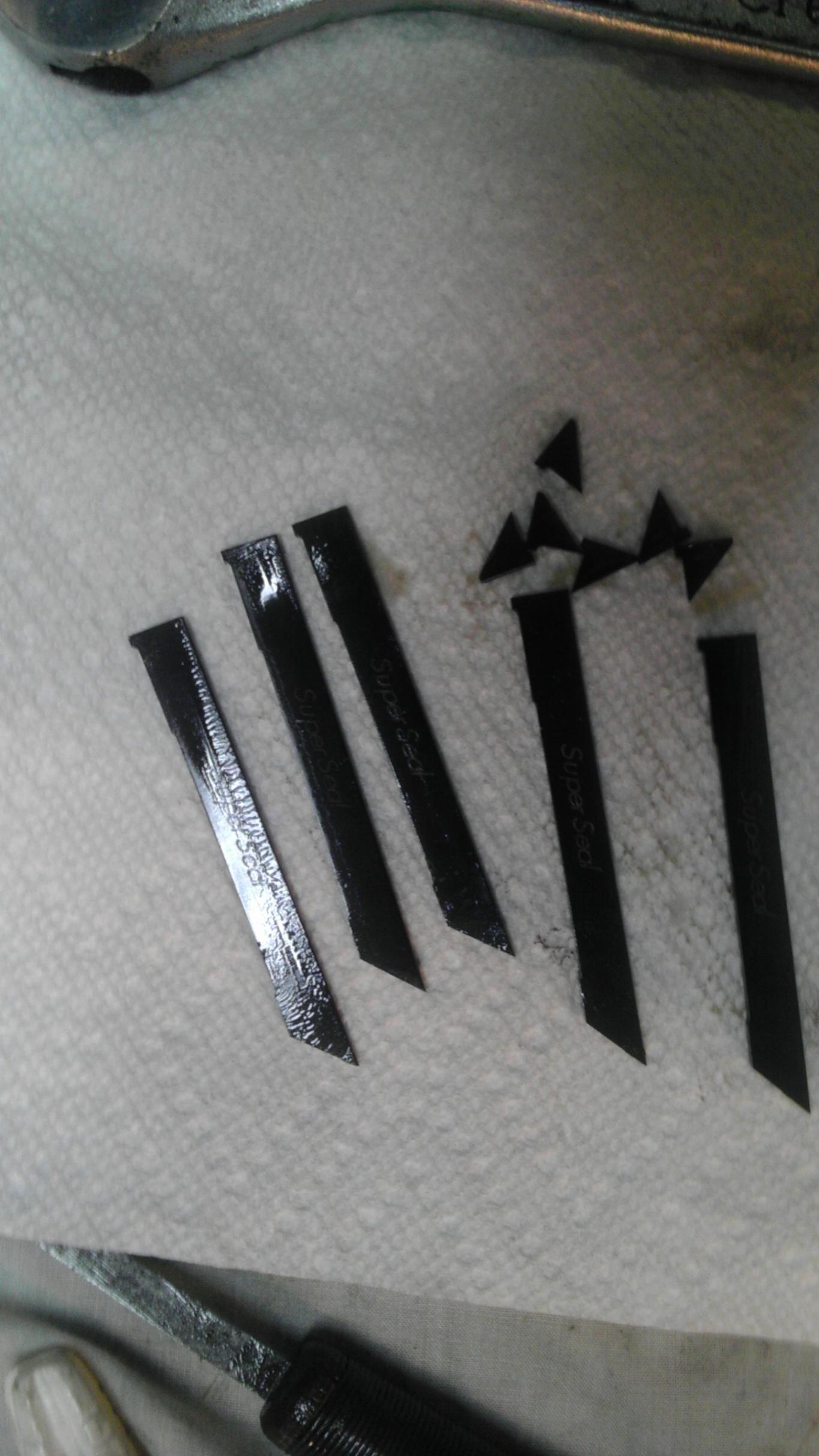

Engine is a medium streetport with all new seals including RA Super seals
J-spec transmission (shorter 5th) with OS-Giken Twin Plate clutch with push/pull converter.
Single walbro intank, CJ motorsport top feed rail kit with 2 850's and 2 1600's
HKS twin power ignition with FC primary coils. Haltech E6X

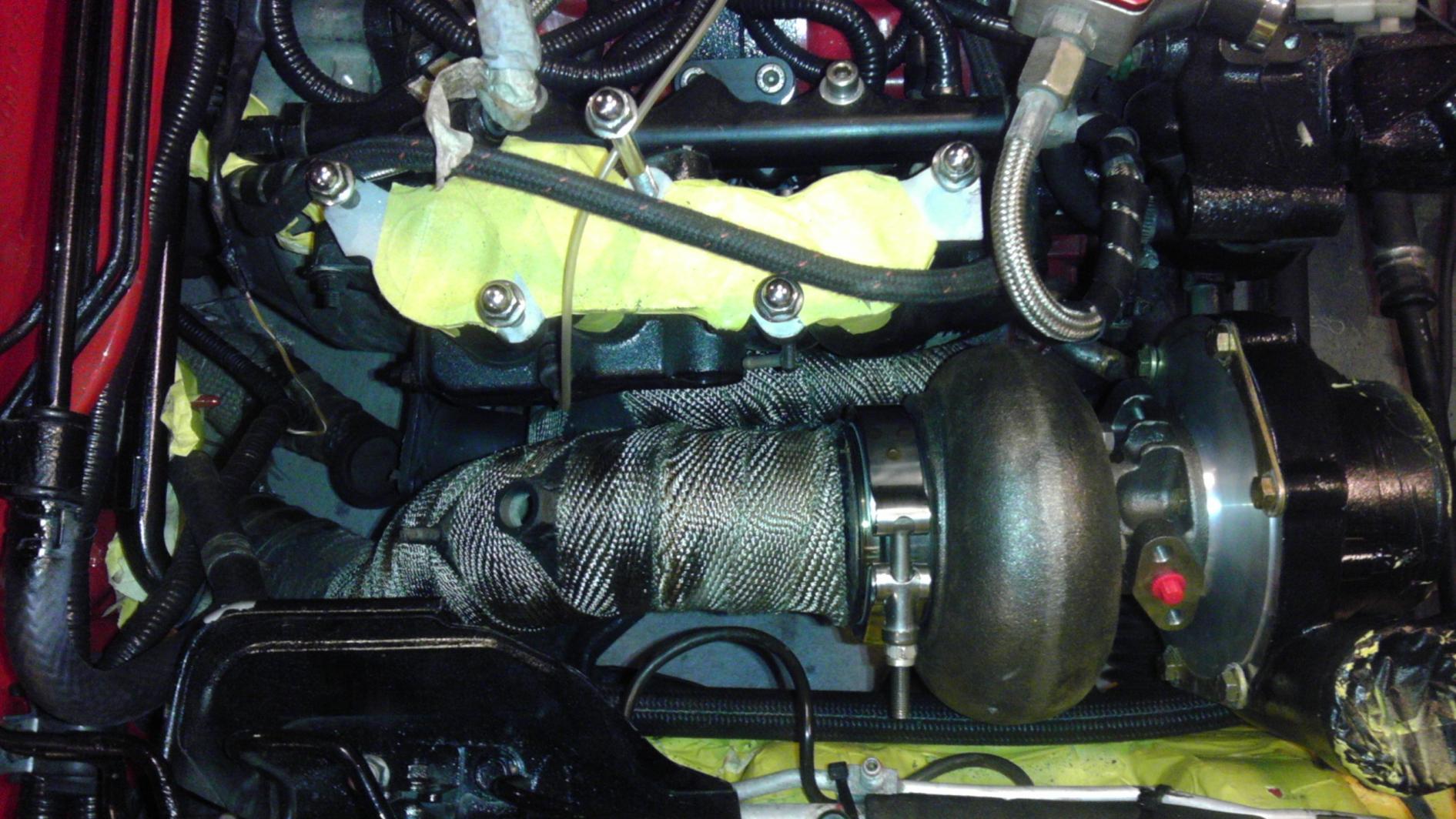

Greddy divided manifold with tial 44mm wastegate
Precision 6266 billet CEA turbo
XS engineering FMIC with custom carbon piping. HKS SSQV Blow off.
Greddy Profec B specII Boost controller and greddy turbo timer.
Innovate LC1 wideband

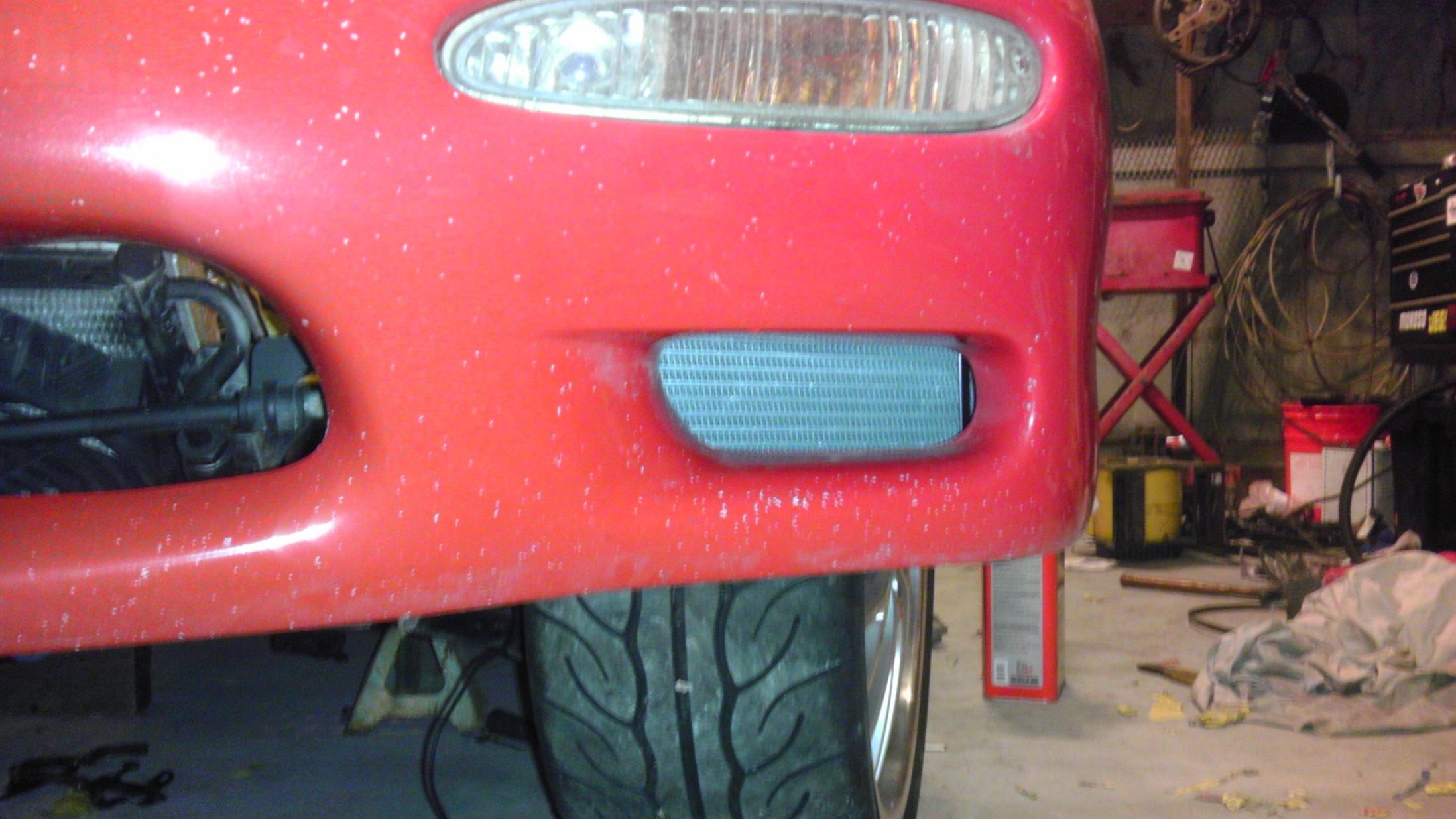

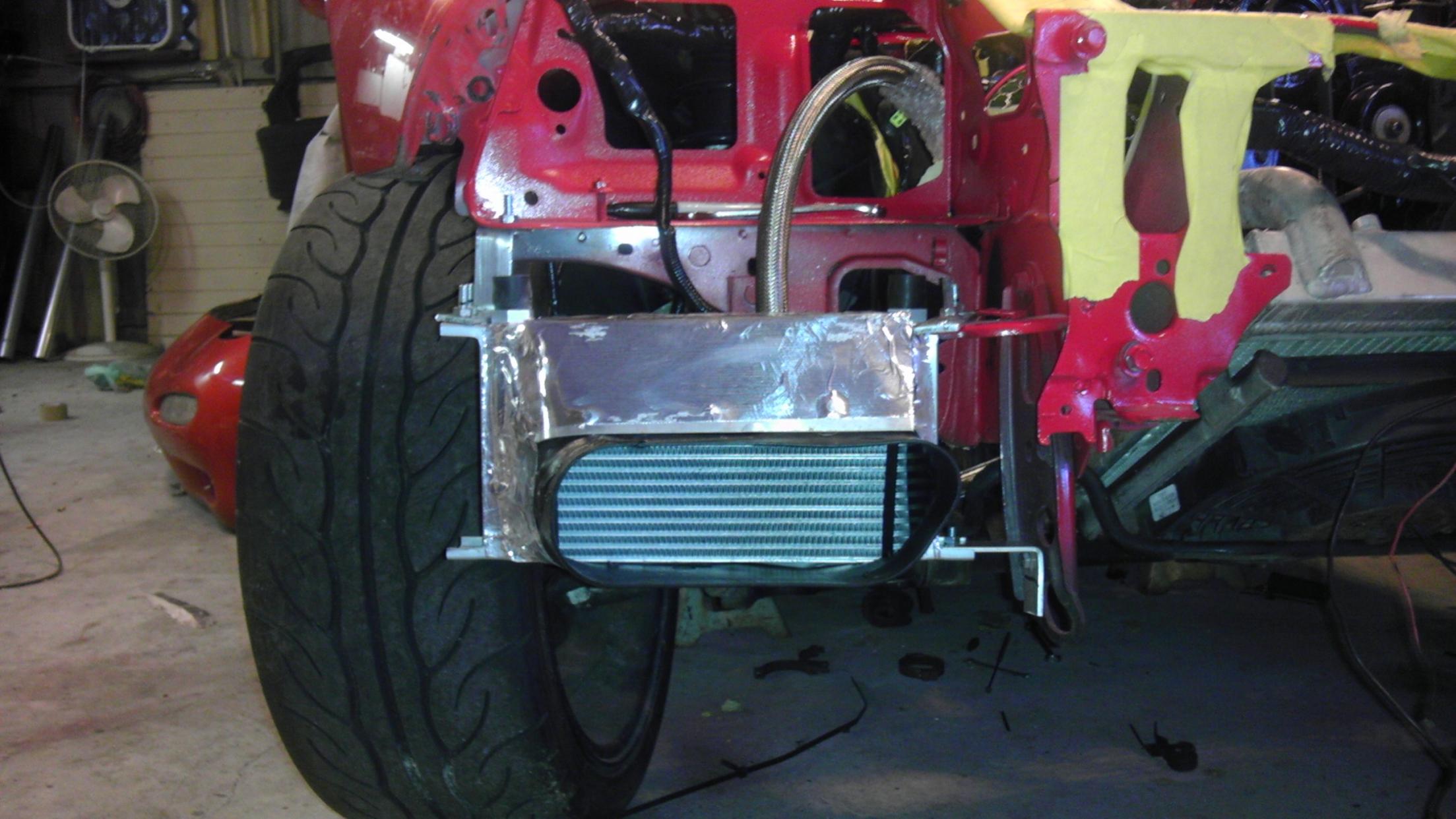

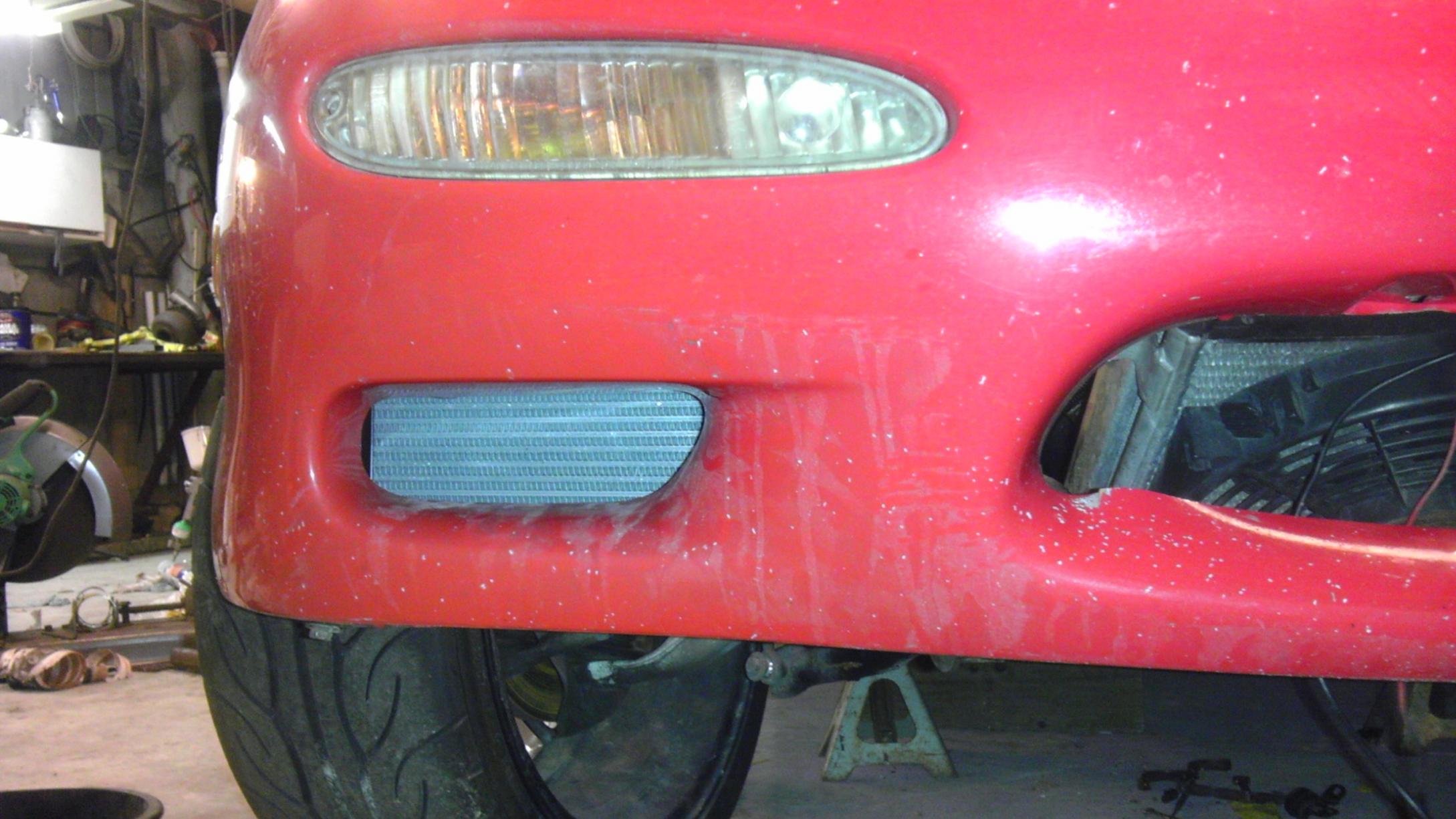

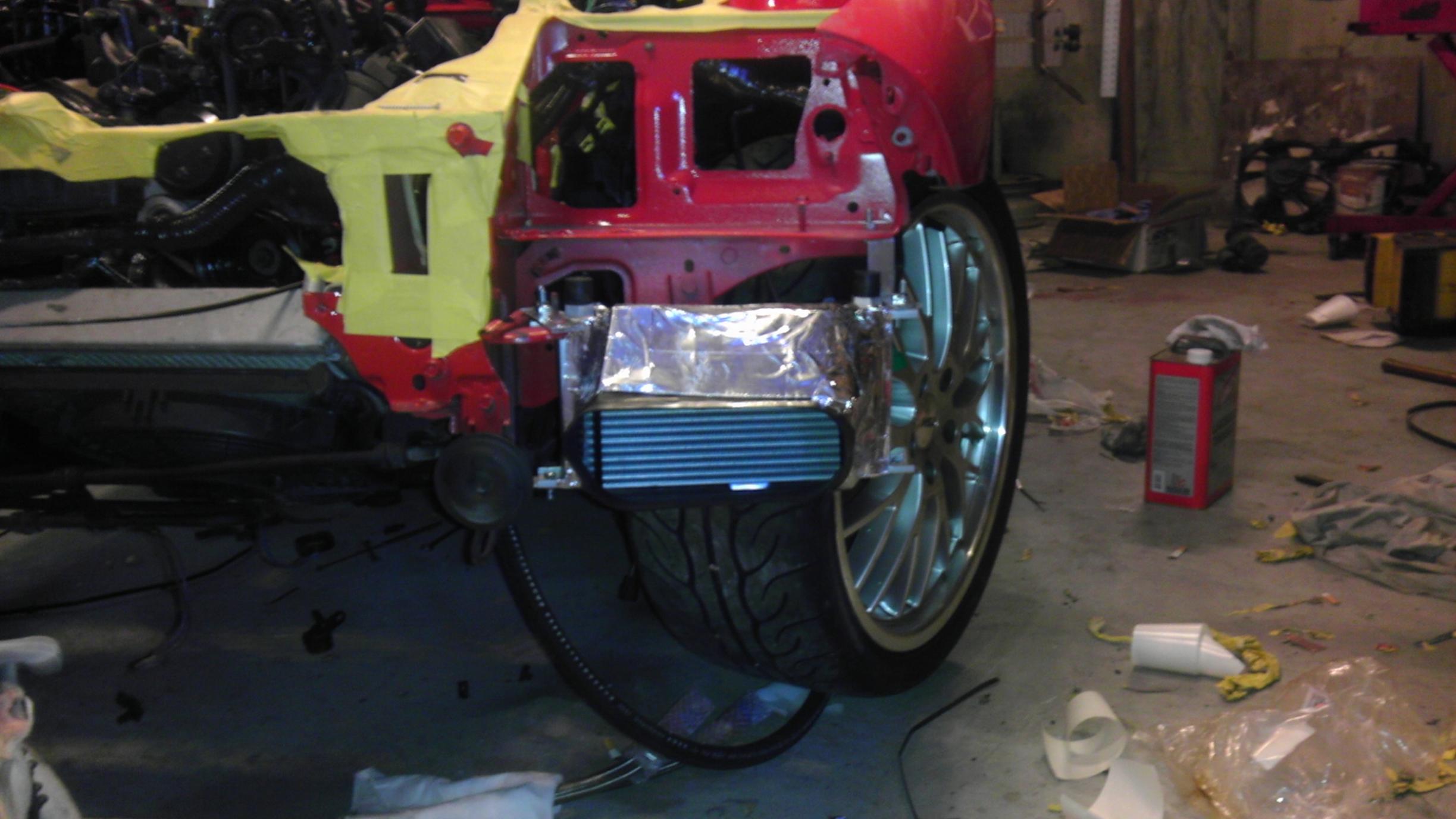

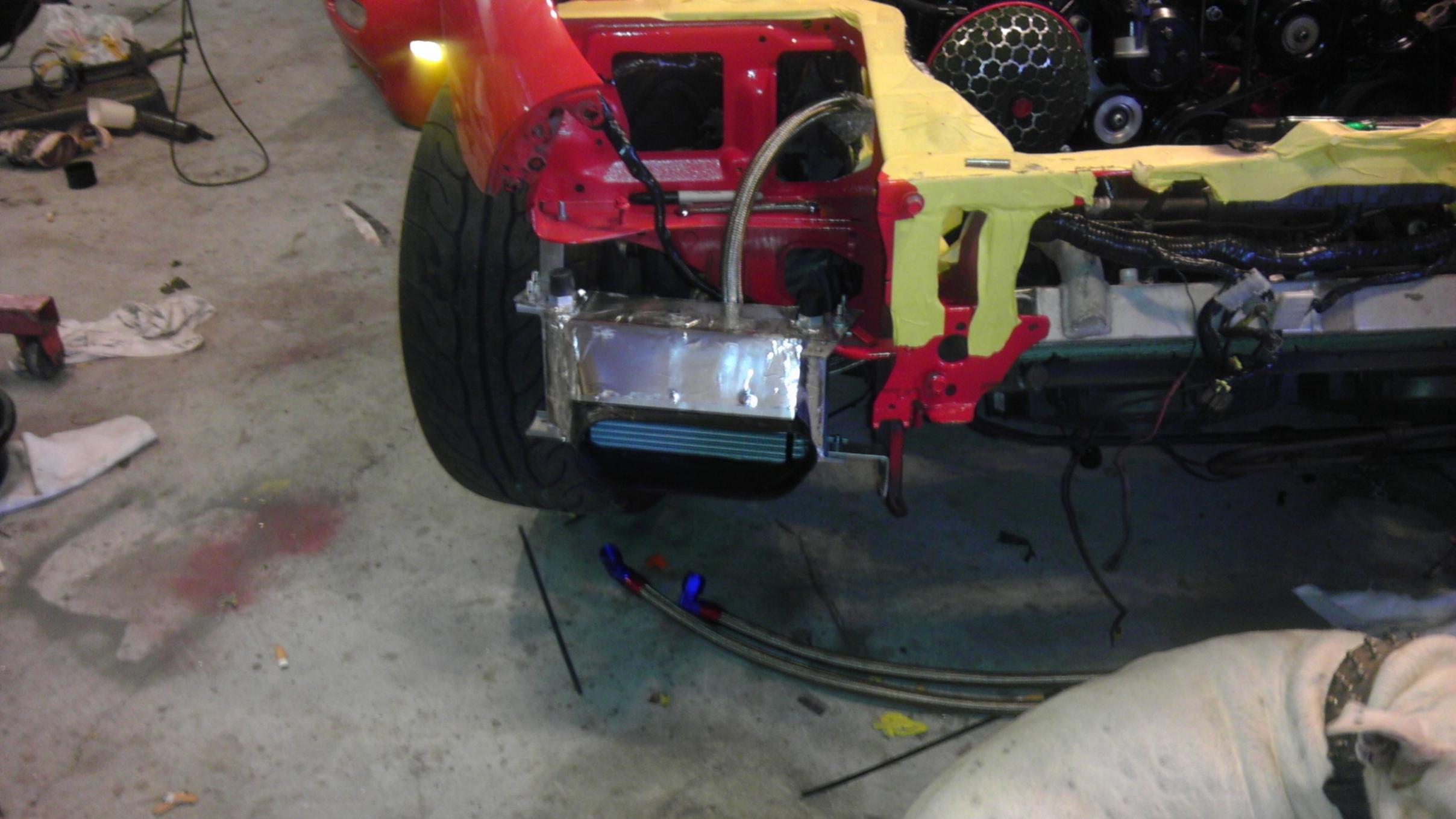

Custom dual 19row oil coolers with stainless braided lines.
Fluidyne FD radiator with Flexalite dual 12" s blade fans.
A bunch of other little things and about 1000 zip ties

The only thing done to the interior is a few gauges and my(outrageously priced) authentic mazdaspeed shift ****.

And a set of wheels are all that is done to the exterior of the car.

I dont wanna think about that list again for a while
Its amazing to sit down and think of all the little things that have been done over the years. And how it all adds up.
__________________

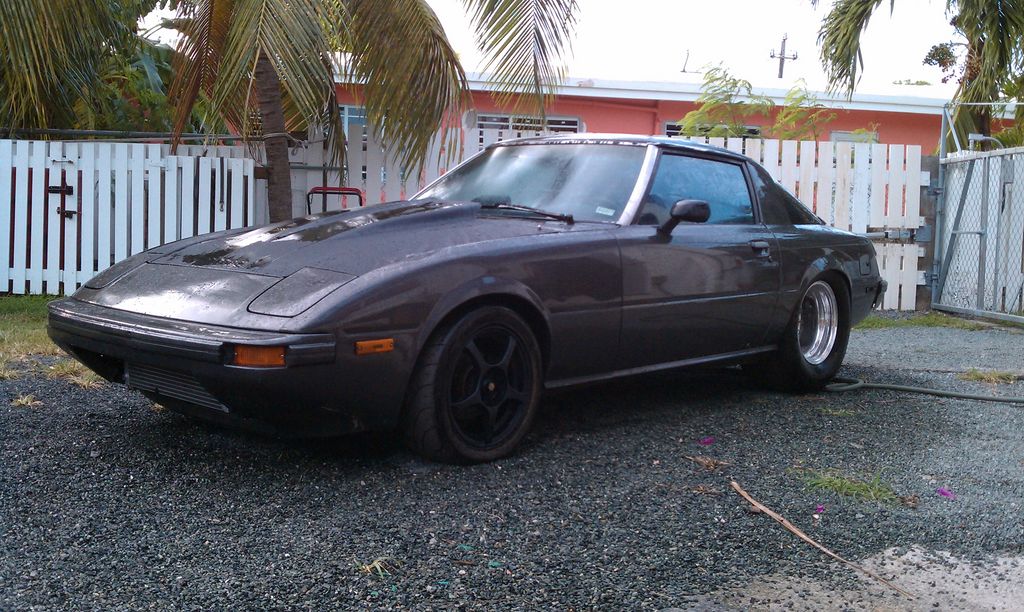

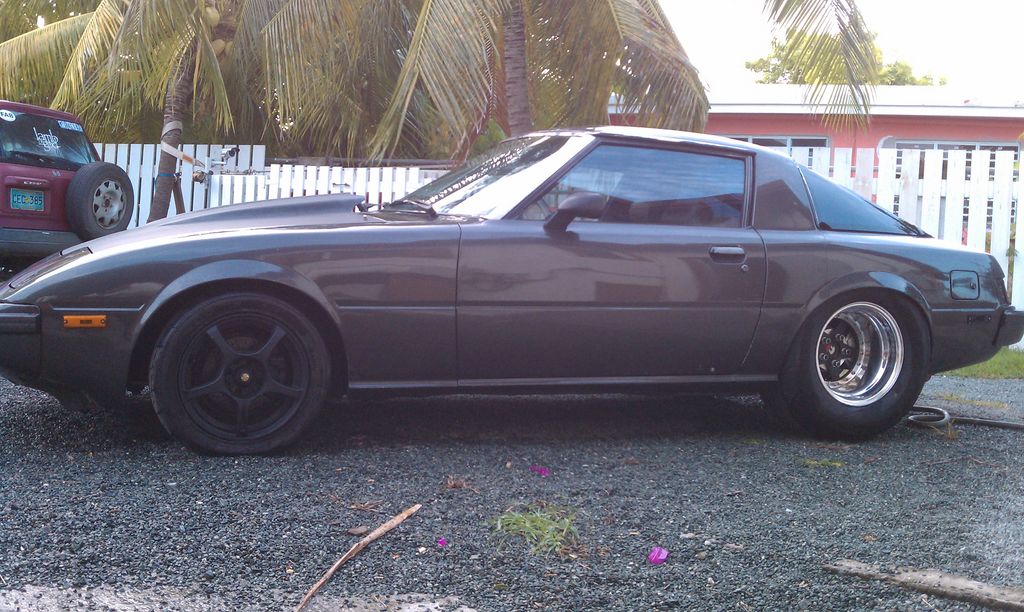

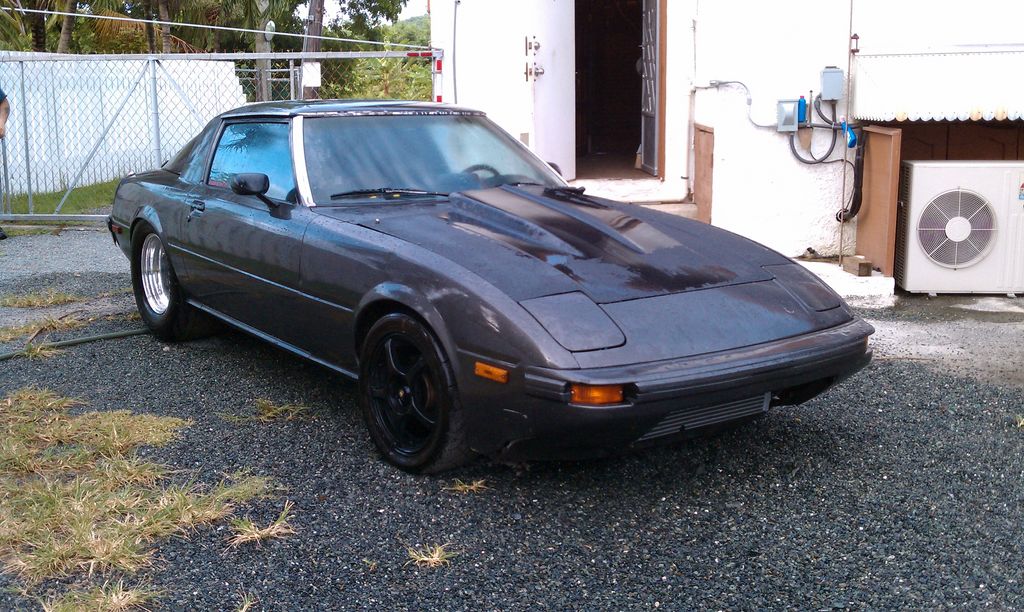

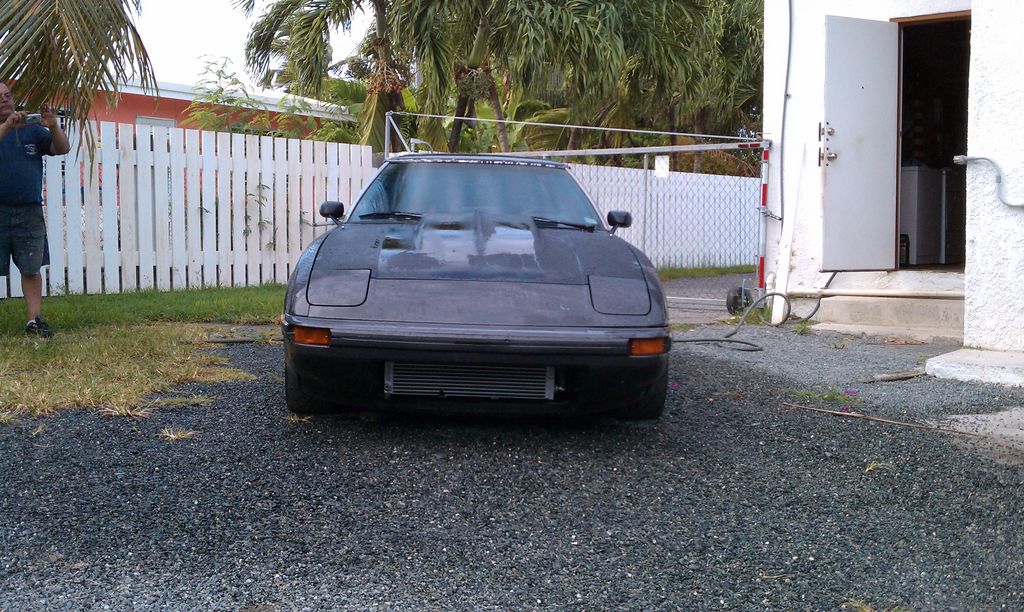

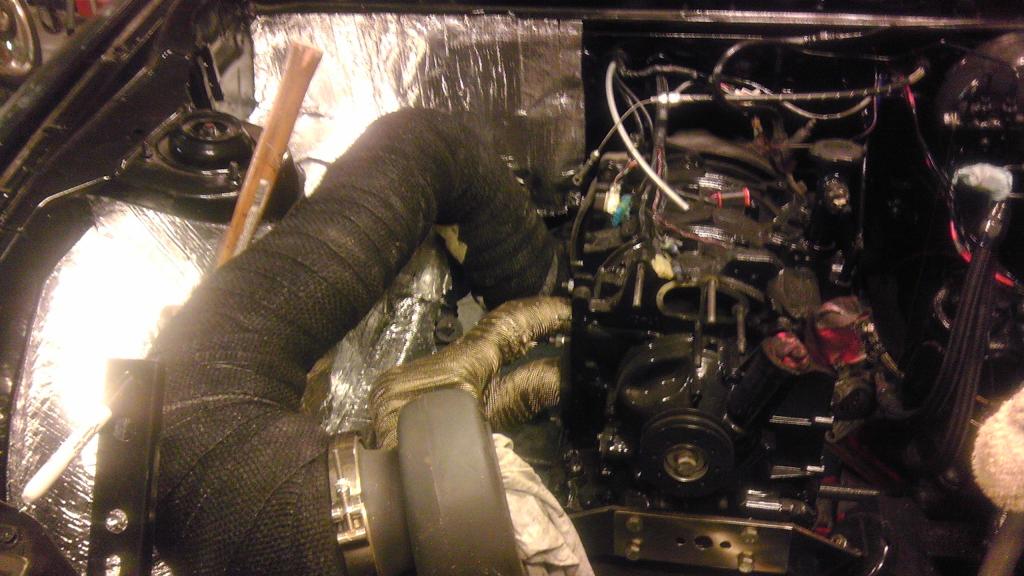

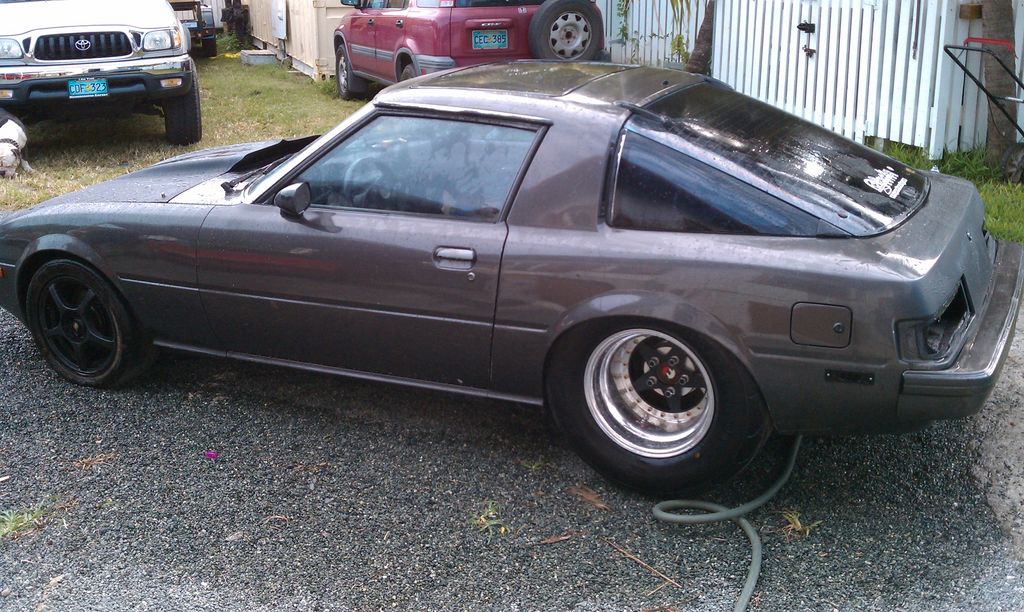

Figure i will post some pics of my other 7 as well.

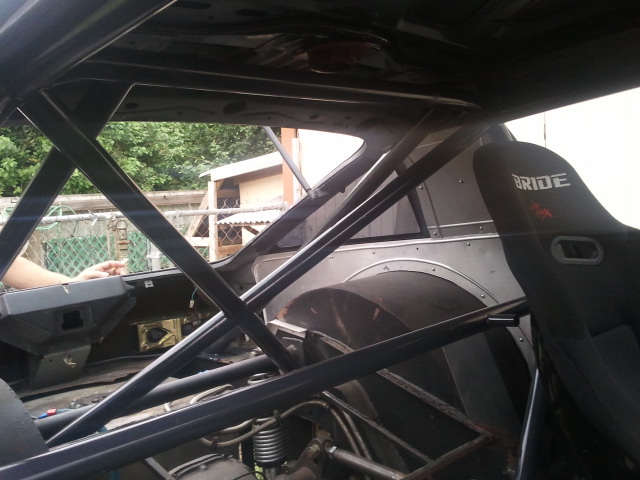

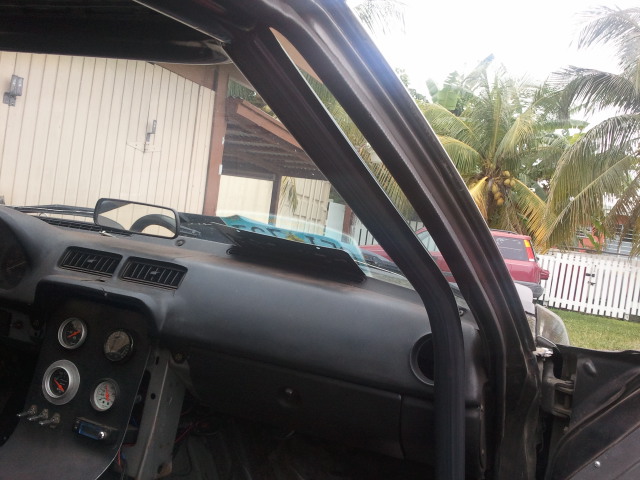

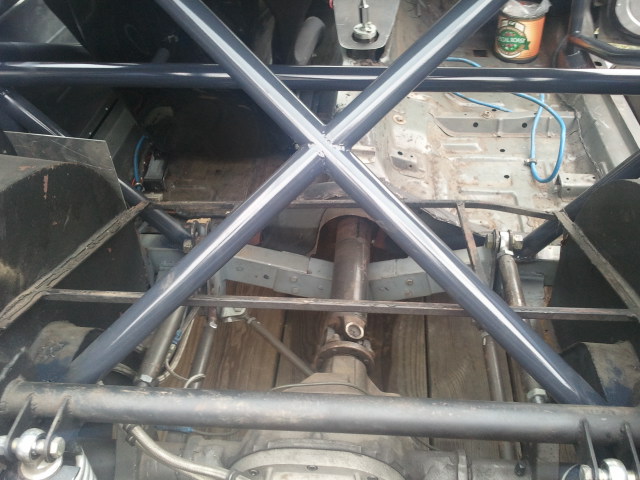

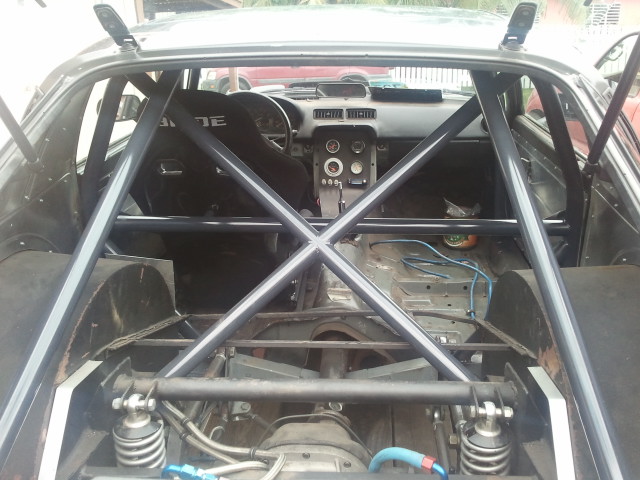

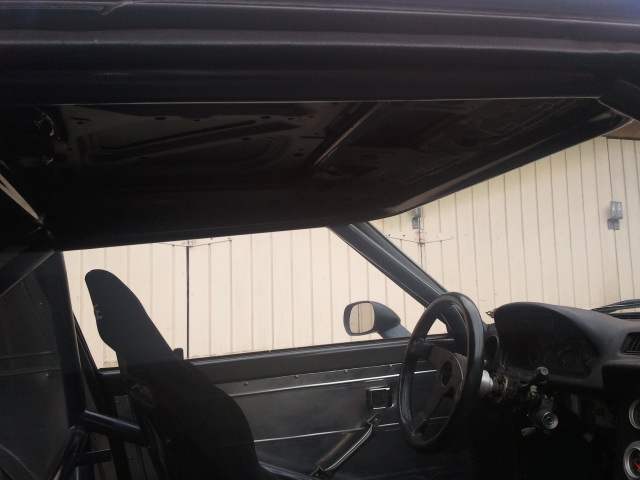

The roll cage.

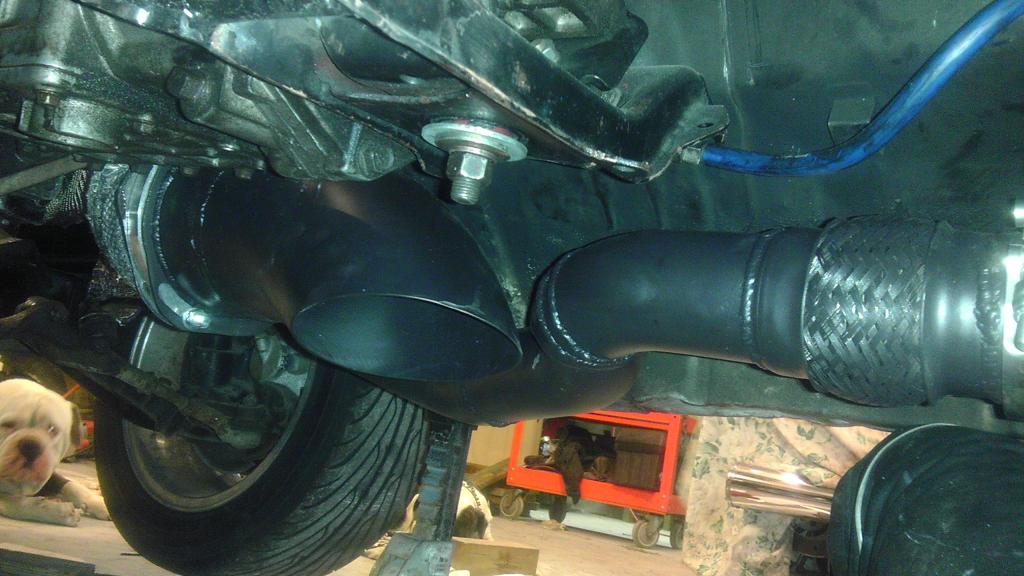

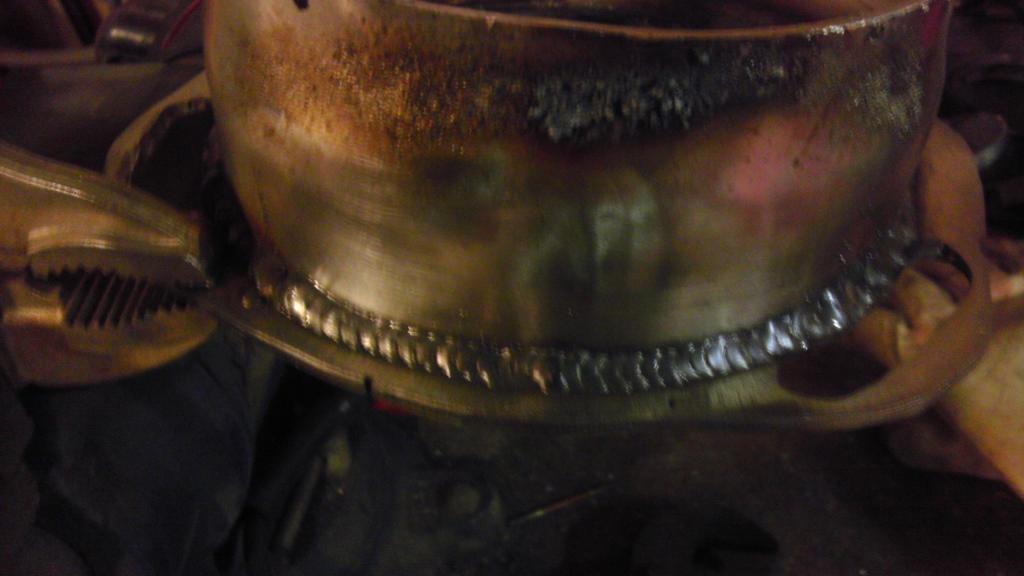

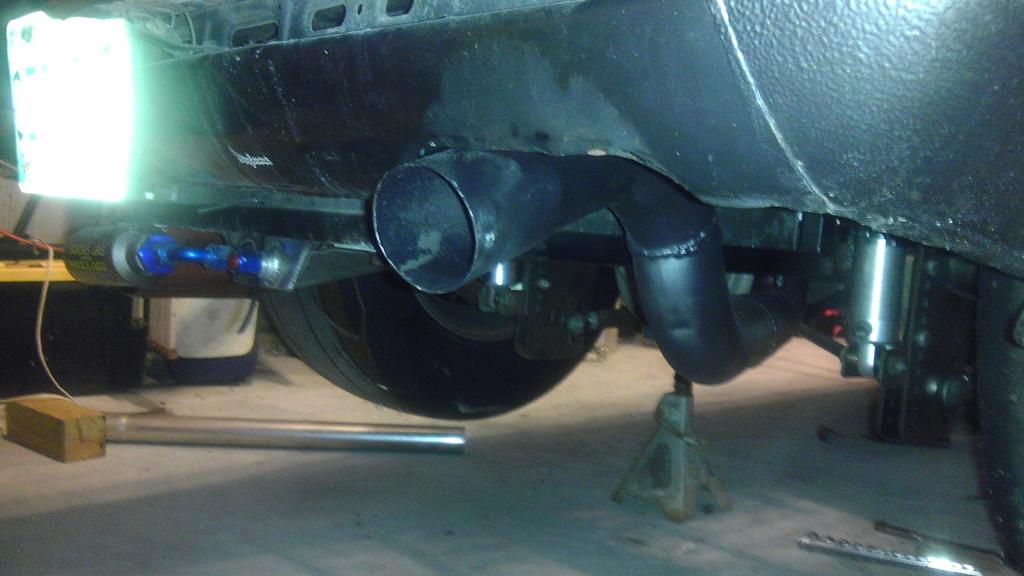

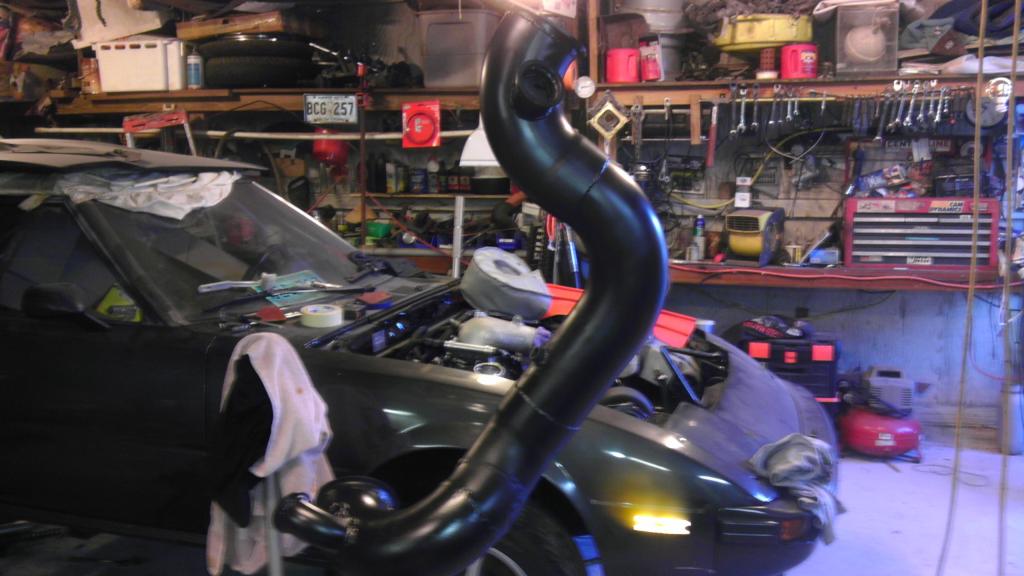

My home made 5inch downpipe with cutout. And full muffled 2.5" exhaust to keep it quiet to and from the track.



This is the end result.



Wow nice thread man



damn, I need to get my rx-7 ging, this thread has pumped me up so much

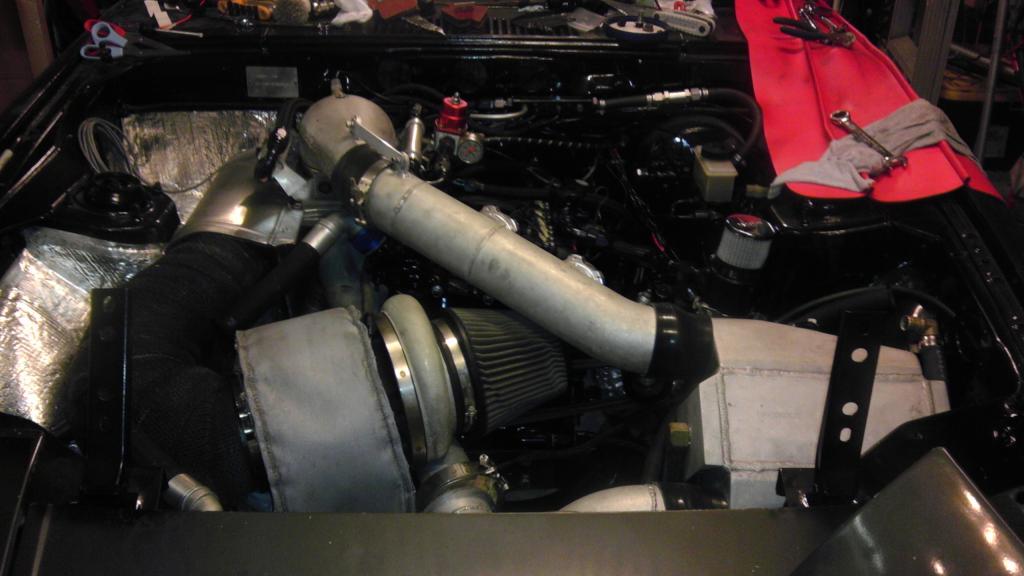

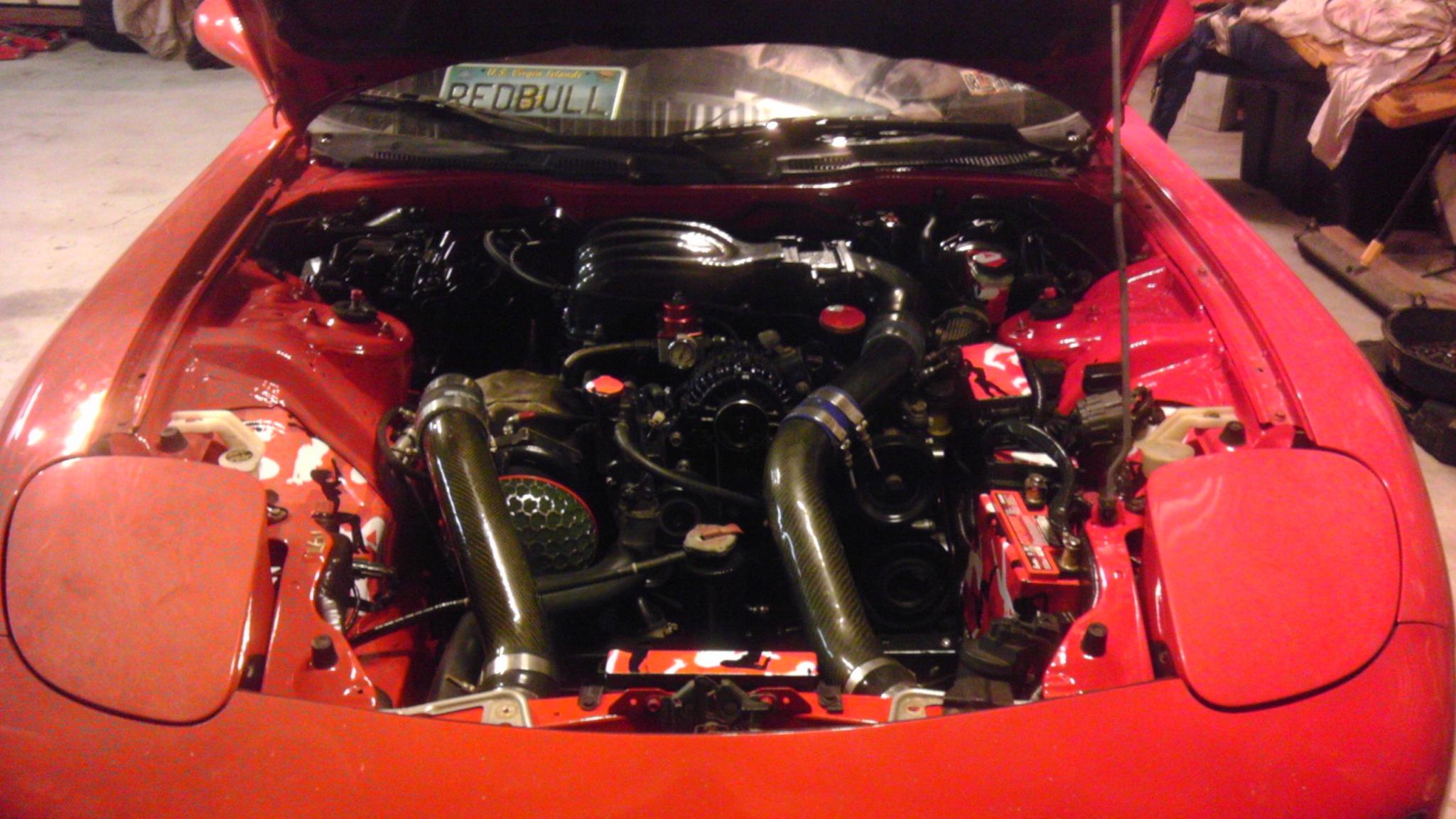

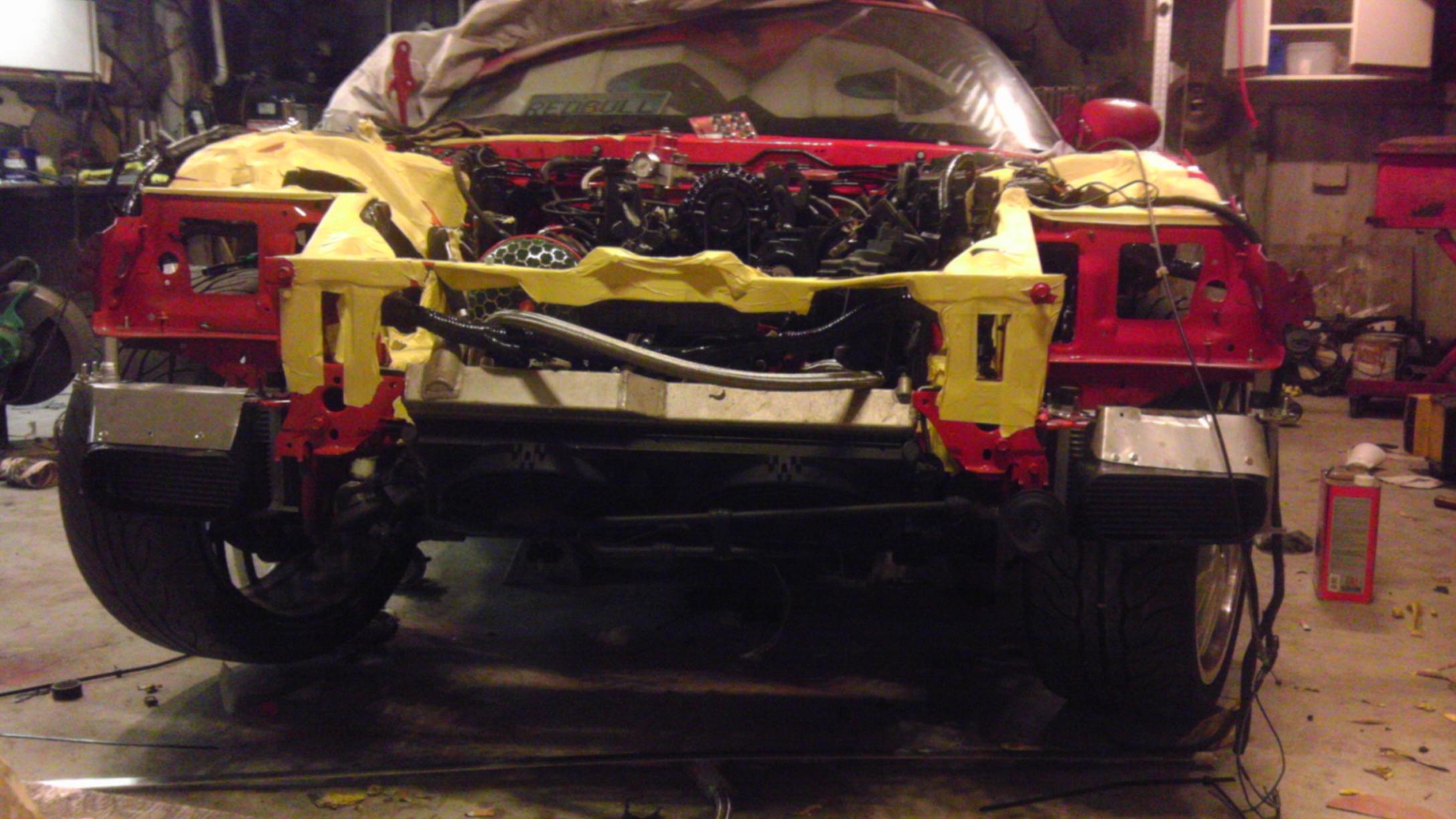

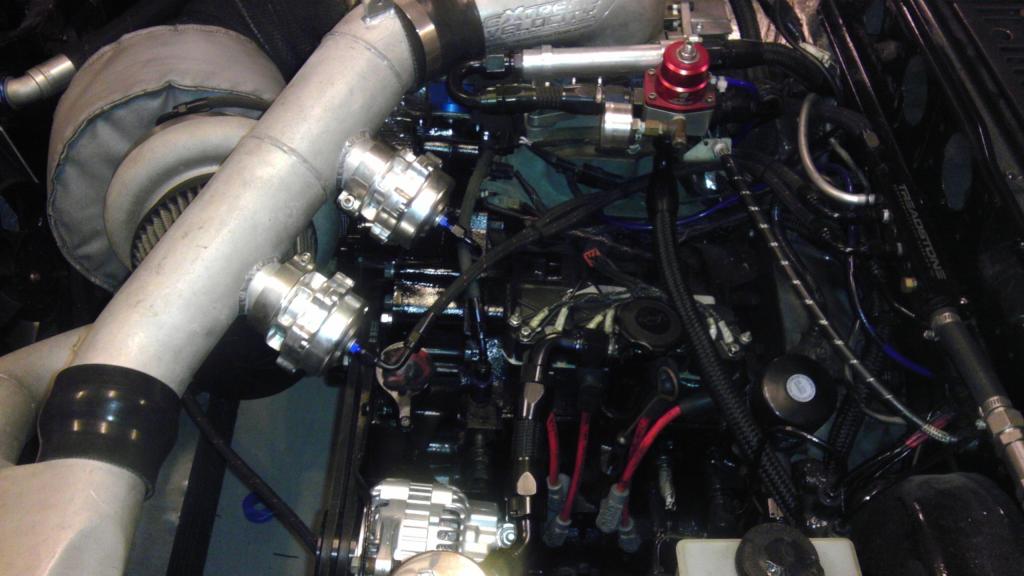

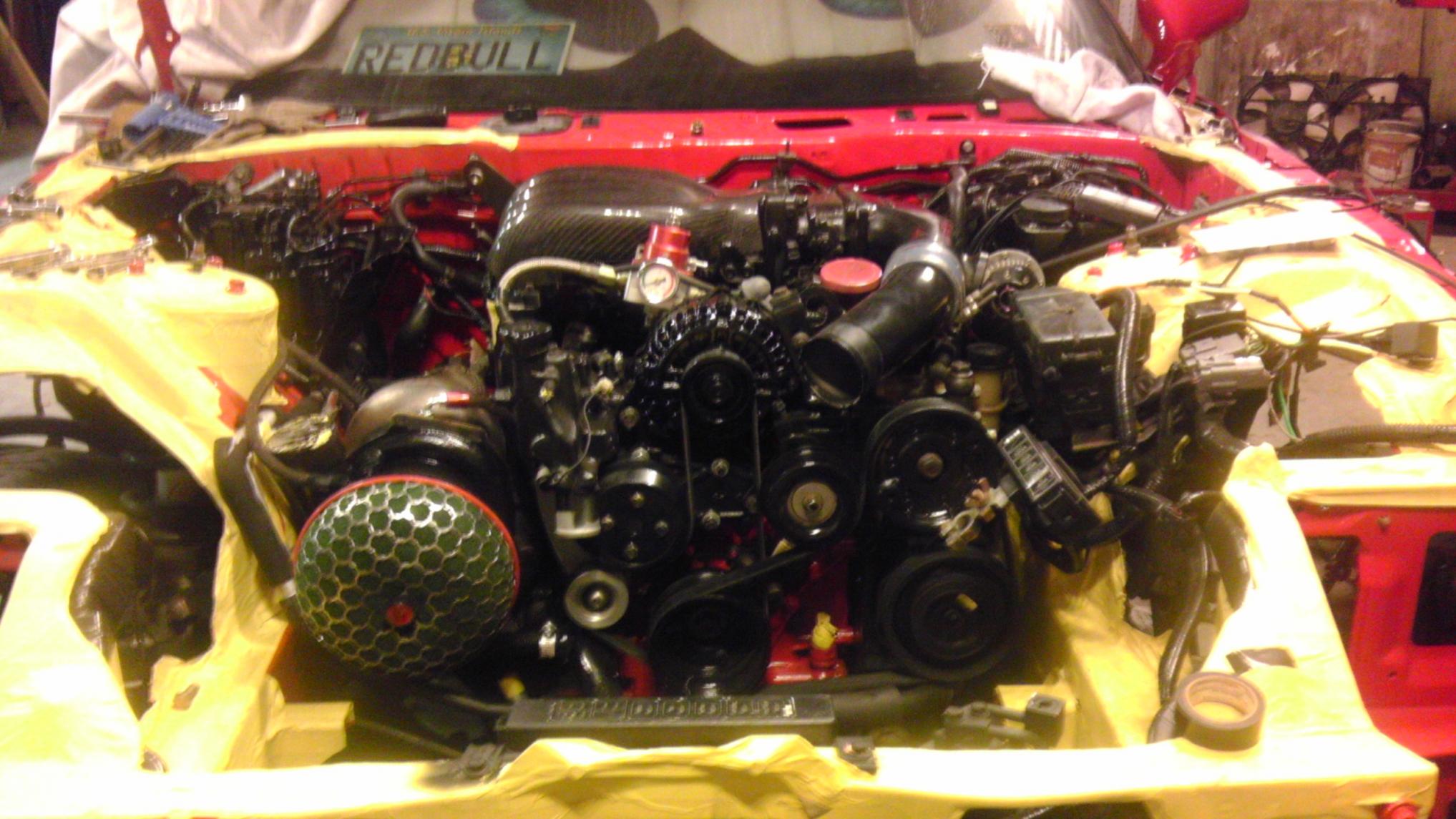

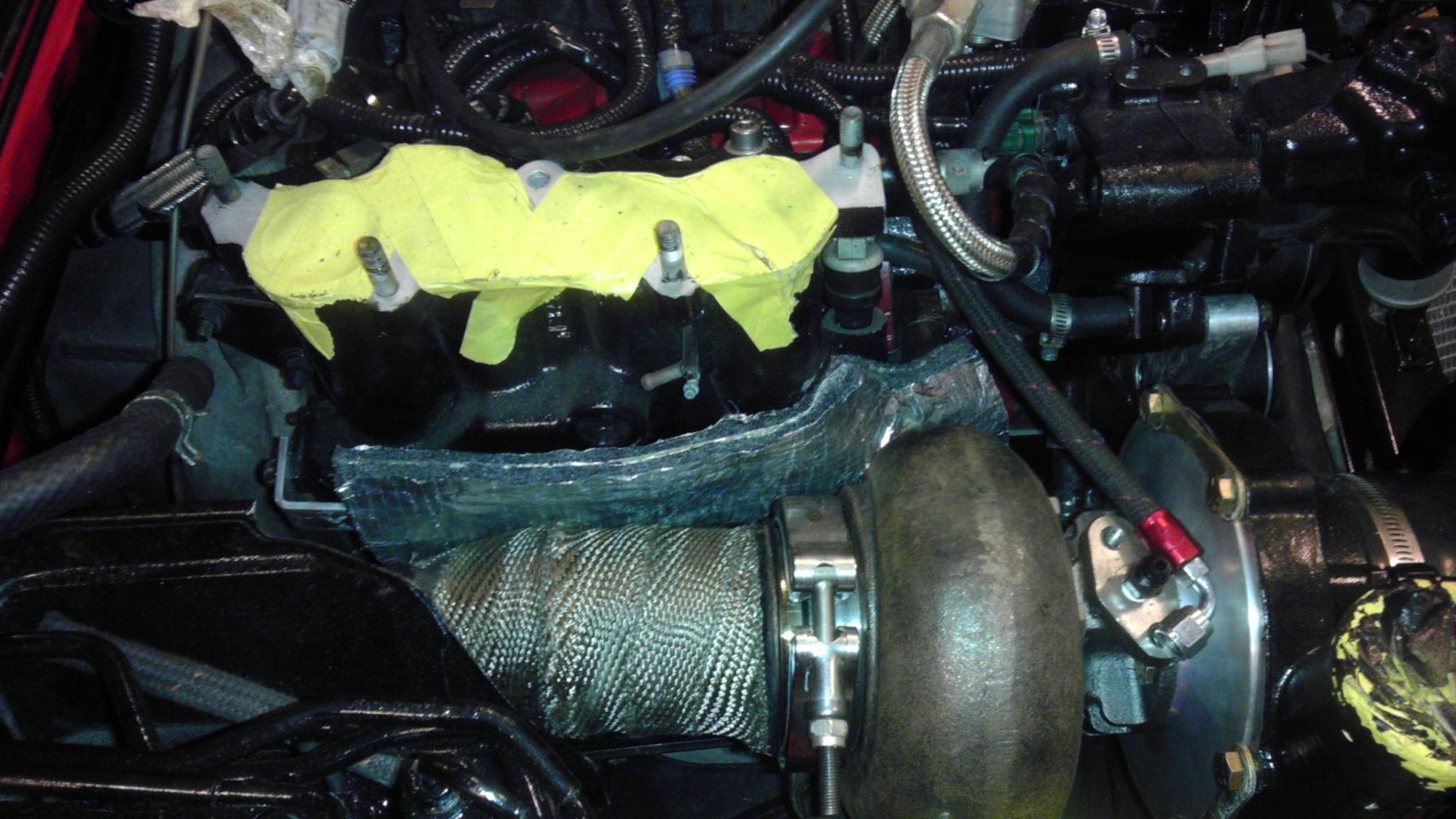

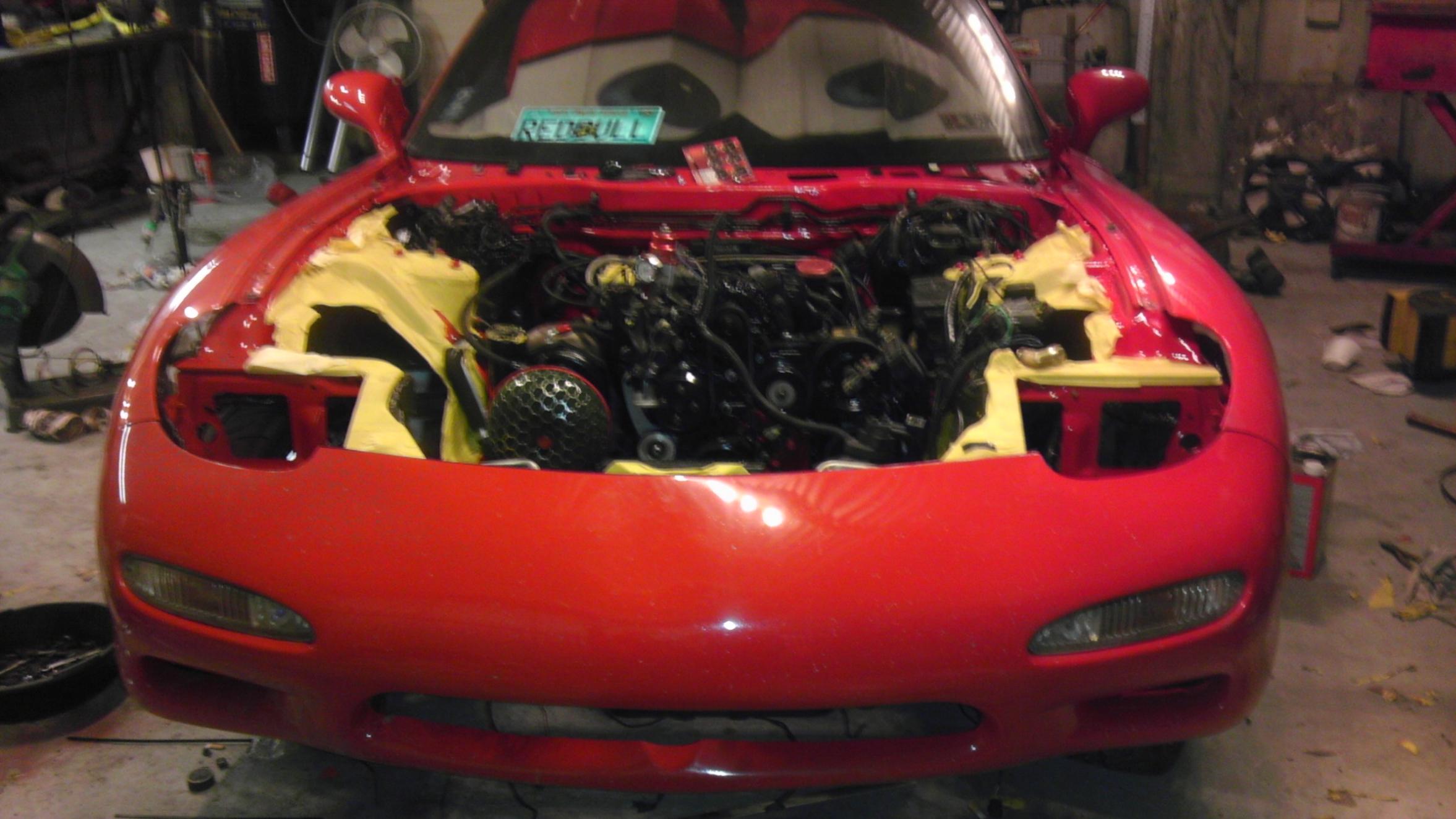

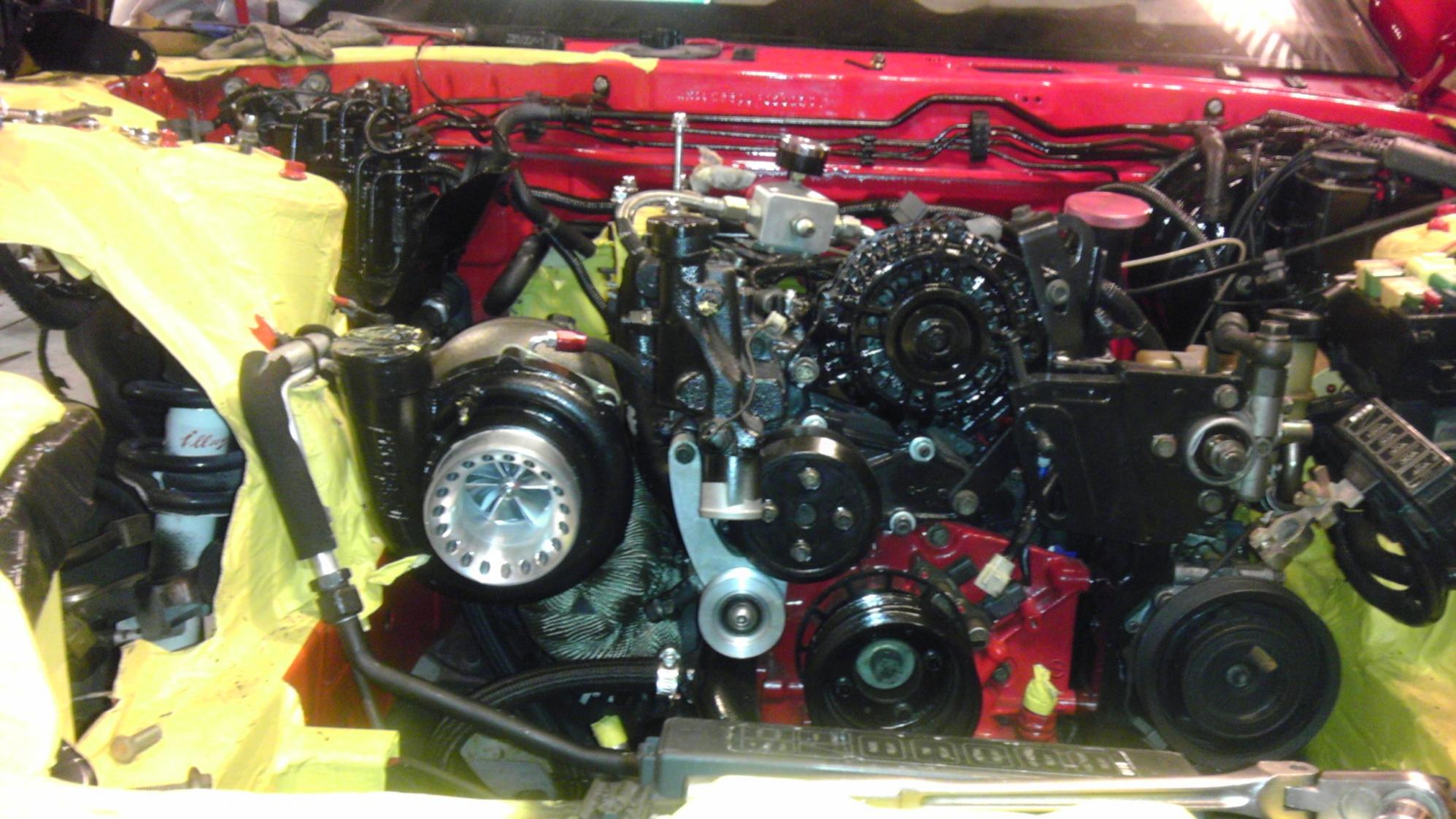

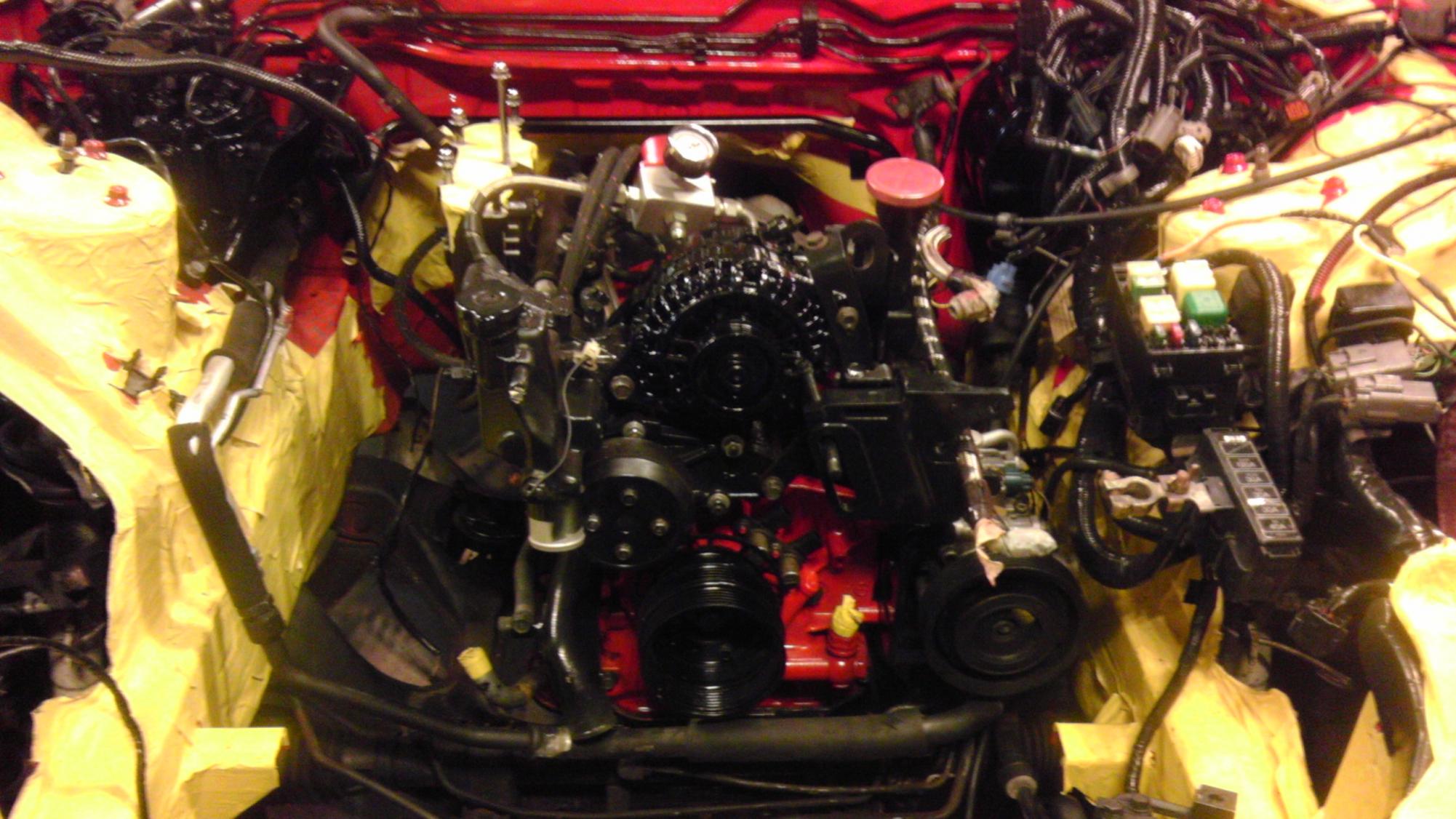

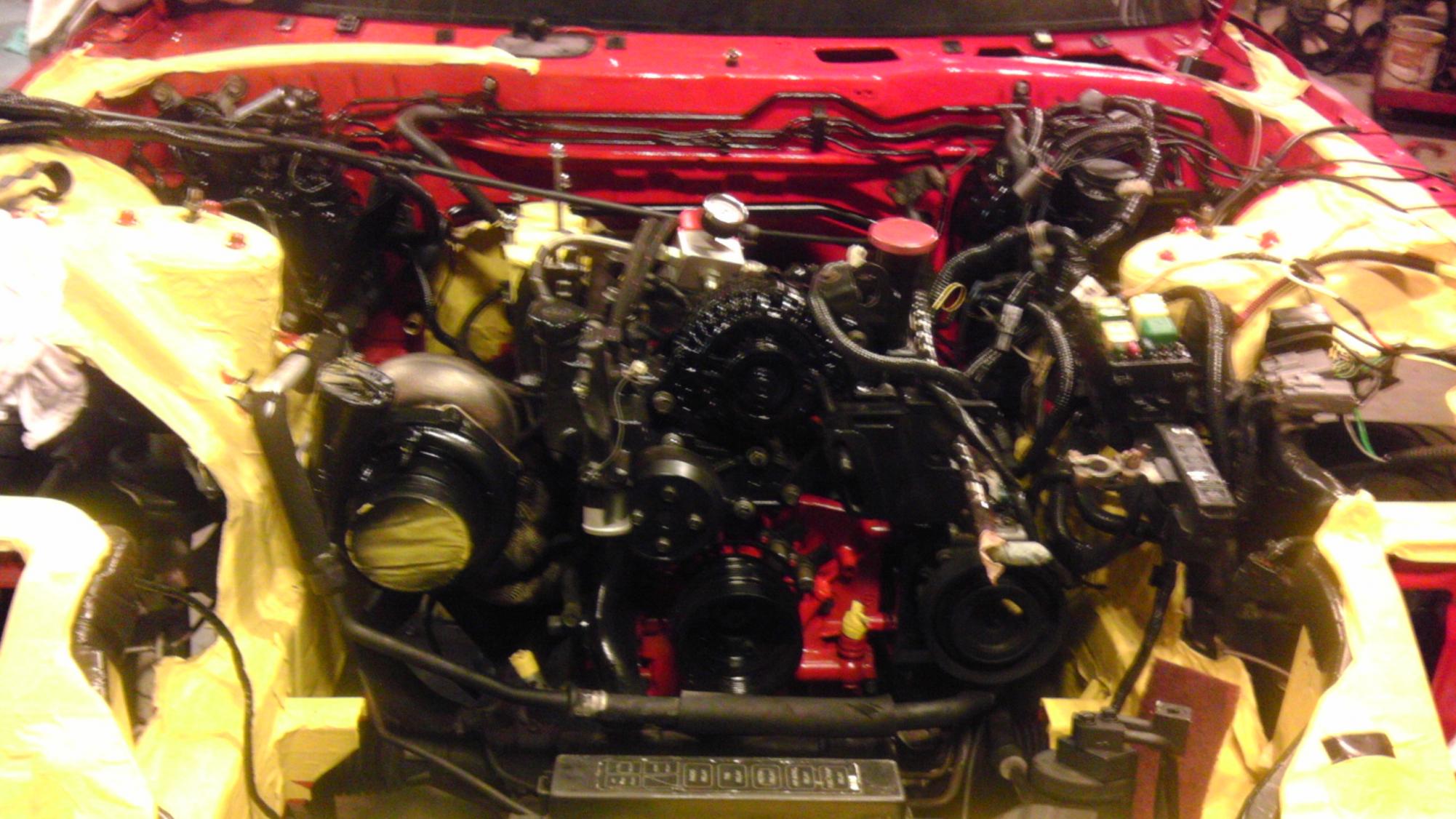

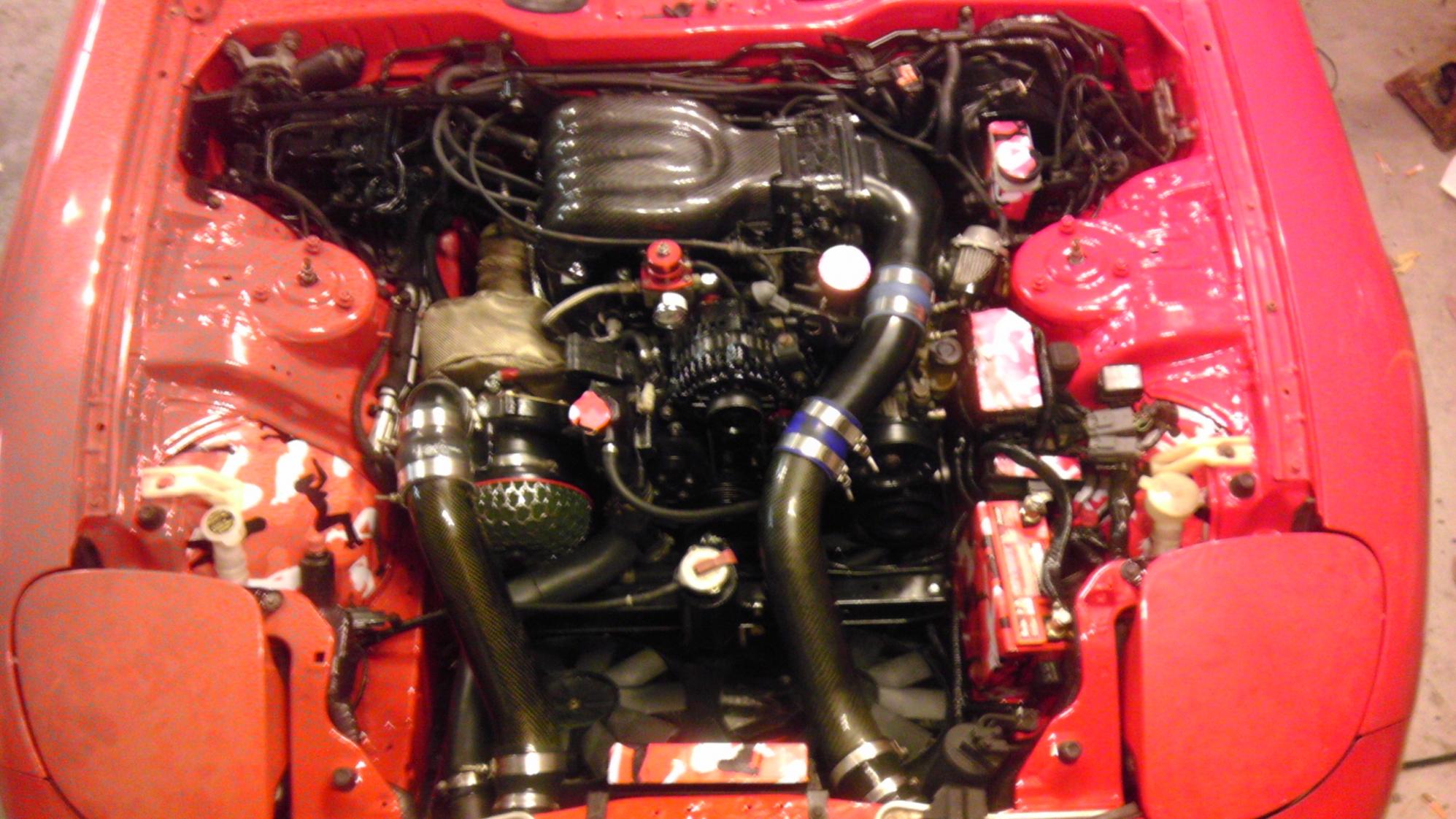

The finished engine bay



A pic of mine and 2 of my friends cars. You probably wont see 3 FD's together on this island again.



loving that cage.
