EODFD3S

iTrader: (9)

So I bought an FD! (2 years ago I might add).......and never started a build thread. Shame on me.....but alas I have started one!

I have a sweet red 93 touring!

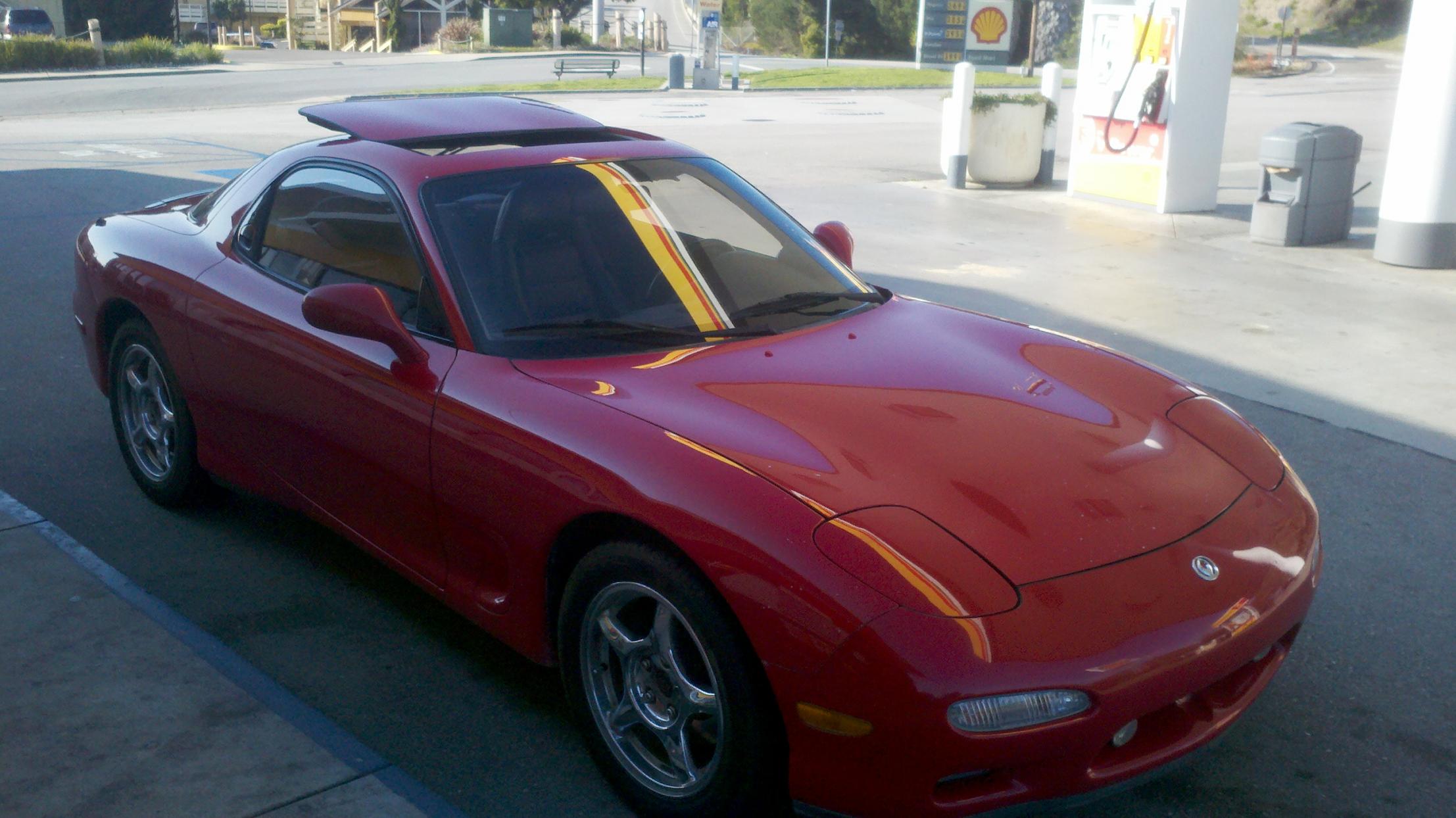

Here's what it looked like the day I bought it. I was so happy because I actually found an FD and since I'm an adult with a job I could actually afford one

https://www.rx7club.com/attachment.p...1&d=1381983776

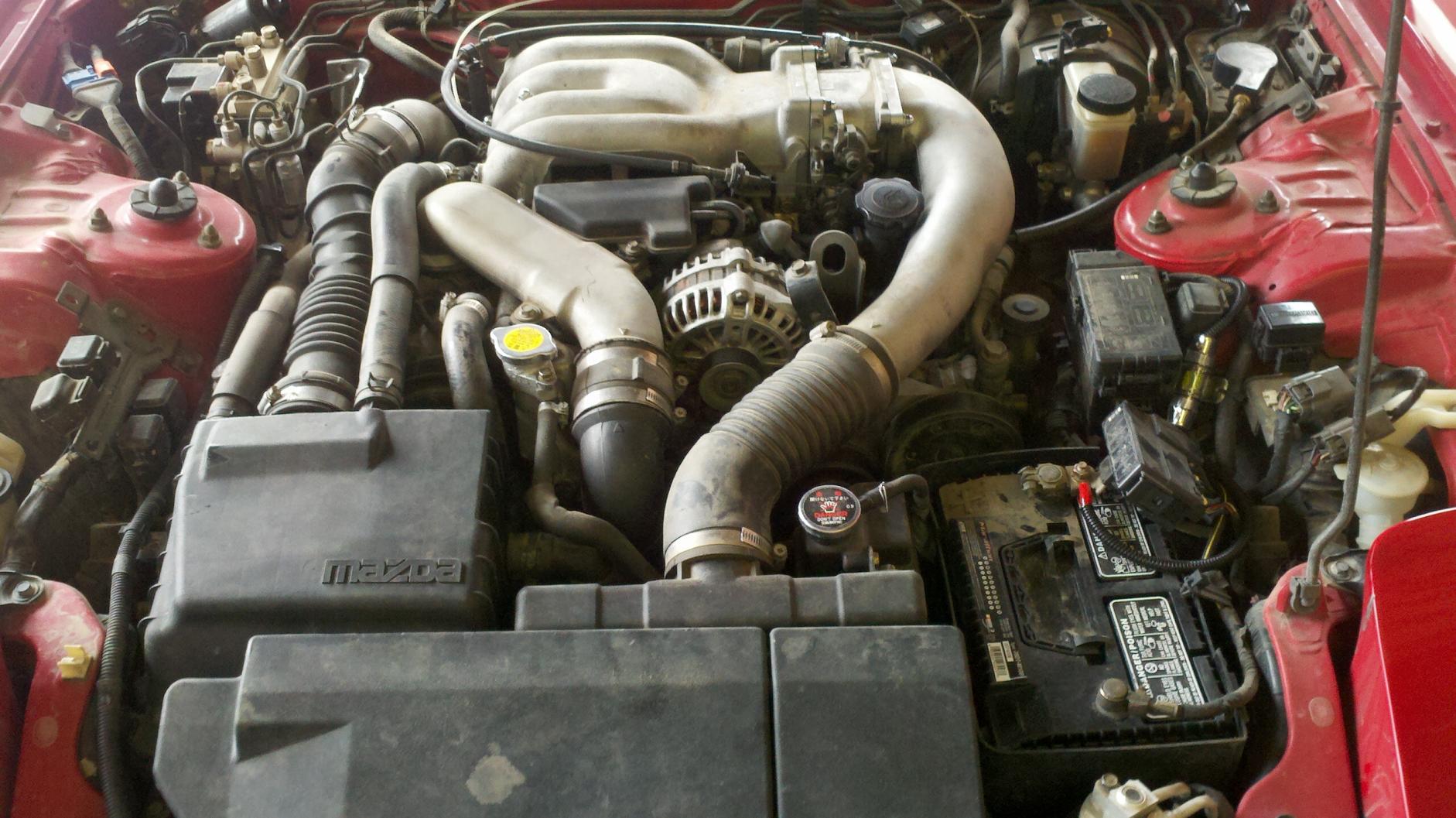

And the completely stock re manufactured engine....... This did not last long at all to be honest.

https://www.rx7club.com/attachment.p...1&d=1381983776


Now if I could figure out how to post the pictures in the thread and not have them linked or attachments

Anyways stay tuned more to come! We have two years of catching up to do and well its still being built

EODFD3S

iTrader: (9)

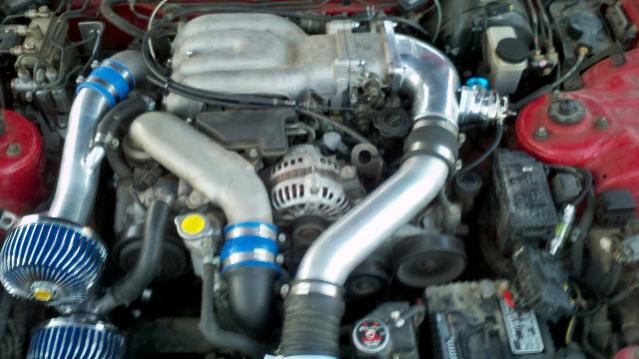

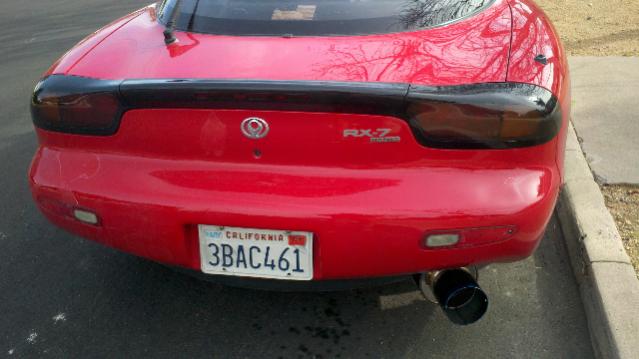

So here's a little update! This was from a few years back, exhaust and intake.







And the greddy elbow with the BOV.
More to come!

EODFD3S

iTrader: (9)

So I'm updating my build thread tonight after spending a solid 4 hrs working on the FD. And about 2.5 years of much needed updates.

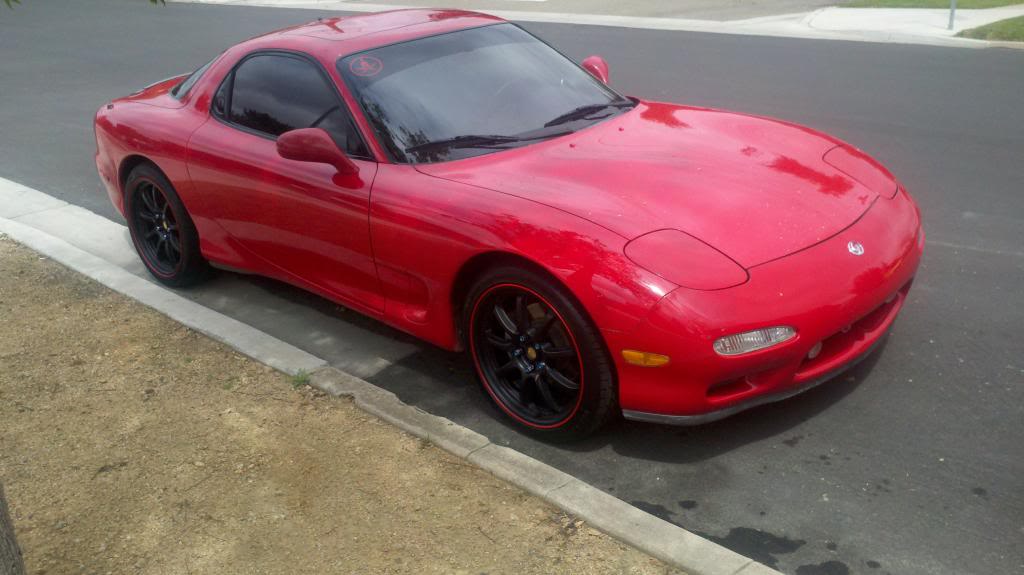

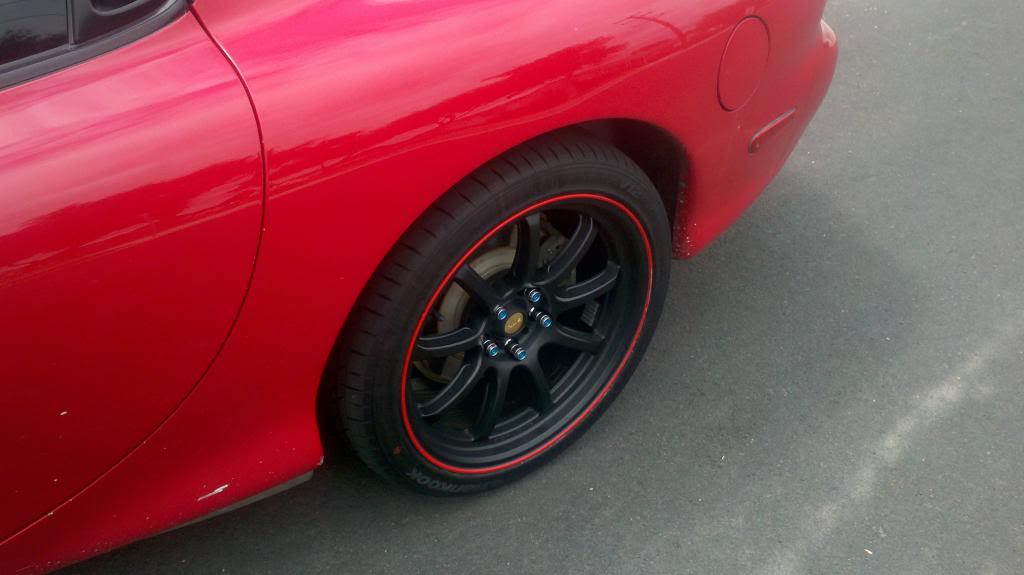

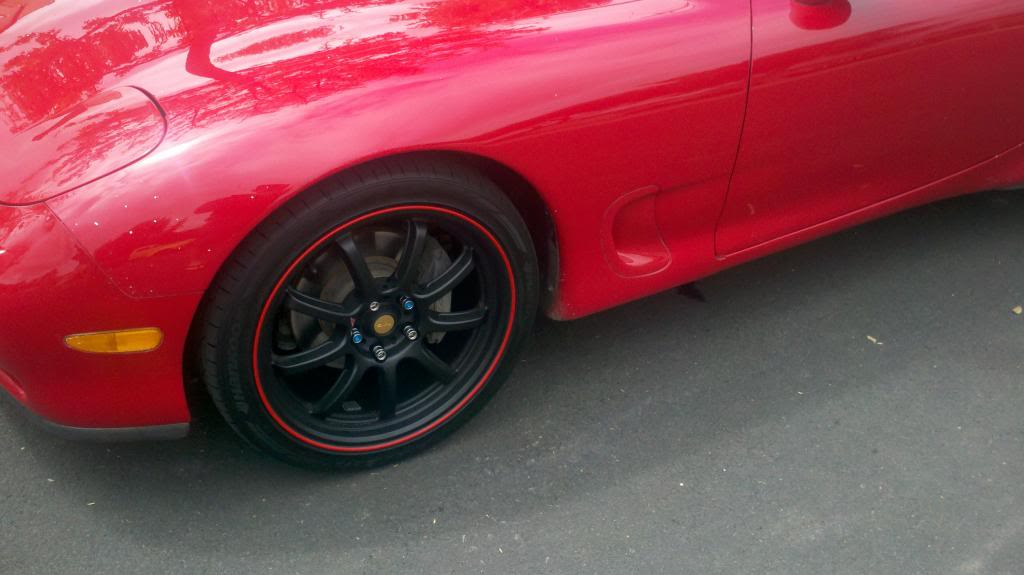

Picked up a set of Rays gram lights.....in black with the red lip. pretty sexy if i must say so myself. Planned on getting them refinished at some point as they have a tiny bit of curb rash......still have not.




They ended up getting wrapped in Hankook Ventus V12 or whatever tires, because I was strapped for cash at the time after buying these bad boys.

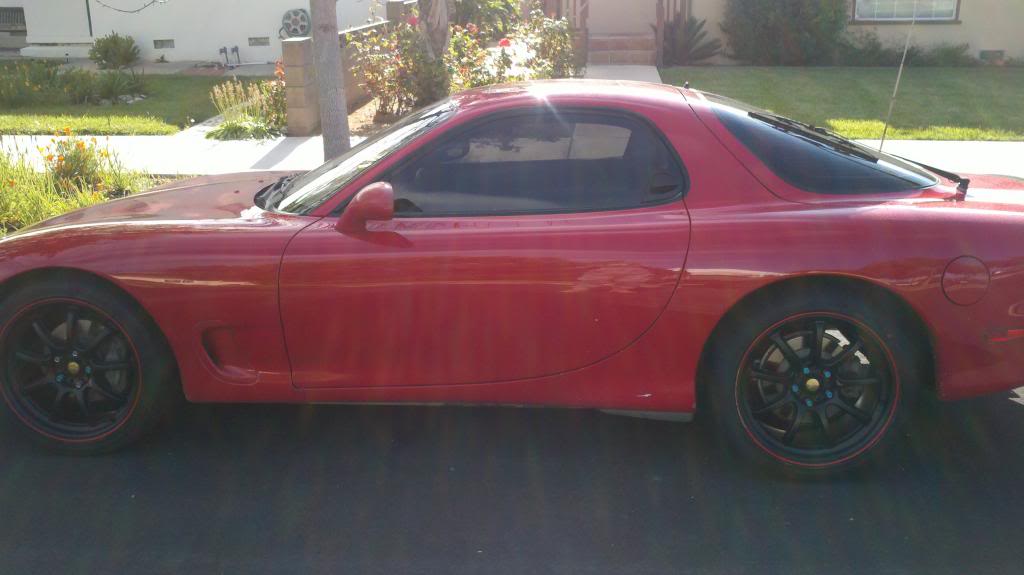

Also the windows got tinted all the way around!

EODFD3S

iTrader: (9)

Here's a little preview of whats going in, 3574 a cheap manifold and an HKS 40mm wastegate.

Here is a little back story, so awhile back i bought my FD and was super stoked to make a bad *** single turbo monster. About a year and a half ago right before I left for Afghanistan (literally a week before i left) I sprung a fuel leak, some where near the fuel tank. I didnt at the time have a chance to tear the thing apart and find it, so I parked it in my garage. So finally after spending 7 months in what can be described as a giant **** hole I came home and opened my garage and it was gone........WTF come to find out my dipshit roomate put it on a trailer and moved the car to the shop we work at for no reason other than he is a retard.

EODFD3S

iTrader: (9)

So I got the car back to my garage. Here is what has happened since then.

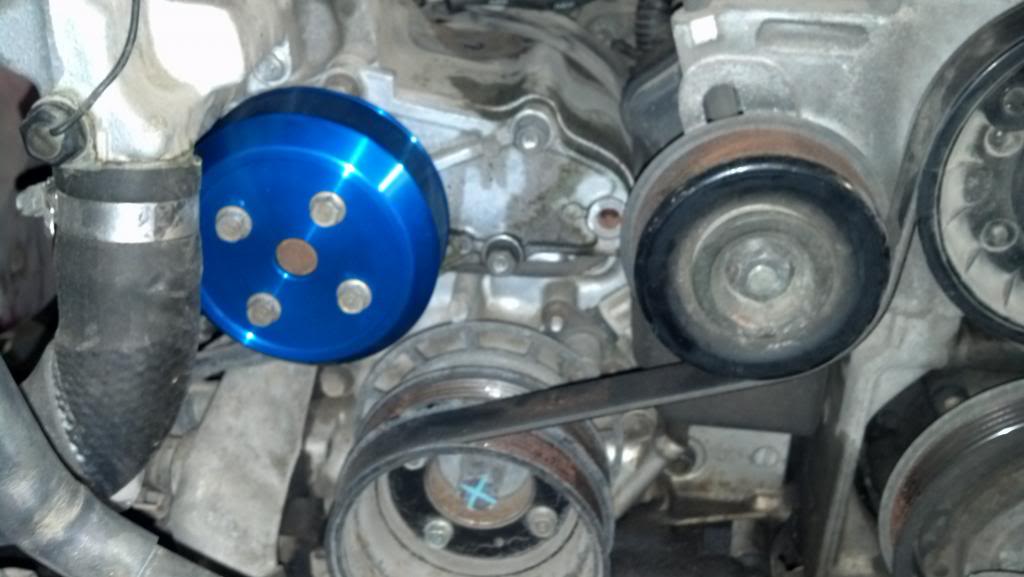

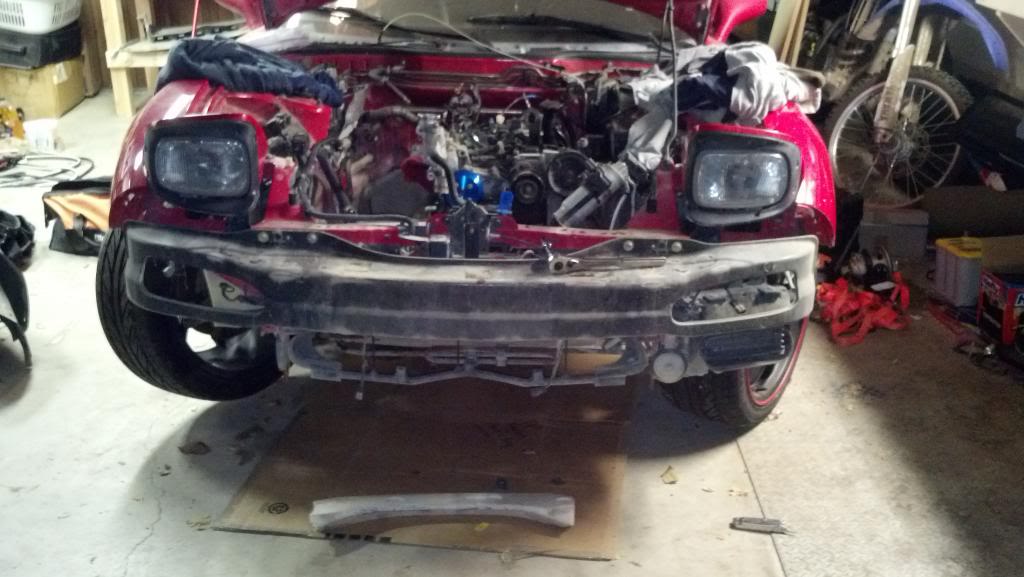

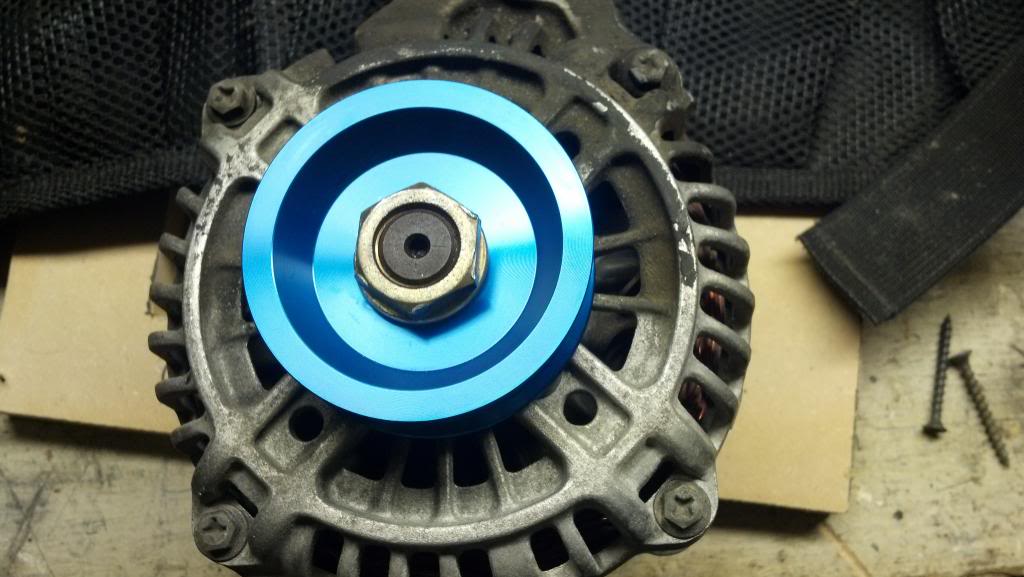

Removed the stock worn out twins, pulled the bumper to prep for FMIC install and engine bay cleaning as well as greddy pulley kit.


Then I pulled the stock fuel pump out and replaced it with a supra pump!

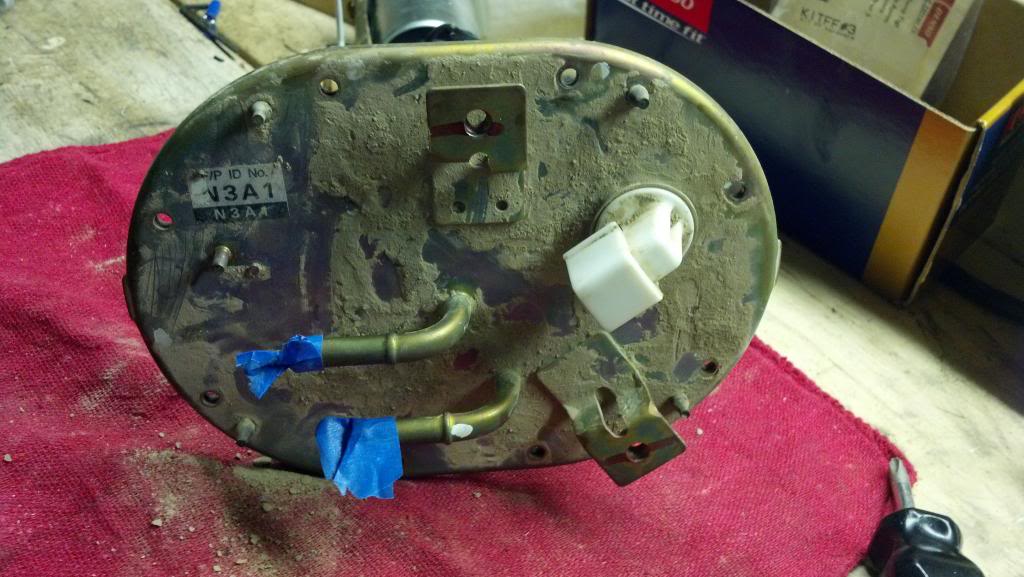

As you can see the owner before me did zero maintenance/cleaning of parts on the car. There was about a quarter inch of dirt caked on top of the pump hanger in some places.

Also didn't find the fuel leak.

Adeel_ssj4

winning

EODFD3S

iTrader: (9)

I know right! I would have waited and got a cleaner FD but for a complete stock one with a pretty new reman in it the price was great so I couldn't pass it up and I planned on pulling most of the stock stuff and replacing it so it was basically starting with a fresh motor.

EODFD3S

iTrader: (9)

Picked up a few goodies in the past few weeks and made some progress!

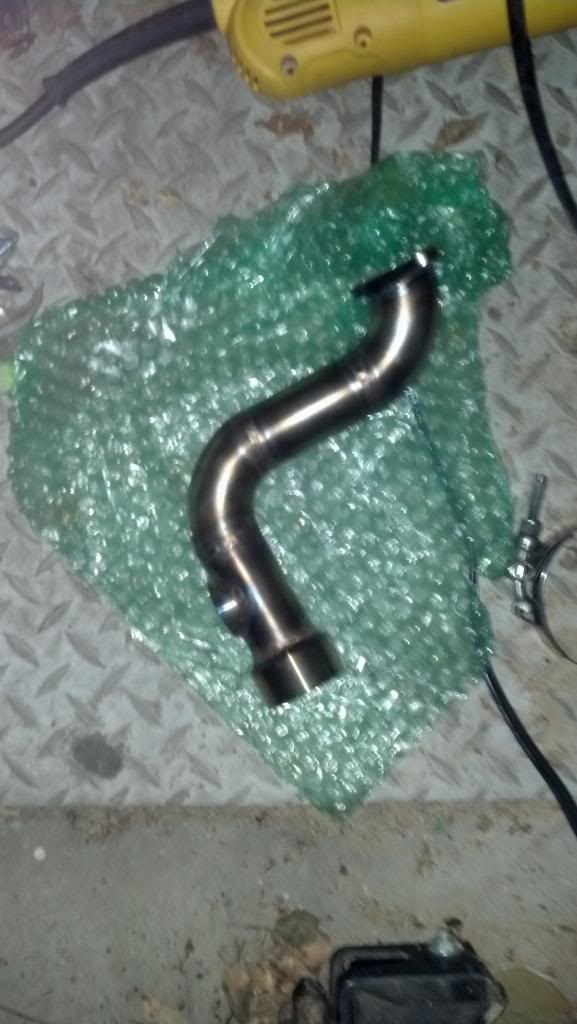

IRP Oil filler neck which im going to have powder coated not sure what color yet, any suggestions are welcome, the uim and lim are red.

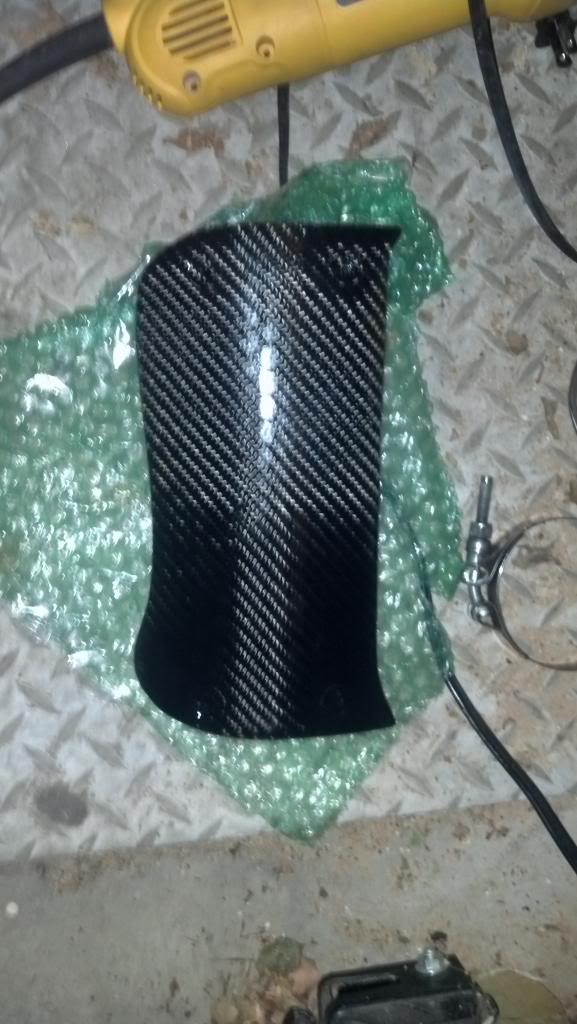

Also picked up a carbon exhaust shield from the guys at Hot Water Labs mmmmmm Carbon

EODFD3S

iTrader: (9)

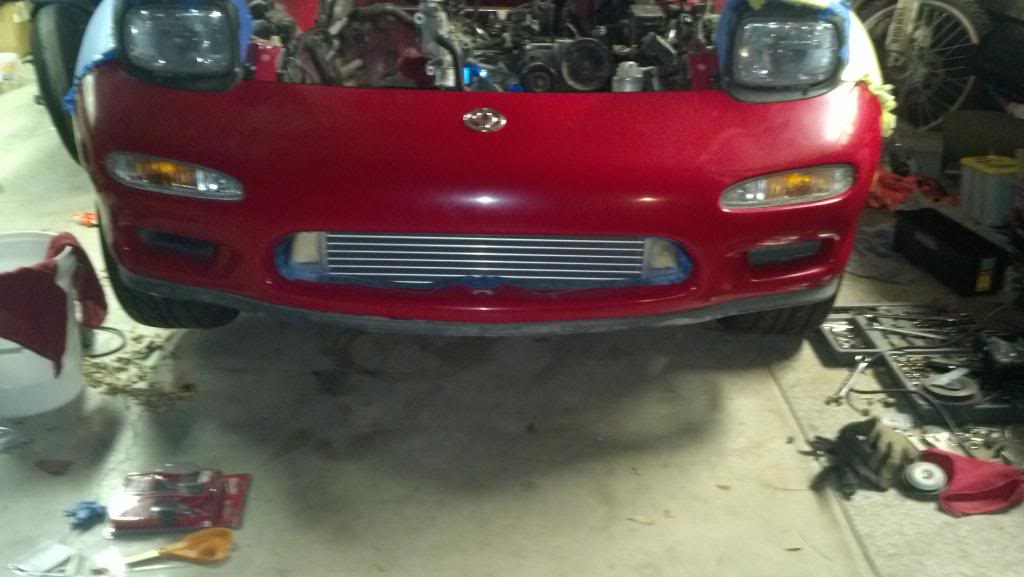

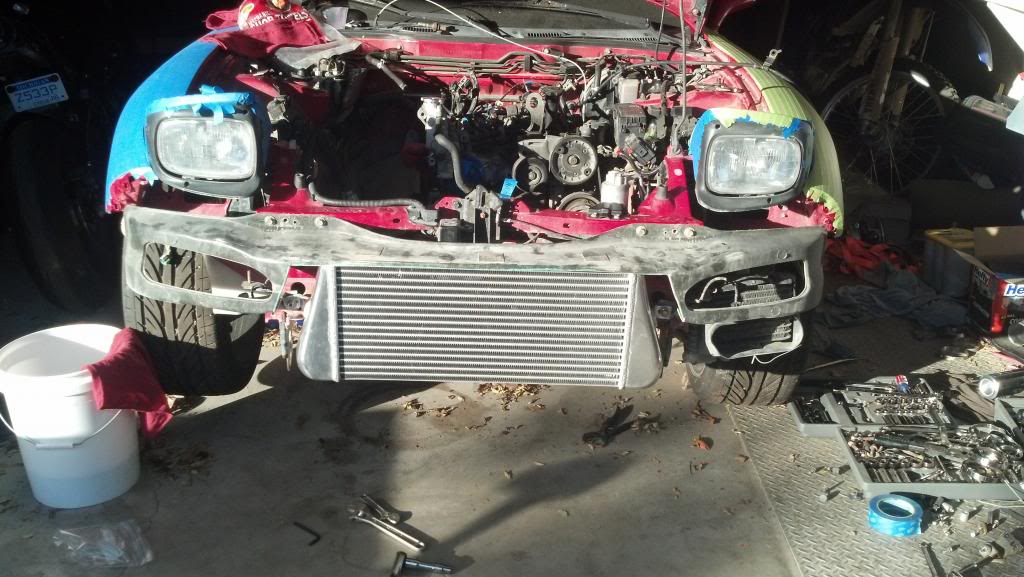

Installed a rx7 store FMIC!

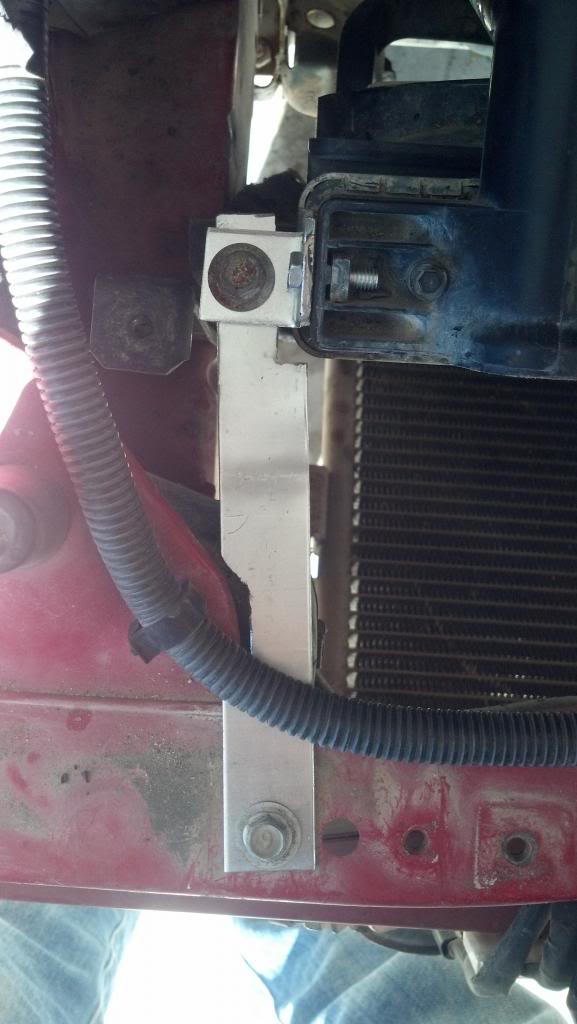

had to fab up my own little bracket because the kit was missing one. no prob!

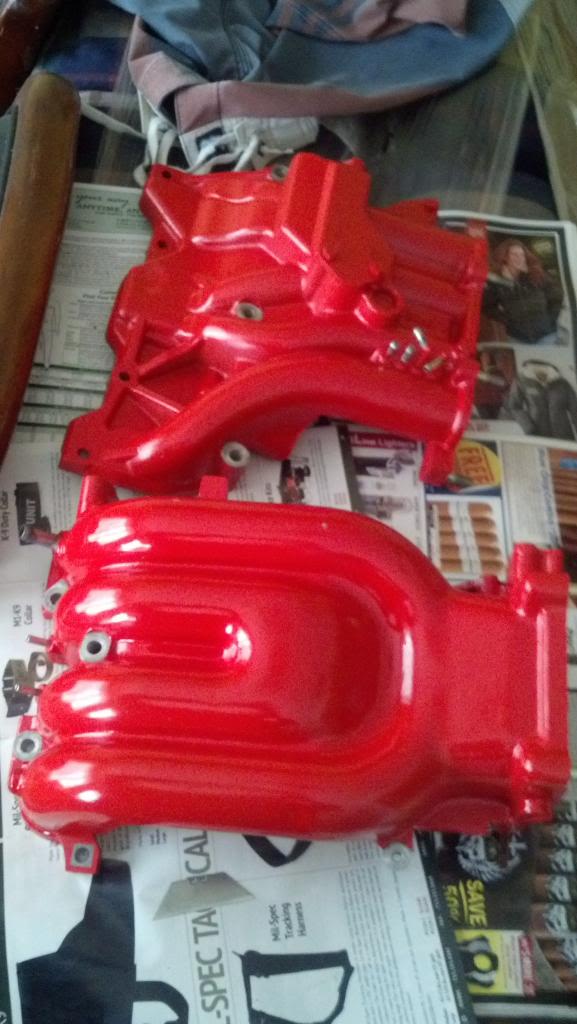

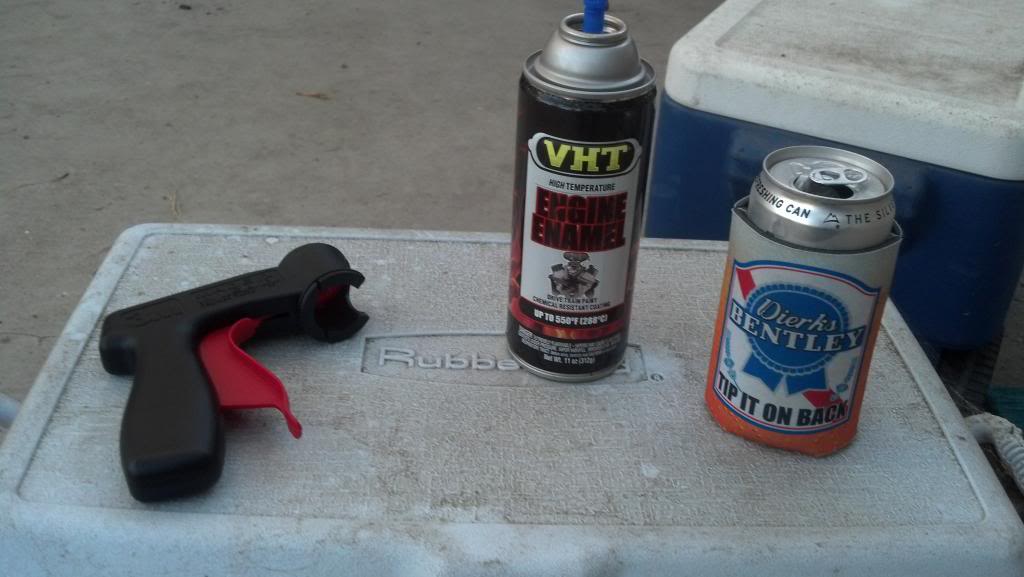

And painted the UIM LIM. this is how it started

This is how it ended

EODFD3S

iTrader: (9)

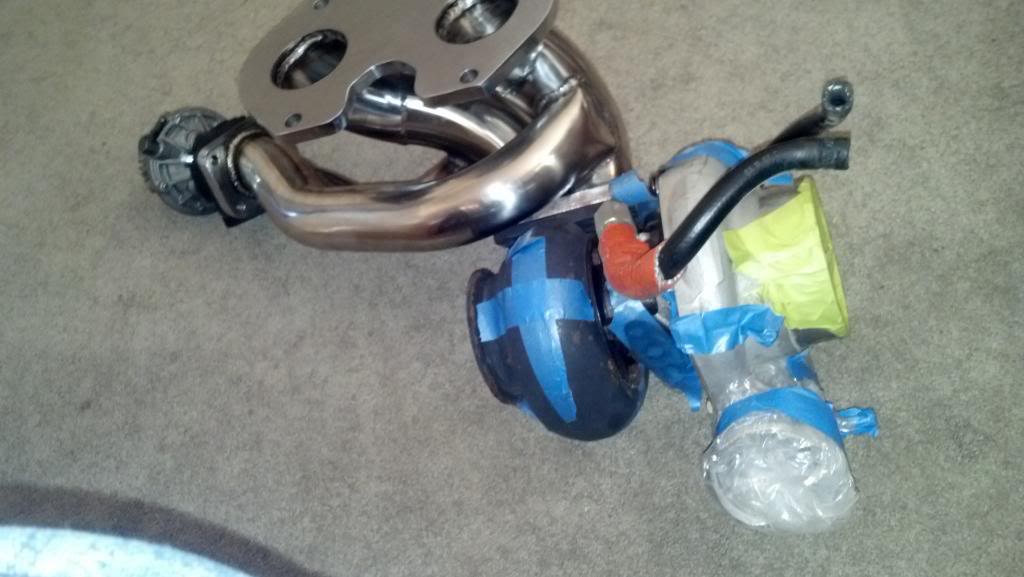

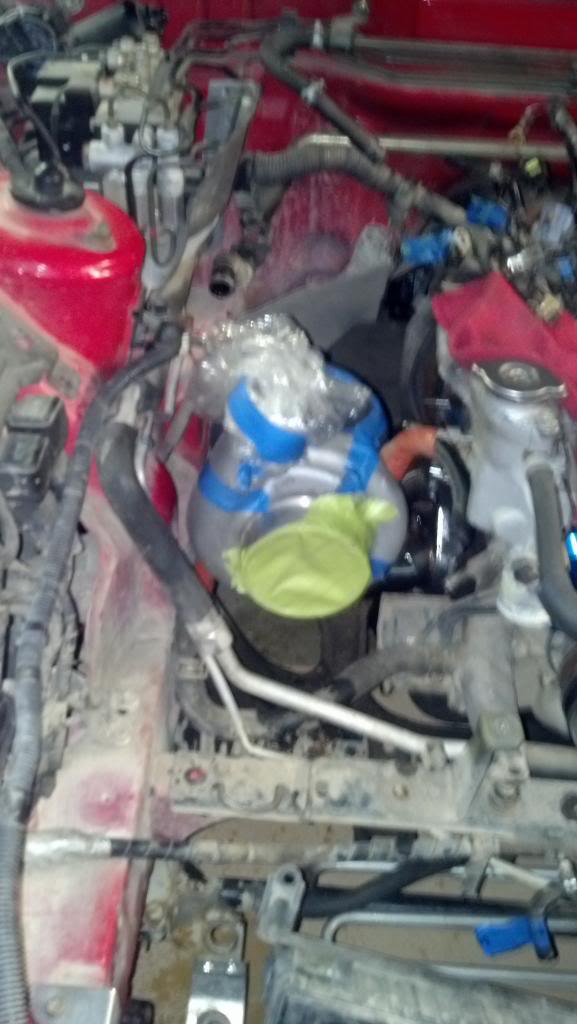

Did a test fit of the manifold and turbo as well. Found out the heater hardline will need to be re routed...... and how to do it i have no idea where to run it ol
But im pretty excited its all starting to come together!
So i need to source some fuel parts and clean the **** out of the engine ay and make it shiny!!!!

TpCpLaYa

iTrader: (10)

looking good! Do those wheels some justice and clean/paint the calipers....it will make a world of difference

EODFD3S

iTrader: (9)

Definitely plan on it, gotta get her up and running first and then the plan is to do red calipers with black mazda, and cross drilled and slotted rotors!
