DREAM PROJECT CAR - SUPER RARE FEED Afflux v5 Wide Kit!!
#176
Well I am glad you found the build thread after seeing the YouTube video. A lot has happened since the car left Japan!
Thank you for reading, I do appreciate your comment!
Also I got your PM - I will be in touch
Last edited by FEED AFFLUX v5; 07-31-18 at 08:44 AM.
The following users liked this post:
tox (07-31-18)
#177
Hey Jim - Thank you for the comment, but also a much bigger thank you for your support - you have already helped me a lot in this project and I really do appreciate it
Now I feel like I need to buy some cooler sunglasses for driving
Last edited by FEED AFFLUX v5; 07-31-18 at 08:43 AM.
#178
Some Interesting Lighting.....
After being cooped up due to forest fire smoke for the past two months, I finally managed to get out for a drive over the weekend

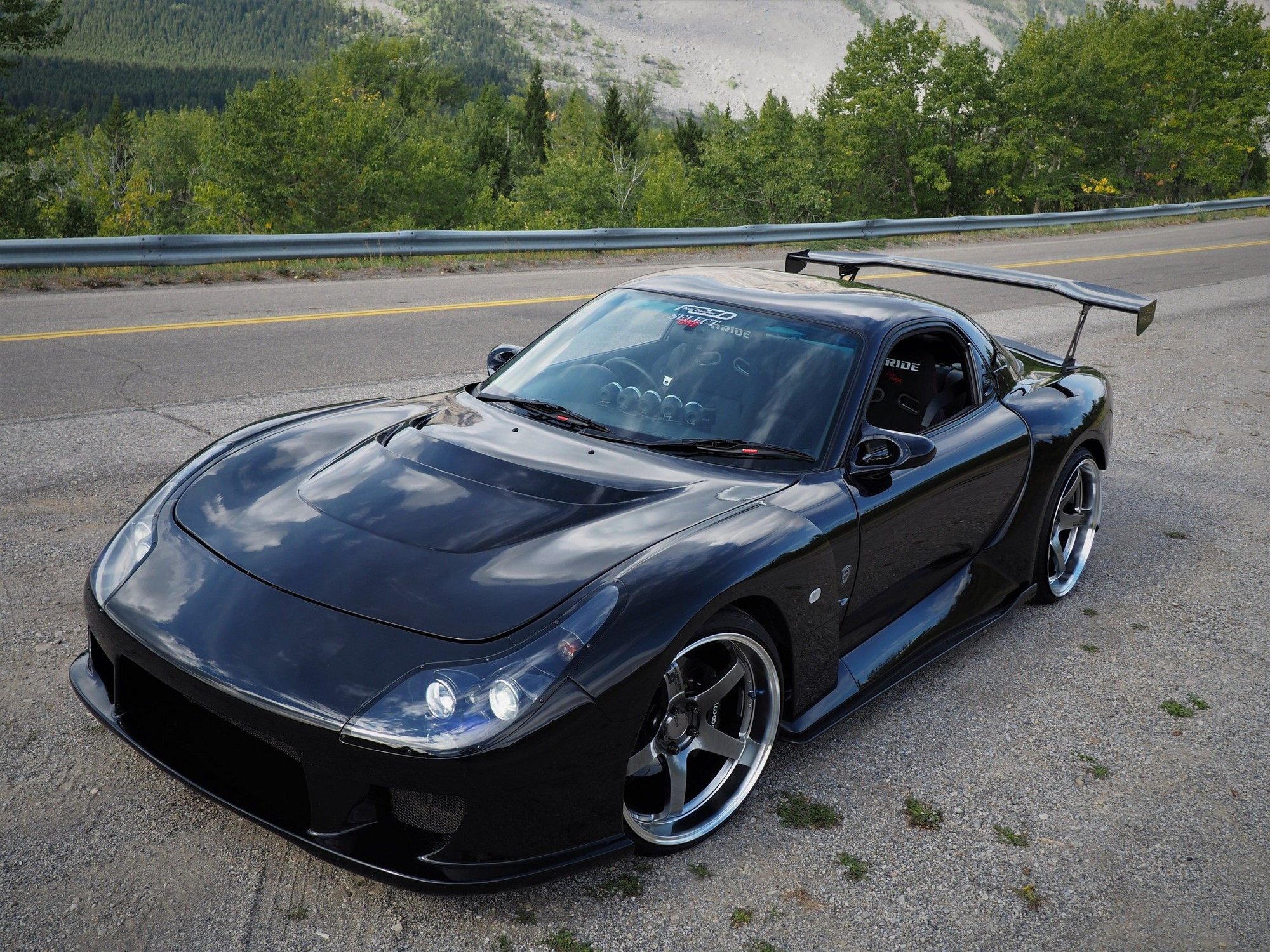

I was quite happy to finally to catch the early morning light to show off the sparkle in the paint:
Early morning sparkle!
Early morning sparkle!
I was quite happy to finally to catch the early morning light to show off the sparkle in the paint:
Early morning sparkle!
Early morning sparkle!
Last edited by FEED AFFLUX v5; 09-10-18 at 09:21 PM.
The following users liked this post:
tox (09-17-18)
#182
I actually did not relocate/hide any fuses etc in there. There is plenty of room, but I am not sure how hot those headlight ballasts etc get.
Thanks for the photo! The car looks great! I know Kenneth was concerned about it arriving safely, I am sure he will be very happy to know it arrived in one piece.
So what are your plans? I hope you keep us all posted with a build thread here!
#183
Just try me
Believe it or not, they are aluminium with a carbon fiber 3M or similar sheet stuck on top. They actually don't look too bad, even up close. My future plan is to remove them and to have one large piece made to wrap around the front of the intercooler and up the sides to clean things up.
I actually did not relocate/hide any fuses etc in there. There is plenty of room, but I am not sure how hot those headlight ballasts etc get.
Thanks for the photo! The car looks great! I know Kenneth was concerned about it arriving safely, I am sure he will be very happy to know it arrived in one piece.
So what are your plans? I hope you keep us all posted with a build thread here!
I actually did not relocate/hide any fuses etc in there. There is plenty of room, but I am not sure how hot those headlight ballasts etc get.
Thanks for the photo! The car looks great! I know Kenneth was concerned about it arriving safely, I am sure he will be very happy to know it arrived in one piece.
So what are your plans? I hope you keep us all posted with a build thread here!
Good point about the heat, may test the waters with that one.
My plans are recoop from the expenditure....... Going to go LT4 long term, so won't get much love here....
Cheers Neil
#184
Going to have to get settled carbon to attach to it then �� I took the intercooler and rad off last night, so found all the carbon 3M attached to aluminium for the ducting, the undertray is a work of art ��
Good point about the heat, may test the waters with that one.
My plans are recoop from the expenditure....... Going to go LT4 long term, so won't get much love here....
Cheers Neil
Good point about the heat, may test the waters with that one.
My plans are recoop from the expenditure....... Going to go LT4 long term, so won't get much love here....
Cheers Neil
Well an engine swap is not my preference, but bottom line is it's YOUR car so do whatever YOU want!
A quality build is just that, regardless of what you are doing. Most of people hate large GT style wings on a 7, also 20" rims, but I love them! Whatever you do I hope you document a build thread somewhere, I know I will be subscribing
Last edited by FEED AFFLUX v5; 09-15-18 at 11:44 AM.
#185
<1000km driven and, well, @$%#!
Well I guess some days all you can do is laugh
A couple of weeks ago I took the car out for what turned out to be a very short drive.........under very light throttle climbing a hill I developed some odd boosting / acceleration response issues. I pulled over and shut off the car as soon as was safe and got a tow home.

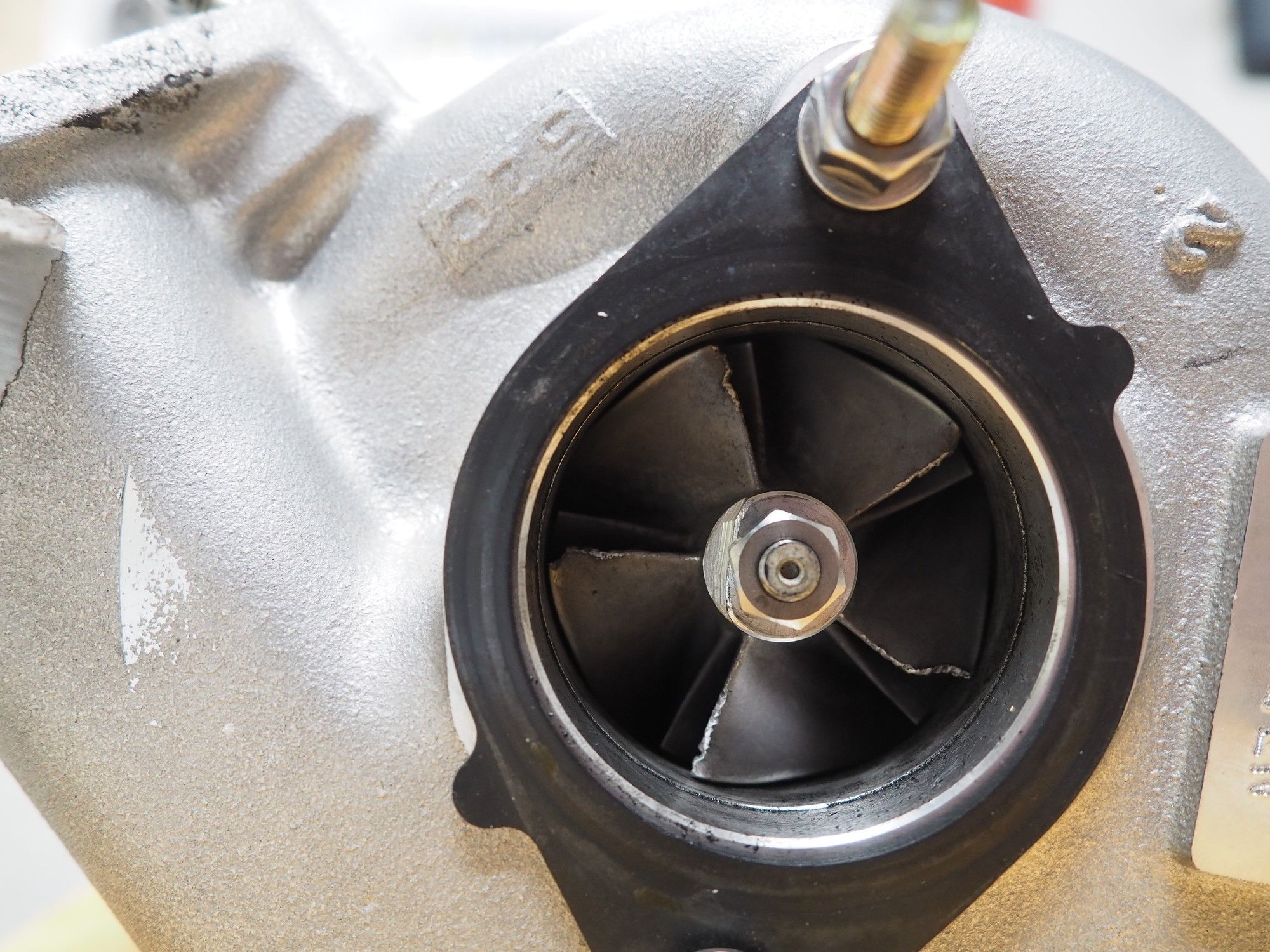

Turns out I broke the rear turbo on my BRAND new twins....talk about déjà vu
Talk about déjà vu
CRAP! NOT AGAIN!
*
A couple of weeks ago I took the car out for what turned out to be a very short drive.........under very light throttle climbing a hill I developed some odd boosting / acceleration response issues. I pulled over and shut off the car as soon as was safe and got a tow home.
Turns out I broke the rear turbo on my BRAND new twins....talk about déjà vu
Talk about déjà vu
CRAP! NOT AGAIN!
*
Last edited by FEED AFFLUX v5; 09-28-18 at 08:53 PM.
#188
Plastic? This really confused me. The only plastic I could think of was the inside shell of my HKS intakes.
So I pulled those and they were not damaged, but they also has some plastic shards inside them, now I was really confused.
Well I found the source of the plastic, and I guess I must be in big trouble with Karma, because how often do you see one of these fail?
How unlucky am I? When was the last time one of these failed?
So I pulled those and they were not damaged, but they also has some plastic shards inside them, now I was really confused.
Well I found the source of the plastic, and I guess I must be in big trouble with Karma, because how often do you see one of these fail?
How unlucky am I? When was the last time one of these failed?
Last edited by FEED AFFLUX v5; 09-28-18 at 04:48 PM.
#190
Rotary Motoring
iTrader: (9)
7_rocket
Since the season is coming to a close. Go single turbo in spring/summer next year. Best thing you can do to these cars
Since the season is coming to a close. Go single turbo in spring/summer next year. Best thing you can do to these cars
The damage to the compressor wheel doesn't look too bad. Might just need a new compressor wheel and or compressor housing if the plastic abradable seal area is damaged.
Several aftermarket companies (Turbosmart, TMS, Forge, Tomei, GFB, etc) and at least one OEM (Supra had one) make metal BOV with the proper 20mm inlet and outlet and configuration that I believe could replace the stock Charge Relief Valve (2ndary turbo) or Air Bypass Valve (primary turbo/BOV).
Thanks for posting, this makes me so paranoid
#192
Going single can be a huge project in itself.
The damage to the compressor wheel doesn't look too bad. Might just need a new compressor wheel and or compressor housing if the plastic abradable seal area is damaged.
Several aftermarket companies (Turbosmart, TMS, Forge, Tomei, GFB, etc) and at least one OEM (Supra had one) make metal BOV with the proper 20mm inlet and outlet and configuration that I believe could replace the stock Charge Relief Valve (2ndary turbo) or Air Bypass Valve (primary turbo/BOV).
Thanks for posting, this makes me so paranoid
The damage to the compressor wheel doesn't look too bad. Might just need a new compressor wheel and or compressor housing if the plastic abradable seal area is damaged.
Several aftermarket companies (Turbosmart, TMS, Forge, Tomei, GFB, etc) and at least one OEM (Supra had one) make metal BOV with the proper 20mm inlet and outlet and configuration that I believe could replace the stock Charge Relief Valve (2ndary turbo) or Air Bypass Valve (primary turbo/BOV).
Thanks for posting, this makes me so paranoid
If I do stick with the twins, I will be eliminating the stock BOV & CRV.
Sorry for the paranoia....I just do not want anyone else to be in this situation. Perhaps if someone finds an all metal direct replacement for these, this modification might be once of the reliability mods along side replacing the stock plastic AST.
Thanks man, really bad luck.....two sets of twins n <1,000km......trying to work out what the universe is telling me here I have 8 months now to get ready for spring....it's already snowing here!
#193
Rotary Motoring
iTrader: (9)
Perhaps if someone finds an all metal direct replacement for these, this modification might be once of the reliability mods along side replacing the stock plastic AST.
The following 2 users liked this post by BLUE TII:
FEED AFFLUX v5 (09-29-18),
Narfle (09-29-18)
#198
Rotary Motoring
iTrader: (9)
My thought for the CRV was to use a metal 90 degree 20mm BOV upside down using the stock 90 degree rubber hose and then plumb the valve outlet directly into the 2ndary turbo inlet pipe right above it.
Same routing as stock, but further up stream which should help keep it quiet. The more direct recirc. might help a tiny bit with transition as well.
Because of how tight the space is between the 2ndary turbo outlet pipe in the CRV inlet area and the ABS heat shielding, you pretty much have to use the stock 90 degree rubber hose for the inlet to the CRV.
Same routing as stock, but further up stream which should help keep it quiet. The more direct recirc. might help a tiny bit with transition as well.
Because of how tight the space is between the 2ndary turbo outlet pipe in the CRV inlet area and the ABS heat shielding, you pretty much have to use the stock 90 degree rubber hose for the inlet to the CRV.
The following users liked this post:
Narfle (10-02-18)
#199
So it might be a good idea to check everything in the intake path to the turbo's and the inter-cooler.
Had to add....Pettit is a great guy, he'll spend the time on the phone to help.....and 30 years experience on Mazda rotary's ....he knows his business!
Last edited by Greg Sabol; 10-08-18 at 03:11 PM.
#200
Rotary Motoring
iTrader: (9)
I had some questions about the kit so I called Pettit and thought I'd pass on his info to you. He said the two blow off valves only blow air one way....out of the turbo, not in. He said he didn't think it was possible for the turbo to ingest bits from either one of the blow off valves.
The HKS intake pipes the OP is using have the CRV recirculated back into the turbo inlet pipe after the filter, so anything coming out of the CRV valve is going into the turbo.
The following users liked this post:
Greg Sabol (10-10-18)
