Bluedevil87

Hi all my name is edgar I've had a couple friends tell me to do a build thread so here I go Im building a fd to compete in 1/2mi(200mph+ goal)&1/4mi(8s are my goal) so a 8pt roll cage is going in next month oh and all this while rocking a rocketbunny kit while doing a little bit of show and go the kit arrives stateside next month, now on to the motor I bought the car with a 20b in it already that was "supposed to be street ported and pinned so I opted to drop the manual and go with a built chevy 350 trans BW S480 turbo she has 9 injectors (6)2200cc and (3) 1200cc in the plates fueled by a weldon and all controlled by a microtech lt16 I had my boy Jesus from Time Machines Racing tune the car and we got 768whp at 26psi the joy was short lived first test drive I cracked the center plate FML pulled the motor and guess what no pins FTL oh well that's on me I should have opened the motor so now I'm going all out semi per. street ported pinned and so me other special goodies new goal is 1000whp by April the first 1/2mi event I'll be attending Shift Sector in Coalinga CA I'll be posting some pics shortly I'll gather them then post any what's thanks for reading my poor grammar and long novel

Bluedevil87

On to the pics
[IMG][/IMG]
[IMG]
[/IMG]
[IMG][/IMG]

Bluedevil87

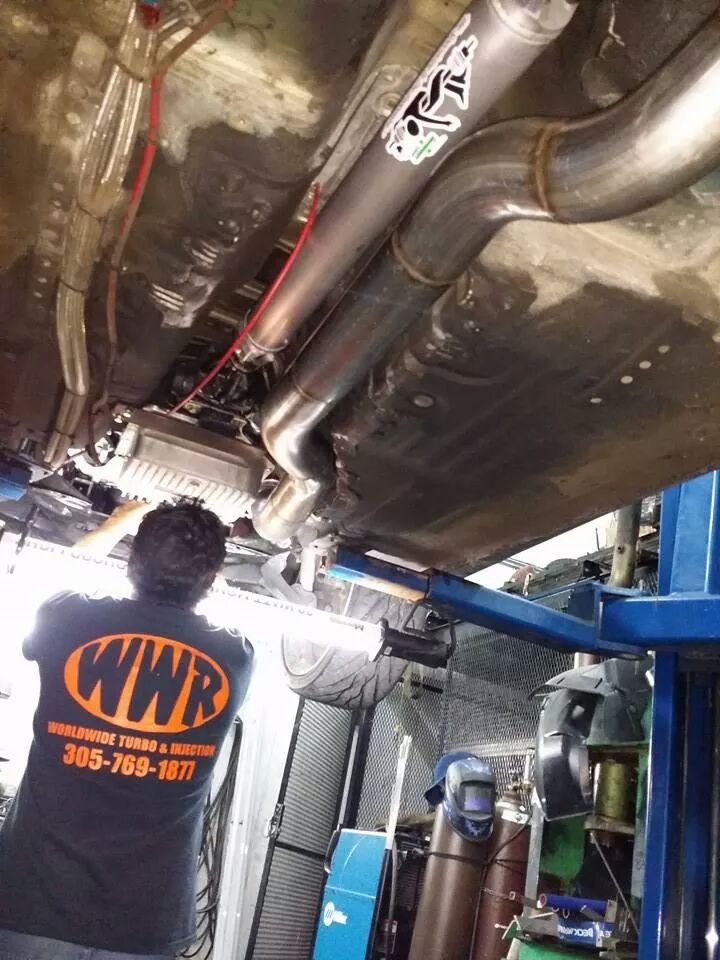

All the fab work was done by my room mate Alejandro from Whorls Wide Racing
[IMG][/IMG][IMG][/IMG]MG_66993691548298_zps0cea2659.jpeg.html][/IMG]

[IMG][/IMG]

04G35S

iTrader: (10)

Damn thats a nice setup! You should list all the mods.

Bluedevil87

OK let me see if I remember lol new setup will be
Semi peripheral & street ported motor by TMR
Modded lower intake for 6 injectors custom fuel rail by WWR
Custom fuel rail for 3 lower injectors by WWR
6) Bosch 2200cc
3) Bosch 1200 cc
Aeromotive FPR
Aeromotive fuel pump controller for cruising on the street
Weldon fuel pump
BW s480
Custom 4" TBE with a Burns muffler by WWR
Custom IC pipes by WWR polished
Tial BOV
PTE wastegate
Mashimoto Rad with custom metal hose with -12 fittings by WWR
Flexalite dual fans
6msd small black boxes with black wires
Polished alternator
Chevy 350 trans with 2 coverters one for street 3500stall and one with 5000 stall for drag
Bandit ratchet polished shifter
Oil cooler for trans with built in fan and custom bracket by WWR
WELD 15" 8.5"rears wrapped in MT 275x
WELD 17" 4" fonts skinnys
Custom kw race coilovers that are being made
8pt cage that will certify 8.5
Status fixed bucket seats with carbon backing on order still need to finish cage first lol
Racepac with just about all the sensors
DSS driveline
DSS Axles
8.8 independent rear kit still deciding on gears input would be greatly appreciated I want to at least have enough gears for 220MPH at 9k
ABS delete
Weight reduction I want a 2700 lb race weight and I weigh 200lbs lol
Microtech 16 tuned by TMR
Wiring done by Karel from WWR
Rocketbunny kit
I'll be making a set of ccw classics for the car once the kit is on too for the street
I think that's it car will be fully shot again
I'm sure I'm missing things I'll update once I remember lol

04G35S

iTrader: (10)

Wow that is an impressive list! Are you running a fuel cell?

brad89au

any pictures of your LIM and what you done for the semi pp runners? setup looks killer

Bluedevil87

Nope stock tank just Modded so that pickup is at the back [IMG][/IMG]
Not picks of the semi per yet once in back in FL next week I'll be taking the intake and plates over to the machine shop I'll add some pics then ��

04G35S

iTrader: (10)

huh... I may have to look into a setup like that!

Bluedevil87

I'm really happy the car is made some great power for just a street port I can only imagine now with the semi I would highly recommend this setup it should be a monster on the street
